Description
The Mishimoto MMINT-RAM-13BK is a Stealth Black, direct-fit intercooler built specifically for the 2013-2018 Dodge Ram 6.7L Cummins straight-six. Constructed with a dense bar-and-plate core and cast aluminum end tanks, this forced induction upgrade is engineered to handle substantial boost pressures while lowering intake air temperatures, whether your Cummins is stock or modified. It replaces the factory unit with larger-than-factory outlets for improved flow through the induction system.
This Mishimoto forced induction intercooler was developed with 76.65-percent greater internal volume and 37.8-percent larger core volume than the factory intercooler, and Mishimoto reports it lowers AIT by 12.5-percent. The end tanks are strategically designed for optimal airflow, and the internal fins are engineered for maximum heat transfer with minimal pressure drop, giving your Cummins induction system the capacity to support more boost without sacrificing reliability. Two silicone boots with Mishimoto’s DuraCore technology and signature Constant Tension T-Bolt Clamps are included for a consistent, leak-resistant seal, and transition couplers are provided so the intercooler works with your stock intercooler pipes.
Vehicle Applications
This intercooler is a specific fit for the 2013-2018 Ram 2500, 2013-2018 Ram 3500, 2013-2018 Ram 4500, and 2013-2018 Ram 5500, as well as the 2013 Ram 4000, all equipped with the 6.7L Cummins. Note that vehicles with snowplow mounts installed may require trimming of the mounts to fit this intercooler.
Features
- Direct fit for the 2013-2018 Dodge Ram 6.7L Cummins

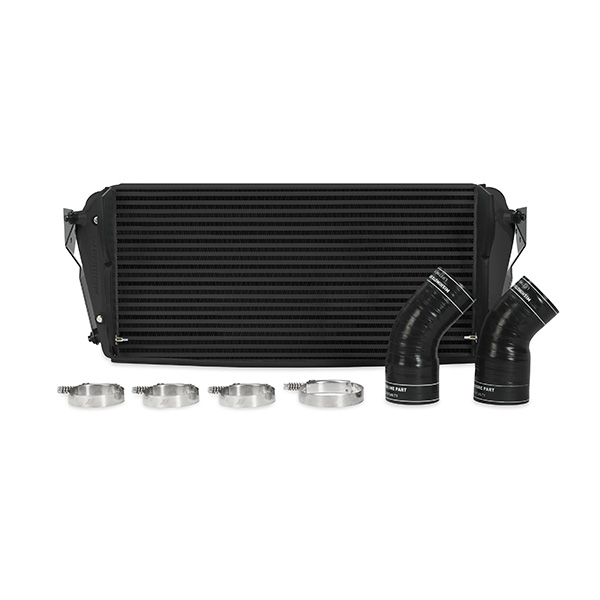

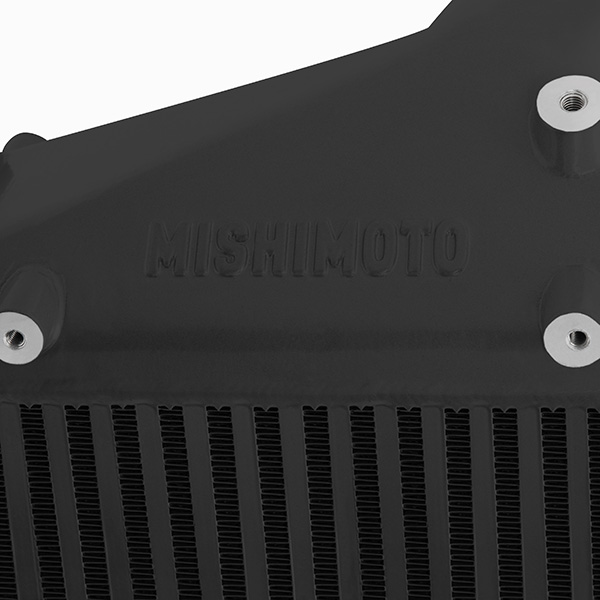

- Bar-and-plate core construction with cast aluminum end tanks
- Lowers AIT by 12.5-percent
- 76.65-percent greater internal volume than factory
- 37.8-percent larger core volume than factory

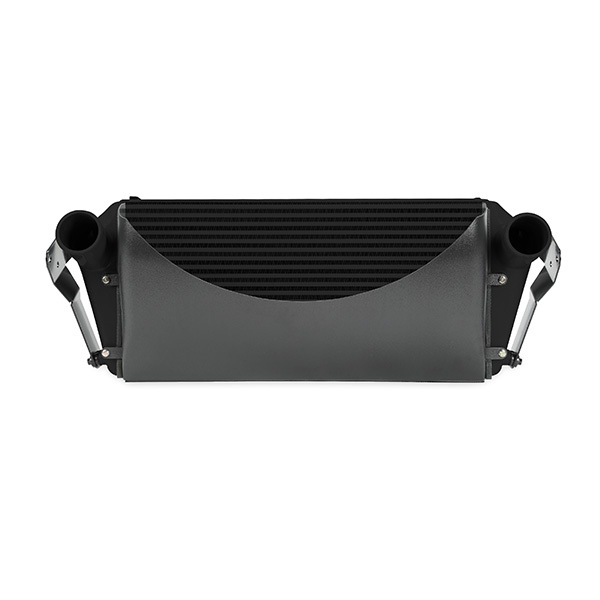

- Includes new air diversion panels and a new lower fan shroud section
- End tanks strategically designed for optimal airflow
- Internal fins designed for maximum heat transfer with minimal pressure drop
- Larger-than-factory intercooler outlets for increased flow

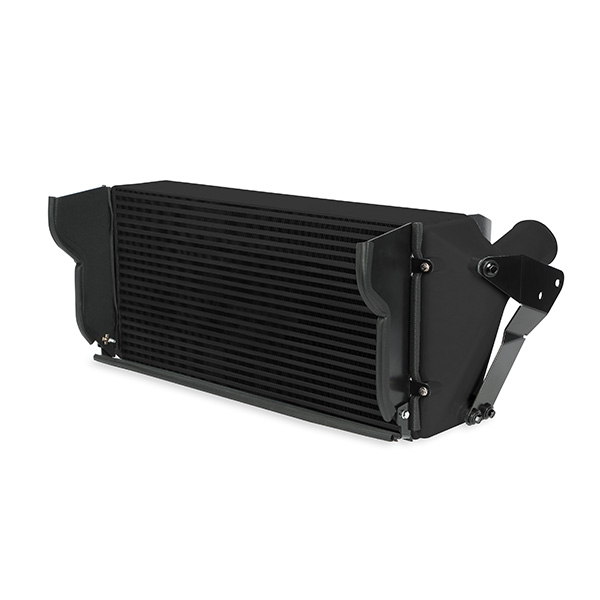

- Includes two silicone boots with DuraCore technology and Constant Tension T-Bolt Clamps
- Includes transition couplers for use with the stock intercooler pipes
- Offered in Sleek Silver or Stealth Black; this listing is the Stealth Black option
- Backed by the Mishimoto Lifetime Warranty
- CARB EO Number D-759-22
Specifications
- Type: Bar-and-Plate
- Core Material: Aluminum
- Inlet Tank Material: Aluminum
- Core Color: Black
- Overall Length: 33 in
- Overall Width: 10 in
- Overall Height: 12.5 in
- Core Height: 12.5 in
- Core Length: 25.7 in
- Grade Type: Performance
- Universal or Specific Fit: Specific
- Inlet Fitting Gender: Male
- Outlet Fitting Gender: Male
- CARB EO Number: D-759-22

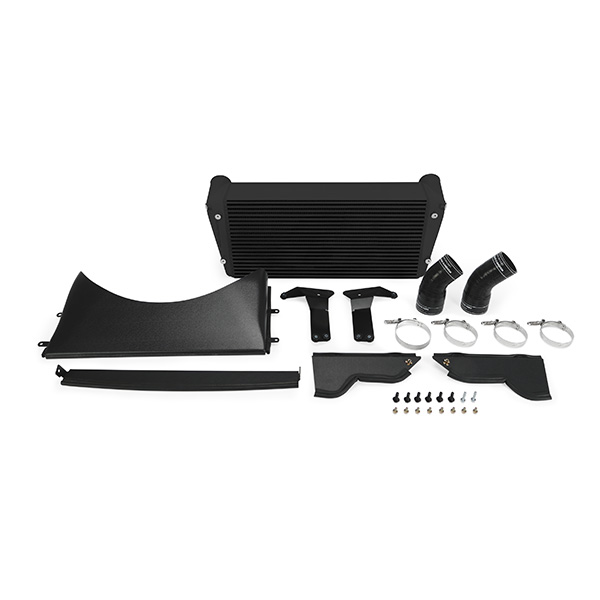

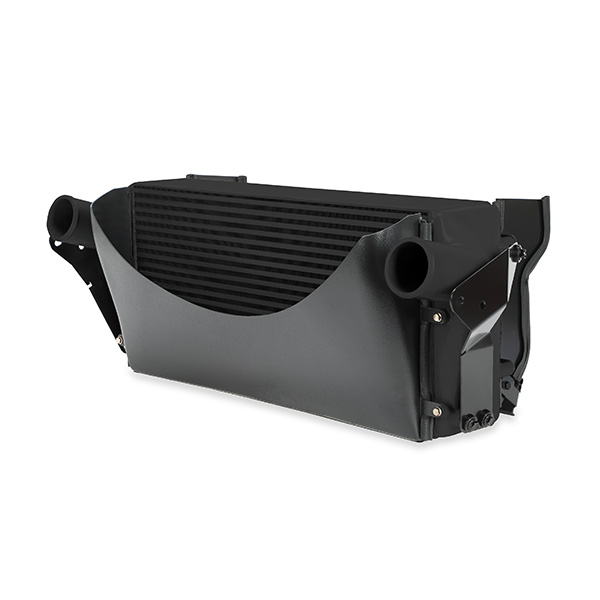

- Includes: (1) Mishimoto Intercooler, (3) Front Air Diversion Panels, (1) Replacement Lower Fan Shroud, (2) Mounting Brackets w/ Rubber Isolators, (2) Silicone Boots with DuraCore Technology, (4) Constant-Tension T-Bolt Clamps, Mishimoto Lifetime Warranty
Frequently Asked Questions
What vehicles does this Mishimoto intercooler fit?
It is a specific fit for the 2013-2018 Ram 2500, 3500, 4500, and 5500, and the 2013 Ram 4000, all with the 6.7L Cummins.
What is included in the box?
This kit includes one Mishimoto intercooler, three front air diversion panels, one replacement lower fan shroud, two mounting brackets with rubber isolators, two silicone boots with DuraCore technology, and four Constant-Tension T-Bolt Clamps, backed by the Mishimoto Lifetime Warranty.
Will this fit a truck with a snowplow mount?
Vehicles with snowplow mounts installed may require trimming of the mounts to fit this intercooler.
What torque should I use on the clamps?
Mishimoto recommends 27 in-lbs (3NM) for all T-bolt and constant-tension T-bolt clamps, which have an operating range of 18-35 in-lbs (2-4NM); do not exceed 35 in-lbs (4NM).
What color is this intercooler?
This listing (MMINT-RAM-13BK) is the Stealth Black core color option; a Sleek Silver option is also available.
Does it have a CARB EO number?
Yes, this intercooler carries CARB EO Number D-759-22.
