Description
The Mishimoto MMINT-RAM-13KBK is a complete performance intercooler kit engineered specifically for the 2013-2018 Dodge 6.7L Cummins, pairing a bar-and-plate intercooler with mandrel-bent aluminum piping and DuraCore silicone boots in a Stealth Black finish. Every component in this kit, from the cast aluminum end tanks to the Constant-Tension T-Bolt Clamps, was engineered together as a single forced induction system rather than a piecemeal upgrade, so your truck’s airflow, sealing, and cooling all improve at once.
As a purpose-built forced induction upgrade, this Mishimoto intercooler kit is designed to improve the efficiency of your truck’s induction system by increasing external fin surface area by 76.65-percent and core volume by 37.8-percent over the factory unit. The result is a proven 12.5-percent reduction in intake air temperatures, delivering cooler, denser air to the engine whether your 6.7L Cummins is stock or modified. The included piping eliminates restrictive factory bends for smooth, unimpeded flow, while the DuraCore silicone boots and Constant-Tension T-Bolt Clamps hold everything together with consistent, reliable sealing under heat and pressure. It’s an induction system upgrade built to support your truck at any power level while standing up to daily use.
Vehicle Applications
This Mishimoto intercooler kit is a specific, direct-fit upgrade for the 2013-2018 Ram 2500, 2013-2018 Ram 3500, 2013 Ram 4000, 2013-2018 Ram 4500, and 2013-2018 Ram 5500, all equipped with the 6.7L Cummins engine. Note that vehicles with snowplow mounts installed may require trimming of those mounts to fit this intercooler.
Features

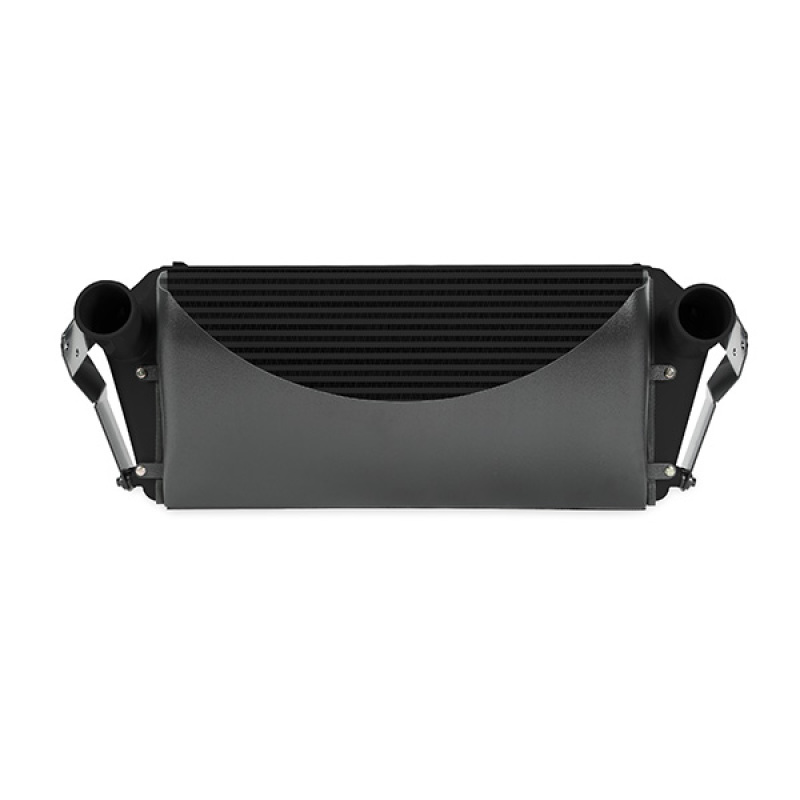

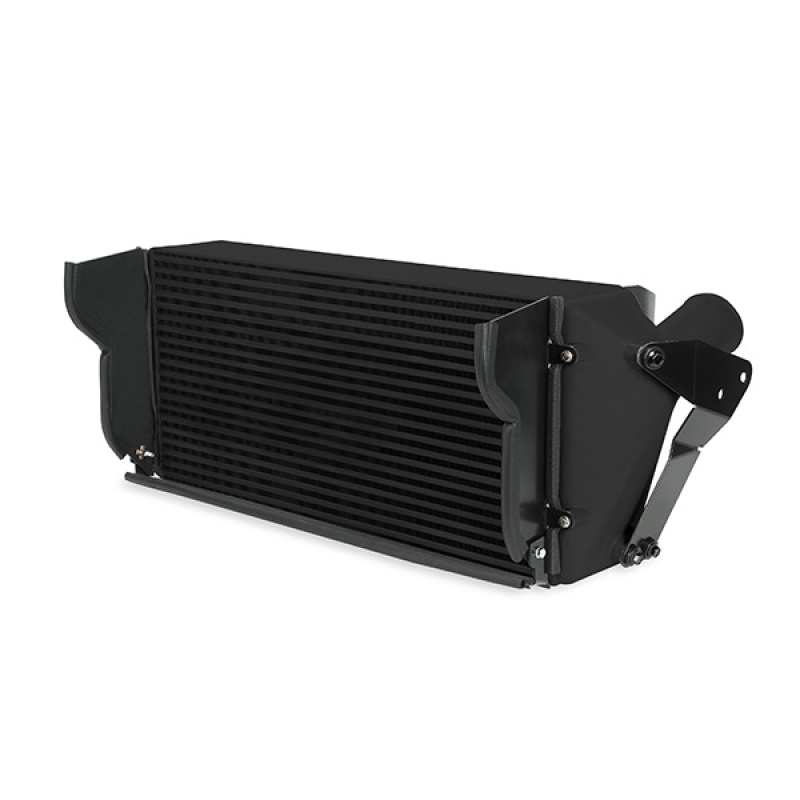

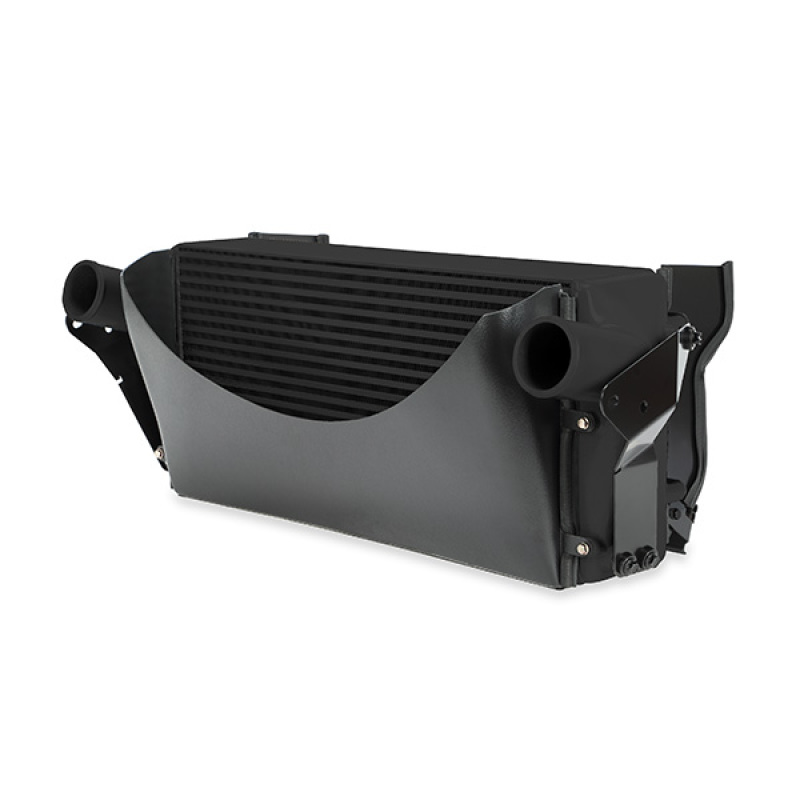

- Mishimoto 6.7L Cummins intercooler with cast aluminum end tanks and bar-and-plate core construction
- 76.65-percent increase in external fin surface area and 37.8-percent larger core than the factory unit
- Reduces intake air temperatures by 12.5-percent
- 3-inch mandrel-bent aluminum intercooler piping with a black powder-coated finish
- Mishimoto silicone boots with DuraCore technology for superior resistance to heat, pressure, fuel, and oil
- Mishimoto Constant-Tension T-Bolt Clamps for accurate, consistent holding force
- Includes three front air diversion panels and a replacement lower fan shroud section
- Two mounting brackets with rubber isolators included
- Offered with a Sleek Silver or Stealth Black core; this kit (MMINT-RAM-13KBK) is the Stealth Black option
- Backed by the Mishimoto Lifetime Warranty
- CARB EO Number D-759-22
Specifications
- Brand: Mishimoto
- Part Number: MMINT-RAM-13KBK
- Product Type: Forced Induction / Intercooler Kit
- Core Material: Aluminum
- Core Construction: Bar-and-Plate
- Core Height: 12.5 in
- Core Length: 25.7 in

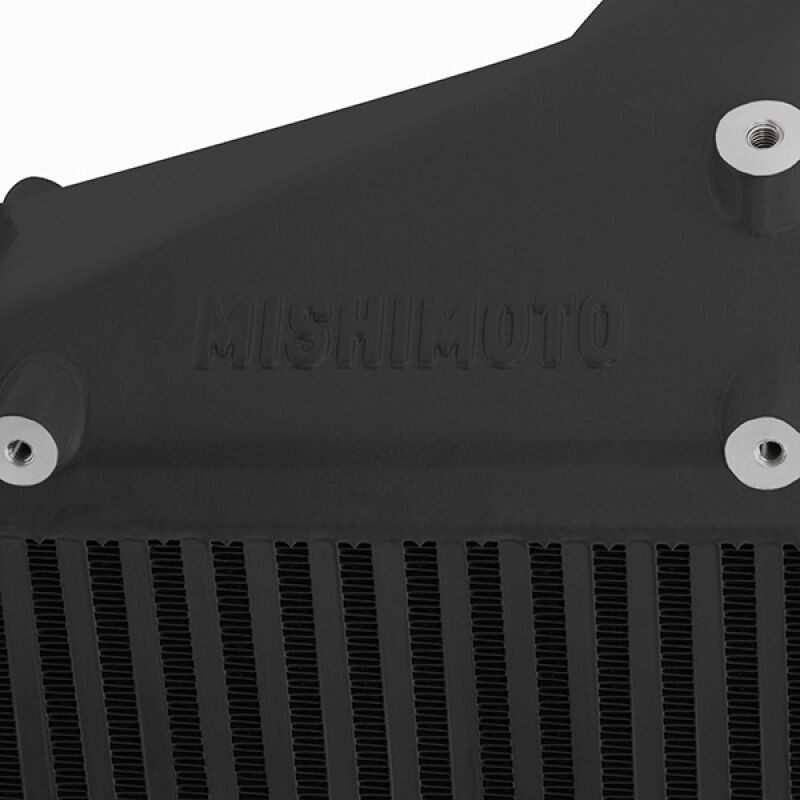

- End Tank Material: Aluminum (Cast)
- Intercooler Type: Air-to-Air
- Pipe Material: Aluminum
- Pipe Color: Black
- Pipe Finish: Powder Coated
- Coupler Material: Silicone
- Coupler Color: Black
- Core Color: Black
- Hose Clamps Included: Yes
- Grade Type: Performance
- Fit Type: Specific
- Overall Width: 10 in
- Overall Height: 12.5 in
- Overall Length: 33 in
- CARB EO Number: D-759-22

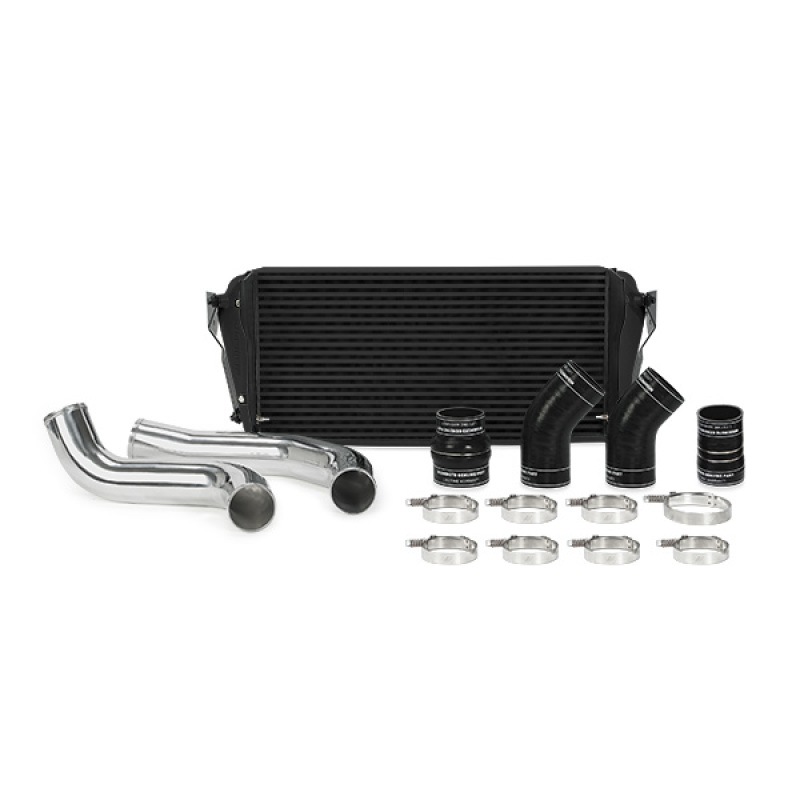

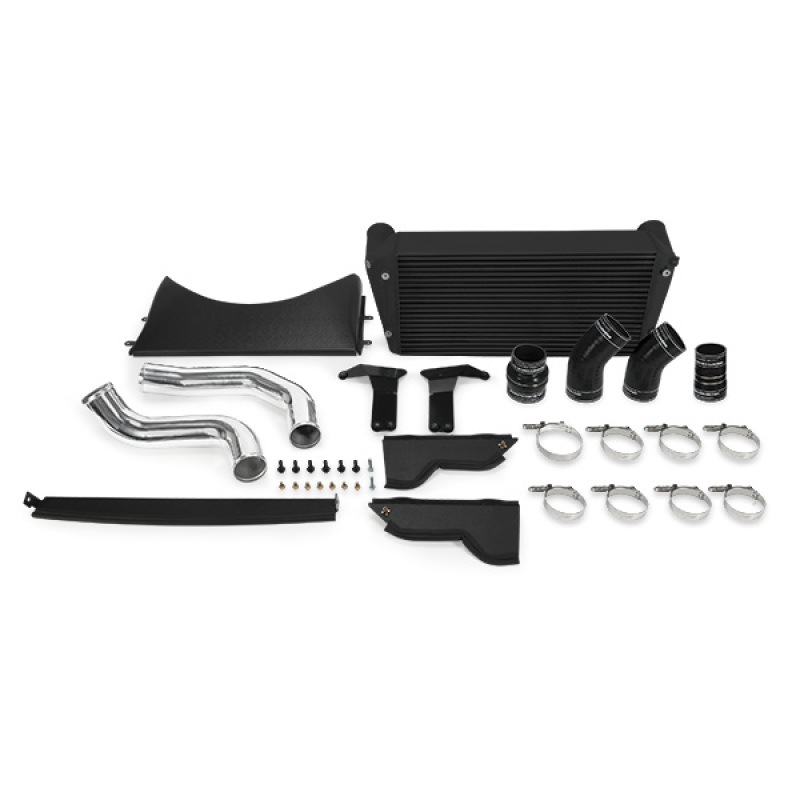

- Includes: (1) Intercooler, (3) Front Air Diversion Panels, (1) Replacement Lower Fan Shroud, (2) Mounting Brackets w/ Rubber Isolators, (2) Aluminum Pipes, (4) Silicone Boots with DuraCore Technology, (8) Constant-Tension T-Bolt Clamps, Mishimoto Lifetime Warranty
Frequently Asked Questions
What vehicles fit the Mishimoto MMINT-RAM-13KBK intercooler kit?
This kit is a specific fit for the 2013-2018 Ram 2500, 2013-2018 Ram 3500, 2013 Ram 4000, 2013-2018 Ram 4500, and 2013-2018 Ram 5500, all equipped with the 6.7L Cummins engine.
How much does this intercooler kit reduce intake air temperatures?
This intercooler is proven to reduce intake air temperatures by 12.5-percent compared to the factory unit.
What is included in the kit?
The kit includes one Mishimoto intercooler, three front air diversion panels, one replacement lower fan shroud, two mounting brackets with rubber isolators, two aluminum pipes, four silicone boots with DuraCore technology, and eight Constant-Tension T-Bolt Clamps, backed by the Mishimoto Lifetime Warranty.
What color options are available?
The Mishimoto 6.7L Cummins intercooler is offered with either a Sleek Silver or Stealth Black core; MMINT-RAM-13KBK is the Stealth Black option.
Are there any installation considerations?
Vehicles with snowplow mounts installed may require trimming of the mounts to fit this intercooler. Mishimoto recommends 27 in-lbs of torque for all T-bolt and constant-tension T-bolt clamps, which have an operating range of 18-35 in-lbs and a maximum rating of 35 in-lbs.
What technology do the silicone boots use?
The included Mishimoto silicone boots feature DuraCore technology, an innermost layer that provides superior resistance to heat, pressure, fuel, and oil compared to normal silicone, extending boot life and helping prevent leaks or blowouts.
