Description

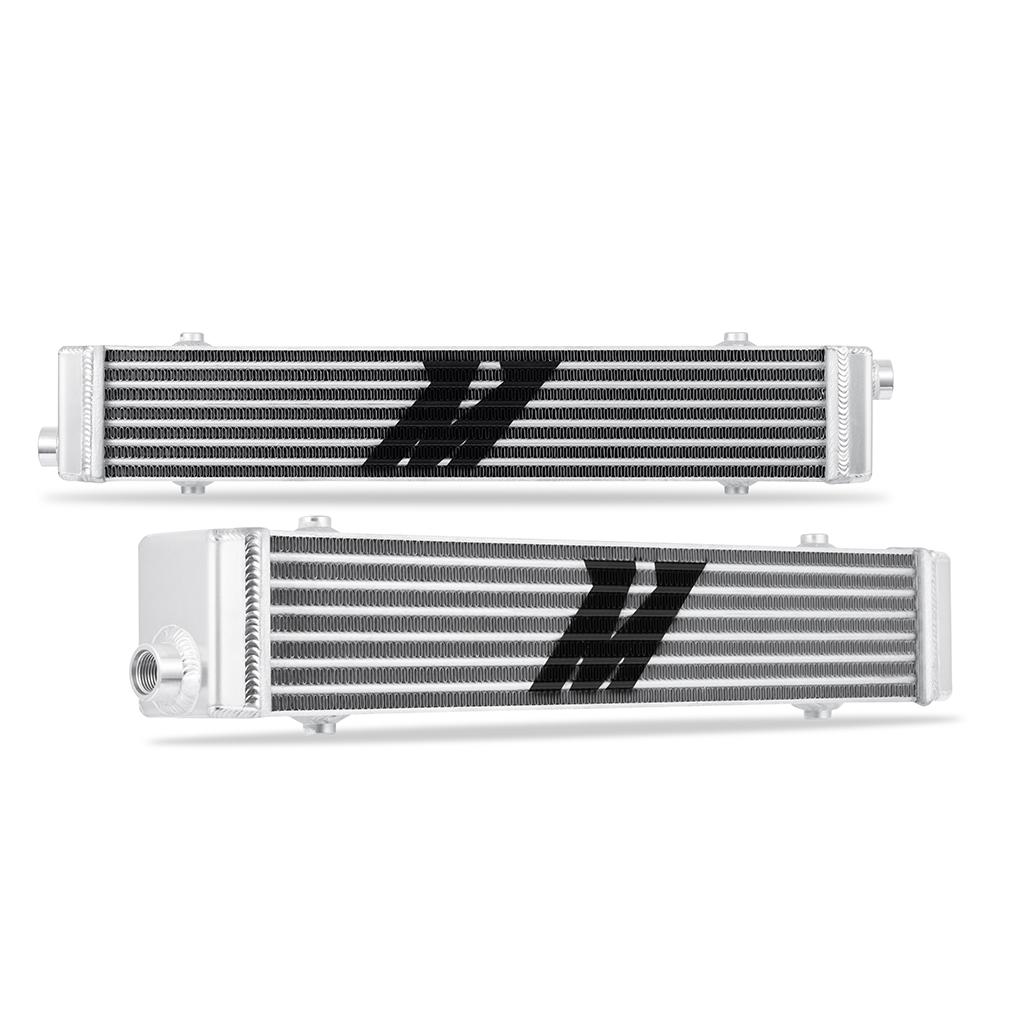

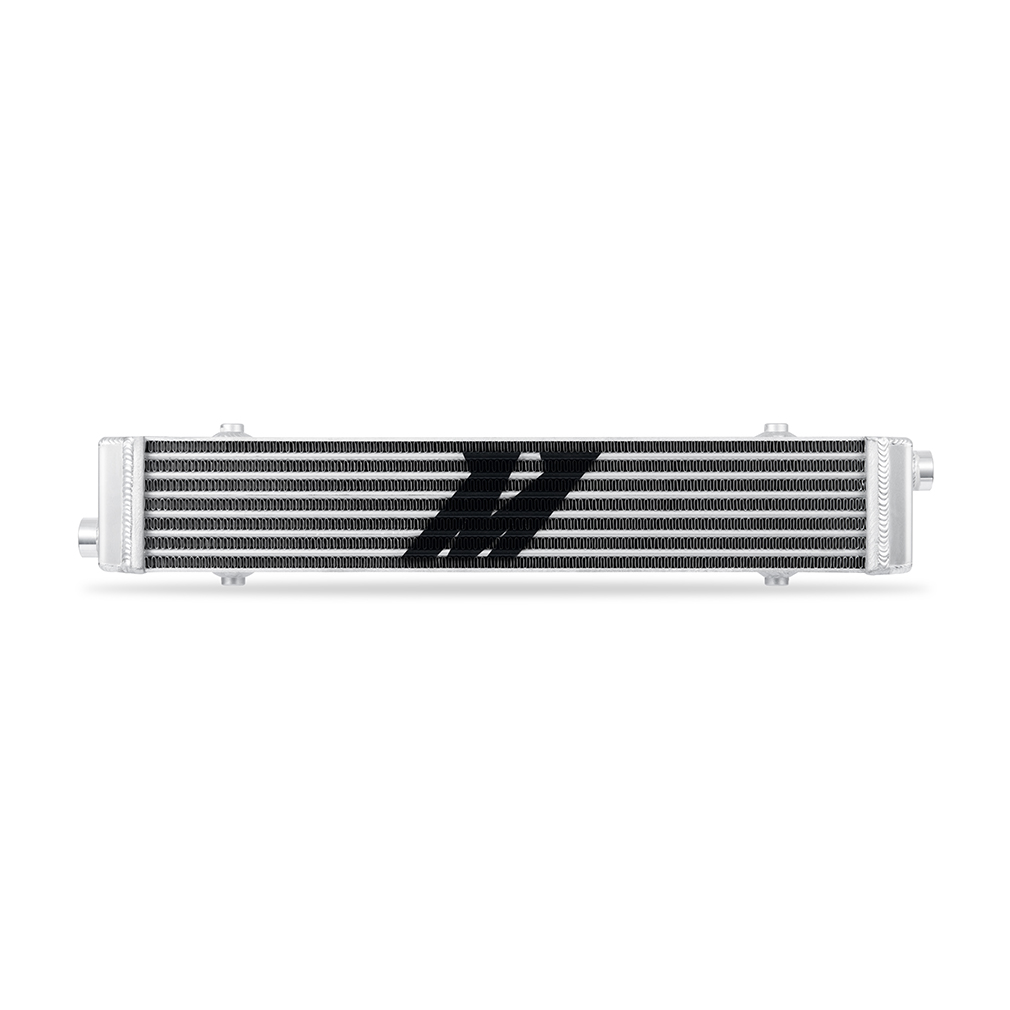

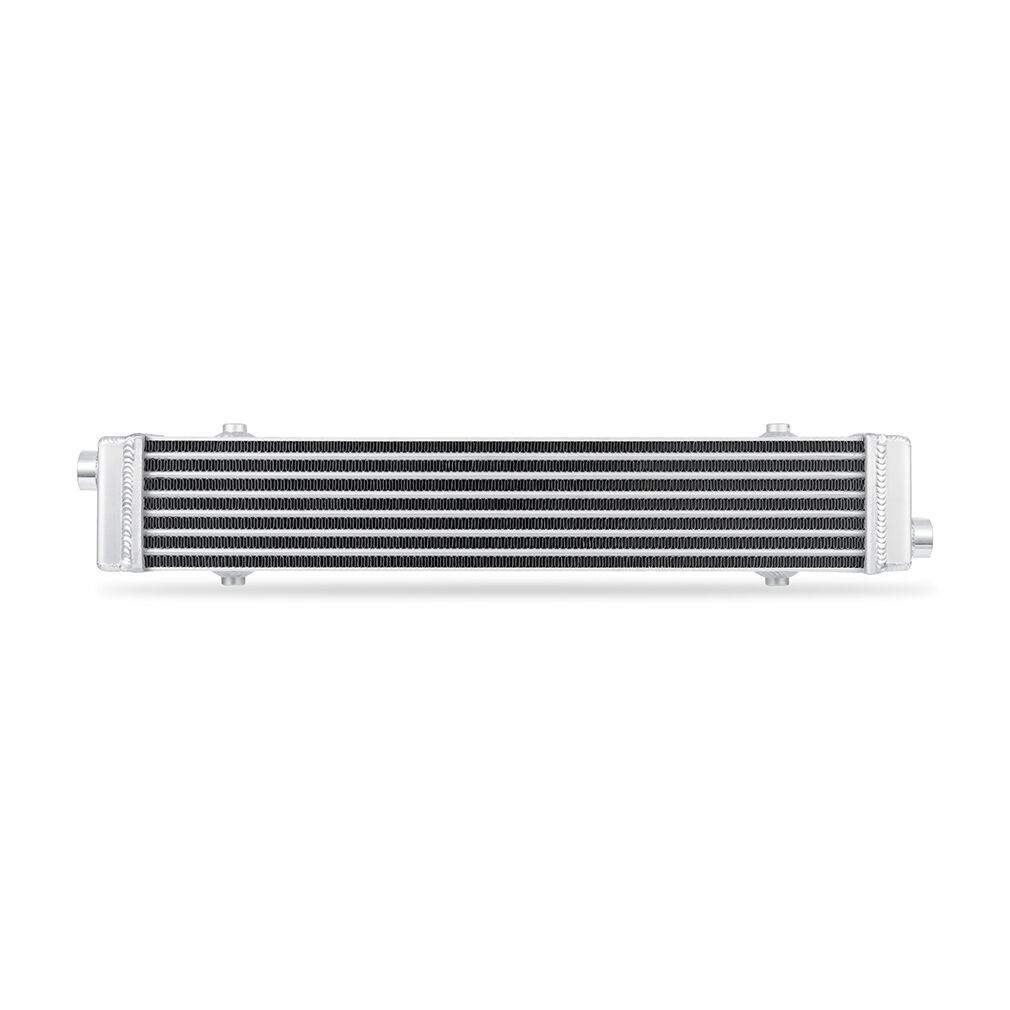

The Mishimoto Tube-and-Fin Crossflow Performance Oil Cooler, part number MMOC-TF589-N, is a purpose-built, no-frills oil cooler engineered around a highly efficient tube-and-fin core. Rounded tube leading edges let incoming air pass through without deflection, while louvered fins force that air to wind through the core and internal turbulators agitate the oil against the tube walls, all working together to maximize heat transfer without adding unnecessary weight.
This Mishimoto oil cooler is built for drivers who want a simple, effective way to keep oil temperature in check under demanding conditions. Its compact, lightweight tube-and-fin crossflow core is efficient enough for high-performance use, and the full-aluminum, TIG-welded end tanks are constructed to resist leaks in harsh underhood or bumper-mount environments. As a genuine Mishimoto cooler, it’s designed to slot into a broader cooling setup alongside Mishimoto’s braided steel lines and -AN fittings for a complete oil cooling solution.
Vehicle Applications
This is a universal-fit Mishimoto oil cooler rather than a vehicle-specific kit — no particular make, model, or year is called out in the product specifications. Its compact 23-inch x 4-inch x 3-inch overall footprint and universal M8x1.25 mounting bosses on the top and bottom of the core are designed to make it straightforward to mount in a front bumper opening or a front cooling stack across a wide range of builds, and its -10 ORB inlet and outlet accept commonly available -10AN adapters, including Mishimoto’s own -10 ORB to -10AN fittings, for flexible plumbing into an existing oil system.
Features
- Tube-and-fin construction for light weight and effective cooling
- Extruded tubes for increased strength and improved airflow
- Louvered fins and turbulated tubes improve heat transfer
- 23-in L x 4-in H x 3-in W overall size ideal for bumper-mounted applications

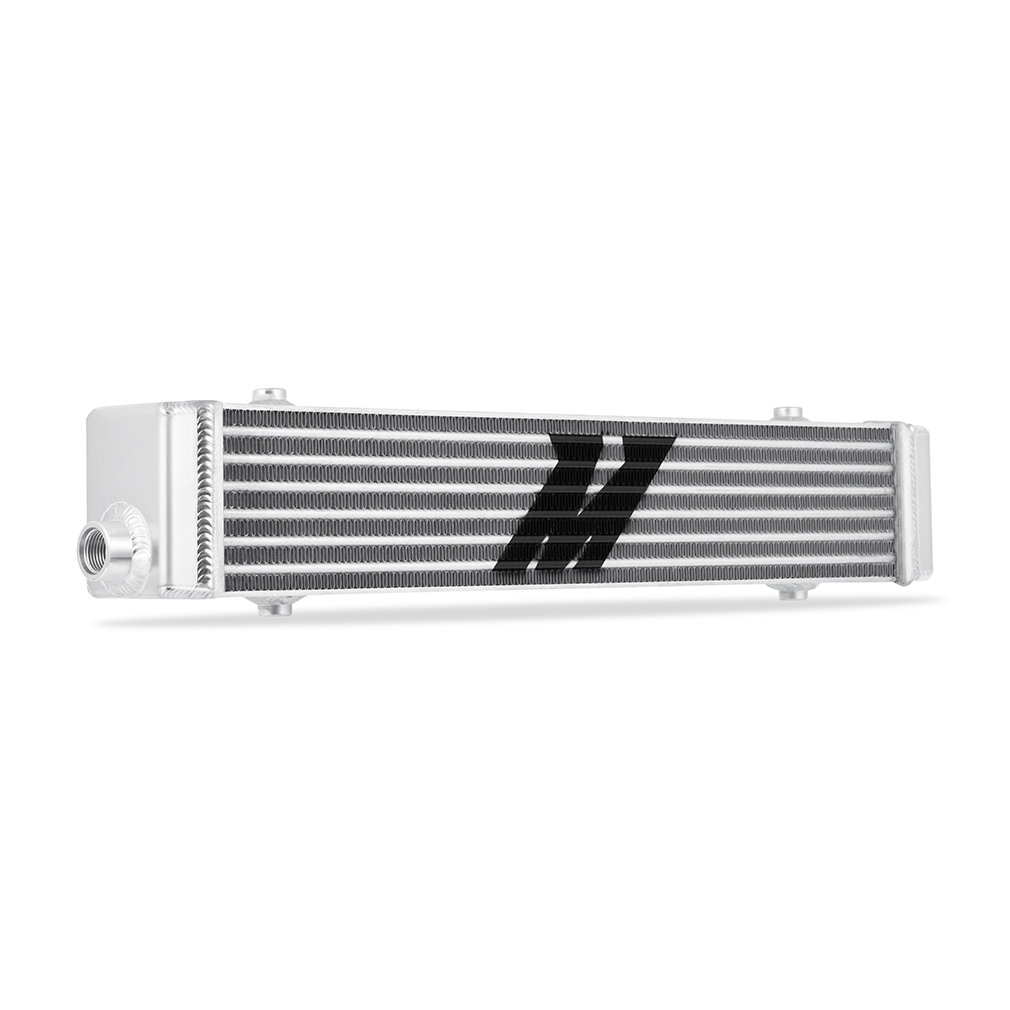

- Four M8x1.25 mounting bosses for easy mounting

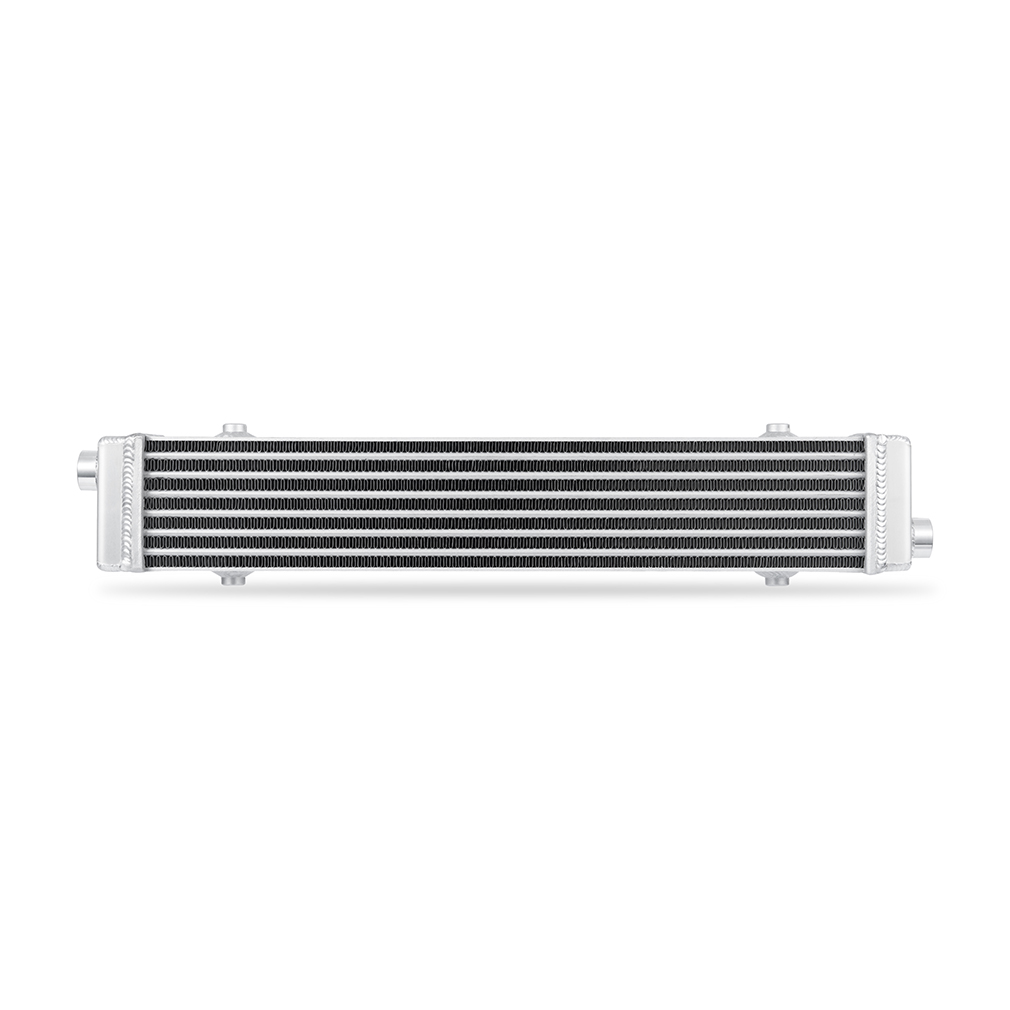

- -10 ORB inlet and outlet accept Mishimoto -10 ORB to -AN adapters

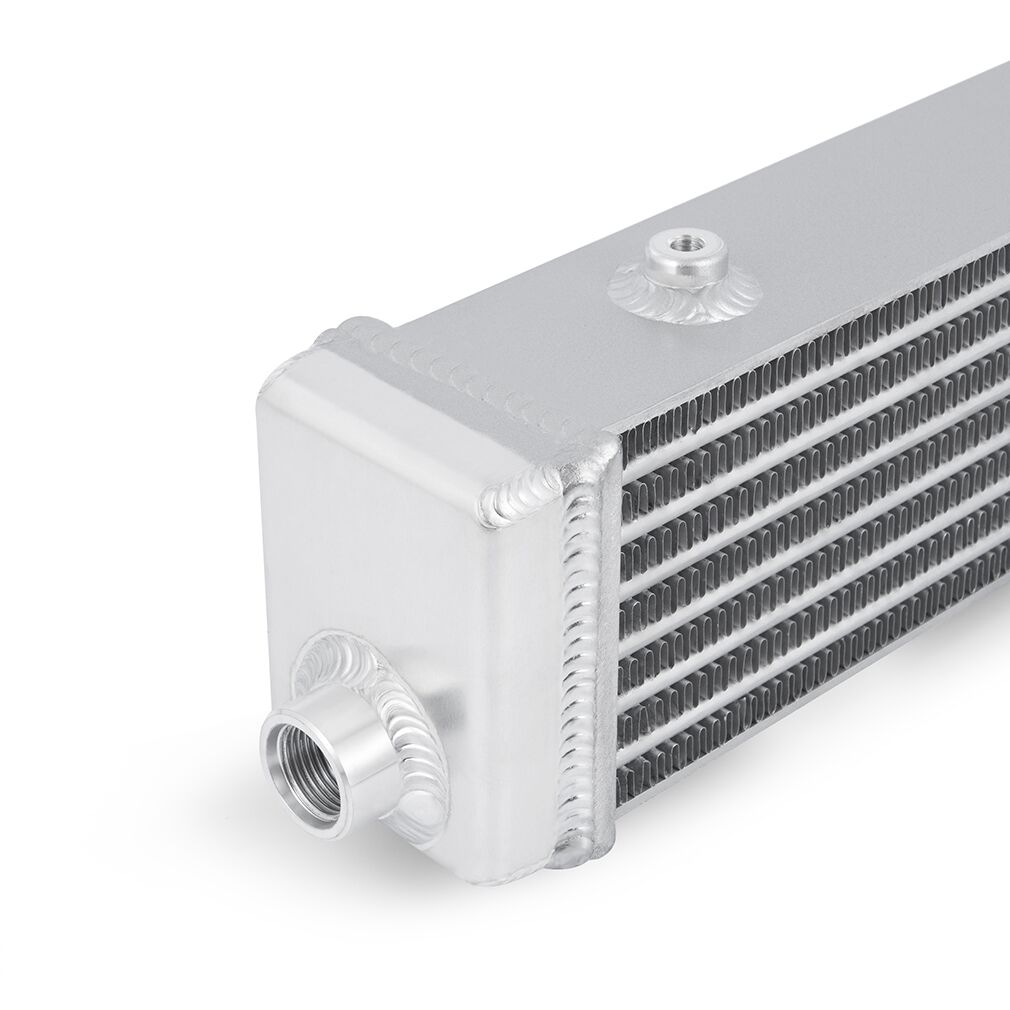

- Full-aluminum, TIG-welded end tanks for leak-free performance
- Logo is painted on only one side of the core to suit your taste
- Backed by the Mishimoto Lifetime Warranty
Specifications
- Brand: Mishimoto
- Part Number: MMOC-TF589-N
- Product Type: Cooling (Oil Cooler)
- Core Type: Tube-and-fin, crossflow
- Overall Size: 23 in (L) x 4 in (H) x 3 in (W)
- Mounting: Four M8x1.25 mounting bosses on top and bottom of core
- Inlet/Outlet: -10 ORB
- Finish: Anodized
- Color: Silver
- Grade Type: Performance
- End Tanks: Full-aluminum, TIG-welded
- Installation Torque: -10 ORB fittings to 30 lb-ft; M8 mounting bolts to 16 lb-ft

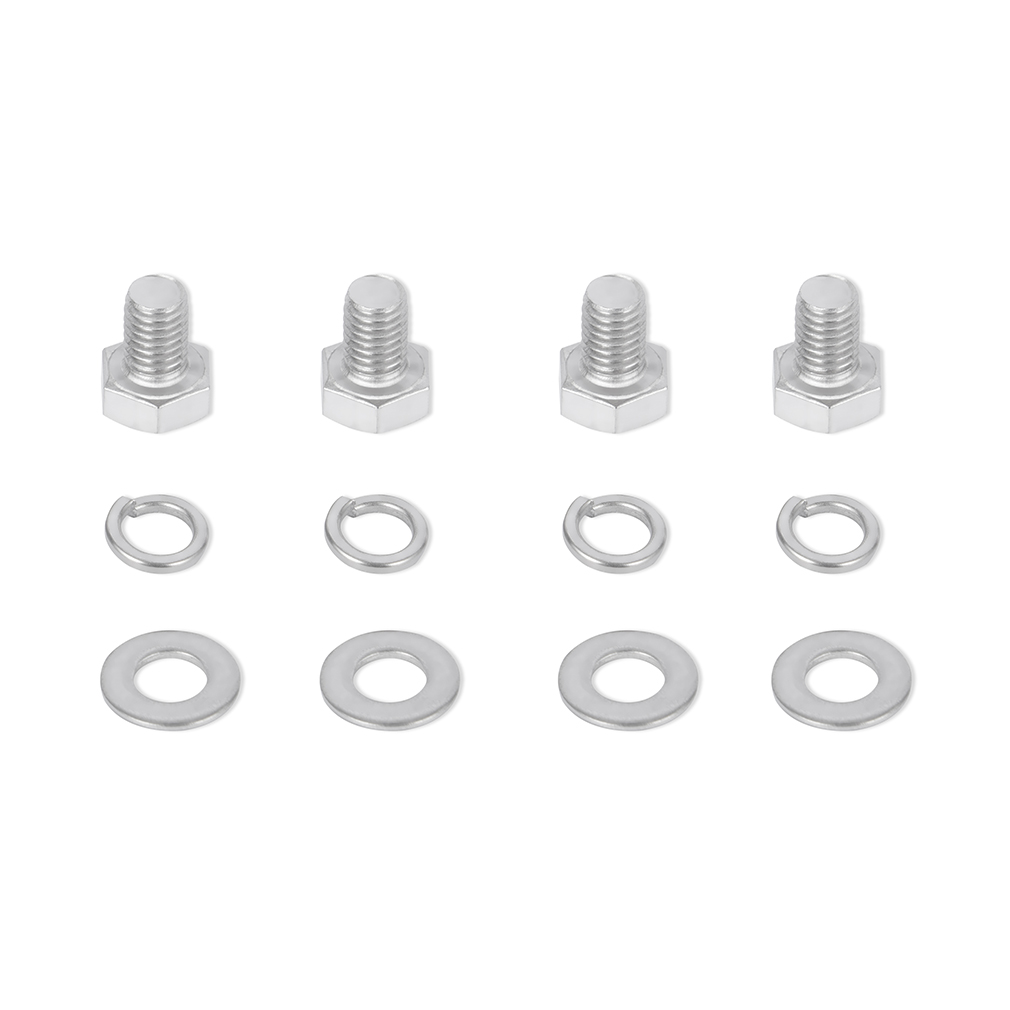

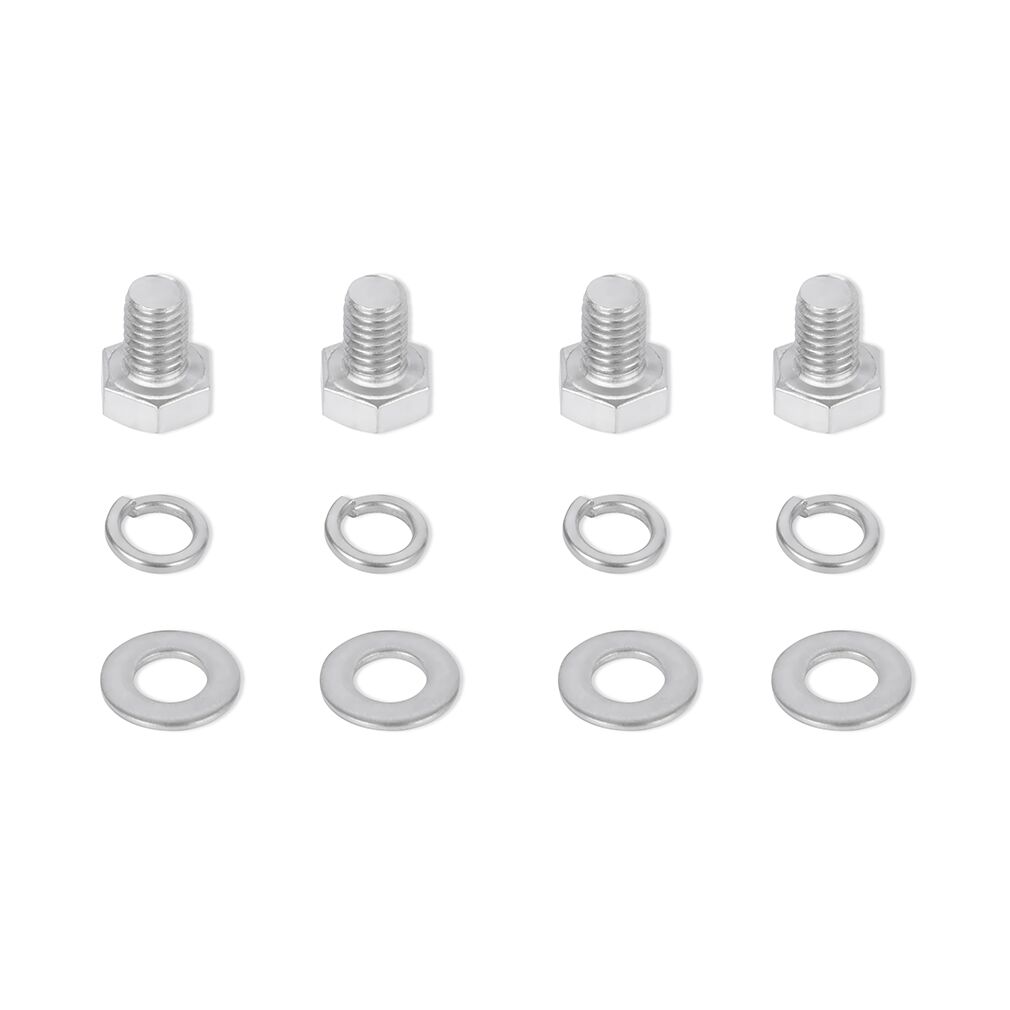

- Kit Includes: Mishimoto Tube-and-Fin Oil Cooler, M8x1.25 bolts, M8 flat washers, M8 locking washers, Mishimoto Lifetime Warranty
- Warranty: Mishimoto Lifetime Warranty
- Prop 65 Warning: Cancer and Reproductive Harm – www.p65warnings.ca.gov
Frequently Asked Questions
What vehicles does the Mishimoto MMOC-TF589-N oil cooler fit?
This is a universal-fit oil cooler rather than a vehicle-specific kit. Its compact 23-inch x 4-inch x 3-inch size and universal M8x1.25 mounting bosses on the top and bottom of the core are designed to make mounting easy in a bumper opening or front cooling stack.
What size are the inlet and outlet fittings?
The cooler uses a -10 ORB inlet and outlet, which are compatible with many widely available -AN adapters, including Mishimoto’s -10 ORB to -10AN and 3/4-inch fittings.
What is the overall size of this oil cooler?
The cooler has a compact overall size of 23 inches x 4 inches x 3 inches.
What comes included with the Mishimoto MMOC-TF589-N?
The kit includes the Mishimoto Tube-and-Fin Oil Cooler, M8x1.25 bolts, M8 flat washers, M8 locking washers, and the Mishimoto Lifetime Warranty.
What are the recommended installation torque specs?
Mishimoto specifies torquing the -10 ORB fittings to 30 lb-ft and the M8 mounting bolts to 16 lb-ft.
Does this Mishimoto oil cooler come with a warranty?
Yes, like all Mishimoto products, this tube-and-fin crossflow performance oil cooler is backed by the Mishimoto Lifetime Warranty.
âš WARNING (California Proposition 65): This product can expose you to chemicals known to the State of California to cause cancer and/or birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
