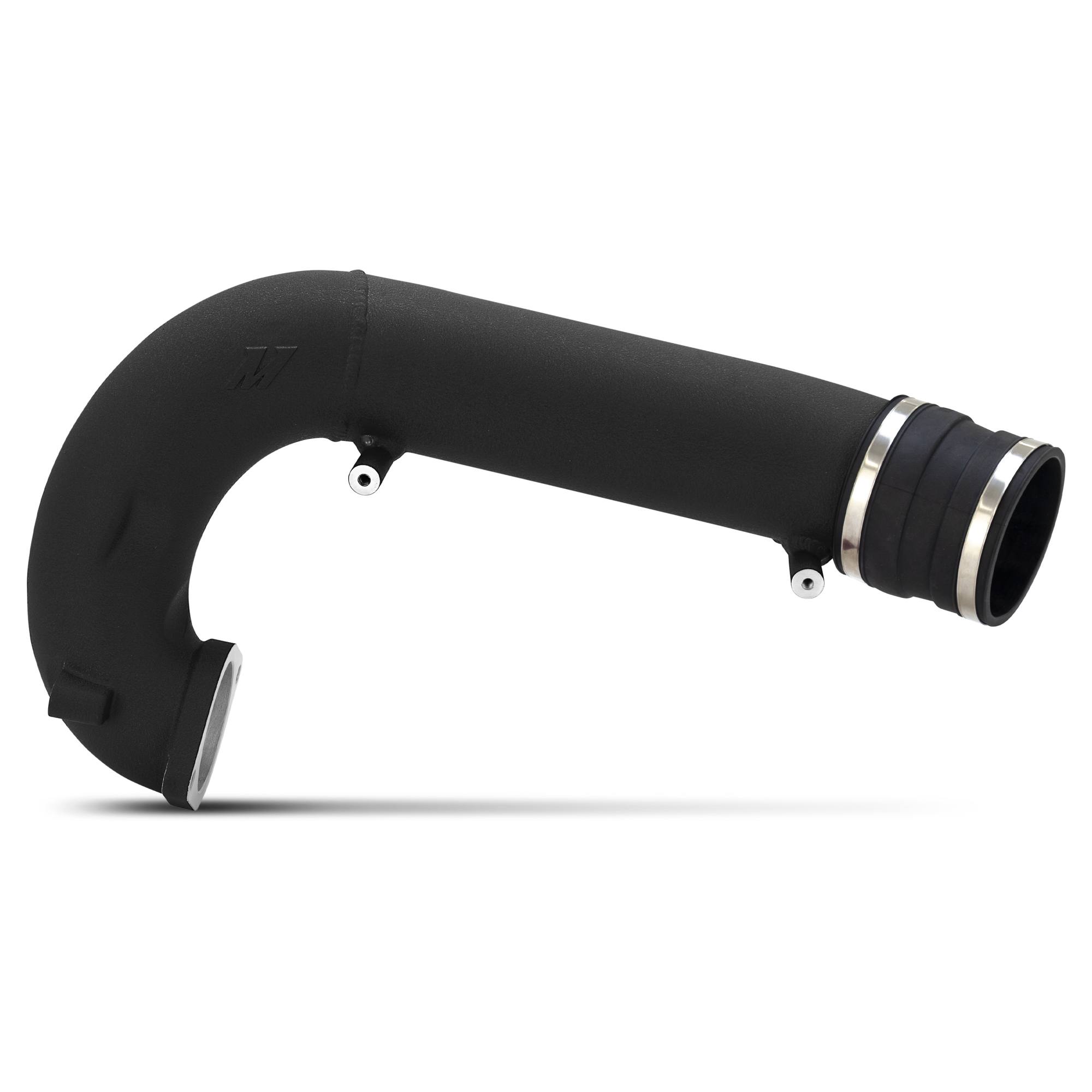

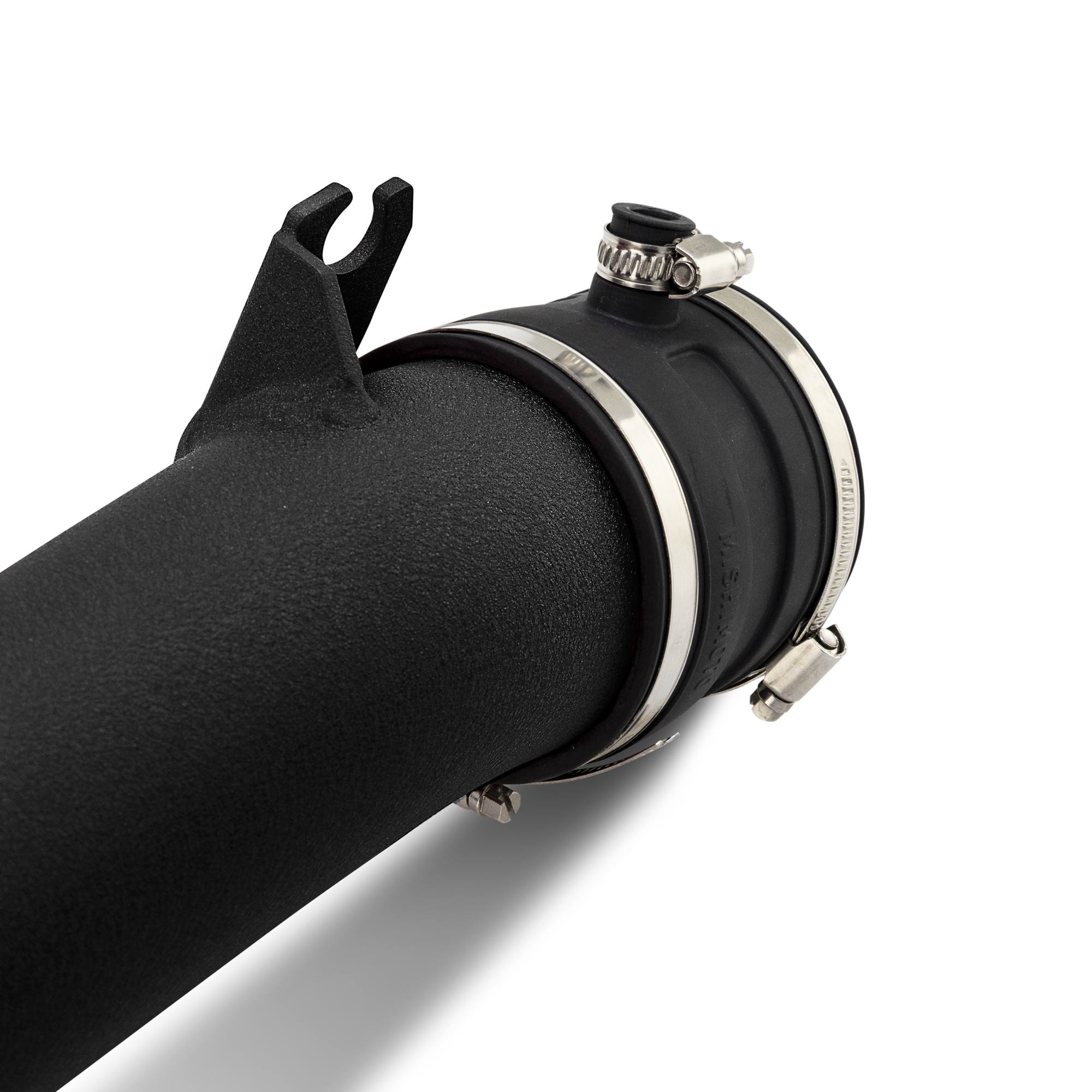

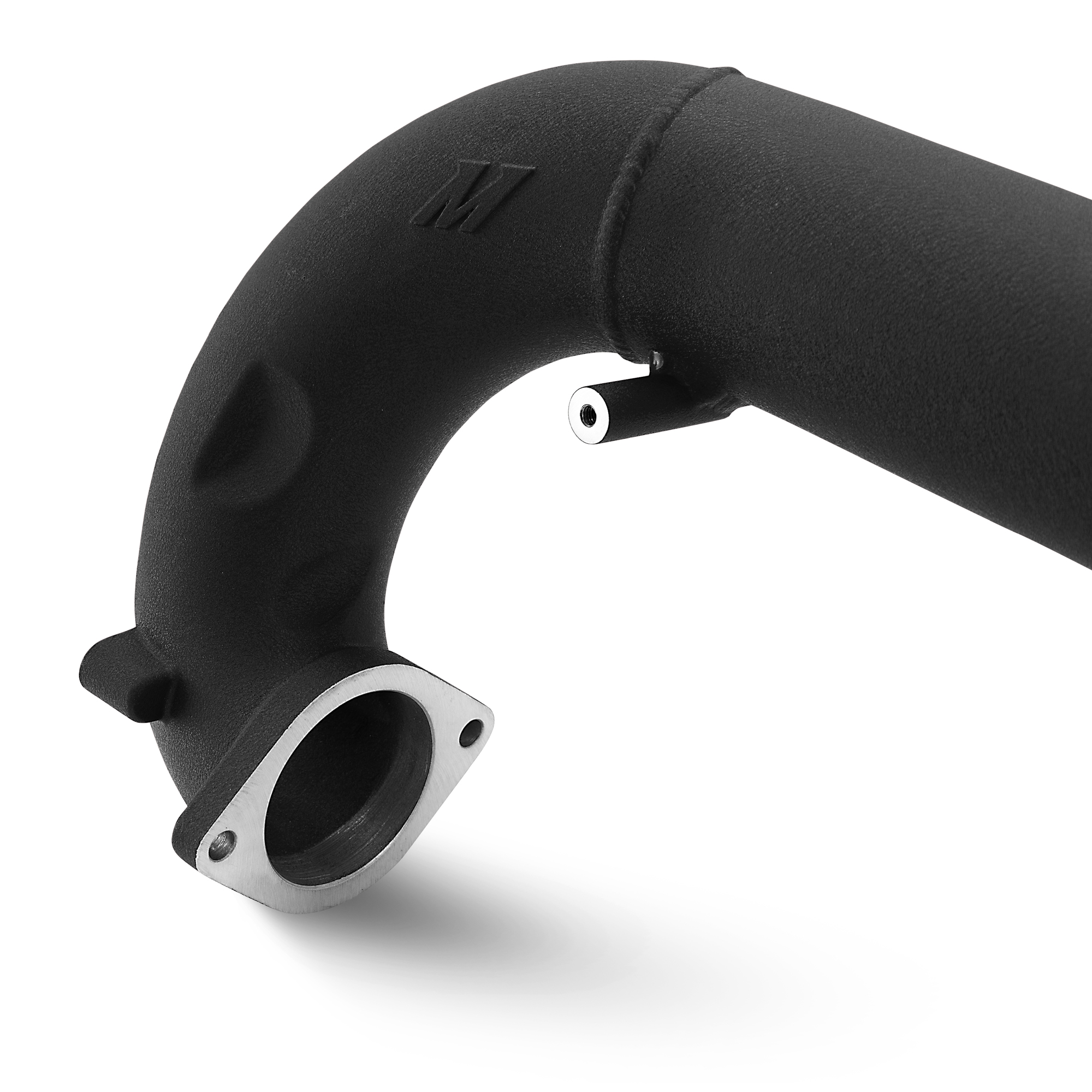

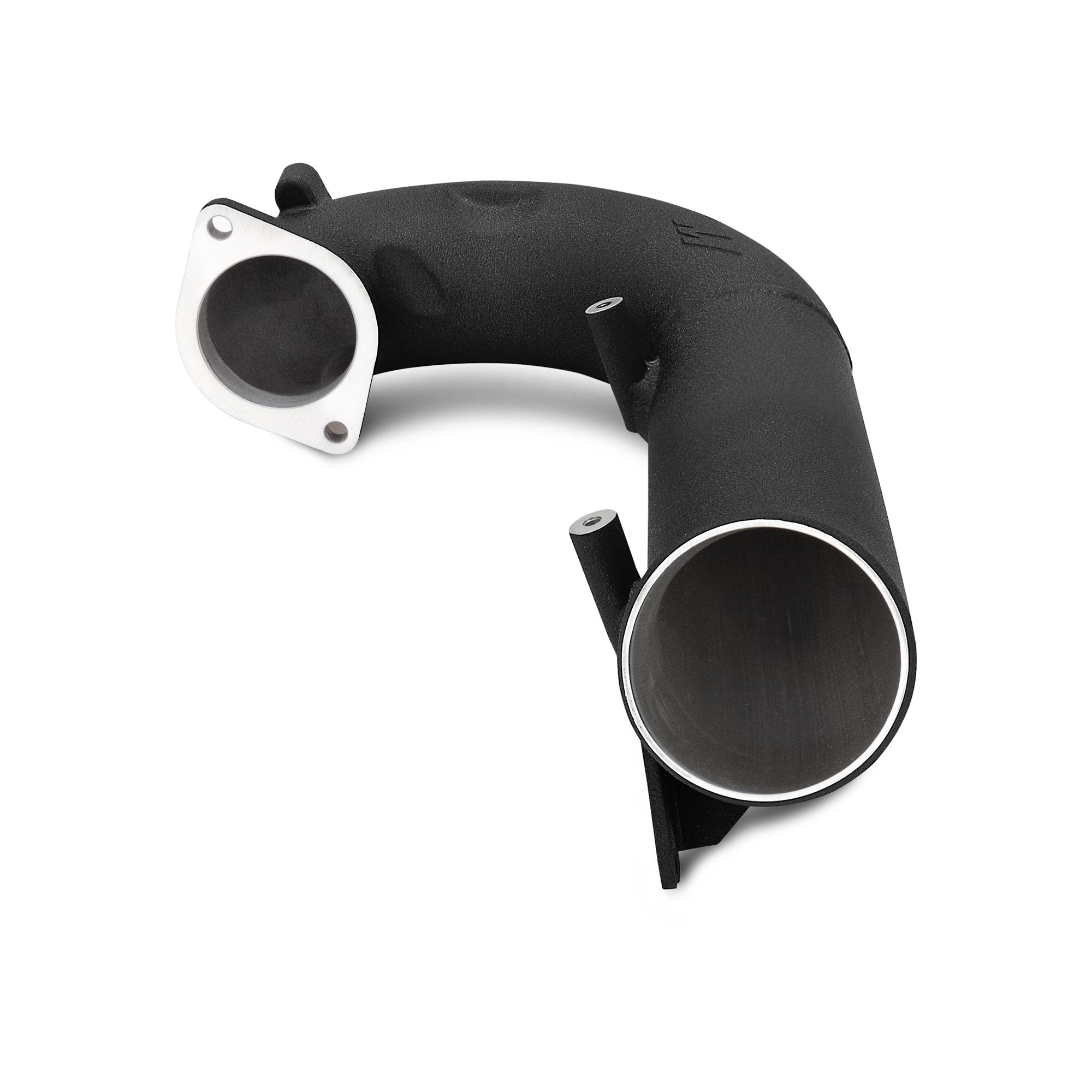

The Mishimoto Turbo Inlet Pipe Kit (MMAI-CTR-23UBK) is a precision-cast aluminum replacement for the restrictive factory rubber inlet on the K20C1-powered Honda Civic Type R and Acura Integra Type S. Flow-bench testing confirms this forced induction upgrade cuts inlet restriction by 17.2% compared to the stock unit, giving the turbo a smoother, more direct path to draw air through.
Where the factory rubber inlet relies on abrupt bends that choke airflow before it ever reaches the turbo, this cast aluminum elbow reshapes the induction path with minimal turbulence and pressure drop. For owners chasing a more efficient forced induction system without touching tuning or cutting factory components, this turbo inlet pipe delivers a measurable, flow-bench-proven improvement in charge delivery and turbo response through the rev range. It’s a straightforward way to support the induction engine’s ability to breathe, and it’s offered in a powder coat black or red finish so the upgrade can either blend in or stand out under the hood.
Vehicle Applications

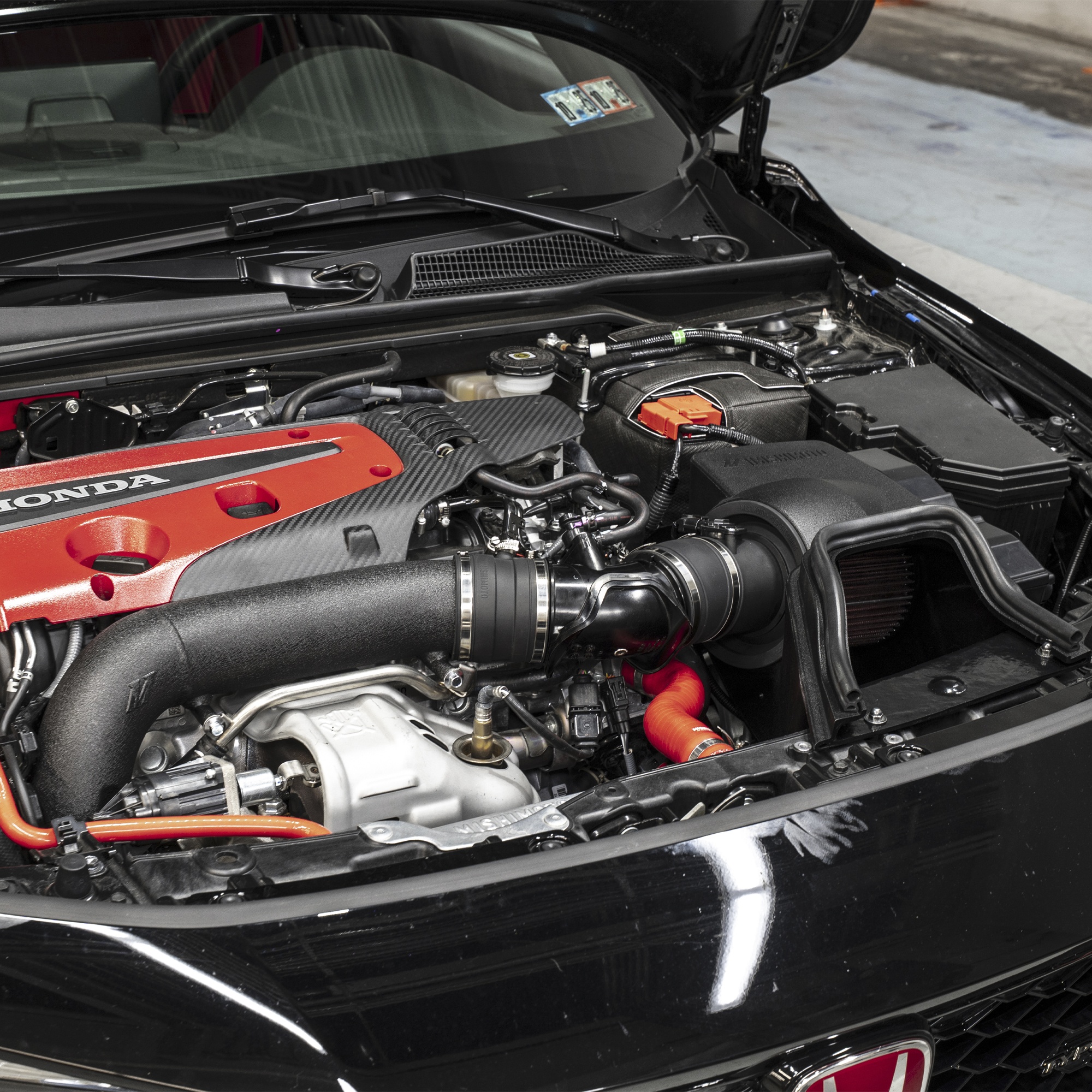

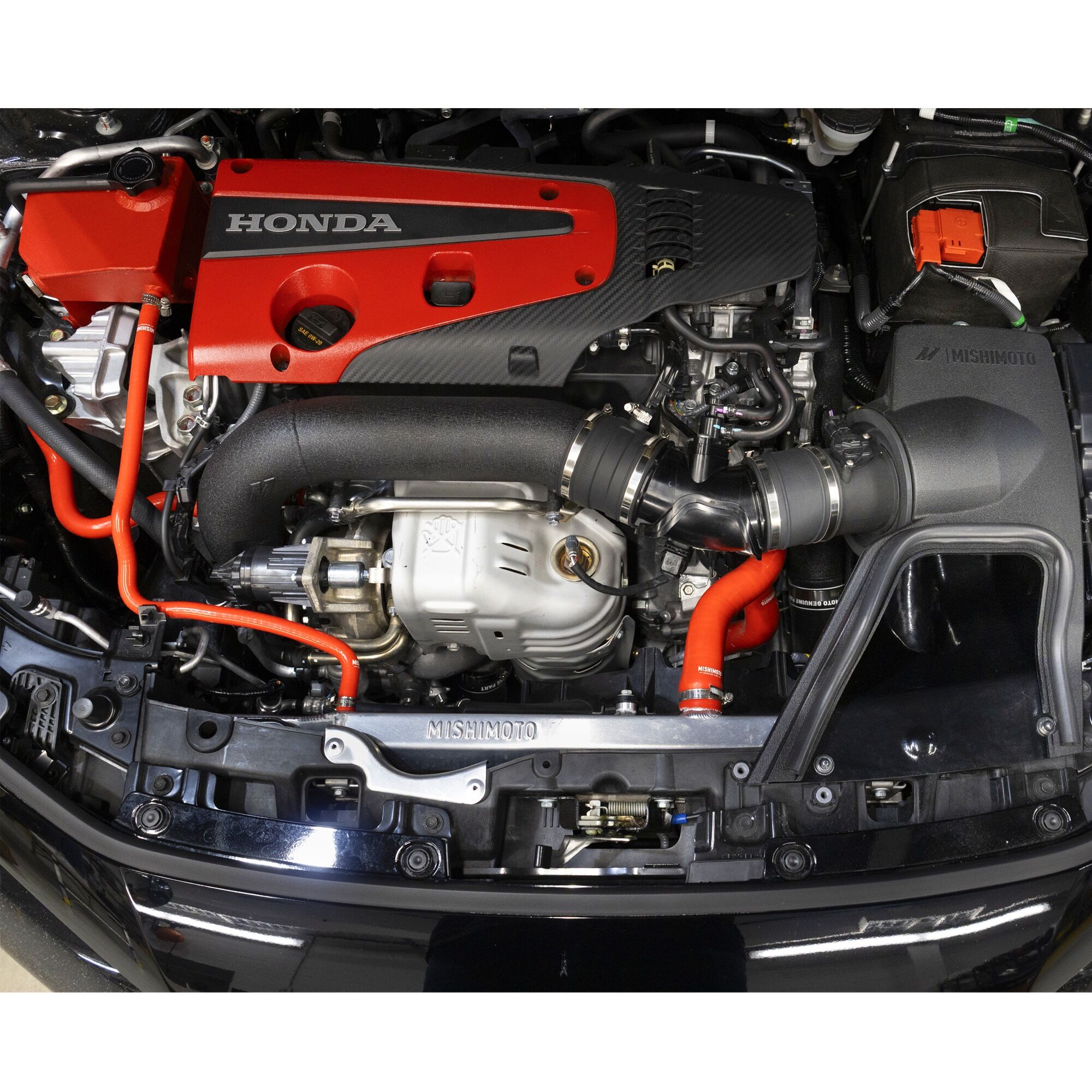

This turbo inlet pipe kit is a confirmed direct fit for the 2023-2026 Honda Civic Type R (chassis code FL5) and the 2024-2026 Acura Integra Type S (chassis code DE5), both equipped with the K20C1 engine. It mounts at the factory inlet location with no cutting, drilling, or additional modification required, making it a bolt-on addition to the factory induction system.
Features
- Flow-bench proven 17.2% less restriction than the factory turbo inlet, thanks to precision-cast aluminum construction that supports more consistent charge delivery and turbo response through the rev range
- Cast aluminum elbow eliminates the abrupt geometry of the factory rubber inlet, guiding airflow into the turbo with minimal turbulence and pressure drop
- Available in powder coat black or red to match or contrast the Type R’s factory color accents
- Confirmed direct fit for the 2023+ Honda Civic Type R – mounts at the factory inlet location with no cutting, drilling, or modification required
- Backed by the Mishimoto Lifetime Warranty
Specifications
- Brand: Mishimoto
- Part Number: MMAI-CTR-23UBK
- Product Type: Forced Induction
- Hose/Pipe Material: Cast Aluminum
- Hose Length: 12 IN
- Color: Black (also available in red)
- Grade Type: Performance
- Engine Code: K20C1
- Chassis Codes: FL5, DE5

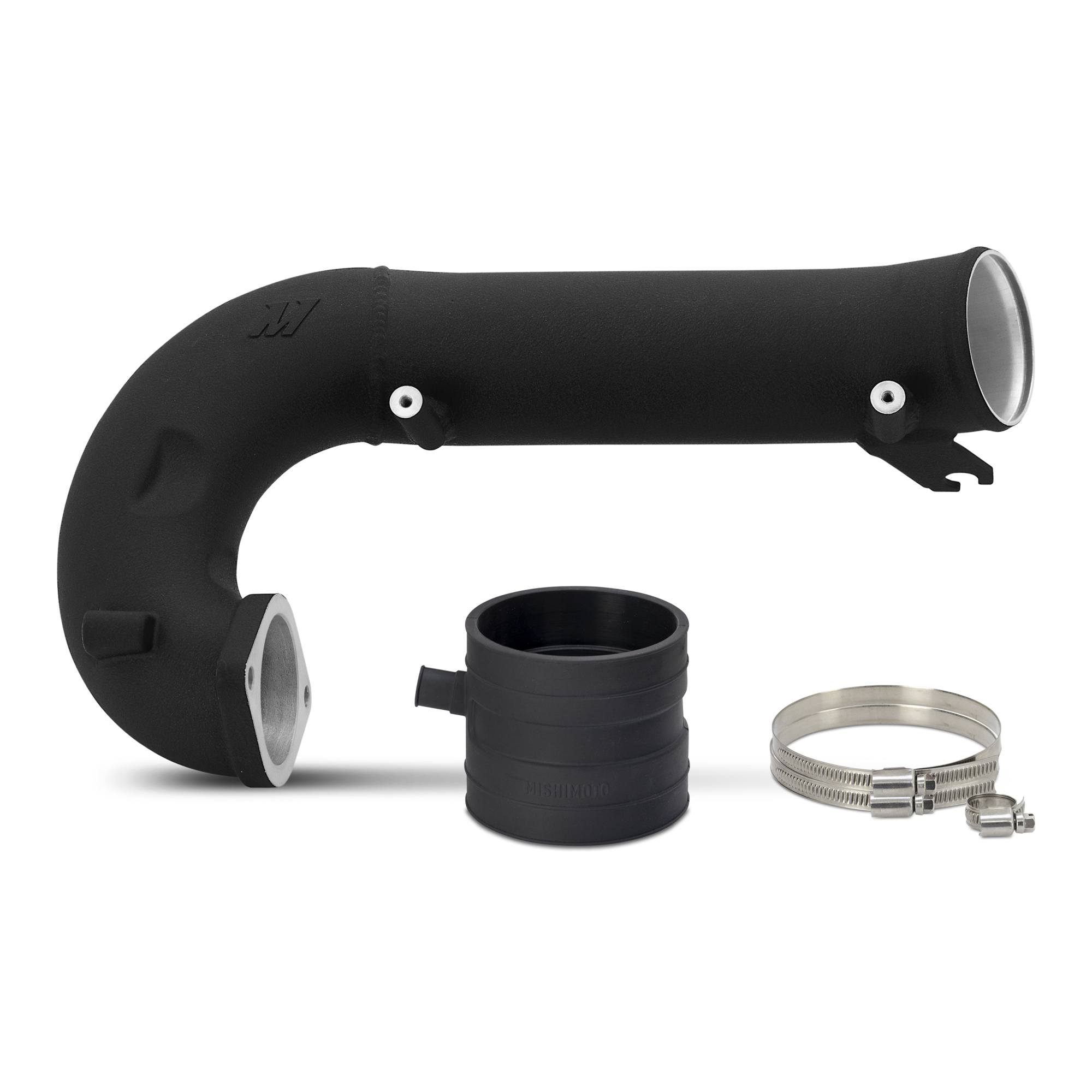

- Kit Includes: (1) Turbo inlet pipe, (1) Coupler, (3) Worm Gear Clamps, Mounting Hardware, Mishimoto Lifetime Warranty
Frequently Asked Questions
What vehicles does the Mishimoto Turbo Inlet Pipe Kit fit?
This kit is a confirmed direct fit for the 2023-2026 Honda Civic Type R and the 2024-2026 Acura Integra Type S, both equipped with the K20C1 engine (chassis codes FL5 and DE5).
How much does this turbo inlet pipe reduce restriction compared to the stock unit?

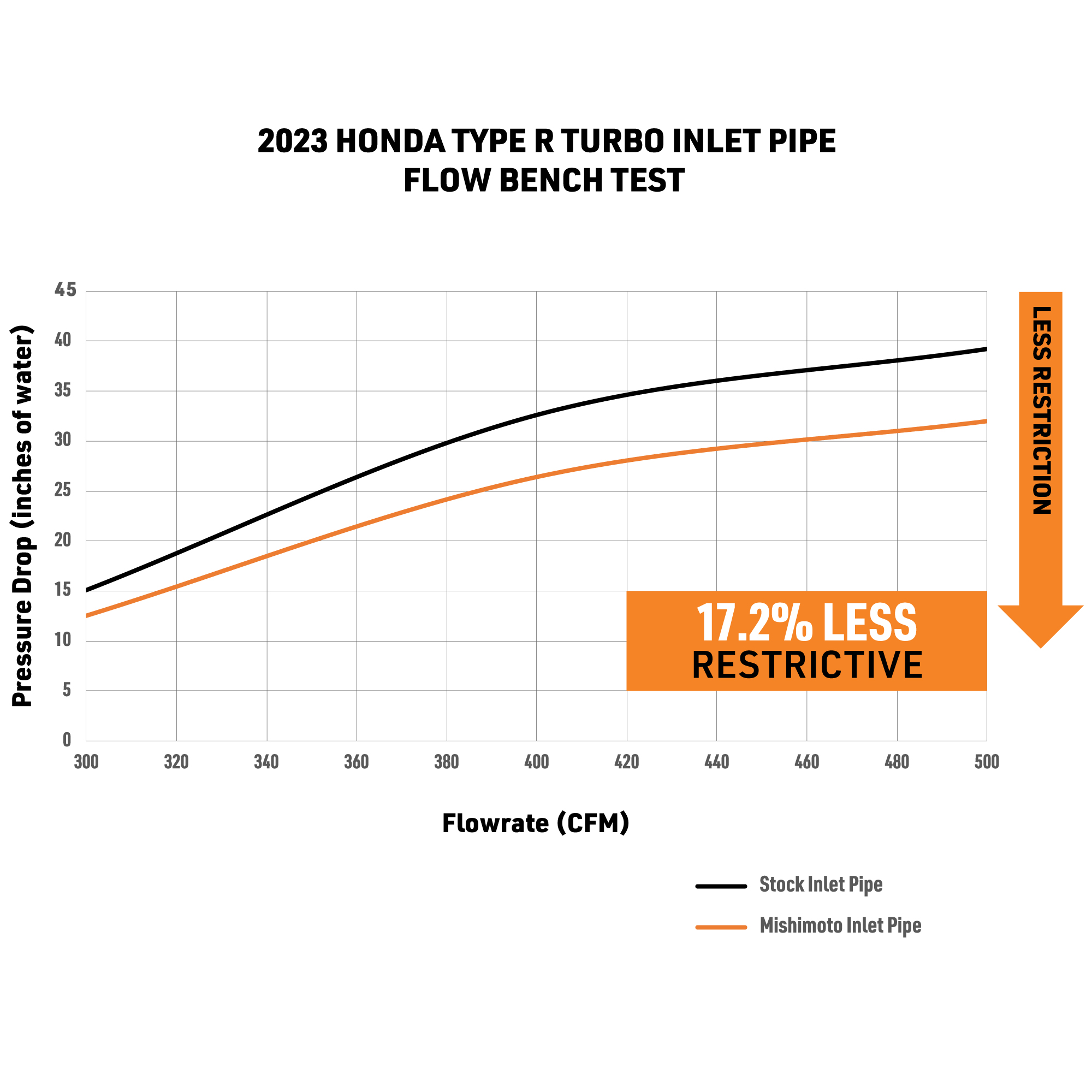

Flow-bench testing shows a 17.2% reduction in inlet restriction compared to the factory turbo inlet.
What material is the Mishimoto turbo inlet pipe made from?
It is constructed from precision-cast aluminum, replacing the factory rubber inlet with a smoother elbow design.
Does installation require cutting or drilling?
No. The kit mounts at the factory inlet location with no cutting, drilling, or modification required.
What colors is this turbo inlet pipe kit available in?
It is available in powder coat black or red finishes.
What is included with the Mishimoto Turbo Inlet Pipe Kit?
The kit includes (1) turbo inlet pipe, (1) coupler, (3) worm gear clamps, mounting hardware, and the Mishimoto Lifetime Warranty.
