Description
The Mishimoto Universal 19 Row Oil Cooler Kit, part number MMOC-ULBK, is the Black Cooler, Non-Thermostatic option built around a 19-row bar-and-plate core designed to pull heat out of your engine oil before it can do damage. This isn’t a generic add-on cooler—it ships as a complete, ready-to-install system with braided lines, fittings, and adapters engineered specifically for universal installation.
Enthusiasts who push a high-performance car hard know that oil temperature control protects piston rings, skirts, and cam bearings from premature wear, and even engine seizure. This Mishimoto oil cooler kit addresses that head-on: the 19-row stacked-plate core withstands high fluid pressures while reducing oil temperatures and keeping pressure loss to a minimum. For drivers who want extra control over warm-up and operating temperature, Mishimoto also offers this cooler with an optional thermostatic sandwich plate, making the platform suitable for both track use and daily-driver duty.
Vehicle Applications
As a universal-fitment oil cooler kit, the MMOC-ULBK is not tied to a single make or model. It ships with sandwich plate adapters covering both 3/4-16 UNF and M20 x 1.5 thread patterns, which is what allows this Mishimoto cooler kit to support installation across most makes and models rather than a narrow list of applications. Every hose, fitting, and adapter needed for a universal install is included in the box, so the kit adapts to your vehicle’s specific oil filter housing rather than requiring you to source additional hardware.
Features
- Universal fitment via included 3/4-16 and M20-1.5 sandwich plate adapters that support most makes and models

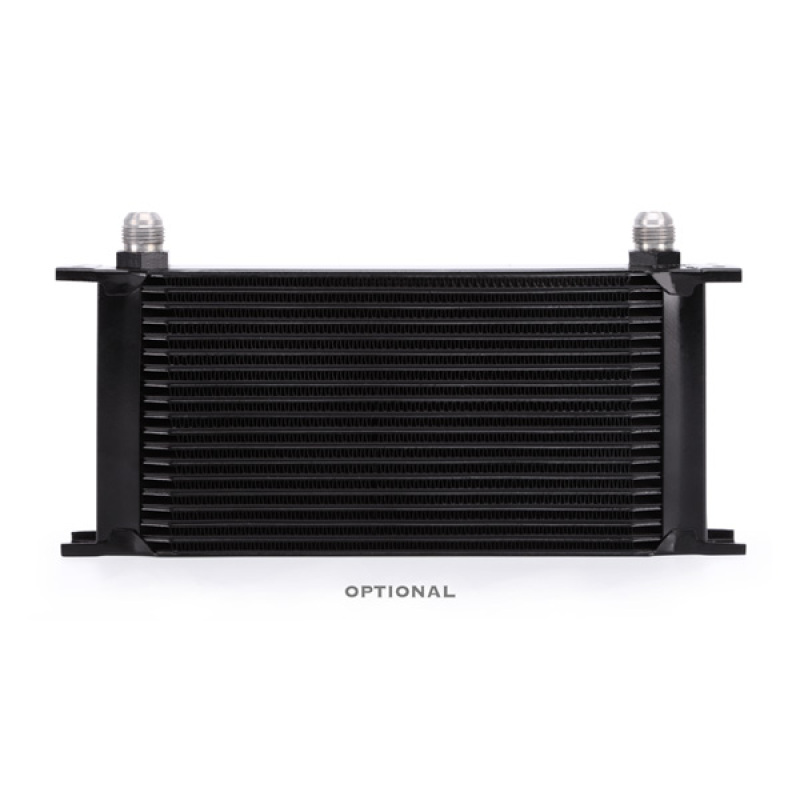

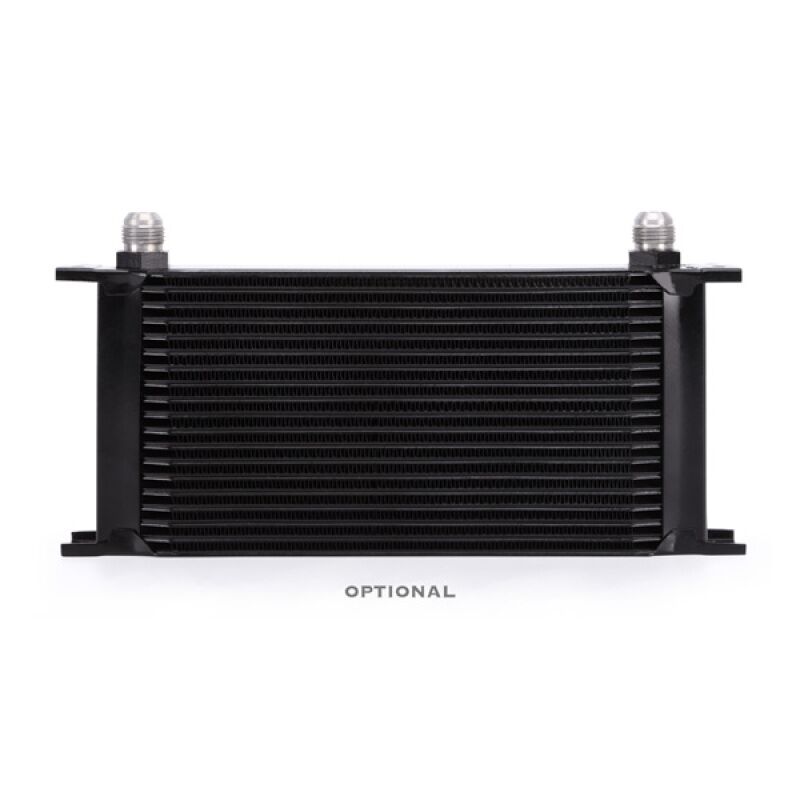

- 19-row stacked-plate cooler withstands high fluid pressures, reduces oil temperatures, and exhibits minimal pressure loss

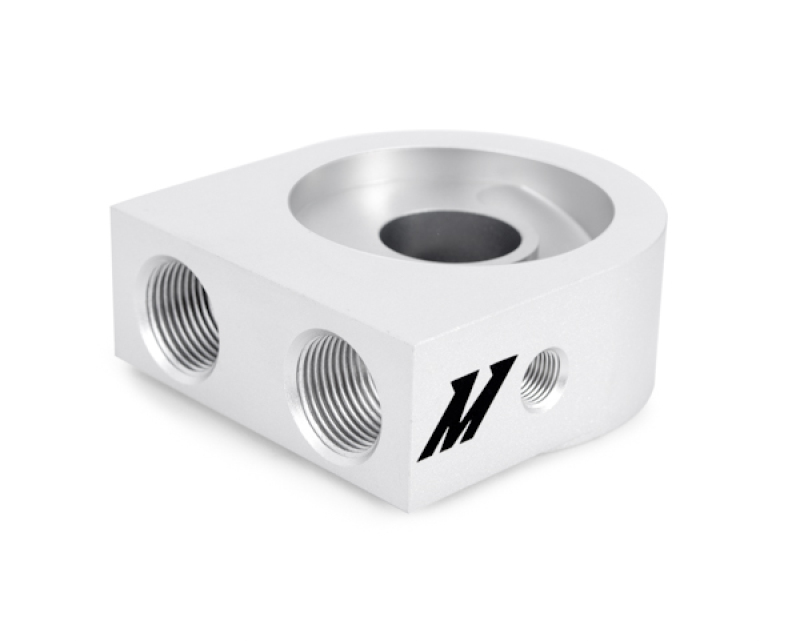

- Includes either a standard or thermostatic billet anodized aluminum sandwich plate
- Preassembled stainless steel braided oil lines with -10AN fittings and Dowty seals for durable, leak-free connections
- Available in Sleek Silver or Stealth Black finishes

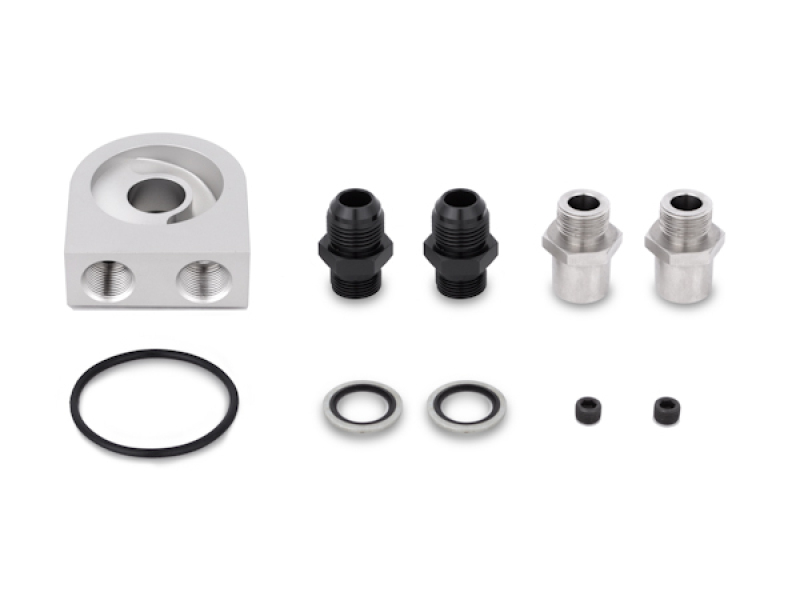

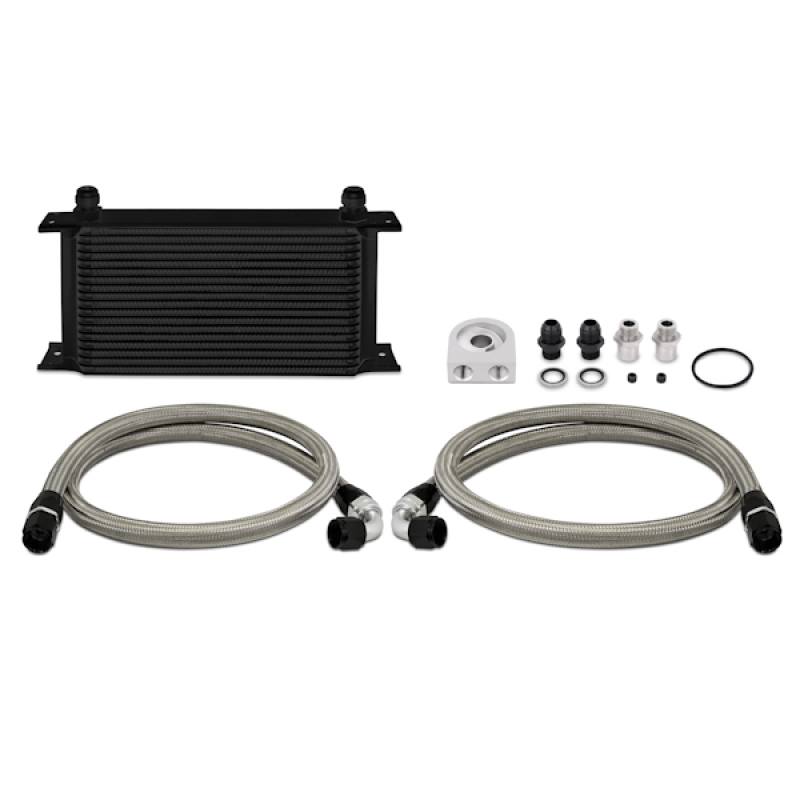

- Kit includes the 19-Row Oil Cooler, a 4 ft and a 5 ft stainless steel braided hose each with -10AN fittings (one straight and one 90-degree swivel fitting per hose), M20 thermostatic sandwich plate, -10AN fittings, Dowty oil seals, a large O-ring, 1/8-in NPT Allen key plugs, and sandwich plate adapters
- Backed by the Mishimoto Lifetime Warranty
Specifications
- Brand: Mishimoto
- Part Number: MMOC-ULBK
- Option: Black Cooler, Non-Thermostatic
- Core Type: Bar-and-Plate
- Core Row Quantity: 19-Row
- Core Color: Black
- Finish: Anodized
- Grade Type: Performance
- Core Height: 5.43 in
- Core Thickness: 1.97 in
- Core Width: 11 in
- Overall Height: 13 in
- Overall Length: 5.5 in
- Overall Width: 12 in
- Inlet Fitting Type: AN Flare, Male
- Outlet Fitting Type: AN Flare, Male
- Sandwich Plate Adapter Threads: 3/4-16 UNF and M20 x 1.5
Frequently Asked Questions
What does the Mishimoto Universal 19 Row Oil Cooler Kit include?
The kit includes a 19-Row Oil Cooler, a 4 ft and a 5 ft stainless steel braided hose (each with -10AN fittings, one straight fitting and one 90-degree swivel fitting), an M20 thermostatic sandwich plate, -10AN fittings, Dowty oil seals, a large O-ring, 1/8-in NPT Allen key plugs, and sandwich plate adapters.
What is the MMOC-ULBK color and finish?
This part number is the Black Cooler, Non-Thermostatic option with an anodized black finish and a black core color.
What kind of core does this oil cooler use?
It uses a 19-row, bar-and-plate style core measuring 5.43 in in height, 1.97 in thick, and 11 in wide.
Will this kit fit my vehicle?
This is a universal oil cooler kit that includes 3/4-16 UNF and M20 x 1.5 sandwich plate adapters, which support installation on most makes and models.
What torque should I use on the fittings?
Mishimoto recommends a torque specification of 15-25 lb-ft for all straight fittings and banjo bolts, and instructs not to exceed a maximum torque rating of 35 ft-lb.
Does this cooler come with a warranty?
Yes, it is backed by the Mishimoto Lifetime Warranty.
