Description
The Mishimoto Universal Muffler with Angled Tip (MMEXH-MF-AT-3CCBK) is a 304 stainless-steel muffler finished in black enamel and built around a 3-inch center inlet paired with an angled, slash-cut outlet designed to slip right onto your existing piping. Its perforated, fiberglass-packed, straight-through core is engineered to take the edge off exhaust volume while still letting the engine breathe, so you get a deeper growl instead of a muffled whisper or an ear-splitting drone.
Mishimoto designed this universal muffler to help you dial in exactly how your exhaust sounds without sacrificing flow. The 304 stainless-steel body and precision TIG welds are built to resist corrosion, while the black enamel finish keeps the muffler looking sharp even in harsh underbody environments. Because it uses a 3-inch inside-diameter center inlet with a slip-fit connection, it installs easily into piping of a matching size, and the angled outlet finishes the look right out of the box. Like other Mishimoto exhaust components, this muffler is backed by the Mishimoto Lifetime Warranty.
Vehicle Applications
This is a universal-fit muffler rather than a vehicle-specific part, so it is not tied to a particular make, model, or engine. It is intended to be installed into any exhaust system using 3-inch inside-diameter piping via its center inlet, giving builders and fabricators the flexibility to add it to a custom or existing exhaust setup where a matching pipe size is available.
Features
- Universal muffler reduces exhaust volume without restricting flow
- Straight-through perforated core for improved sound and performance
- 3-inch inner diameter inlet for easy installation over existing piping
- 3-inch angled, slash-cut tip provides a finished look out of the box
- 304 stainless-steel body and precision TIG welds resist corrosion
- Black enamel finish for a sleek look
- Backed by the Mishimoto Lifetime Warranty
Specifications
- Brand: Mishimoto
- Part Number: MMEXH-MF-AT-3CCBK
- Body Material: 304 Stainless Steel
- Finish: Painted, Black
- Shape: Oval
- Inlet Inside Diameter: 3 inches
- Inlet Location: Center
- Inlet Connection: Slip-Fit
- Outlet Location: Center
- Outlet Cut: Angle
- Exhaust Tip Material: 304 Stainless Steel
- Exhaust Tip Finish: Painted

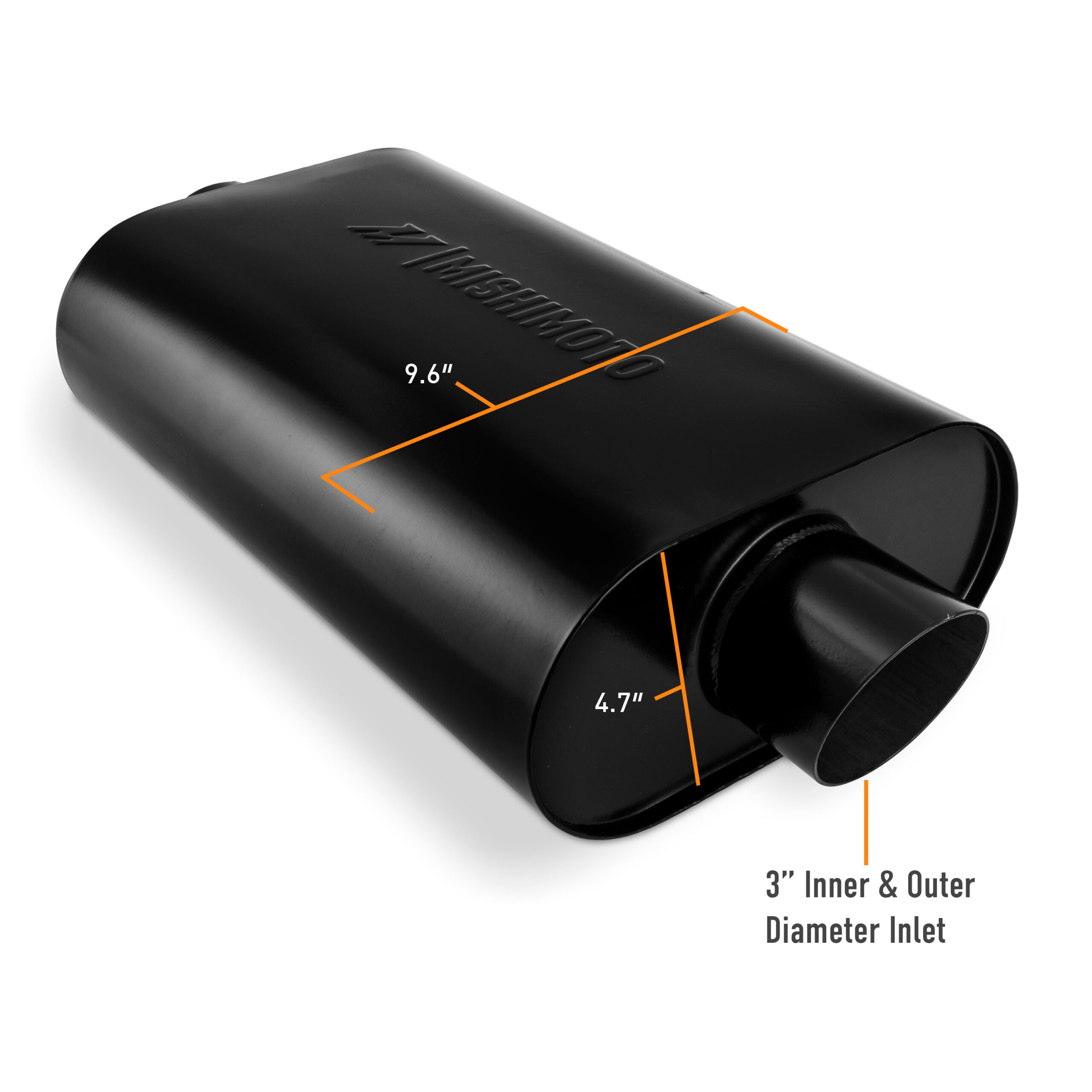

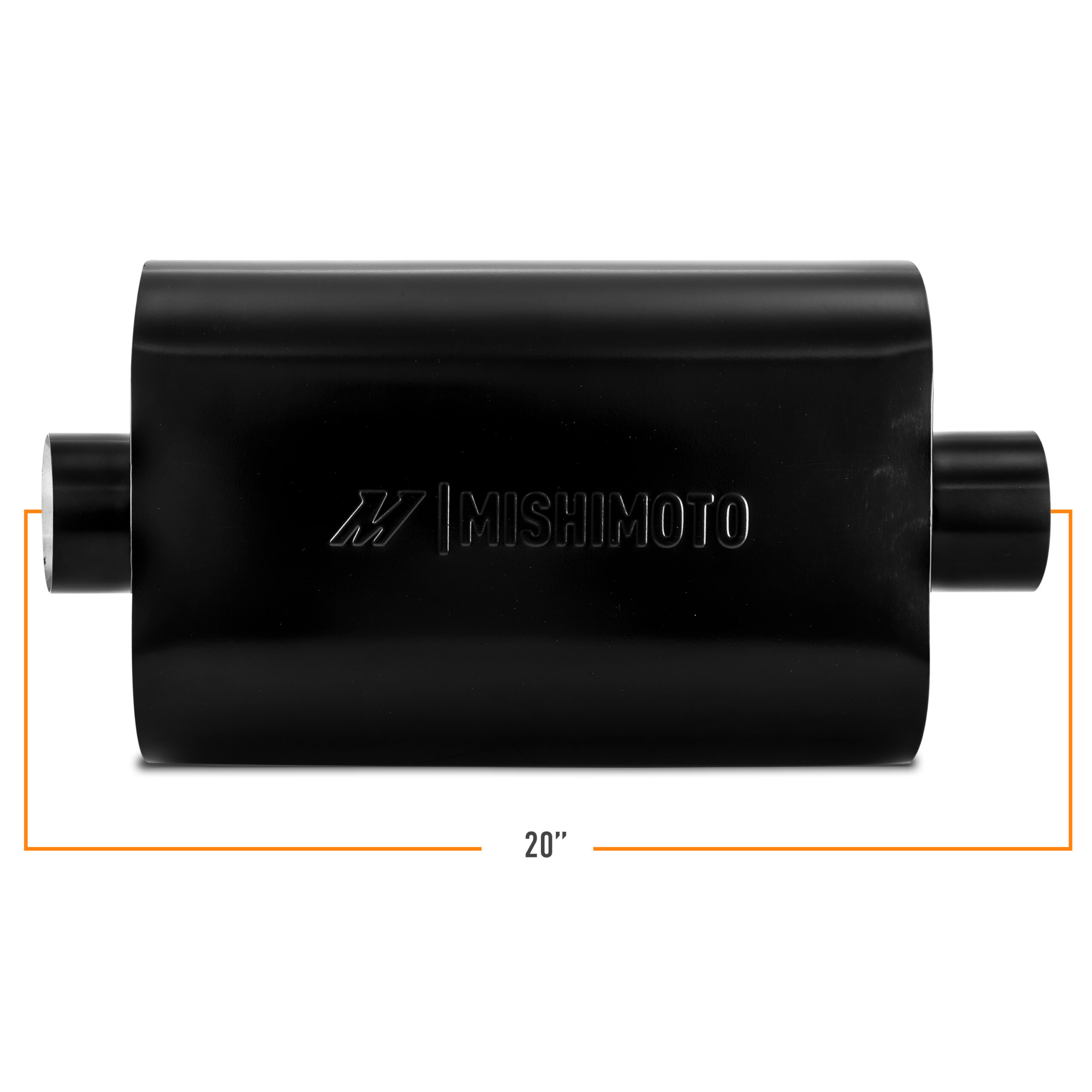

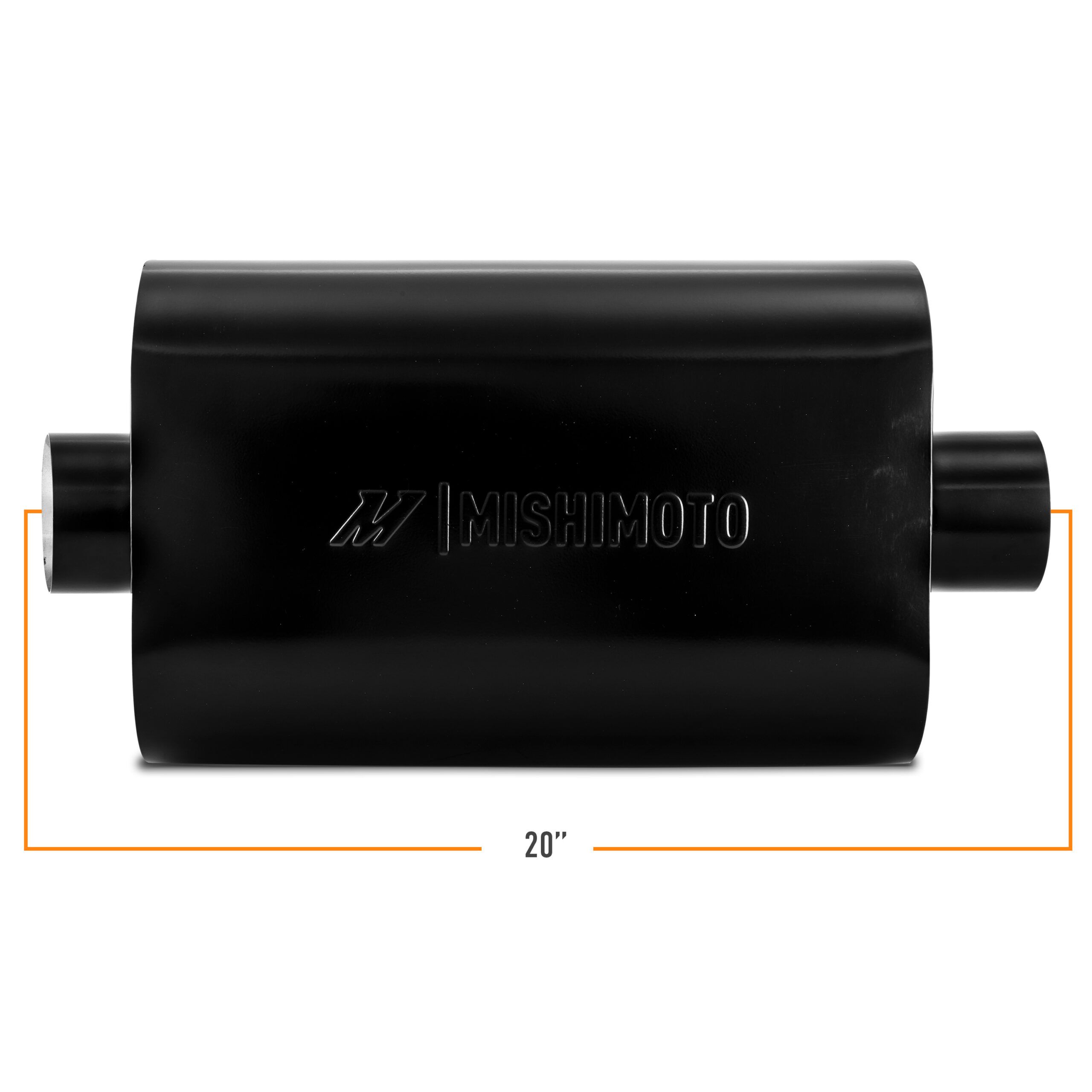

- Body Length: 20 inches
- Body Width: 9.6 inches
- Body Height: 4.7 inches
- Weight: 8.5 pounds
- Grade Type: Performance
- Reversible: No
- Tunable: No
- Hanger Included: No
- Heat Shield Attached: No
- Clamps Included: No
- Fit Type: Universal
- Includes: (1) Mishimoto Universal Muffler with Angled Tip, Mishimoto Lifetime Warranty
Frequently Asked Questions
What size piping does this Mishimoto muffler fit?
It has a 3-inch inside-diameter center inlet designed to install over existing piping using a slip-fit connection.
What is the muffler body made from?
The body is constructed from 304 stainless steel with precision TIG welds and finished in black enamel paint.
Does this muffler fit a specific vehicle?
No, this is a universal-fit muffler and is not designed for a specific make or model; it is intended for exhaust systems using matching 3-inch piping.

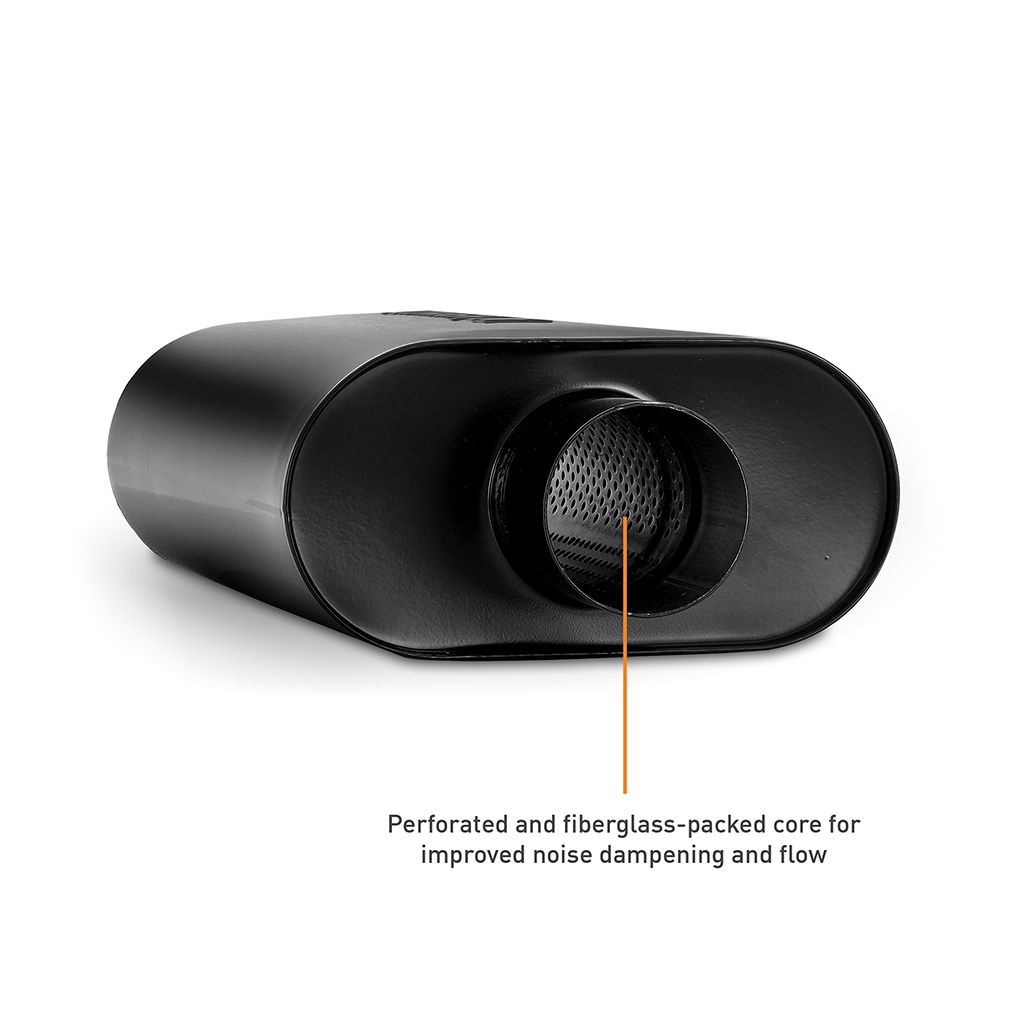

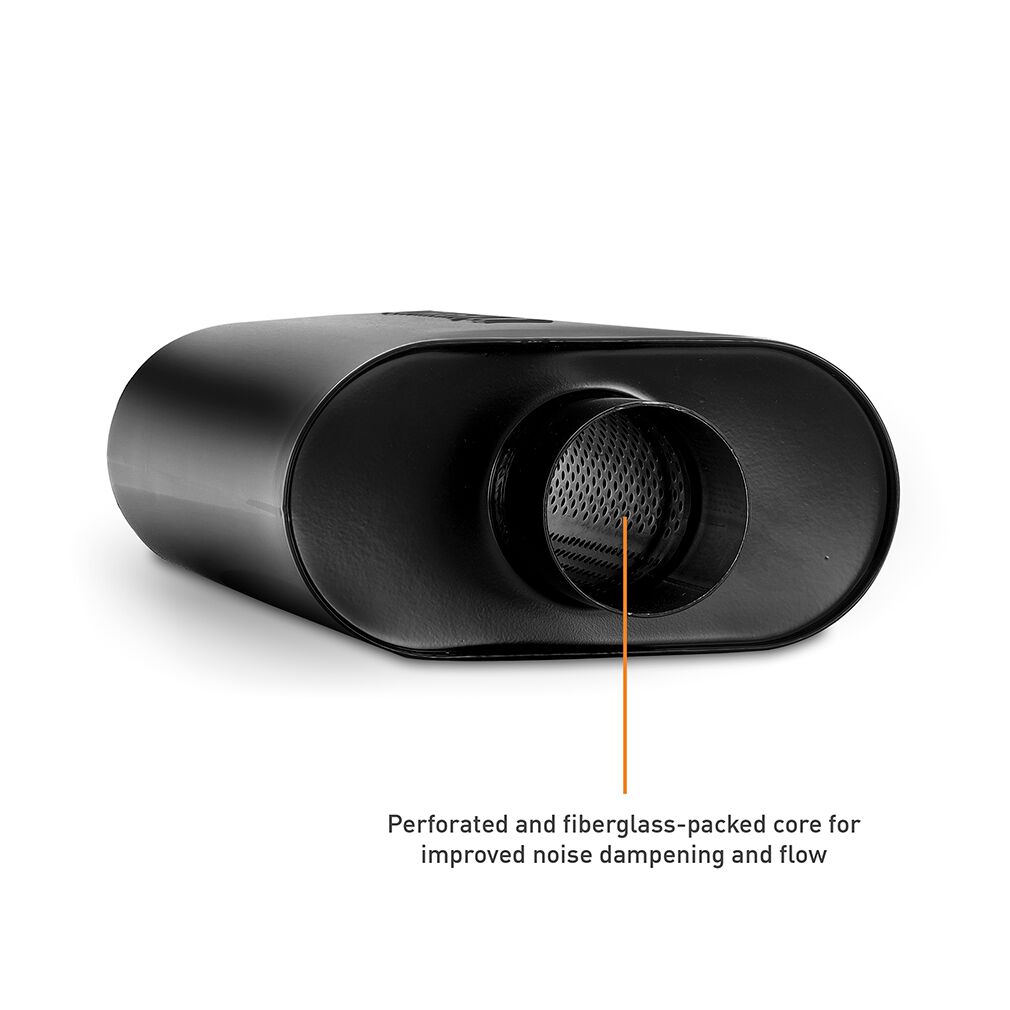

What type of core does the muffler use?
It uses a perforated, fiberglass-packed, straight-through core intended to reduce exhaust volume without restricting flow.

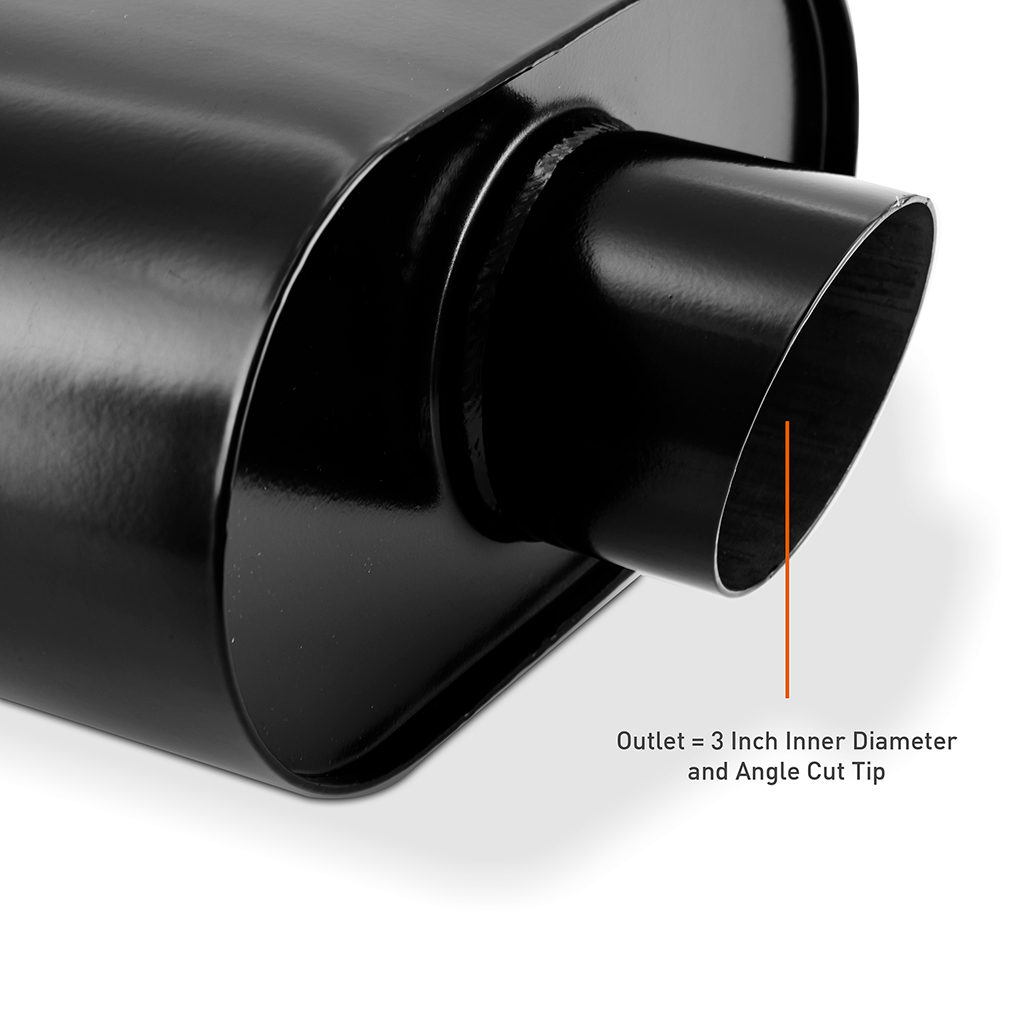

What outlet style does this muffler have?
It features a 3-inch angled, slash-cut outlet for a finished appearance.
What is included and what warranty applies?
The package includes one Mishimoto Universal Muffler with Angled Tip, and it is backed by the Mishimoto Lifetime Warranty.
