Description

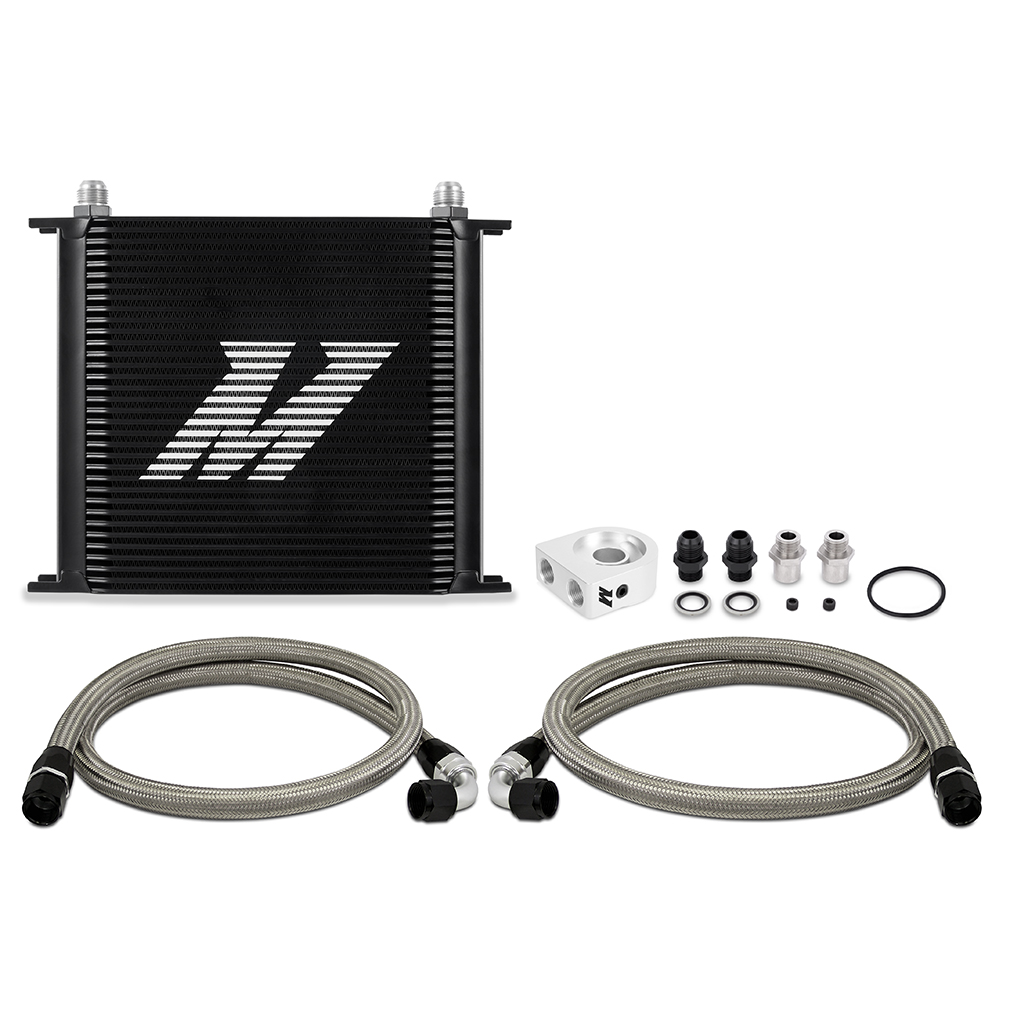

The Mishimoto MMOC-U34BK is a complete, universal-fit oil cooler kit built around Mishimoto’s proven 34-row stacked-plate cooler core, finished in black anodized aluminum. This particular kit ships as the Black, Non-Thermostatic configuration and pairs the cooler core with a billet anodized aluminum sandwich plate, pre-assembled stainless steel braided oil lines, and the fittings needed to adapt it to most engine bays. Whether you’re cooling a boosted rotary or a blown small block, this Mishimoto oil cooler kit is built to lower oil temperatures without adding unnecessary pressure loss.
Proper oil temperature regulation extends and preserves the life of a stock or high-performance engine, and this Mishimoto oil cooler kit gives builders the core components needed to add that protection. The 34-row bar-and-plate core is designed to withstand high fluid pressures while significantly reducing oil temperatures, and the included sandwich plate mounts to route oil through the cooler. Because the kit includes both a -16 and M20-1.5 sandwich plate adapter, this Mishimoto cooler supports installation across most makes and models, making it a genuinely universal cooling solution for engine swaps, track builds, and performance applications alike.
Vehicle Applications
As a universal oil cooler kit, the Mishimoto MMOC-U34BK is not limited to a single make or model. It’s designed to bolt into most vehicles thanks to the included -16 and M20-1.5 sandwich plate adapters, which cover common oil filter thread sizes. Mishimoto notes this kit is suited for a wide range of builds, from boosted rotary engines to blown small block engines, giving enthusiasts a single kit that can be adapted to whatever platform they’re working with.
Features
- Universal fitment via included -16 and M20-1.5 sandwich plate adapters

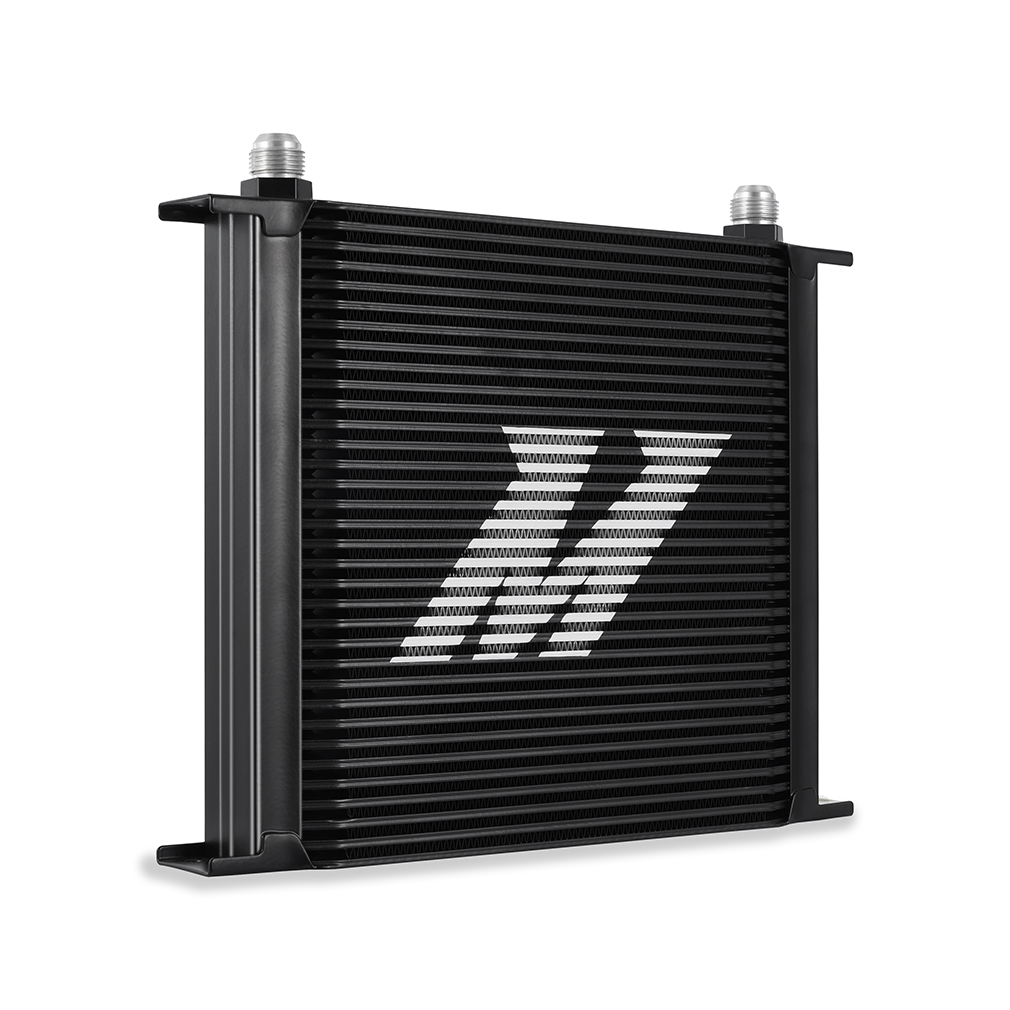

- 34-row stacked-plate, bar-and-plate cooler core withstands high fluid pressures, reduces oil temperatures, and exhibits minimal pressure loss

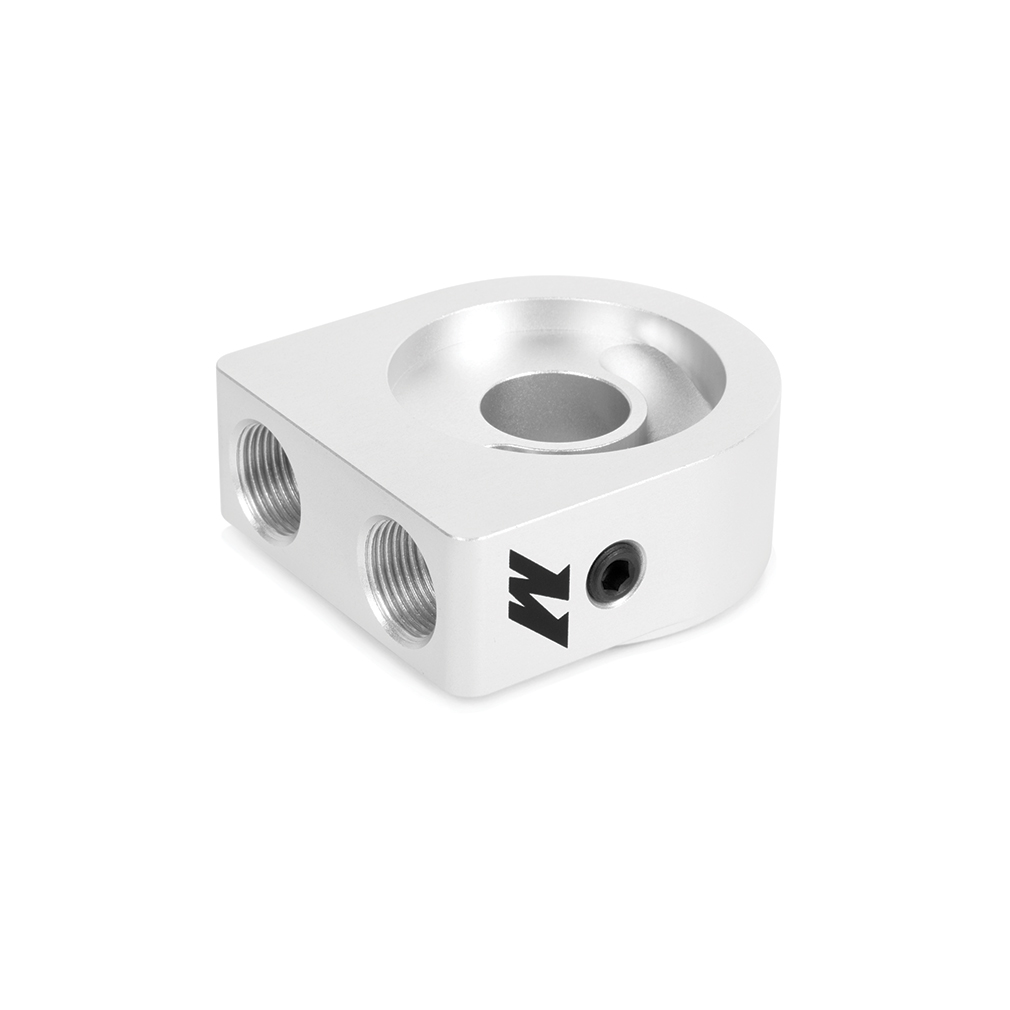

- Billet anodized aluminum sandwich plate (this kit ships as the Black, Non-Thermostatic version)
- Pre-assembled stainless steel braided oil lines with -10AN fittings and dowty seals for durable, leak-free connections
- Includes a 4ft and a 5ft stainless steel braided hose, each with one straight fitting and one 90-degree swivel fitting

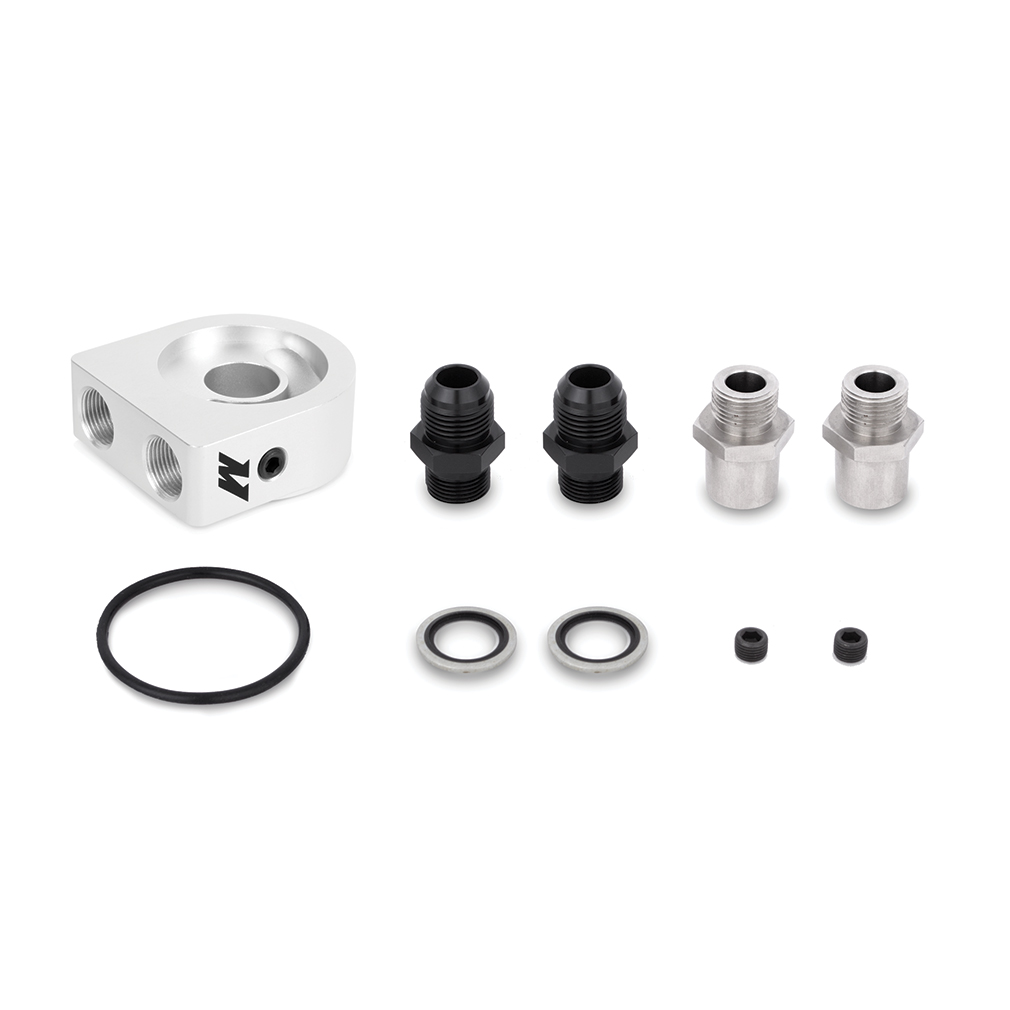

- Kit also includes additional -10AN fittings, dowty oil seals, a large O-ring, 1/8-in NPT Allen key plugs, and sandwich plate adapters
- Recommended torque for straight fittings and banjo bolts is 15-25 lb-ft; do not exceed the maximum torque rating of 35 ft-lb
- Mishimoto Lifetime Warranty
Specifications
- Brand: Mishimoto
- Part Number: MMOC-U34BK
- Color: Black
- Finish: Anodized
- Core Type: Bar-and-Plate
- Core Row Quantity: 34
- Core Height: 4.59 in
- Core Width: 11 in
- Overall Height: 5.59 in
- Overall Length: 12.95 in
- Cooler Fluid Capacity: 0.6 qt
- Inlet/Outlet Fitting Type: AN Flare
- Inlet/Outlet Fitting Gender: Male
- Grade Type: Performance
Frequently Asked Questions
What does the Mishimoto MMOC-U34BK oil cooler kit include?
It includes a 34-row oil cooler, a 4ft stainless steel braided hose with -10AN fittings (one straight and one 90-degree swivel fitting), a 5ft stainless steel braided hose with -10AN fittings (also with one straight and one 90-degree swivel fitting), a sandwich plate, -10AN fittings, dowty oil seals, a large O-ring, 1/8-in NPT Allen key plugs, sandwich plate adapters, and the Mishimoto Lifetime Warranty.
Will this oil cooler kit fit my vehicle?
This is a universal oil cooler kit that includes both a -16 and M20-1.5 sandwich plate adapter, which supports fitment for most makes and models.
What type of cooler core does this kit use?
It uses Mishimoto’s 34-row stacked-plate, bar-and-plate cooler core, designed to withstand high fluid pressures and significantly reduce oil temperatures while exhibiting minimal pressure loss.
What is the recommended torque for the fittings?
Mishimoto recommends a torque of 15-25 lb-ft for all straight fittings and banjo bolts, and advises not exceeding the maximum torque rating of 35 ft-lb.
Should I do anything before installing the cooler?
Yes. Although Mishimoto fully inspects and cleans all products prior to packaging, it’s recommended that customers flush the oil cooler with one quart of clean oil prior to installation to remove any debris accumulated during shipping.
Does this kit come with a warranty?
Yes, this kit includes the Mishimoto Lifetime Warranty.
