Description
The Mishimoto MMRAD-HE-03 is a universal air-to-water heat exchanger built with a dual-pass, 2-row aluminum core engineered to support charge-air cooling systems up to 1,000 hp. As part of Mishimoto’s lineup of four universal heat exchangers, this specific configuration is sized for builders who need a robust core without stepping up to the largest available options, giving forced-induction projects a dedicated way to pull heat out of coolant before it reaches the intercooler.
Liquid-to-air intercooling has become increasingly common on turbocharged builds chasing big power, and the heat exchanger is the component that makes that system work by lowering coolant temperature before it circulates through the intercooler core. This Mishimoto air-to-water heat exchanger uses all-aluminum, TIG-welded construction for strength under pressure, along with bead-rolled inlet and outlet connections designed to seal reliably. Whether you’re piecing together a full Mishimoto air-to-water intercooler system or upgrading an existing charge-air cooling setup, this heat exchanger is built to handle the demands of a serious cooling build.
Vehicle Applications
This Mishimoto heat exchanger is a universal-fit component rather than a vehicle-specific part, making it suitable for any forced-induction build that incorporates an air-to-water intercooler system and needs charge-air cooling support up to 1,000 hp. Because it isn’t tied to a particular make or model, it can be integrated into custom fabrication projects and aftermarket cooling systems where a dedicated liquid-to-air heat exchanger is required.
Features
- Universal heat exchanger for use with air-to-water intercooler systems
- Provides effective cooling support for charge-air cooling systems up to 1,000 hp
- Strategically designed dual-pass 2-row core offers maximum flow and heat dissipation
- All-aluminum construction yields superior strength and durability

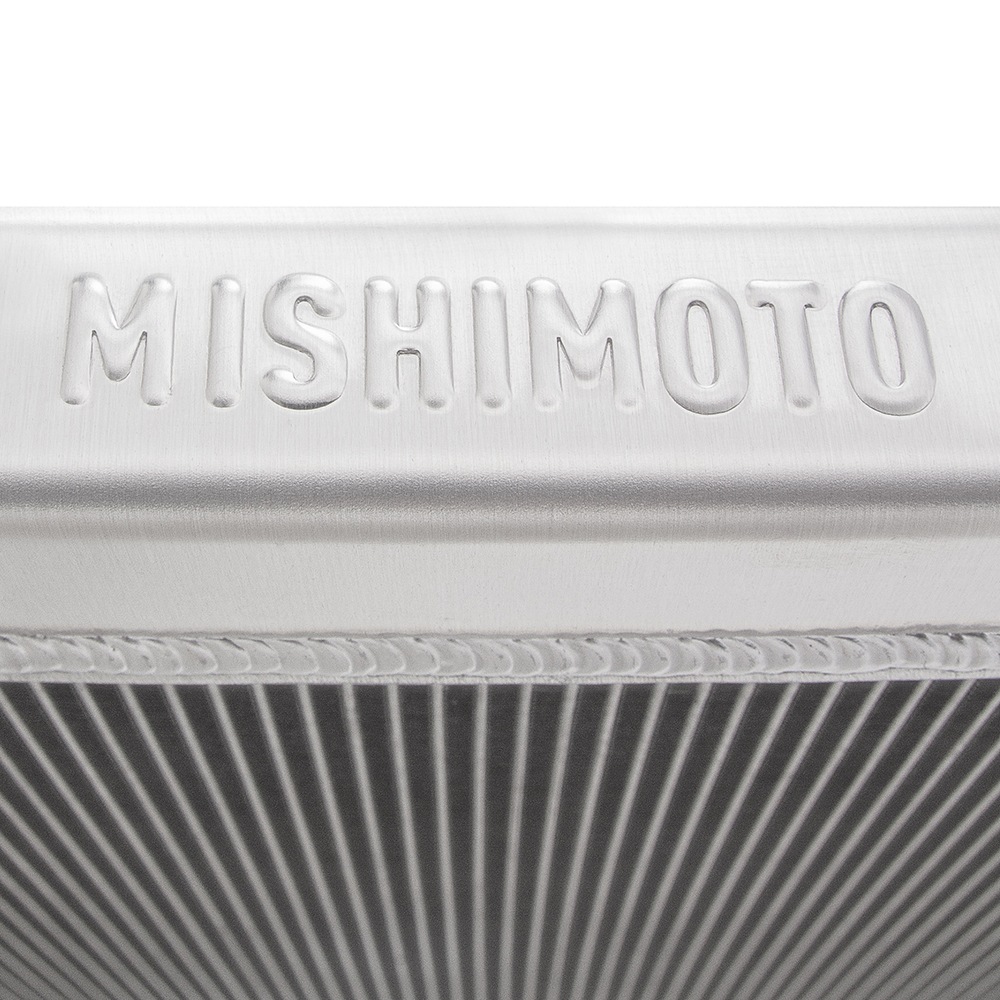

- Precision TIG-welded end tanks for improved durability and pressure tolerance
- Robust 1/2-in thick universal mounting bosses on each end tank

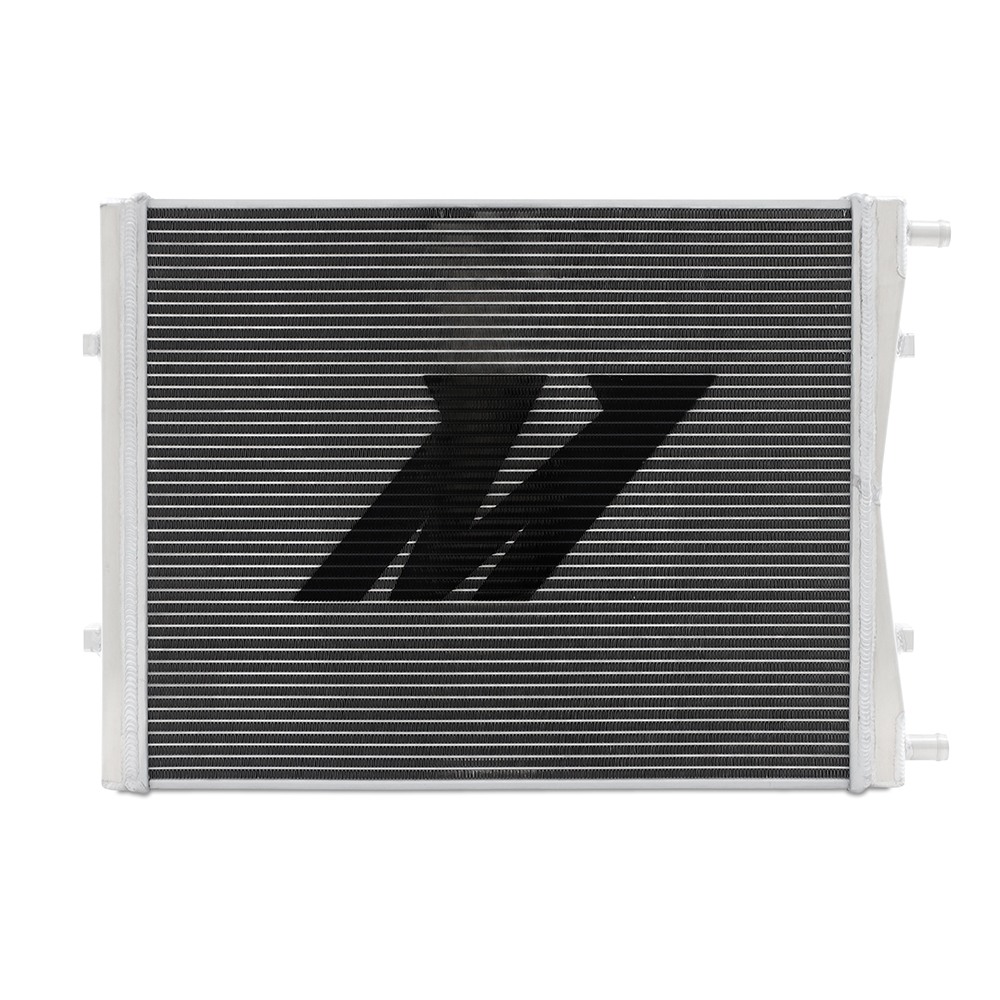

- Bead-rolled 3/4-in inlet and outlet provide a leak-free connection
- Multiple sizes available to fit the needs of your project

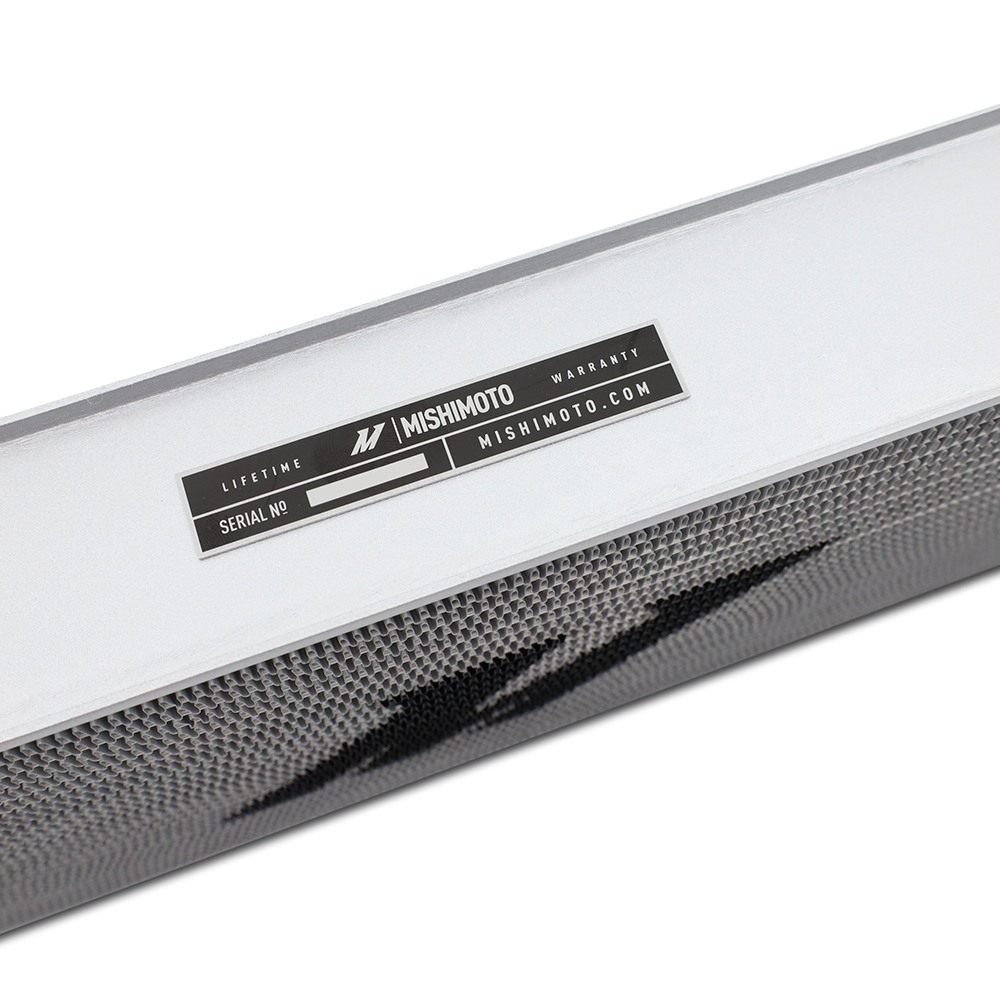

- Backed by the Mishimoto Lifetime Warranty
Specifications
- Core Material: Aluminum
- Core Finish: Uncoated
- Core Configuration: Cross Flow, dual-pass 2-row core
- Core Size: 19.68 in x 15.98 in x 1.88 in (Length x Height x Thickness)
- Overall Size: 24.46 in x 16.85 in x 2.51 in (Length x Height x Width)

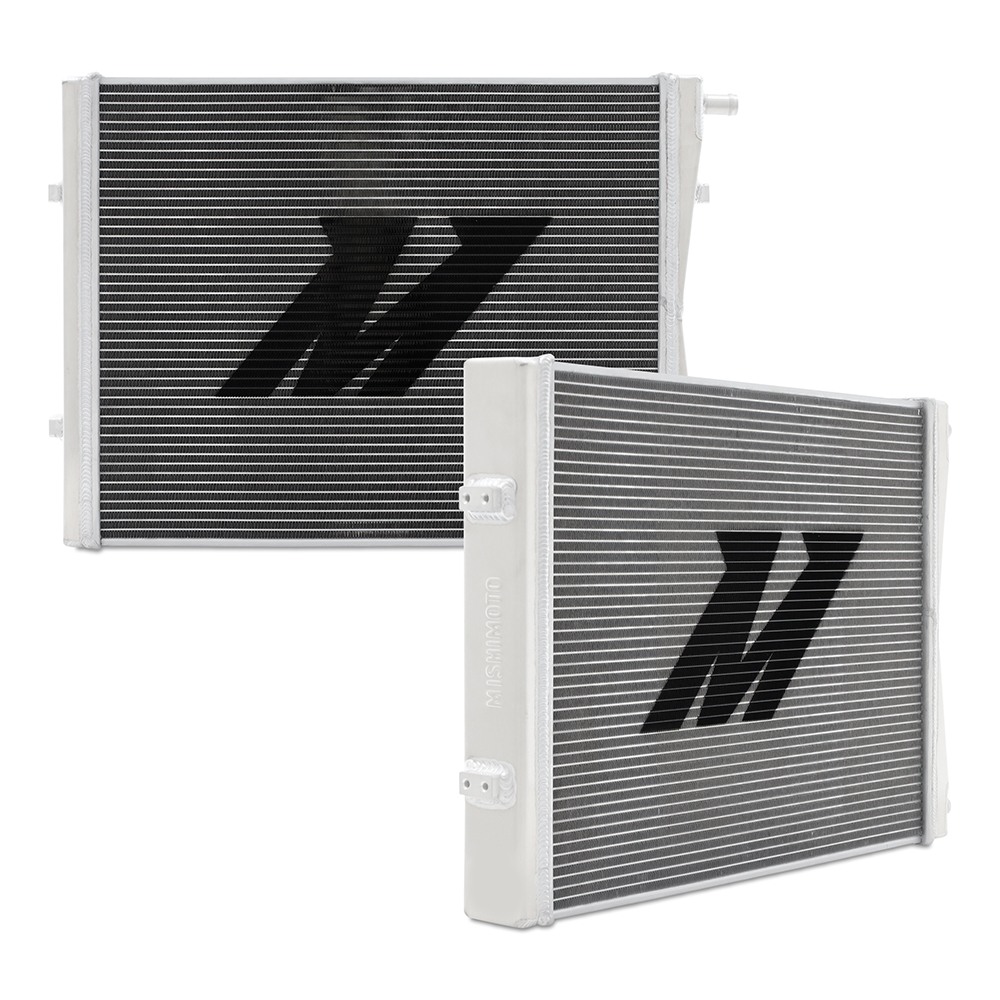

- Inlet Location: Top Right
- Outlet Location: Bottom Right
- Inlet/Outlet Diameter: 3/4 in, bead-rolled
- Fluid Capacity: 0.7 gal
- Mounting Boss Thread Size: M6 x 1.0
- Drain Plug Included: No
- Radiator Cap Included: No
- Transmission Oil Cooler Included: No
- Includes: Mishimoto Heat Exchanger, Mishimoto Lifetime Warranty
Frequently Asked Questions
What horsepower level does the Mishimoto MMRAD-HE-03 heat exchanger support?
This Mishimoto universal air-to-water heat exchanger provides effective cooling support for charge-air cooling systems up to 1,000 hp.
What is the core configuration of this heat exchanger?
It uses a strategically designed dual-pass 2-row core in a cross-flow configuration for maximum flow and heat dissipation.
What material is the Mishimoto MMRAD-HE-03 made from?
The heat exchanger features all-aluminum, TIG-welded construction with an uncoated core finish.
Does this heat exchanger fit a specific vehicle?
No, this is a universal heat exchanger designed for use with air-to-water intercooler systems in forced-induction builds rather than a specific make or model.
Does the Mishimoto MMRAD-HE-03 include a drain plug or radiator cap?
No, this heat exchanger does not include a drain plug or a radiator cap.
What warranty comes with this Mishimoto heat exchanger?
It is backed by the Mishimoto Lifetime Warranty.
