Description

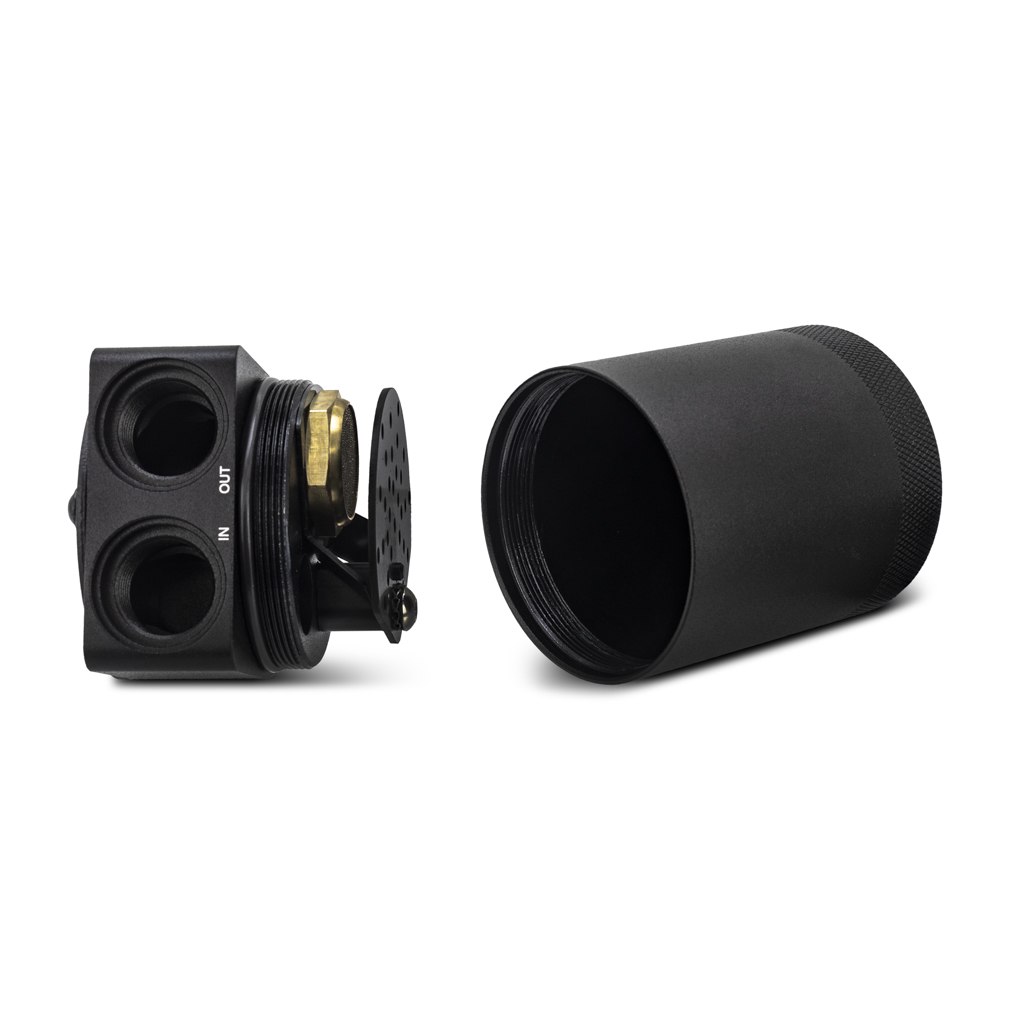

The Mishimoto Universal High-Flow Baffled Catch Can Kit, part number MMBCC-PPTWO, is a twist-off, 6061-T6 billet aluminum catch can built to trap oil, fuel, and water vapor before they recirculate back through the intake. Finished in a black anodized 2.5-inch diameter can body, it pairs a removable 50-micron bronze filter with an interior baffle, and its fully serviceable, detachable-bottom design keeps routine maintenance simple.
As one of the components of an automobile engine’s crankcase ventilation setup, a baffled catch can like this one helps keep the parts of a car engine cleaner by intercepting oil and moisture that would otherwise re-enter the intake tract. Whether you’re refreshing engine parts on a daily driver or sourcing engine parts for car projects across several platforms, this Mishimoto catch can’s universal compatibility, multi-size inlet and outlet ports, and M20 ORB threading make it adaptable to many different car engines without locking you into one hose size or fitting style. The all-aluminum billet barbed fittings simplify secure hose installation, while the M20 ORB threading provides a tight, pressure-resistant seal to help prevent leakage.
Vehicle Applications
Mishimoto lists the MMBCC-PPTWO’s application as Universal, with no specific engine codes or chassis codes tied to it, meaning it is engineered to work with a wide range of makes and models rather than a single vehicle. The included universal mounting bracket, self-tapping screws, and O-Ring Faced aluminum fittings let you position the can wherever the engine bay offers the most convenient and secure mounting point, regardless of the vehicle it’s installed on.
Features
- Universal design works with various makes and models
- 50-micron bronze filter for improved oil separation
- Fully serviceable can with a detachable bottom
- Universal bracket lets you mount the catch can in the most convenient and secure location
- All-aluminum billet barbed fittings for easy and secure hose installation
- Inlet and outlet ports accept multiple sizes of barbed fittings for varied hose sizing
- M20 ORB threading offers a tight, pressure-resistant seal to prevent leakage
- Optional Petcock Drain Kit allows one-turn drainage of all blow-by contents
- Backed by the Mishimoto Lifetime Warranty
Specifications
- Color: Black
- Finish: Anodized
- Can Material: 6061-T6 Billet Aluminum
- Can Type: Twist Off
- Can Finish: Anodized
- Height: 3.9 in
- Can Outside Diameter: 2.5 in
- Inlet Port Inside Diameter: 0.5 in
- Outlet Port Inside Diameter: 0.5 in
- Drain Plug Thread Size: 3/8″-18 NPT
- Threading: M20 x 1.5 for O-Ring Faced Fittings
- Mounting Bracket Included: Yes
- Hose Included: Yes
- Drain Plug Included: Yes
- Interior Baffle: Yes

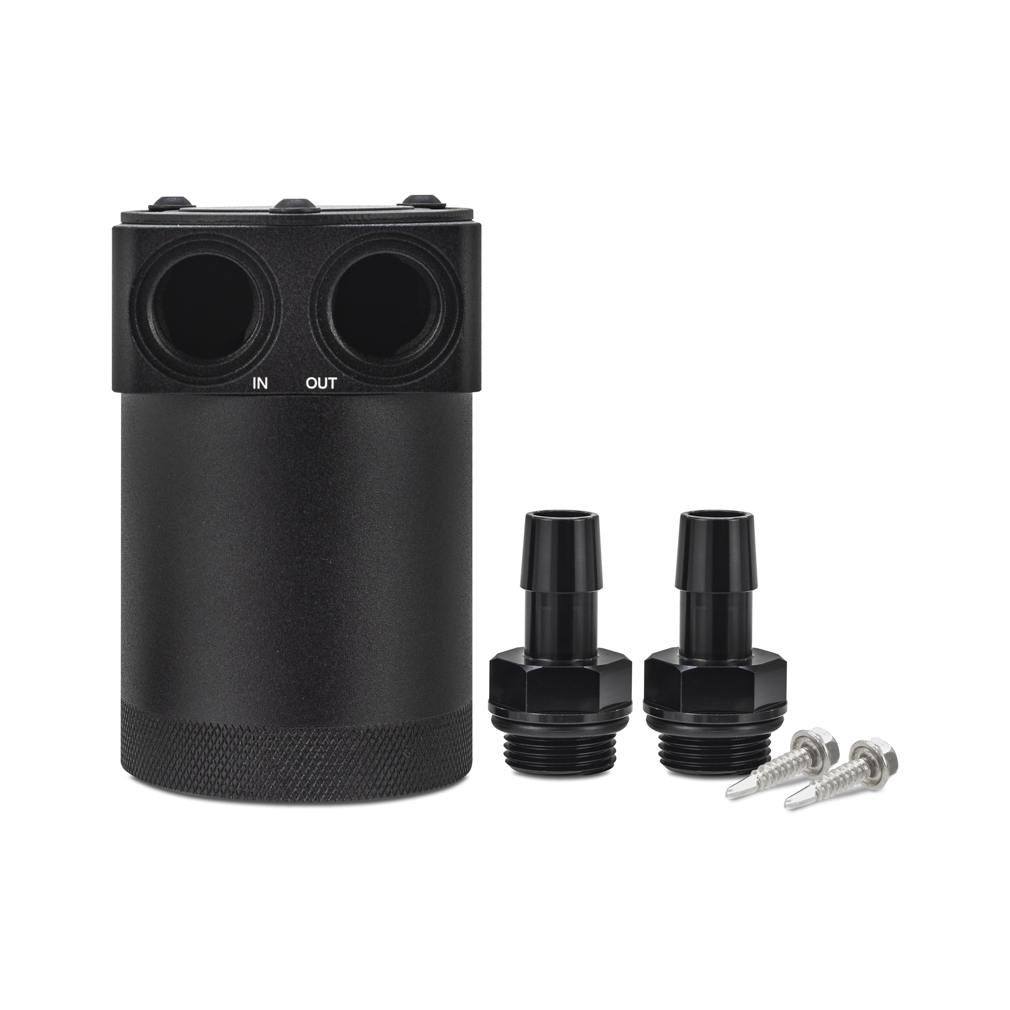

- Includes: (1) Mishimoto Parallel Port Catch Can, (2) 1/2 inch M20 O-Ring Faced Aluminum Fittings, Universal Mounting Bracket, (2) Self Tapping Screws, Mishimoto Lifetime Warranty
- Applications: Universal
Frequently Asked Questions
What is included with the Mishimoto MMBCC-PPTWO catch can kit?
The kit includes one Mishimoto Parallel Port Catch Can, two 1/2 inch M20 O-Ring Faced aluminum fittings, a universal mounting bracket, two self-tapping screws, and coverage under the Mishimoto Lifetime Warranty.
Will this catch can fit my vehicle?
Mishimoto lists the application for this kit as Universal, with no specific engine or chassis codes, so it is designed to be compatible with a wide range of makes and models.
What micron rating is the filter?
It uses a removable 50-micron bronze filter to improve oil separation.
What is the can made from and how is it finished?
The can is made from 6061-T6 billet aluminum with a black anodized finish, and it uses a twist-off design.
What is the drain plug thread size?
The drain plug thread size is 3/8″-18 NPT.
Is this catch can serviceable?
Yes, it features a fully serviceable, detachable bottom for easy maintenance, and it includes a drain plug and interior baffle.
