Description
The CSF 7065 KING Cooler is a cutting-edge cooling system developed specifically for drag racing applications. After extensive research and development, this product represents a significant advancement in drag race radiator technology, offering an efficient solution for cooling demands.
This cooling system features a triple-pass flow structure, allowing coolant to flow across the core three times before exiting. This design helps achieve lower outlet temperatures. The radiator is equipped with a 2-Row core and CSF’s exclusive B-Tube Technology, which uses a specially engineered tube shape that enhances strength and cooling efficiency. The B-tube design increases the heat transfer surface area by approximately 15% compared to standard tubes, allowing for dual liquid laminar flow. Additionally, ultra-efficient multi-louvered fins are precisely aligned to maximize airflow and heat rejection efficiency.
Features
- Triple-Pass Flow Structure for enhanced cooling
- 2-Row core with B-Tube Technology
- Increased heat transfer surface area by approximately 15%
- Dual liquid laminar flow for improved efficiency

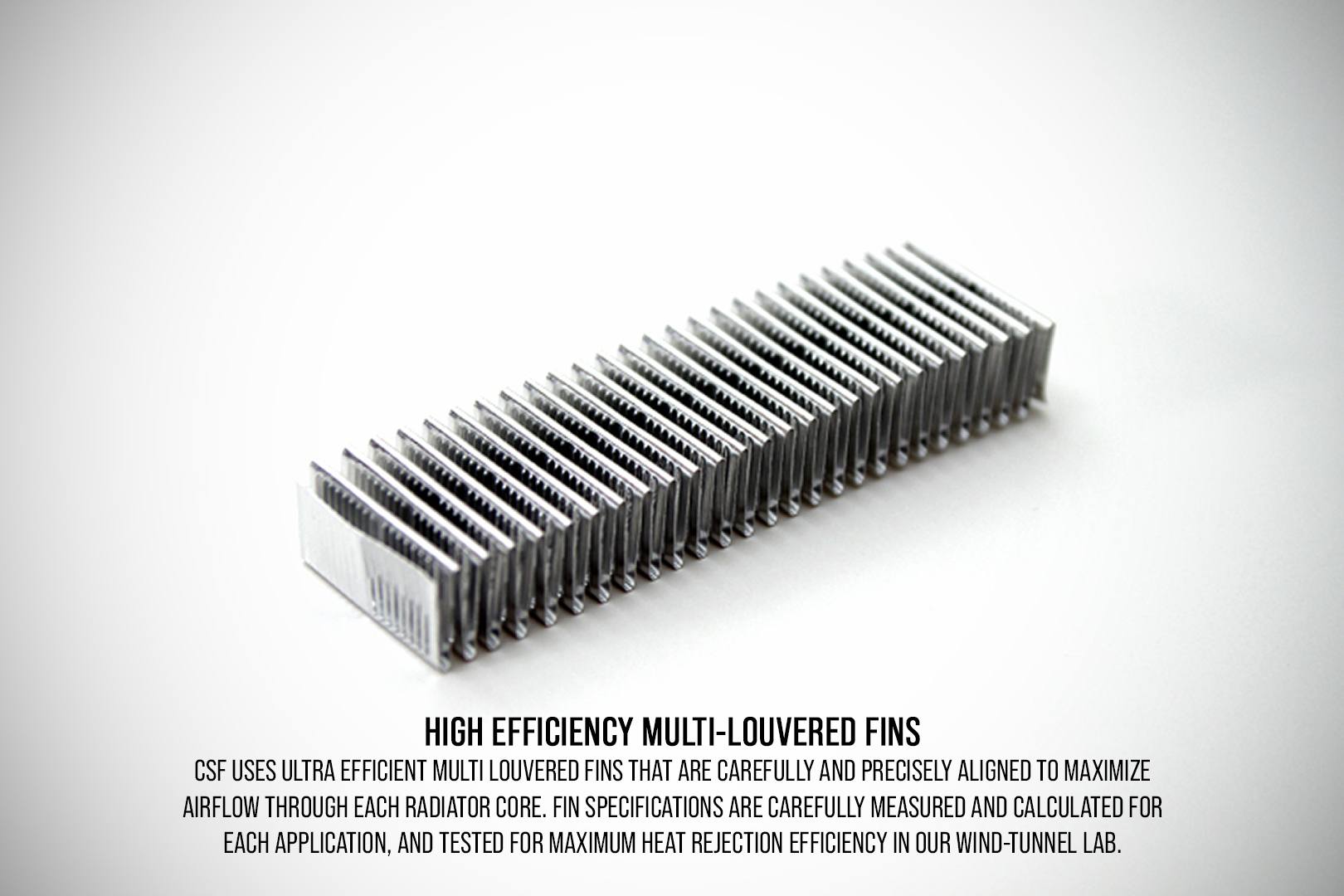

- Ultra-efficient multi-louvered fins
- Carefully measured fin specifications for maximum heat rejection
Frequently Asked Questions
What is the core design of the CSF 7065 KING Cooler?
The radiator features a 2-Row core with CSF’s exclusive B-Tube Technology.
How does the triple-pass flow structure benefit cooling?
It allows coolant to flow across the core three times, helping achieve lower outlet temperatures.

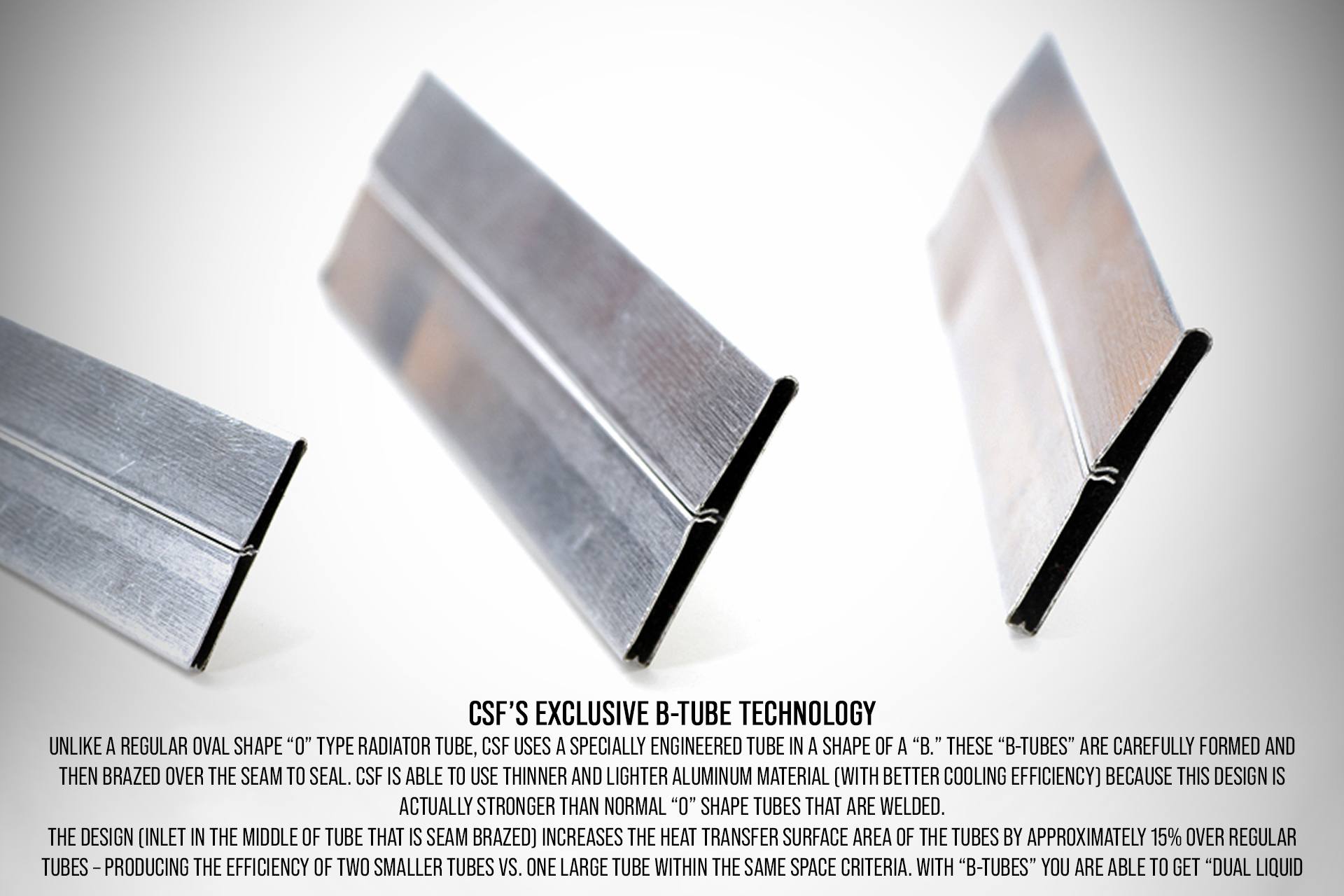

What is the advantage of the B-Tube Technology?
The B-Tube design increases the heat transfer surface area by approximately 15% over regular tubes.
