Description
Overview

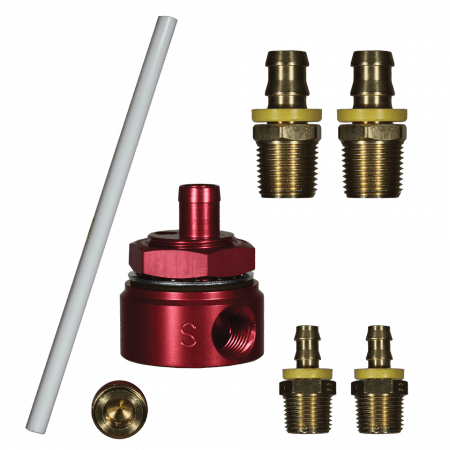

The FASS Diesel Fuel 5/8 Suction Tube Kit with Bulkhead Fitting (Part No. STK1002) is a precision-machined upgrade designed to feed your aftermarket lift pump the fuel volume it demands. Machined from durable 6061 T-6 Billet Aluminum, this bulkhead fitting integrates both a 5/8 inch suction tube and a 1/2 inch fuel return port into a single, clean installation. Sold as a complete kit, it is the new and improved evolution of the previous FASS STK-Kit and is built to work with a wide range of diesel platforms.
This new design allows you to plumb your FASS return line directly to the bulkhead fitting, eliminating all cutting of the filler neck and significantly speeding up the installation process. Whether you’re routing a fuel line, fuel hose, or a high pressure fuel line back to the tank, the integrated 1/2 inch return port keeps everything organized and secure.
Key Benefits
The larger 5/8 inch suction tube is engineered to increase fuel delivery, making it an ideal match for higher-volume fuel systems. The suction tube itself is fabricated from PTFE Teflon, so it can be easily trimmed to adapt to different depth fuel tanks. When properly installed, this kit lets you safely operate down to approximately 1/8 tank of fuel, helping to eliminate the common low-tank fuel starvation issue that plagues high-demand diesel setups.
- Machined from 6061 T-6 Billet Aluminum for strength and durability
- Integrated 5/8 inch suction tube port and 1/2 inch fuel return port
- PTFE Teflon suction tube can be cut to fit different fuel tank depths
- Plumb your FASS return line directly to the bulkhead — no filler neck cutting required
- Increases fuel delivery for higher-volume fuel systems
- Safely operate down to roughly 1/8 tank of fuel
Installation & Design
The unique bulkhead design was created for simple installation. By combining the suction and return functions into one fitting, it reduces the number of connections and eliminates the messy modification steps required by older setups. The trim-to-fit PTFE suction tube means you can dial in the exact depth for your application, whether you’re feeding a rubber fuel hose, braided fuel line, or stainless steel fuel line back to the system.
Fitment
This kit is designed for Universal Applications and fits popular diesel Truck/SUV platforms including Ford Powerstroke, GM Duramax and Dodge Cummins. It is recommended for installation with FASS Titanium Series Systems, where the larger suction tube and improved fuel delivery work perfectly with higher-volume, high-demand fuel systems. Always verify your specific fuel system and tank configuration before ordering to ensure the right setup for your build.
