Description

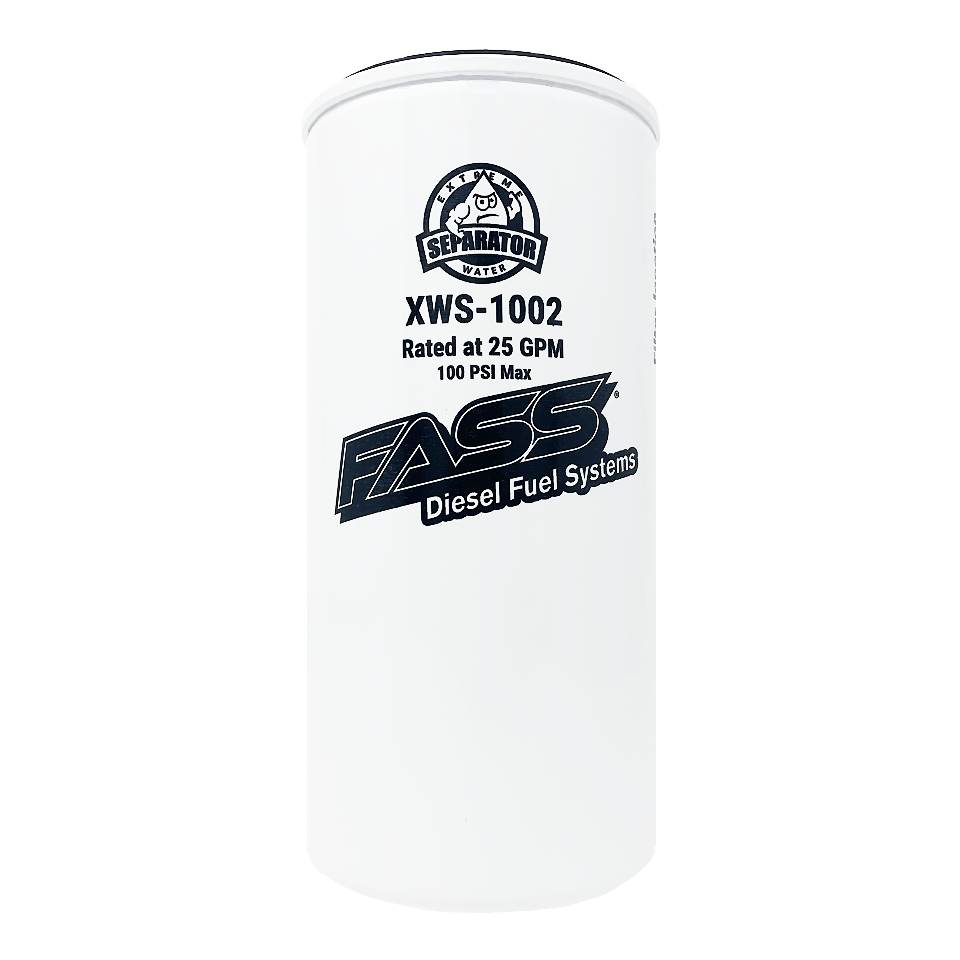

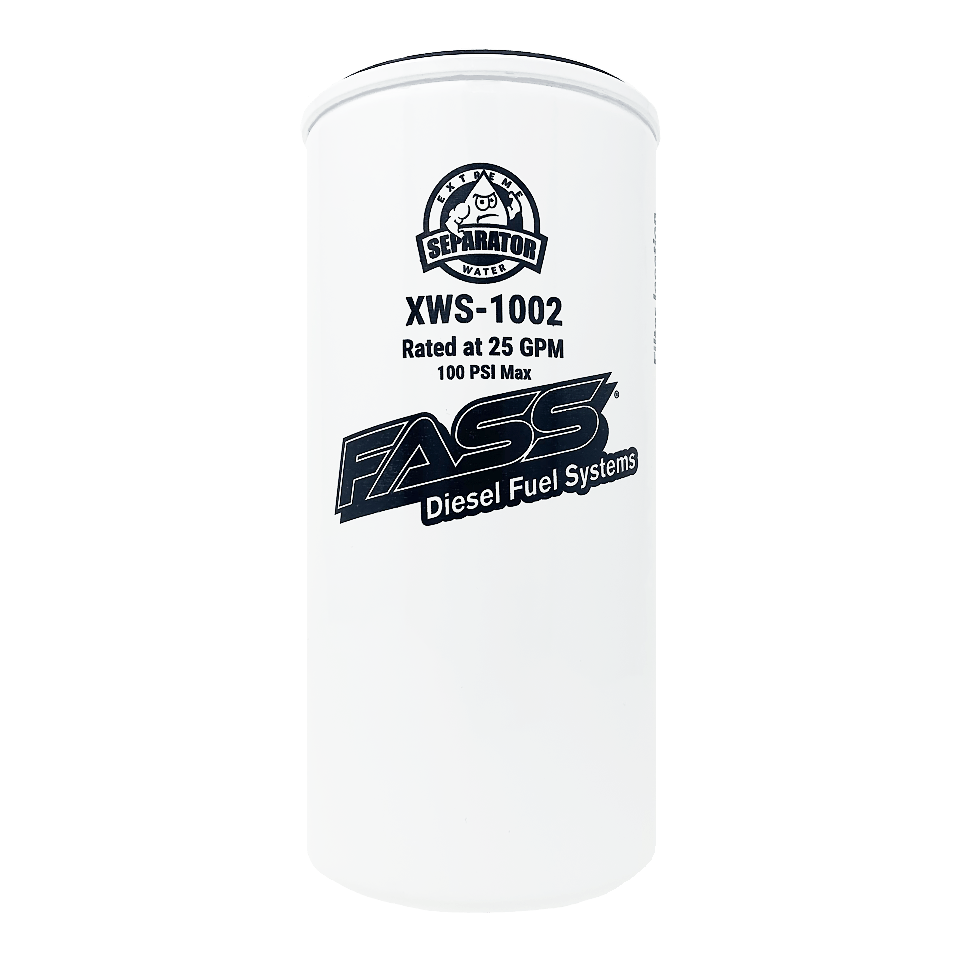

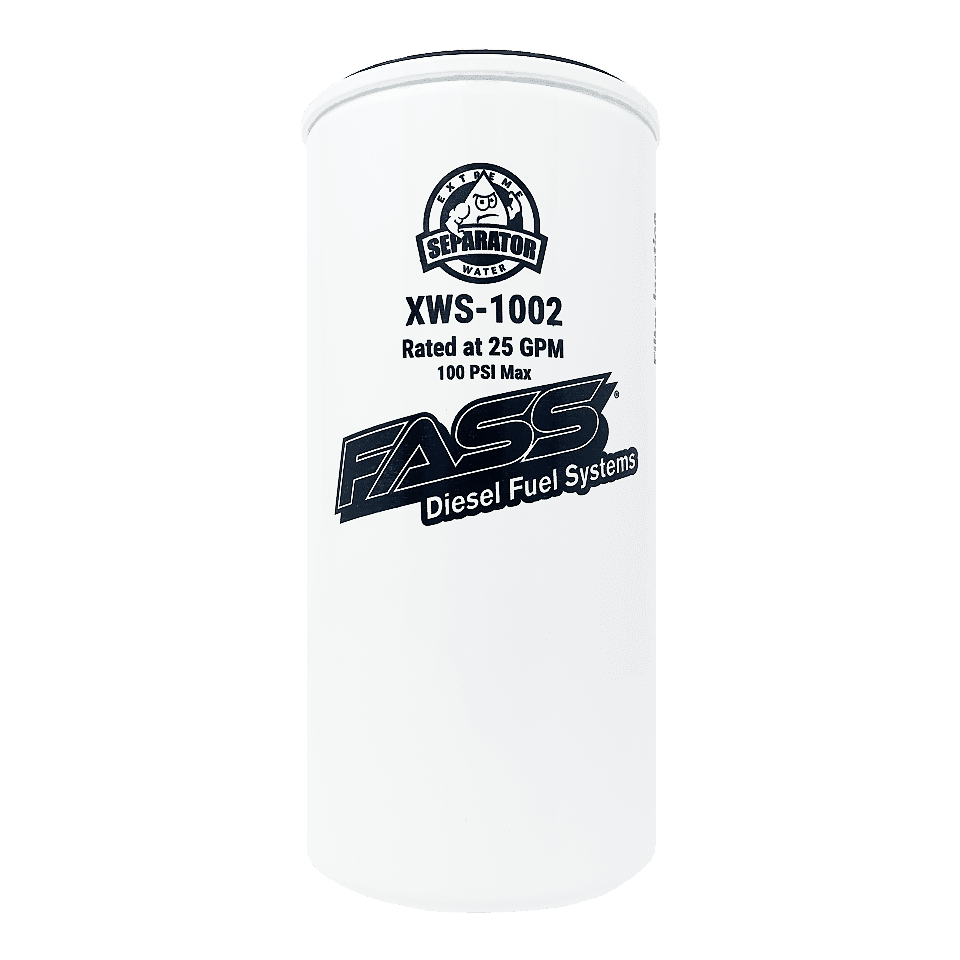

The FASS XWS1002 Extreme Water Separator is a purpose-built fuel filter engineered for diesel truck and SUV fuel systems that demand aggressive water removal and consistent fuel filtration performance. As part of the FASS Fuel Systems lineup, the XWS1002 represents an upgraded design over previous water separator filters, delivering a tighter 2-micron absolute filtration rating for cleaner fuel delivery to your engine.
Overview
Unlike older water separator designs that relied on a manual drain to purge accumulated moisture, the XWS1002 takes a different approach: the filter element itself traps water internally, eliminating the need for a drain valve altogether. This design simplifies maintenance and reduces the chance of user error during a fuel filter change, since there’s no drain to monitor or open. For diesel truck and SUV owners who are serious about protecting injectors, pumps, and other fuel system components from water contamination, this is a meaningful upgrade in how the filtration stage handles moisture separation.
Compatibility and Installation Notes
The XWS1002 is not a standalone, drop-in replacement for every older FASS filter. It must be run in conjunction with the PF3001XL fuel filter, and it is not compatible with the discontinued FF-1003 or FS-1001 filters. If you’re upgrading or replacing those older filters with the new XWS1002/PF3001XL combination, note the placement change: the XWS1002 Extreme Water Separator installs on the pressure side of the system, while the PF3001XL is positioned on the suction side. Getting this orientation right is critical, whether you’re a DIY installer changing the fuel filter yourself or working with a shop that specializes in diesel fuel filter service.
Fuel filter replacement cost and fuel filter change cost vary by vehicle and shop, but having the correct filter combination and installation orientation on hand up front helps keep the job straightforward and avoids repeat labor. Whether you’re researching inline fuel filter setups, comparing gas filter change intervals, or using a filter finder tool to cross-reference part numbers, confirming the XWS1002 pairs correctly with the PF3001XL is the first step before ordering.
Highlights
- 2-micron absolute filtration rating for thorough fuel and water separation
- Drainless design — the filter element itself traps water, no manual drain required
- Must be paired with the PF3001XL filter for correct system operation
- Not compatible with the discontinued FF-1003 or FS-1001 filters
- Installs on the pressure side of the fuel system (PF3001XL installs on the suction side)
- Designed for Truck/SUV diesel fuel system applications
- Sold individually (Each)
Backed by FASS Fuel Systems’ engineering focus on diesel fuel filtration, the XWS1002 is built for owners who want a cleaner, more reliable water separation stage without the hassle of a manual drain.
