aFe Power AFE-71-10101-p Magnum FLOW OE Replacement Air Filter GM Diesel Trucks 06-10 V8-6.6L (td) LBZ/LMM

  • High Performance Filter Will Outflow Stock Paper Filters
  • 100% Polyurethane On Top And Bottom For Extra Long Life
  • Washable And Reusable For Multiple Cleaning Cycles
  • Integrated Urethane Bump Seal Ensures A No Leak Seal

-

Price range: $104.00 through $120.00

Out of stock
SKU AFE-71-10101-p
UPC AFE-10-10101 : 00802959101872 | AFE-11-10101 : 00802959110522 | AFE-71-10101 : 00802959710111
Add to wishlist Add to compare

Description

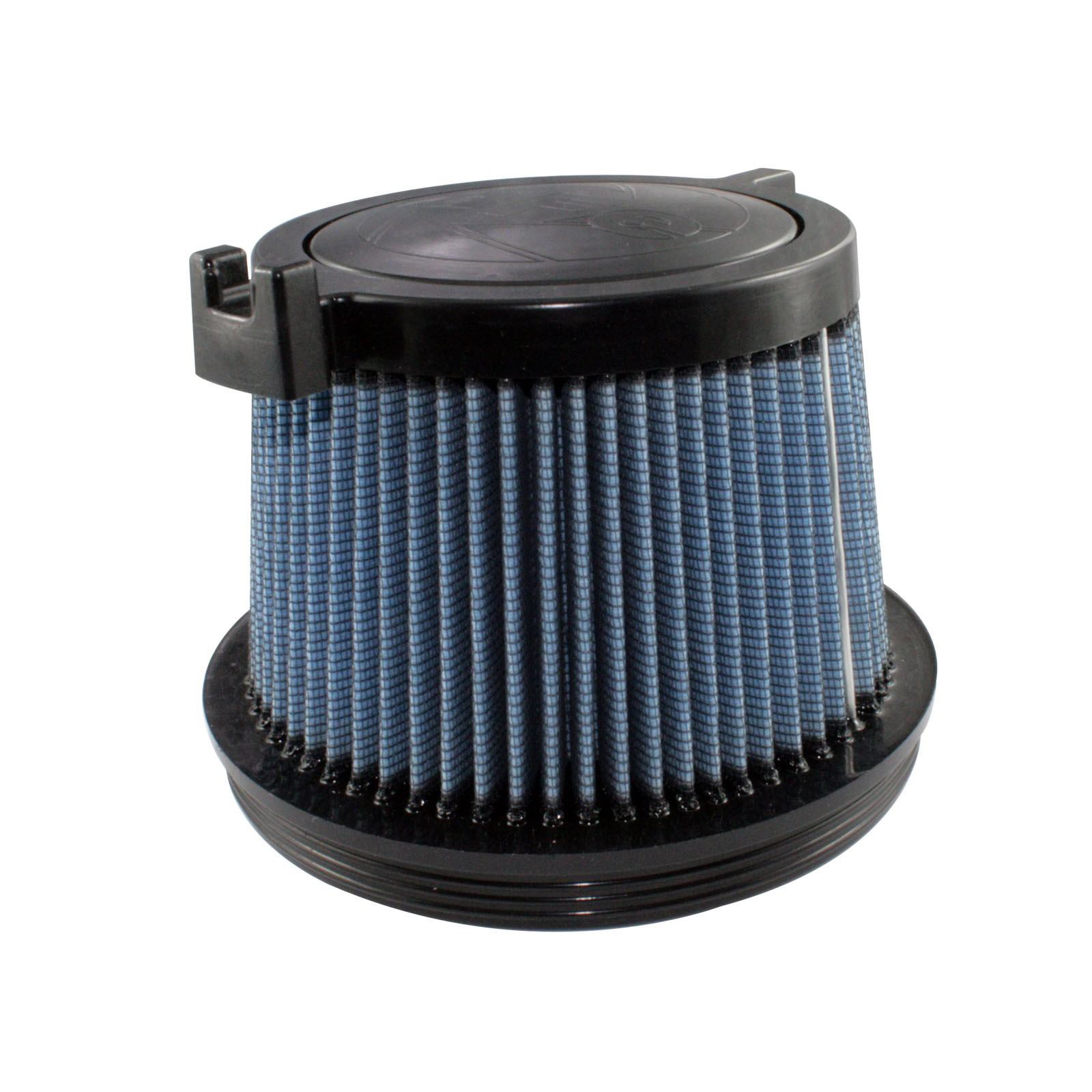

Model: Pro 5R Air Filter 10-10101

Constructed with 100% polyurethane on top and base, this high-flow, oiled OE replacement performance filter will outflow the stock paper filter by up to 17% for improved horsepower and torque. The PRO 5R air filter uses five layers of progressively finer mesh cotton gauze media to provide maximum airflow for best performance results. Washable and reusable for multiple cleaning cycles, the tall, open, evenly spaced pleats provide excellent dust holding capacity for a longer service cycle between cleanings. An integrated urethane bump seal insures tight, no leak seal over the life of the filter.

PRO 5R Media:
This filter features a 5-layer progressive, oiled media to provide maximum flow with excellent filtration. The progressive layering of media allows the filter to flow at high levels even when dirty. The Pro 5R filter media has been tested at a 98.6% efficiency rating.

Rounded Open Pleats with Expanded Metal:
aFe performance air filters use a rounded pleat design which produces more useable filter surface area for increased flow and greater dust holding capacity.

Progressive Bump Seal:
This pliable sealing surface conforms to even the most uneven filter housing. This design eliminates the use of gaskets or sealants. The soft urethane construction always goes back to its original form so you will never compress the bump seal. This makes for a perfect filter fit and sealing surface every time.

Full Urethane Housing:
aFe Power performance air filters are constructed using full 360 degree urethane frames. This construction allows for a proper OE style fit with excellent filter strength.

aFe Power OE replacement performance filters have a limited lifetime warranty.

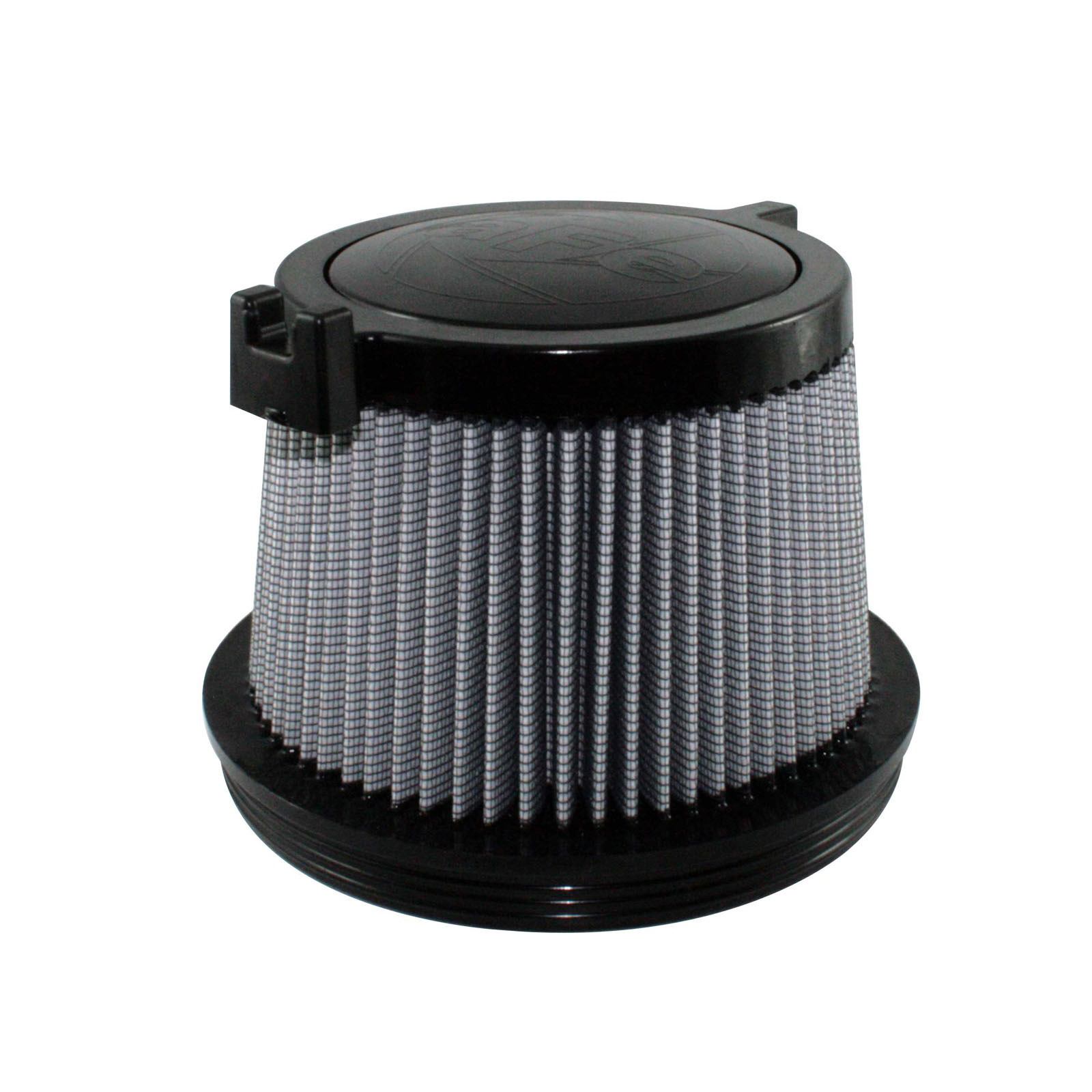

Model: Pro DRY S Air Filter 11-10101

Pro DRY S Filter Media:
This filter features three layers of oil-free synthetic media and requires no oil during maintenance to provide maximum convenience. Its progressive layering provides great filtration efficiency and dust holding capacity. This media is best suited for street use. Pro DRY S filters are easily recharged with aFe’s POWER CLEANER.

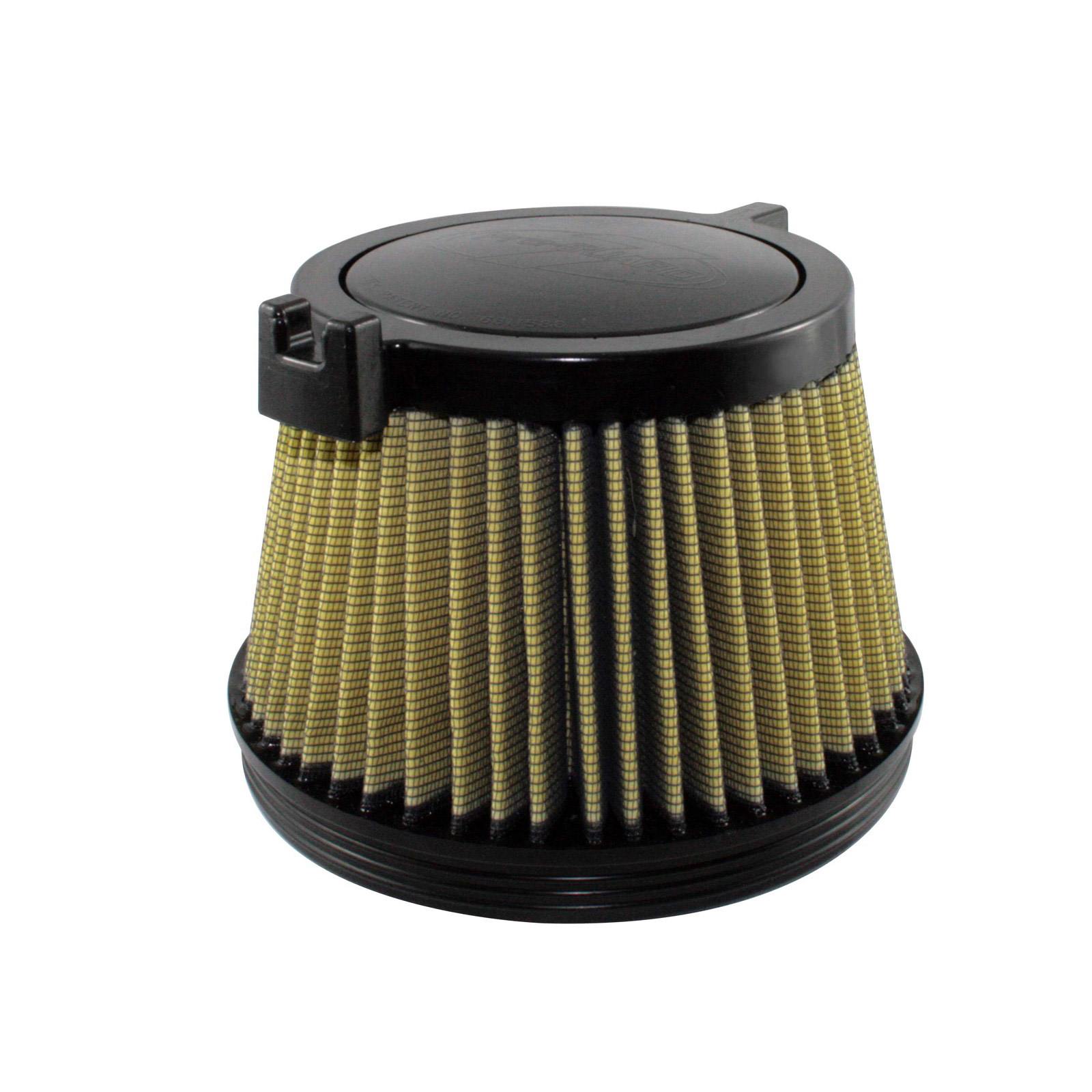

Model: Pro GUARD7 Air Filter 71-10101

Features

  • Constructed with 100% polyurethane on top and bottom
  • Oiled OE replacement high performance filter will outflow stock paper filter
  • Five layers of progressively finer mesh cotton gauze media and two layers of synthetic media
  • Washable and reusable for multiple cleaning cycles
  • Integrated urethane bump seal ensures a no leak seal

Constructed with 100% polyurethane on top and bottom, this high flow oiled OE replacement performance filter will outflow stock paper filter for improved horsepower and torque. Seven layers of progressively finer mesh cotton gauze and synthetic media provide maximum protection with highest cumulative filtration efficiency. Washable and reusable for multiple cleanings, the tall open evenly spaced pleats provide excellent dust holding capacity for longer service cycle between cleanings. Integrated urethane bump seal insures tight, no leak seal over the life of the filter.

Specification

Model

Pro 5R Air Filter, Pro DRY S Air Filter, Pro GUARD7 Air Filter

Brand

Compatibility

, , , , , , , , , , , , , , , , , , , , , , ,

Reusable

Yes

Shape

Round Closed Conical

Washable

Yes

Filter Style

OE Replacement

Height

6.25

Base Diameter

9.24

Top Diameter

7

Outlet Diameter

8.86

WARNING CA Proposition 65

Yes

WARNING Message

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

UPC

AFE-10-10101 : 00802959101872 | AFE-11-10101 : 00802959110522 | AFE-71-10101 : 00802959710111

MPN

10-10101 | 11-10101 | 71-10101

Oiled or Dry Media

Dry, Oiled

Air Filter Color

Blue, Gold, Gray
