Description

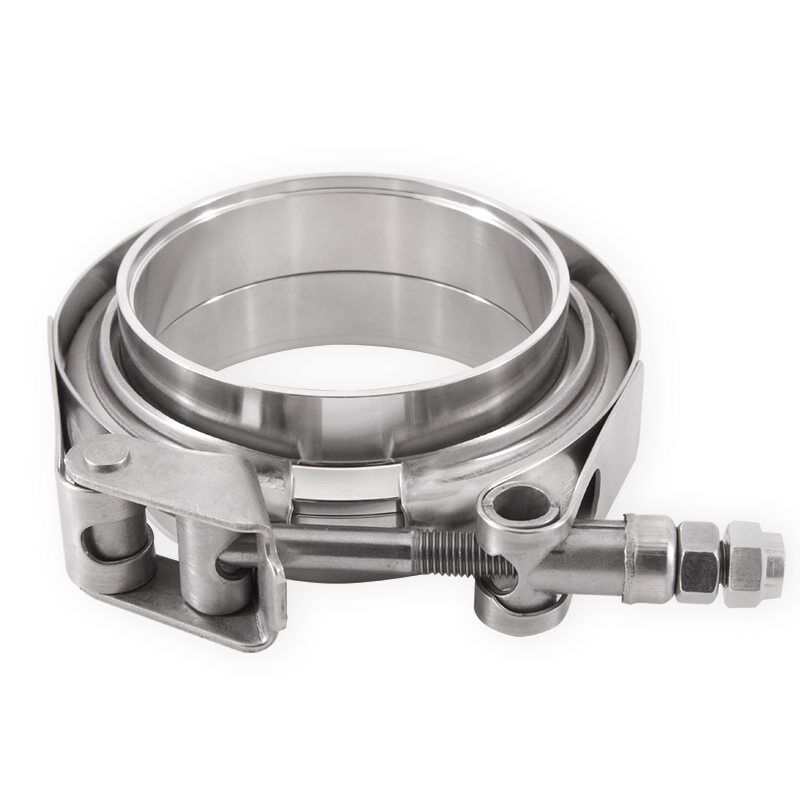

The Mishimoto MMCLAMP-VS-15 is a 1.5in (38.1mm) stainless steel V-band clamp built specifically for fabricators who demand a rigid, repeatable connection between pipes. Unlike standard hose clamps, this V-band design uses interlocking counterbored flanges and a reusable fabrication nut to simplify mock-up before final welding, then locks down for good with the included self-locking nut. It’s a small but critical piece of hardware for anyone building custom intake, intercooler, or exhaust plumbing.
As a dedicated Mishimoto Fabrication component, this stainless-steel V-band clamp is engineered to provide stronger retention than other coupling methods while remaining easy to disassemble for parts that need frequent removal, such as turbochargers or charge pipes. The polished stainless steel construction resists rust and corrosion even in harsh underhood environments, and the 360-degree clamping action seals the joint without the need for a gasket. Whether you’re fabricating a new exhaust system, connecting intercooler and charge pipes, or building a custom intake, this clamp gives you the flexibility to tack-weld, check fit, and finish welding with confidence, all backed by the Mishimoto Lifetime Warranty.
Vehicle Applications
This is a universal-fit fabrication clamp, not tied to a specific make, model, or year. It’s designed to work on any 1.5in (38.1mm) diameter pipe, making it suitable for custom stainless steel exhaust pipes, intercooler and charge pipes, intakes, and turbocharger connections across a wide range of fabrication projects.
Features
- Includes V-band clamp and male/female flanges
- Provides a rigid and secure connection between 1.5in (38.1mm) pipes
- Ideal for stainless steel exhaust pipes, intercooler and charge pipes, intakes, and turbochargers
- Counterbored flanges ensure proper pipe alignment for easy welding
- Interlocking flanges provide a leak-free seal without a gasket
- Reusable fabrication nut makes fabrication easy
- Provides stronger retention than other coupling methods
- Quick-release design is ideal for parts requiring frequent disassembly
- Stainless-steel construction resists rust and corrosion in even the harshest environments
- Backed by the Mishimoto Lifetime Warranty
Specifications
- Brand: Mishimoto
- Part Number: MMCLAMP-VS-15
- Product Type: Fabrication
- Material: Stainless Steel
- Color: Silver
- Finish: Polished
- Clamping Type: V Band
- Nut Type: Self-locking
- Grade Type: Performance
- Performance Rated: Yes
- Flange Included: Yes
- Universal or Specific Fit: Universal
- Pipe Diameter: 1.5 IN
- Maximum Diameter: 1.5 IN
- Minimum Diameter: 1.5 IN
- Band Width: 0.91 IN
- Clamp Style: Stainless Steel V-Band Flange with Clamp
- Includes: (1) Mishimoto Stainless Steel V-Band w/ Clamp, (1) Reusable Fabrication Nut, (1) Self-Locking Nut, Mishimoto Lifetime Warranty
Frequently Asked Questions
What pipe size does this Mishimoto V-band clamp fit?
This clamp is designed for 1.5in (38.1mm) diameter pipes, with a maximum and minimum clamp diameter of 1.5 IN.
What is included with the MMCLAMP-VS-15?
It includes (1) Mishimoto Stainless Steel V-Band w/ Clamp, (1) Reusable Fabrication Nut, (1) Self-Locking Nut, and the Mishimoto Lifetime Warranty.
How does the fabrication nut work?
Assemble the V-band clamp with the reusable fabrication nut, tack-weld your pipes in place, then disassemble for final welding. Once welding is complete, reassemble the clamp with the provided self-locking nut.
What material is the clamp made from?
The clamp is made from stainless steel with a polished silver finish, which resists heat and corrosion.
Is this clamp a universal fit?
Yes, this V-band clamp has a universal fit and is not vehicle-specific, making it suitable for custom exhaust, intercooler, charge pipe, intake, and turbocharger connections.
Is there a recommended companion product for this clamp?
Yes, Mishimoto recommends pairing this clamp with product MMICP-2250.
