Description

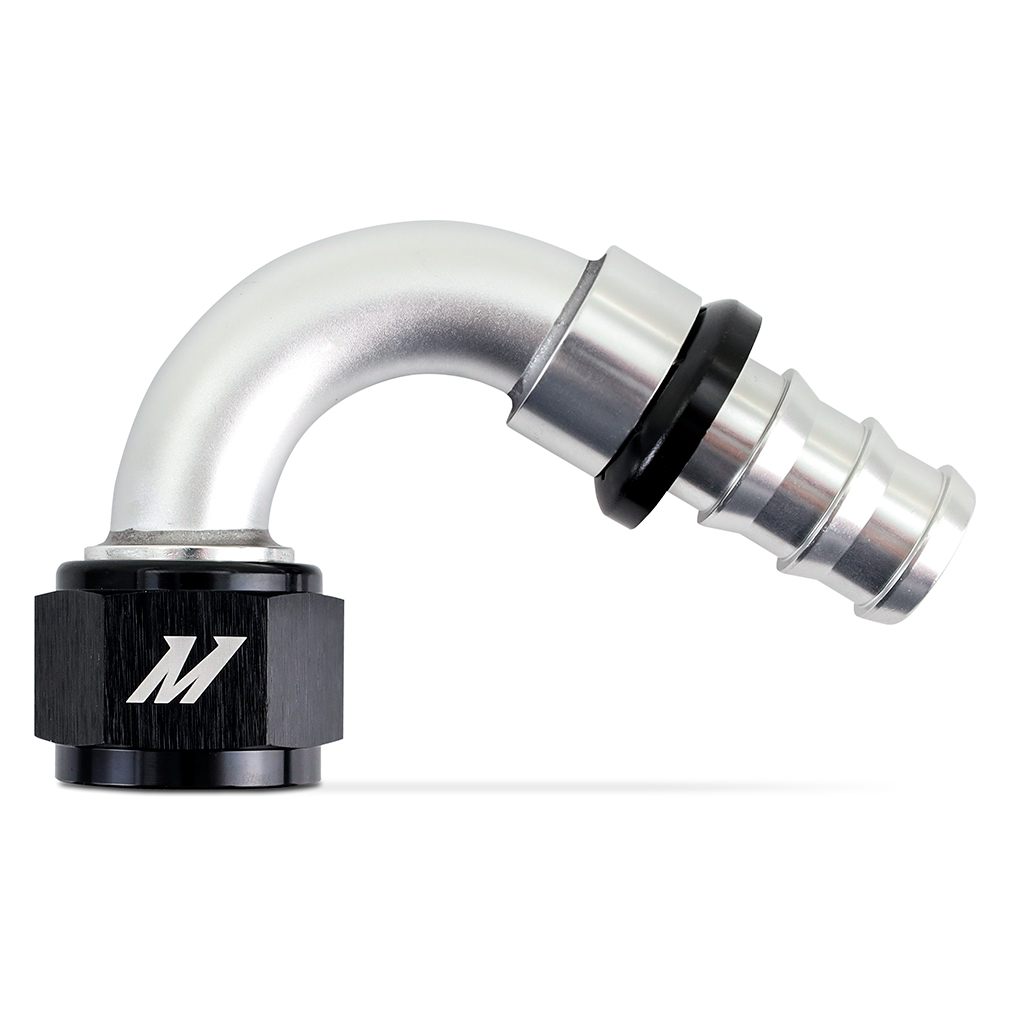

The Mishimoto -12AN Push Lock Fitting, part number MMFT-PL-12120, is the 120-degree version of Mishimoto’s push-lock fitting lineup, finished in a silver and black anodized aluminum coating for a distinctive look under the hood. Built with a 1 1/16 in – 12 UNF end paired with a -12AN push-lock end, this fitting is designed to give fabricators a fast, reliable way to route -12AN line at a sharp 120-degree angle.
As a Mishimoto Fabrication component, this push lock fitting is engineered for enthusiasts and shops building custom plumbing for oil coolers, transmission coolers, catch cans, and similar systems. The -12AN push-lock port allows for simple installation without the need for additional clamps, while precision machining is designed to deliver a leak-free connection with -12AN line. The fitting’s Performance grade construction is engineered to withstand high temperatures and substantial pressures, and the corrosion-resistant anodized coating adds a sleek, durable finish that holds up under the hood while assembling in just minutes.
Vehicle Applications
This is a universal fabrication fitting rather than a vehicle-specific part, so it is not tied to a particular make, model, or year. Instead, it is intended for use in custom-built systems such as oil coolers, transmission coolers, and catch cans, making it suitable for any build where -12AN push-lock line needs to be routed at a 120-degree angle.
Features
- -12AN push lock port for simple installation
- Offered in straight, 45-degree, 90-degree, and 120-degree angles to allow for easy routing of lines
- Precision machining provides a leak-free connection with -12AN line
- Perfect for use with engine oil, coolant, fuel, etc.
- Corrosion-resistant anodized coating provides a sleek, durable finish
- Engineered to withstand high temperatures and substantial pressures
- Assembles in minutes
- Backed by the Mishimoto Lifetime Warranty

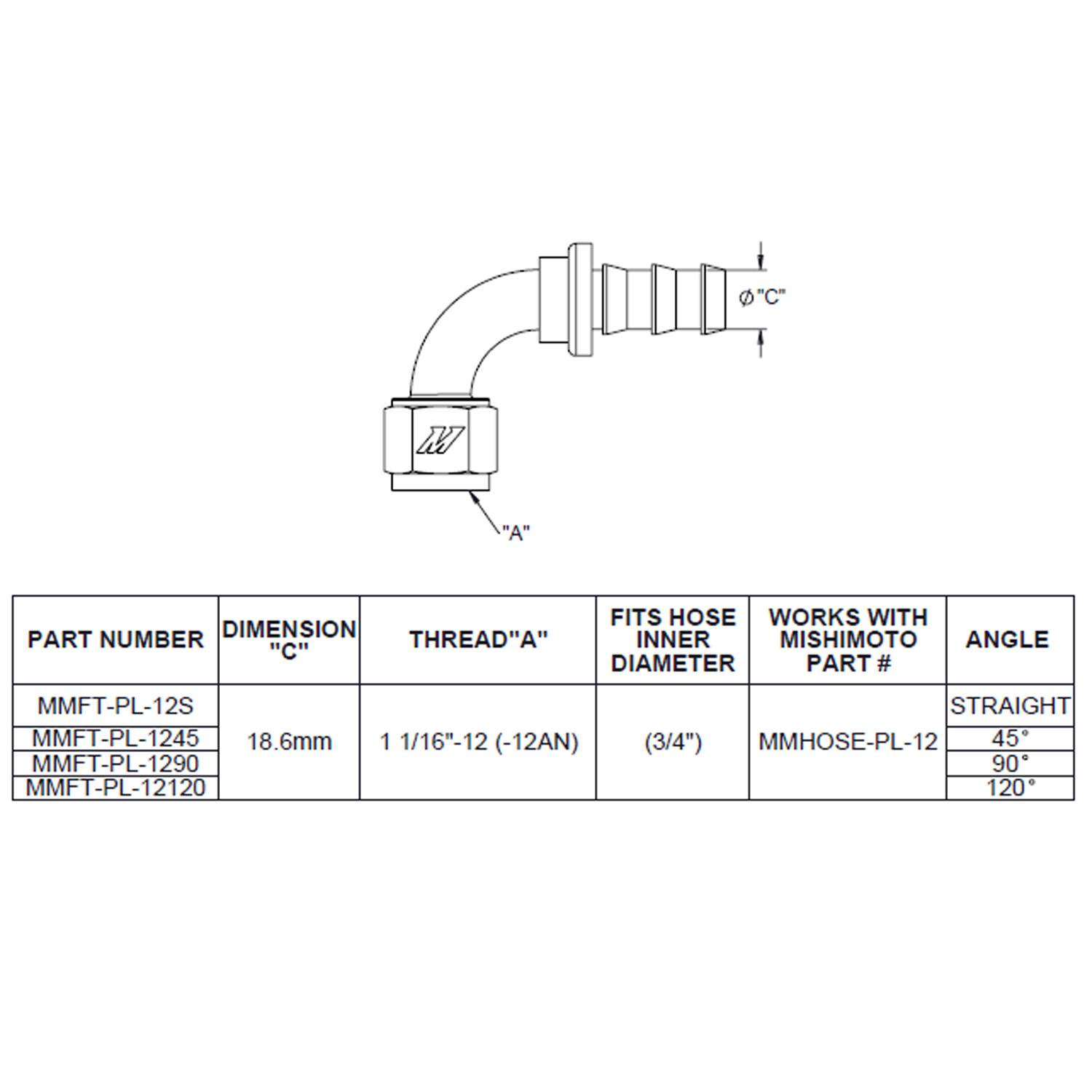

Specifications
- Brand: Mishimoto
- Part Number: MMFT-PL-12120
- Product Type: Fabrication
- Color: Silver and Black
- Angle: 120-Degree
- End 1 Type: 1 1/16 in – 12 UNF
- End 2 Type: -12AN Push-Lock
- Grade Type: Performance
- Max Fluid Temperature: 248°F
- Max Fluid Pressure: 5000 PSI
- Includes: Mishimoto -12AN Push Lock Fitting, Mishimoto Lifetime Warranty
Frequently Asked Questions
What angle is this Mishimoto push lock fitting?
This fitting, MMFT-PL-12120, is the 120-degree version of Mishimoto’s -12AN push lock fitting, which is also offered in straight, 45-degree, and 90-degree angles.
What type of connection does this fitting use?
End 1 is a 1 1/16 in – 12 UNF connection, and End 2 is a -12AN push-lock end.
What is the maximum fluid temperature and pressure rating for this fitting?
This fitting is rated for a maximum fluid temperature of 248°F and a maximum fluid pressure of 5000 PSI.
What is included with this fitting?
The package includes the Mishimoto -12AN Push Lock Fitting and is backed by the Mishimoto Lifetime Warranty.
What color finish does this fitting have?
It has a silver and black anodized aluminum finish.
What is this fitting typically used for?
It is designed for custom oil coolers, transmission coolers, catch cans, and similar systems, and can be used with engine oil, coolant, fuel, and other fluids.
