Description

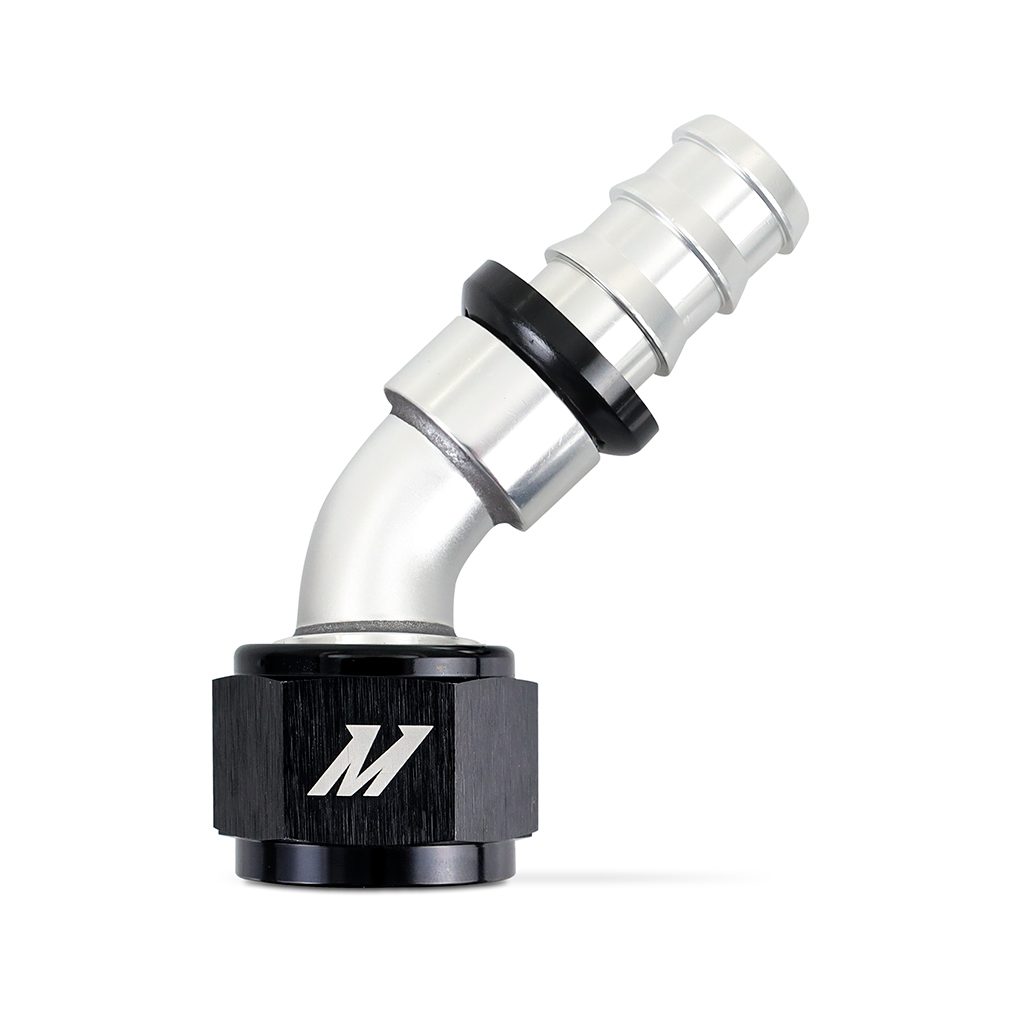

The Mishimoto -12AN Push Lock Fitting (MPN: MMFT-PL-1245) is a 45-degree, silver and black anodized aluminum fitting built for fabricators who need a fast, leak-free -12AN connection point. It pairs a 1 1/16 in – 12 UNF end with a -12AN push-lock end, letting you tie -12AN line into your system without the fuss of traditional AN fittings.
As part of the Mishimoto Fabrication lineup, this push lock fitting is designed to make custom plumbing simple. The -12AN push-lock port allows the fitting to assemble in minutes, while precision machining is engineered to provide a leak-free connection with -12AN line. Rated to a maximum fluid temperature of 248°F and a maximum fluid pressure of 5000 PSI, it’s built to handle demanding under-hood environments, and it’s suited for use with engine oil, coolant, fuel, and similar fluids. The corrosion-resistant anodized coating keeps the silver and black finish looking sharp while standing up to the elements, making it a practical and good-looking addition to any Mishimoto Fabrication build.
Vehicle Applications
This is a universal Mishimoto Fabrication component rather than a vehicle-specific part, so it isn’t tied to a particular make, model, or year. Instead, it’s intended for custom fabrication work such as building or modifying oil coolers, transmission coolers, catch cans, and other custom -12AN plumbing setups on your own project vehicle.
Features
- -12AN push lock port for simple installation
- Offered in straight, 45-degree, 90-degree, and 120-degree angles to allow for easy routing of lines (this listing is the 45-degree option)
- Precision machining provides a leak-free connection with -12AN line
- Perfect for use with engine oil, coolant, fuel, etc.
- Corrosion-resistant anodized coating provides a sleek, durable finish
- Engineered to withstand high temperatures and substantial pressures
- Assembles in minutes
- Mishimoto Lifetime Warranty
Specifications
- Brand: Mishimoto
- Part Number: MMFT-PL-1245
- Product Type: Fabrication
- Color: Silver and Black
- Angle: 45-degree

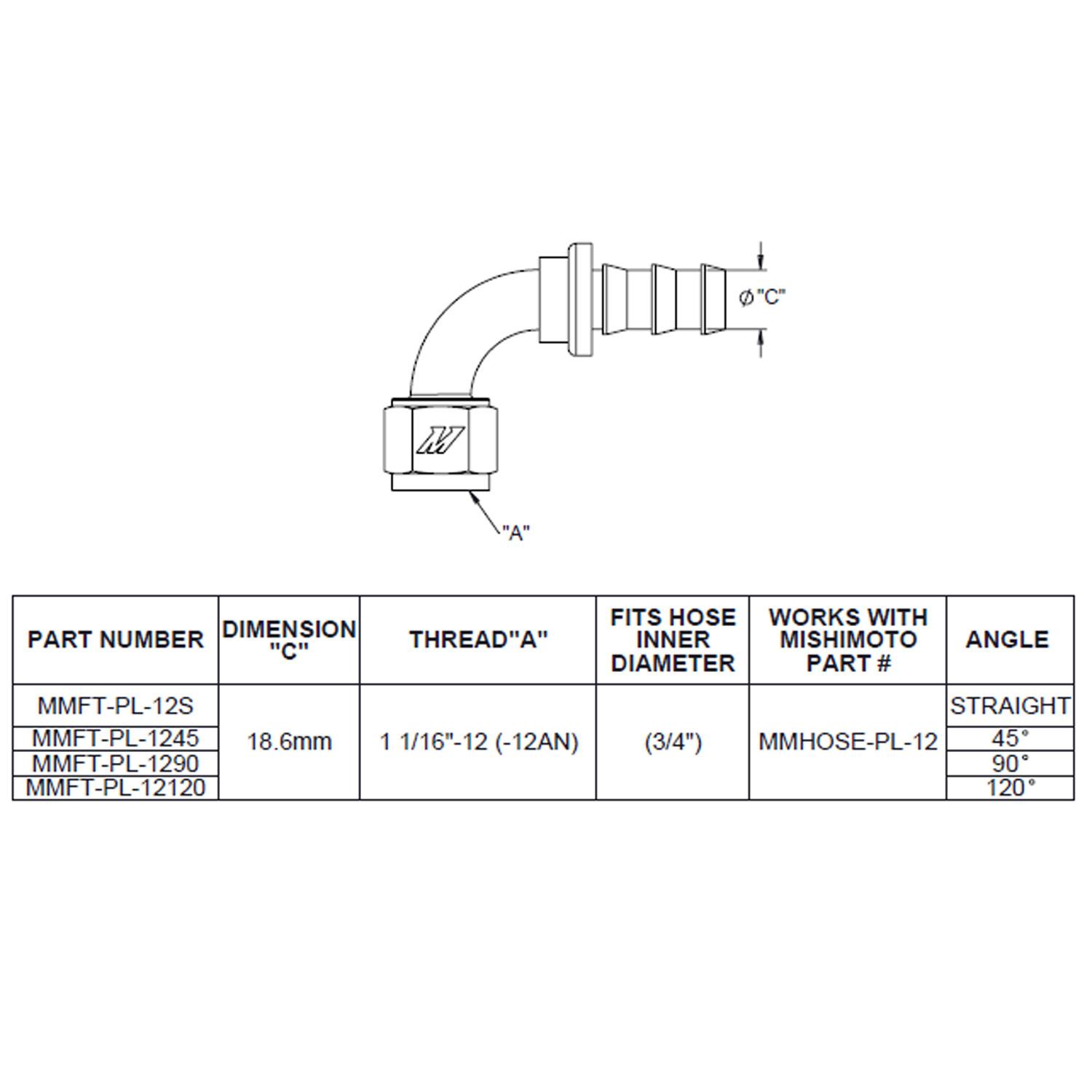

- End 1 Type: 1 1/16 in – 12 UNF
- End 2 Type: -12AN Push-Lock
- Grade Type: Performance
- Max Fluid Temperature: 248°F
- Max Fluid Pressure: 5000 PSI
- Includes: Mishimoto -12AN Push Lock Fitting, Mishimoto Lifetime Warranty
Frequently Asked Questions
What angle is this Mishimoto -12AN Push Lock Fitting?
This fitting is the 45-degree option. Mishimoto also offers this push lock fitting in straight, 90-degree, and 120-degree angles for easy routing of lines.
What color is the Mishimoto -12AN Push Lock Fitting?
It is finished in silver and black anodized aluminum for a sleek, durable, corrosion-resistant look under the hood.
What are the end connections on this fitting?
End 1 is a 1 1/16 in – 12 UNF connection, and End 2 is a -12AN Push-Lock connection.
What fluids and pressures/temperatures can this fitting handle?
It is engineered for use with fluids such as engine oil, coolant, and fuel, with a maximum fluid temperature of 248°F and a maximum fluid pressure of 5000 PSI.
What is included with this fitting, and is there a warranty?
The package includes the Mishimoto -12AN Push Lock Fitting, and it is backed by the Mishimoto Lifetime Warranty.
Is this fitting designed for a specific vehicle?
No, this is a universal Mishimoto Fabrication component intended for custom applications such as oil coolers, transmission coolers, and catch cans rather than a specific vehicle fitment.
