Description

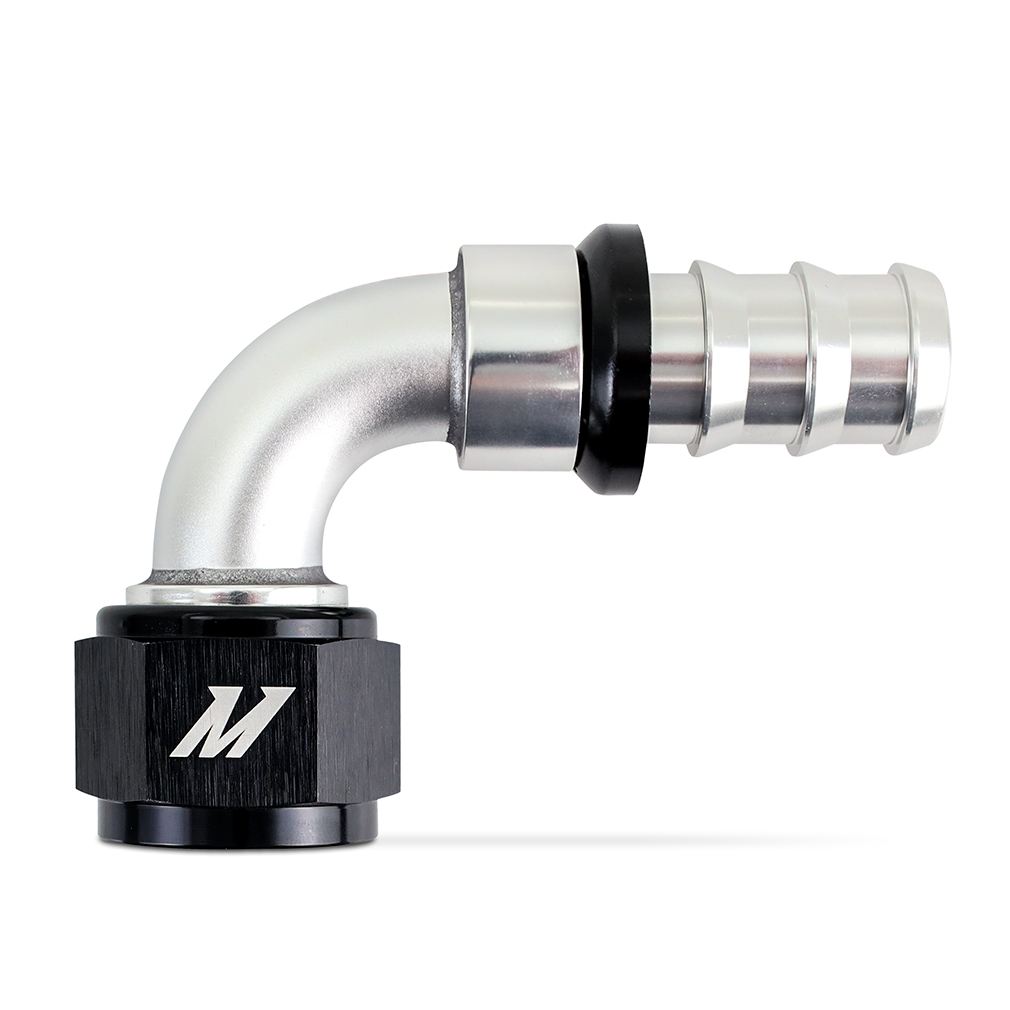

The Mishimoto -12AN Push Lock Fitting, part number MMFT-PL-1290, is a 90-degree push-lock fitting finished in Mishimoto’s signature silver and black anodized aluminum. Built with a -12AN push-lock end and a 1 1/16 in – 12 UNF connection on the opposite end, it’s designed to make hardline-to-hose transitions fast and clean on custom fabrication projects.
Whether you’re plumbing a custom oil cooler, transmission cooler, or catch can setup, this Mishimoto fitting brings precision machining and a corrosion-resistant anodized coating to the job. It’s engineered to withstand high temperatures and substantial pressures, rated up to 248°F and 5000 PSI of fluid pressure, and is suited for use with engine oil, coolant, fuel, and similar fluids. The push-lock port means no clamps or additional tools are required for assembly, so the fitting goes together in minutes while still delivering a leak-free connection with -12AN line.
Vehicle Applications
As a Fabrication category component, this Mishimoto -12AN Push Lock Fitting is a universal part intended for custom builds rather than a specific factory application. It’s designed to integrate into custom oil cooler lines, transmission cooler lines, catch can systems, and similar -12AN plumbing setups where a push-lock connection is needed, giving fabricators and builders flexibility across a wide range of custom cooling and fluid-routing projects.
Features
- -12AN push lock port for simple installation
- Offered in straight, 45-degree, 90-degree, and 120-degree angles to allow for easy routing of lines
- Precision machining provides a leak-free connection with -12AN line
- Perfect for use with engine oil, coolant, fuel, etc.
- Corrosion-resistant anodized coating provides a sleek, durable finish
- Engineered to withstand high temperatures and substantial pressures
- Assembles in minutes
- Mishimoto Lifetime Warranty
Specifications
- Brand: Mishimoto
- Part Number: MMFT-PL-1290
- Product Type: Fabrication
- Color: Silver and Black
- Angle: 90-degree

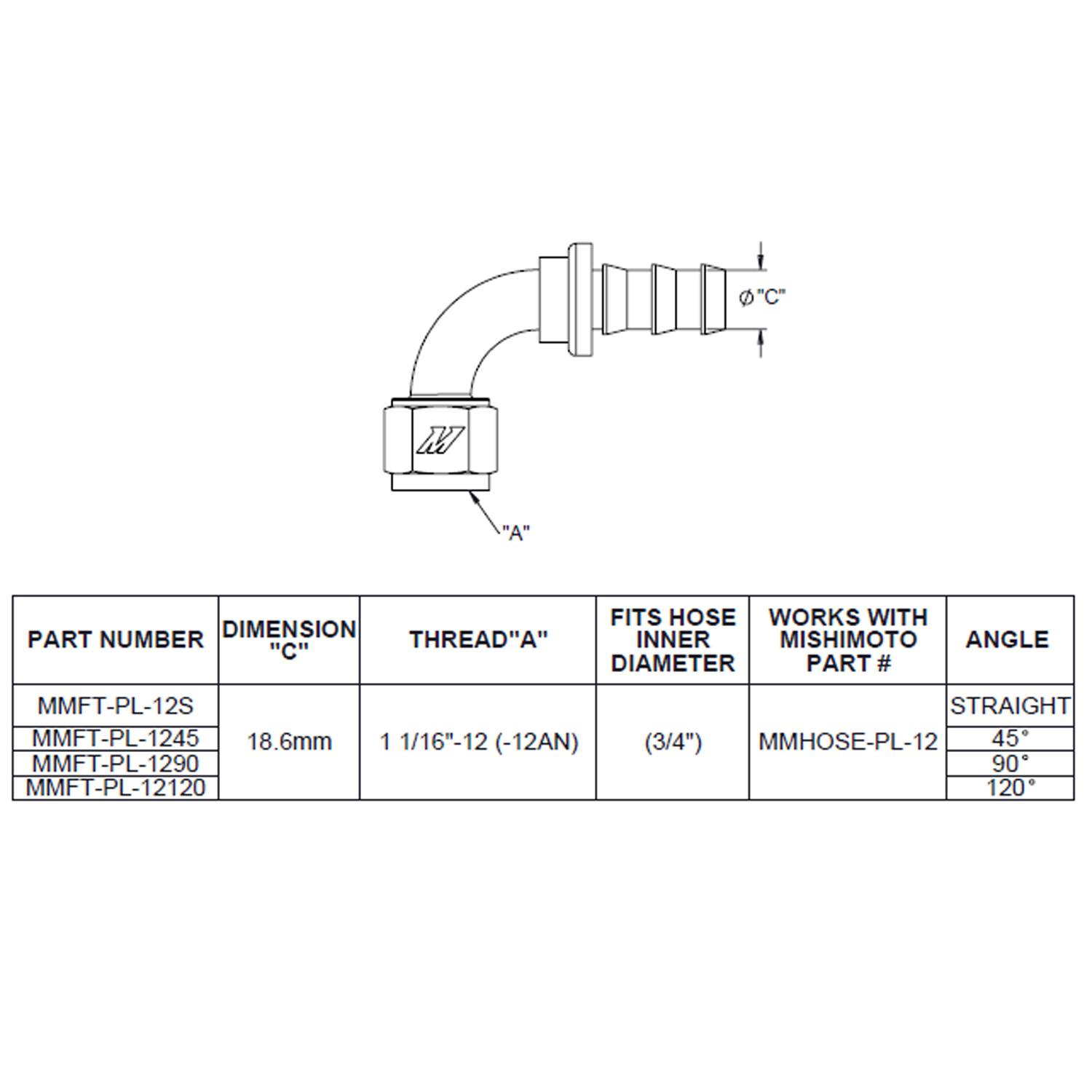

- End 1 Type: 1 1/16 in – 12 UNF
- End 2 Type: -12AN Push-Lock
- Grade Type: Performance
- Max Fluid Temperature: 248°F
- Max Fluid Pressure: 5000 PSI
- Includes: Mishimoto -12AN Push Lock Fitting, Mishimoto Lifetime Warranty
Frequently Asked Questions
What angle is the Mishimoto MMFT-PL-1290 push lock fitting?
This fitting is the 90-degree angle option. The Mishimoto -12AN Push Lock Fitting is also offered in straight, 45-degree, and 120-degree angles.
What end connections does this fitting have?
End 1 is a 1 1/16 in – 12 UNF connection, and End 2 is a -12AN push-lock connection.
What fluids is this fitting compatible with?
It is perfect for use with engine oil, coolant, fuel, and similar fluids.
What are the pressure and temperature ratings?
The fitting is rated for a maximum fluid pressure of 5000 PSI and a maximum fluid temperature of 248°F.
What color and finish does this fitting come in?
It is finished in silver and black anodized aluminum for a corrosion-resistant, durable look.
What is included with the purchase?
The package includes the Mishimoto -12AN Push Lock Fitting along with the Mishimoto Lifetime Warranty.
