Description
The Mishimoto MMOC-16BK is a 16-row stacked-plate oil cooler finished in a stealth black anodized coating, engineered by Mishimoto to pull excess heat out of your engine oil before it can compromise lubrication. Unlike the silver version of this cooler, the black finish is intentionally logo-free on both sides for a cleaner, more stealth appearance under the hood.
Engine oil is formulated to work within a specific temperature and pressure window, and vehicles that are heavily modified or driven hard can easily push oil past that window, accelerating wear on critical components. This Mishimoto oil cooler uses a bar-and-plate, performance-grade core to provide substantial heat transfer and bring temperatures back into an effective range, helping preserve oil viscosity and protect internals during aggressive driving. With -10AN male inlet and outlet fittings using an AN flare connection, it’s built to pair directly with Mishimoto -10AN braided hoses and fittings for a leak-free oil cooler kit installation.
Vehicle Applications
This Mishimoto 16-row oil cooler is a universal-fit cooling component rather than a vehicle-specific part. It includes eight universal mounting holes, giving installers an abundance of options for mounting the core in a wide variety of engine bays and custom cooling setups. Because fitment is universal, it’s well suited to builders adding auxiliary oil cooling to modified or high-stress vehicle applications where a dedicated Mishimoto cooling solution is needed.
Features
- 16-row stacked-plate, bar-and-plate performance core for substantial heat transfer
- Helps protect critical engine components from premature wear
- Preserves oil viscosity for proper lubrication during aggressive driving
- Provides ample cooling with minimal pressure loss

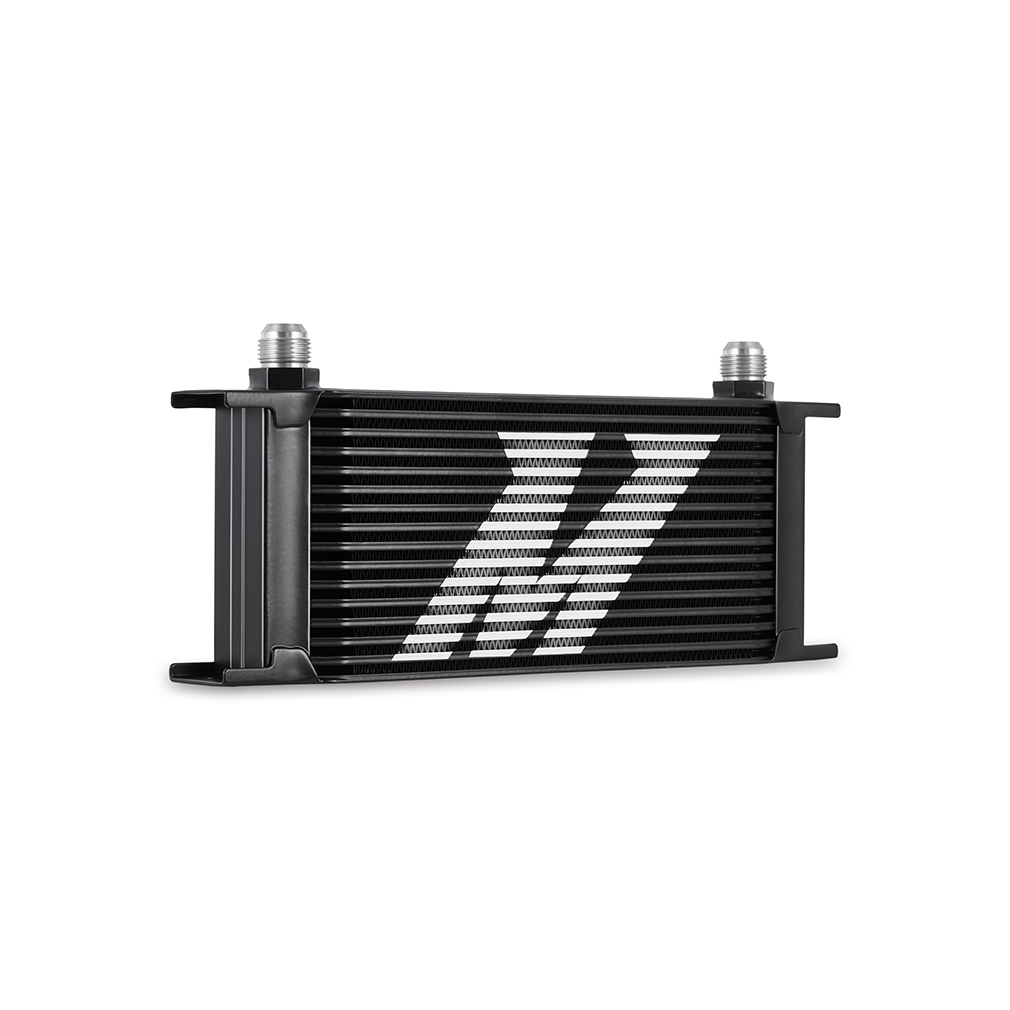

- -10AN male inlet and outlet fittings (AN flare) accept Mishimoto -10AN lines and fittings

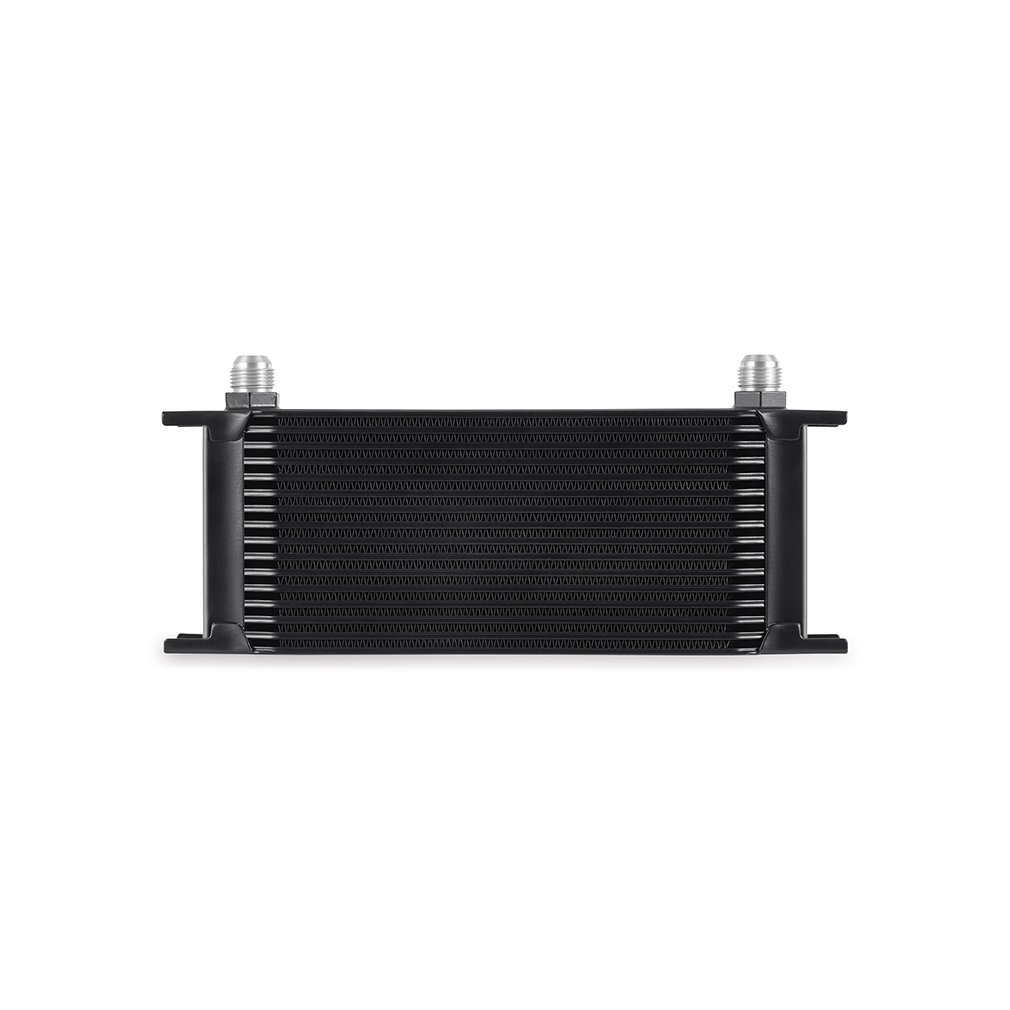

- 8 universal mounting holes for abundant installation options
- Black anodized finish with no logo on the stealth black version
- Recommended to flush the cooler with one quart of clean oil prior to installation to remove shipping debris
- Backed by the Mishimoto Lifetime Warranty
Specifications
- Brand: Mishimoto
- Part Number: MMOC-16BK
- Color / Core Color: Black
- Finish: Anodized
- Grade Type: Performance
- Core Type: Bar-and-Plate
- Core Row Quantity: 16

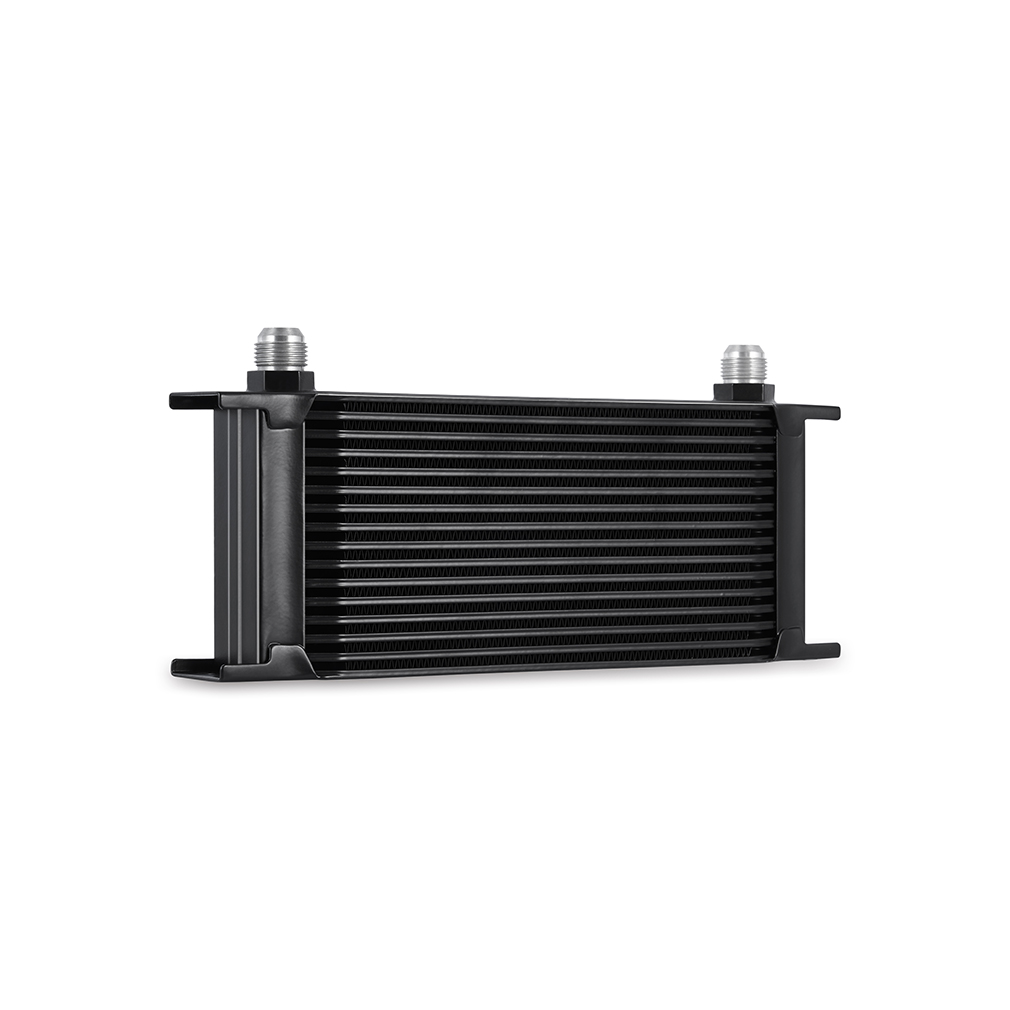

- Core Height: 4.59 in
- Core Width: 11.53 in
- Overall Width: 3.7 in
- Overall Height: 5.61 in
- Overall Length: 13 in
- Fluid Capacity: 0.58 GA
- Cooler Fluid Capacity: 0.6 QT

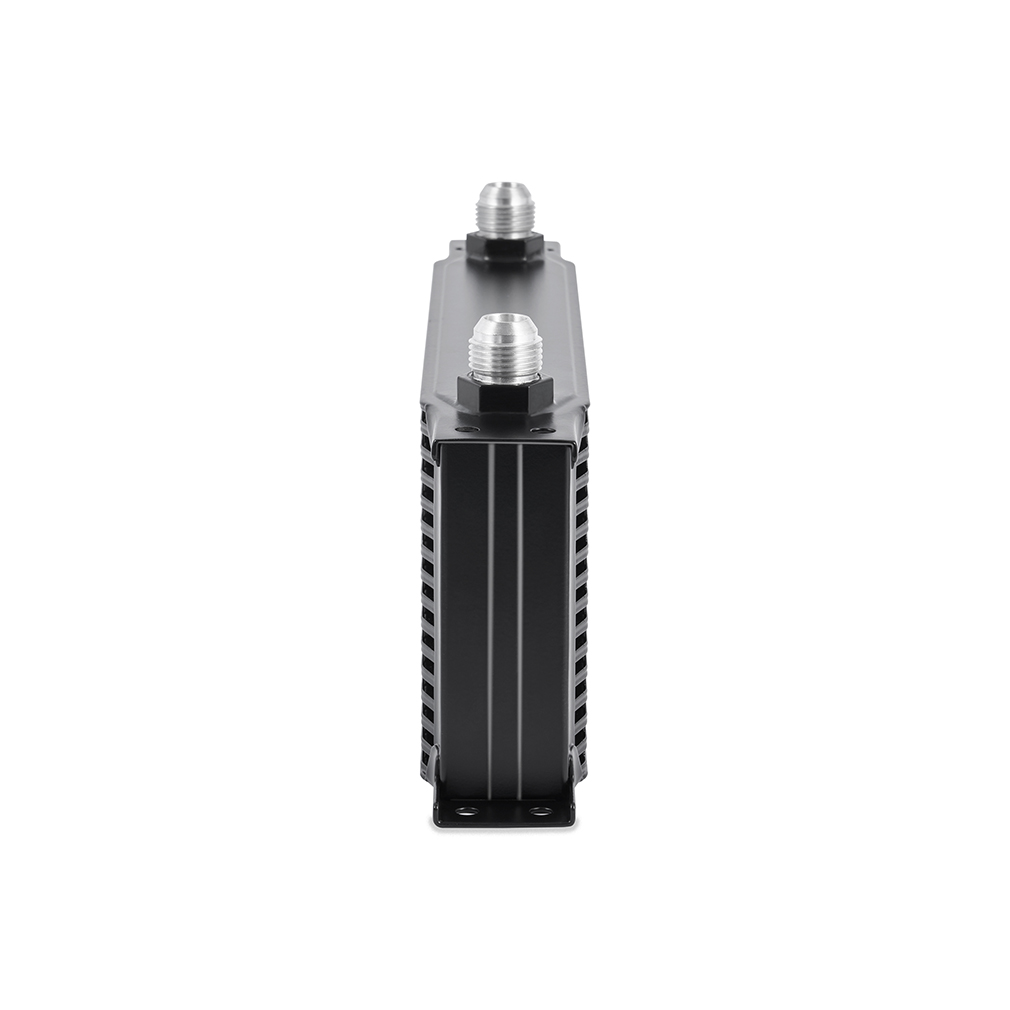

- Inlet/Outlet Fitting Type: AN Flare, -10AN
- Inlet/Outlet Fitting Gender: Male
- Inlet/Outlet Outside Diameter: 0.625 in
- Includes: Mishimoto 16-Row Oil Cooler, Mishimoto Lifetime Warranty
Frequently Asked Questions
How many rows does this Mishimoto oil cooler have?
This Mishimoto oil cooler (MMOC-16BK) has a core row quantity of 16, built with a bar-and-plate, performance-grade core.
What size and type of fittings does this cooler use?
It uses -10AN male inlet and outlet fittings with an AN flare connection, each with a 0.625 in outside diameter, designed to pair with Mishimoto -10AN braided hoses and fittings.
Does the black version of this cooler have a Mishimoto logo?
No. According to Mishimoto, only the silver version of this oil cooler has a logo on one side; the stealth black option does not include a logo.
What is included with the Mishimoto 16-Row Oil Cooler?
Purchase includes the Mishimoto 16-Row Oil Cooler and the Mishimoto Lifetime Warranty.
Is there anything I should do before installing this oil cooler?
Mishimoto recommends flushing the oil cooler with one quart of clean oil prior to installation to remove any debris that may have accumulated during shipping.
What are the core and overall dimensions of this oil cooler?
The core measures 4.59 in in height by 11.53 in in width, while the overall cooler measures 3.7 in wide, 5.61 in high, and 13 in long.
