Description

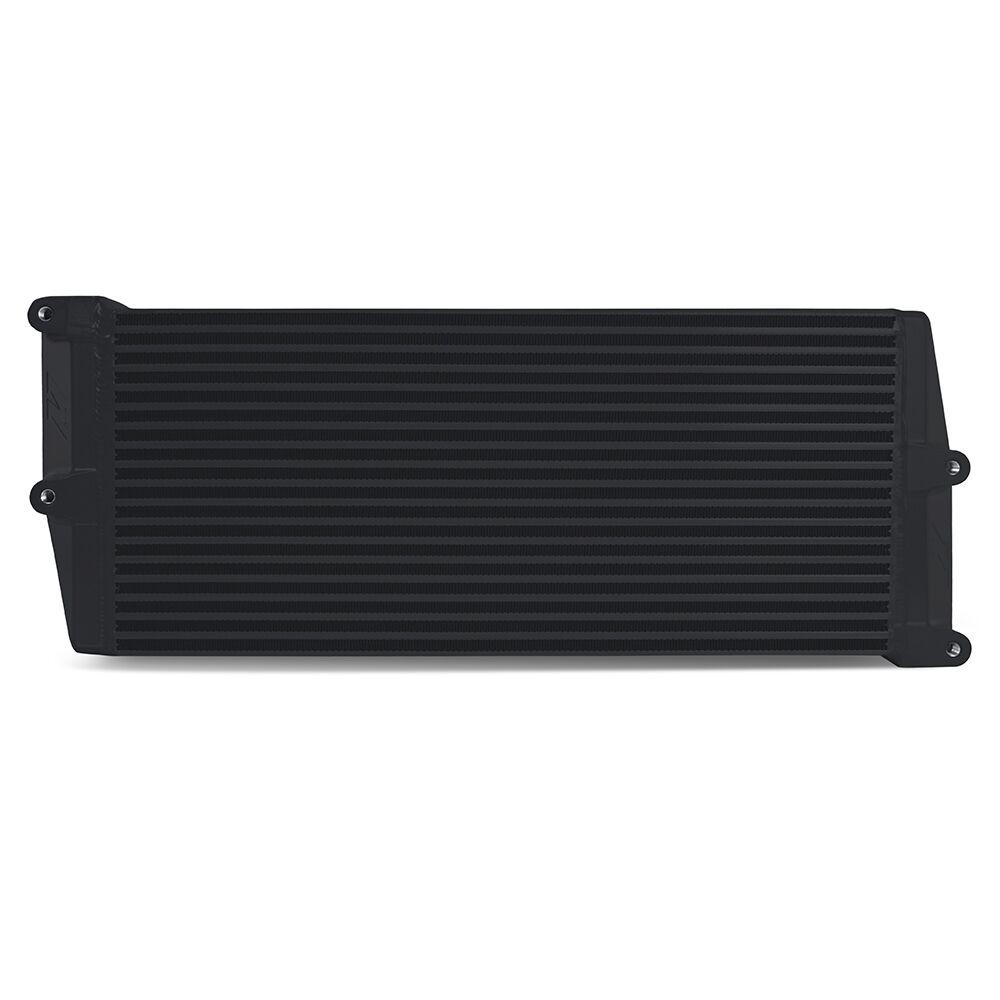

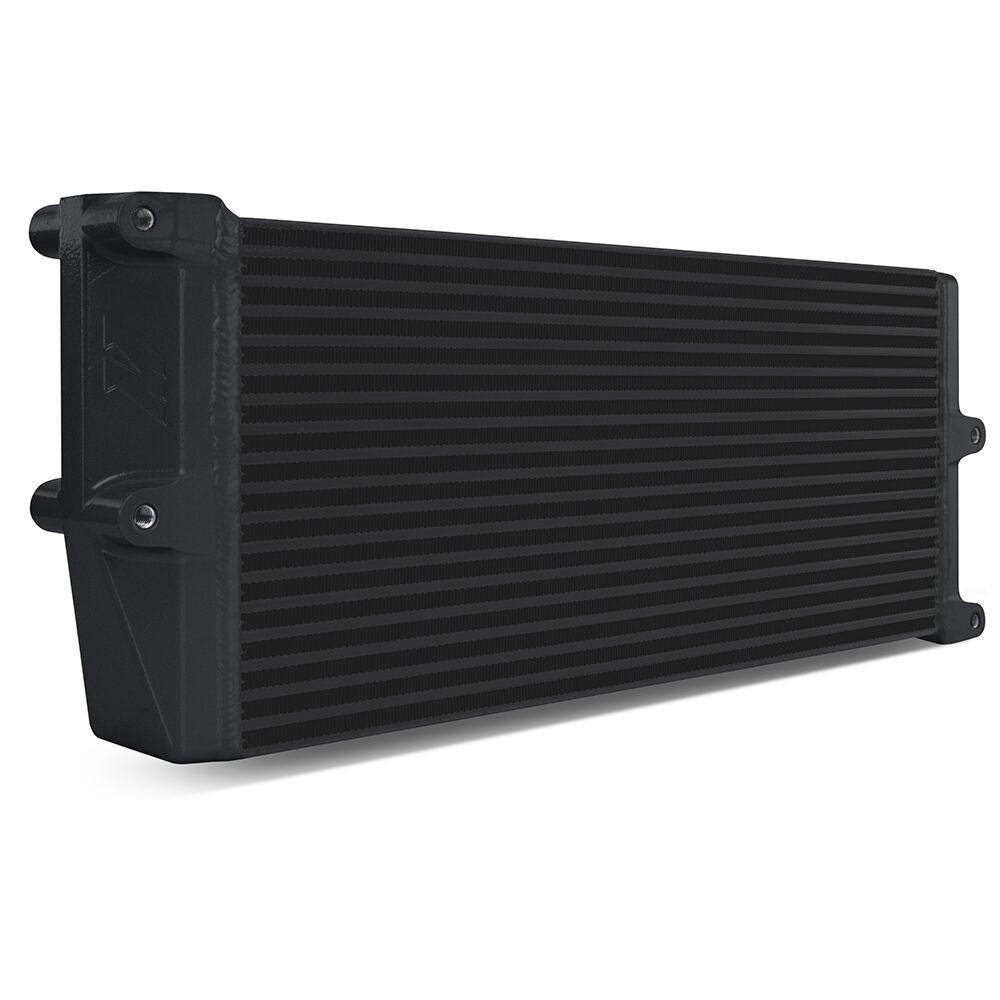

The Mishimoto MMOC-OO-17BK is a heavy-duty, 17-row bar-and-plate fluid cooler finished in black, purpose-built to keep oil, coolant, or transmission fluid cool through street, track, or trail abuse. Its 17″ long, 7.5″ tall, 2.5″ thick core holds 1.95 quarts of fluid, giving this Mishimoto cooler real capacity for demanding, high-performance use.
This Mishimoto cooling solution uses turbulated fins to circulate fluid evenly throughout the bar-and-plate core, making full use of every row for consistent, efficient cooling whether you’re running it as a mishimoto oil cooler, mishimoto trans cooler, or general-purpose mishimoto universal transmission fluid cooler. Large -16AN ports keep flow ample for demanding engines, while cast-aluminum end tanks are precision TIG welded to the core so the cooler can stand up to racing loads or daily-driven abuse alike. Eight M8 flush mounting points with steel threaded inserts let you secure this Mishimoto cooler to any custom bracket, and the opposite-side inlet and outlet layout keeps line routing straightforward.
Vehicle Applications
This Mishimoto fluid cooler is engineered as a universal fit rather than a vehicle-specific unit, so it isn’t tied to a single make, model, or engine. That makes it a flexible option for street builds, track cars, off-road rigs, and any other high-performance application where you need dedicated oil, coolant, or transmission cooling and the ability to mount it exactly where your build requires using the integrated M8 bracket points.
Features
- Universal fit for any high-performance application
- Large 17-row core measures 17″ long x 7.5″ tall x 2.5″ thick for ample cooling
- 1.95-quart fluid capacity for increased cooling potential
- Bar-and-plate core construction for extreme durability and cooling
- Turbulated fins circulate oil, coolant, or transmission fluid throughout the core for even, efficient cooling

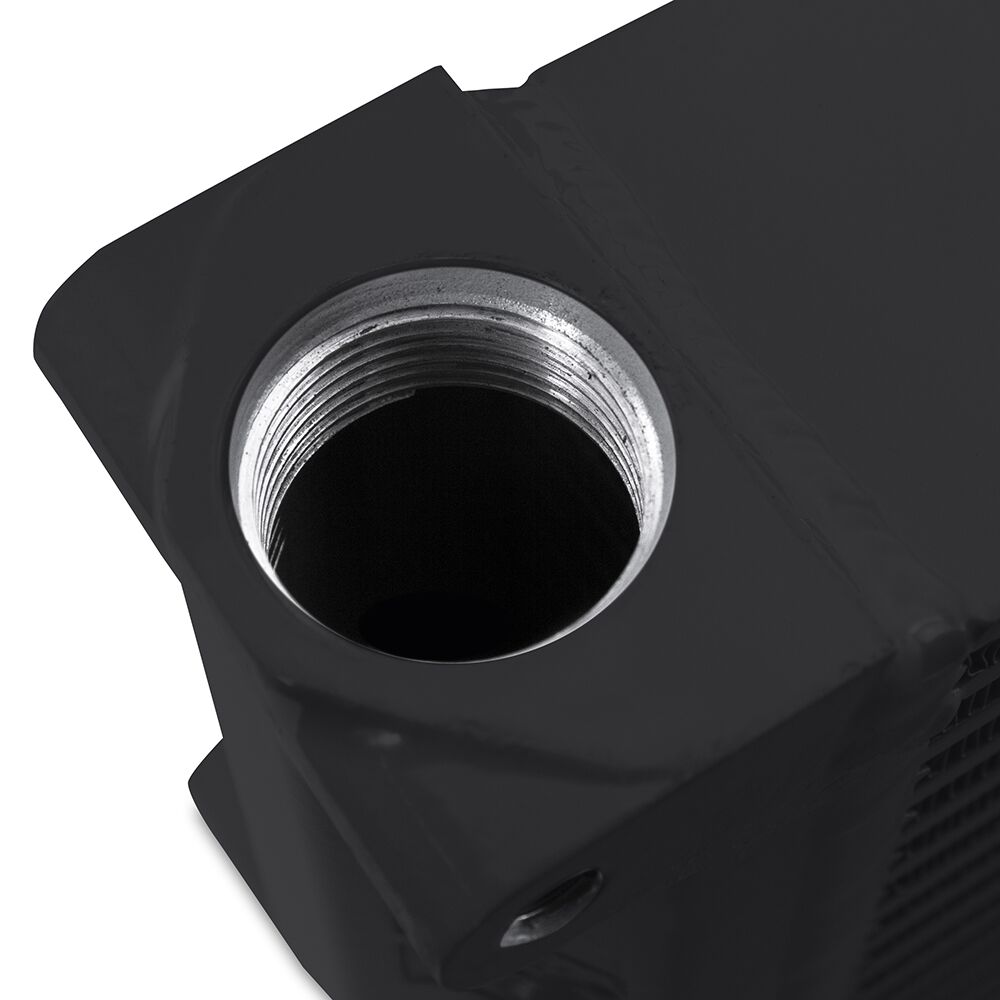

- Large -16AN ports for high flow and versatility
- Cast-aluminum end tanks precision TIG welded to the core for maximum durability
- Eight M8 flush mounting holes with steel threaded inserts secure the cooler to any custom bracket
- Opposite-side inlet and outlet for easy line routing
- Available in black or silver powder coat
- Backed by the Mishimoto Lifetime Warranty
Specifications
- Brand: Mishimoto
- Part Number: MMOC-OO-17BK
- Color/Finish: Black powder coat
- Core Type: Bar-and-Plate
- Core Row Quantity: 17
- Core Height: 7.79 in
- Core Thickness: 2.55 in
- Core Width: 17.4 in
- Overall Length: 20.78 in
- Overall Width: 2.55 in
- Overall Height: 7.79 in
- Fluid Capacity: 1.95 quarts
- Inlet/Outlet Fitting Type: AN Flare
- Inlet/Outlet Fitting Gender: Male
- Inlet/Outlet Outside Diameter: 1.313 in
- Grade Type: Performance
- Includes: Mishimoto Heavy-Duty Bar-and-Plate Fluid Cooler and Mishimoto Lifetime Warranty
Frequently Asked Questions
What fluids can the Mishimoto MMOC-OO-17BK cooler manage?
This Mishimoto heavy-duty fluid cooler is designed to keep oil, coolant, or transmission fluid cool, with turbulated fins that circulate fluid evenly throughout the bar-and-plate core.
What are the core dimensions and fluid capacity of this cooler?
The 17-row core measures 17″ long, 7.5″ tall, and 2.5″ thick, with a 1.95-quart fluid capacity.
Does this Mishimoto cooler fit a specific vehicle?
This is a universal fluid cooler, not tied to a specific make or model, making it suitable for street, track, or trail applications.
How is the Mishimoto fluid cooler mounted?
The end tanks feature eight M8 flush mounting points with steel threaded inserts for a secure connection to any custom bracket.
What type of inlet and outlet does this cooler use?
The cooler features large -16AN ports with male AN Flare fittings on opposite sides for ample flow and easy line routing.
What warranty comes with this Mishimoto fluid cooler?
This cooler is backed by the Mishimoto Lifetime Warranty.
