Description

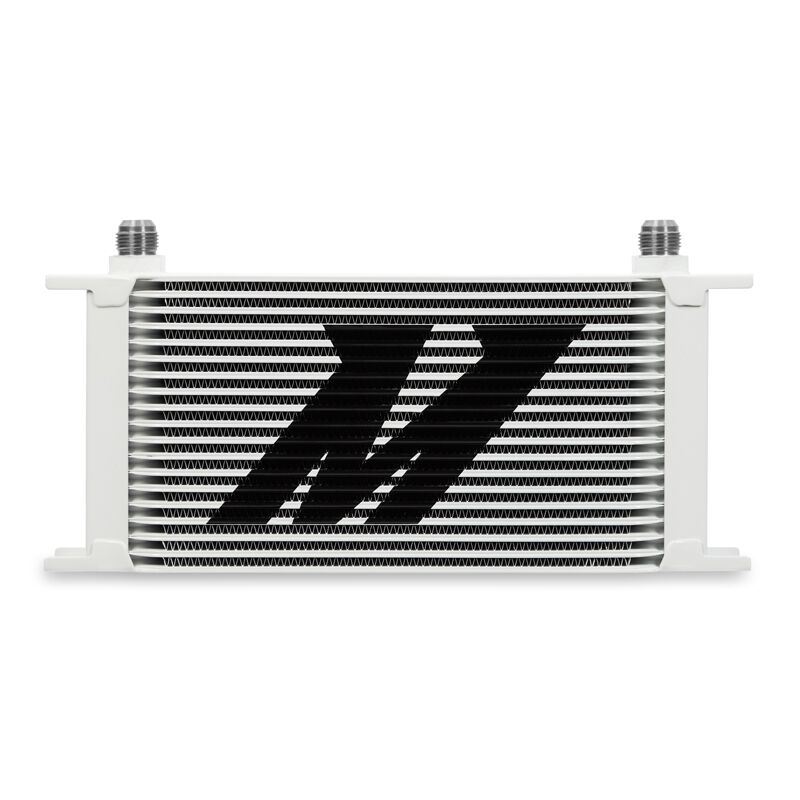

The Mishimoto 19 Row Oil Cooler Kit (MMOC-19WT) is a 19-row, bar-and-plate oil cooler finished in a white anodized coating with male -10AN flare fittings on both the inlet and outlet. Built for enthusiasts who push high-performance engines hard, this cooler is engineered to pull heat out of engine oil before it can compromise critical components.
Running an engine at the limit generates heat that thins oil and accelerates wear on piston rings, piston skirts, and cam bearings. The Mishimoto oil cooler kit addresses this by routing oil through a 19-row stacked bar-and-plate core designed for efficient heat rejection with minimal pressure loss, so oil keeps flowing and lubricating even as demands on the engine increase. As a dedicated Mishimoto cooler, the MMOC-19WT is built around a Performance grade core and AN Flare plumbing, making it a straightforward addition to a cooling setup focused on protecting engine internals under sustained load.
Vehicle Applications
The Mishimoto 19 Row Oil Cooler Kit is supplied as a standalone cooler with -10AN male flare inlet and outlet fittings rather than vehicle-specific brackets or hardware, making it suited to builders integrating an oil cooler into a high-performance engine bay where AN-style plumbing is being used. No specific make, model, or engine application is listed for this kit, so fitment and plumbing routing should be planned around the AN fitting sizes and core dimensions noted below.
Features
- 19-row stacked, bar-and-plate core construction for optimal fluid temperature reduction
- Helps extend the life of high-wear engine components by keeping oil temperatures in check
- Engineered for minimal pressure loss through the core
- Male -10AN flare inlet and outlet fittings
- White anodized finish, one of six color options Mishimoto offers for this cooler line (Sleek Silver, Stealth Black, Bold Gold, Red, White, or Blue)
- On the White option, one side of the cooler carries the Mishimoto logo (only the Stealth Black option omits the logo)
- Backed by the Mishimoto Lifetime Warranty
Specifications
- Brand: Mishimoto
- Part Number: MMOC-19WT
- Core Type: Bar-and-Plate
- Core Row Quantity: 19
- Grade Type: Performance
- Color: White
- Finish: Anodized
- Core Height: 5.43 in
- Core Width: 11 in
- Core Thickness: 1.97 in
- Overall Length: 6.44 in
- Overall Width: 1.97 in
- Overall Height: 12.95 in
- Base Height: 12.95 in
- Inlet Fitting Type: AN Flare
- Outlet Fitting Type: AN Flare
- Inlet Fitting Gender: Male
- Outlet Fitting Gender: Male
- Inlet Outside Diameter: 0.625 in
- Outlet Outside Diameter: 0.625 in
- Inlet Size: -10AN
- Outlet Size: -10AN
- Includes: Mishimoto Oil Cooler, Mishimoto Lifetime Warranty
Frequently Asked Questions
How many rows does the Mishimoto MMOC-19WT oil cooler have?
This Mishimoto oil cooler kit uses a 19-row, bar-and-plate core (Core Row Quantity: 19).
What type of fittings does this oil cooler use?
It uses AN Flare fittings with male gender on both the inlet and outlet, sized at -10AN, with a 0.625 in outside diameter on each fitting.
What color and finish does the MMOC-19WT come in?
This kit is finished in White with an anodized finish.
Does this Mishimoto oil cooler have a logo on it?
Yes. Per Mishimoto, one side of the silver, gold, red, white, and blue oil coolers carries the Mishimoto logo; only the Stealth Black option does not have a logo.
What warranty is included with the Mishimoto 19 Row Oil Cooler Kit?
The kit is backed by the Mishimoto Lifetime Warranty, and includes the Mishimoto Oil Cooler plus this warranty coverage.
What are the core dimensions of this oil cooler?
The core measures 5.43 in in height, 11 in in width, and 1.97 in in thickness, with an overall length of 6.44 in, overall width of 1.97 in, and overall height of 12.95 in.
