Description

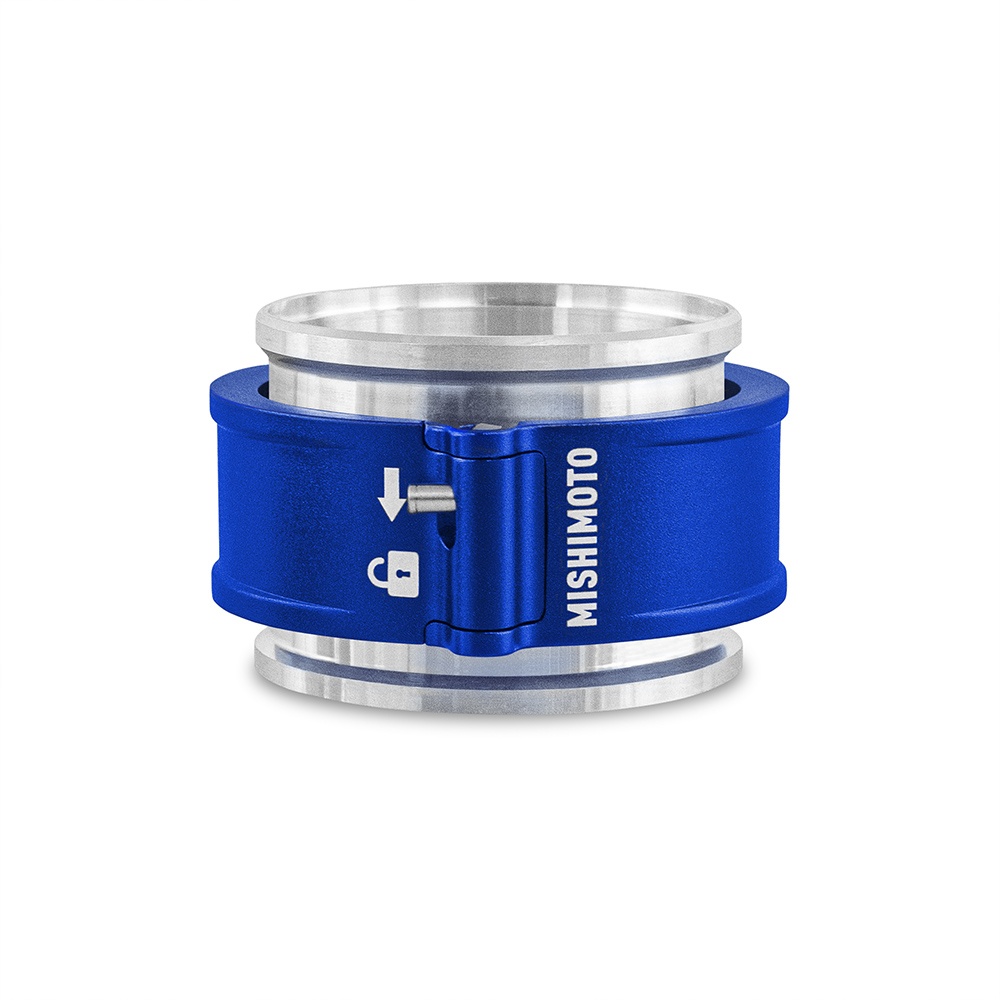

The Mishimoto Quick Release Clamp Assembly (MMCLAMP-QD-25BL) is a 2.5-inch, blue anodized clamp built from 6061-T6 billet aluminum, designed to give any Fabrication project a distinctive, hardware-store-outclassing finish while offering a genuinely removable connection point in a piping system.
Beyond looks, this Mishimoto clamp solves a real fabrication problem: it uses a unique locking system that keeps the connection secure while still allowing you to disconnect it in seconds for servicing or reconfiguring your build. Sealed with Viton O-rings, the assembly permits angular, axial, and radial movement without losing its seal, and it’s rated to handle up to 400°F and 110 PSI of operating pressure — figures that matter when you’re routing piping through a demanding engine bay. Because the all-aluminum construction pairs strength with a clean anodized finish available in multiple colors, the clamp works as both a functional coupler and a styling upgrade, and every unit is covered by the Mishimoto Lifetime Warranty for a worry-free install.
Vehicle Applications
This is a Fabrication-category component rather than a vehicle-specific part, so it isn’t tied to a particular make, model, or year. Instead, the Mishimoto Quick Release Clamp Assembly is intended for custom piping systems and project builds wherever a 2.5-inch quick-disconnect connection is needed, giving fabricators a drop-in, reusable joint for their own engine bay or piping layout.
Features

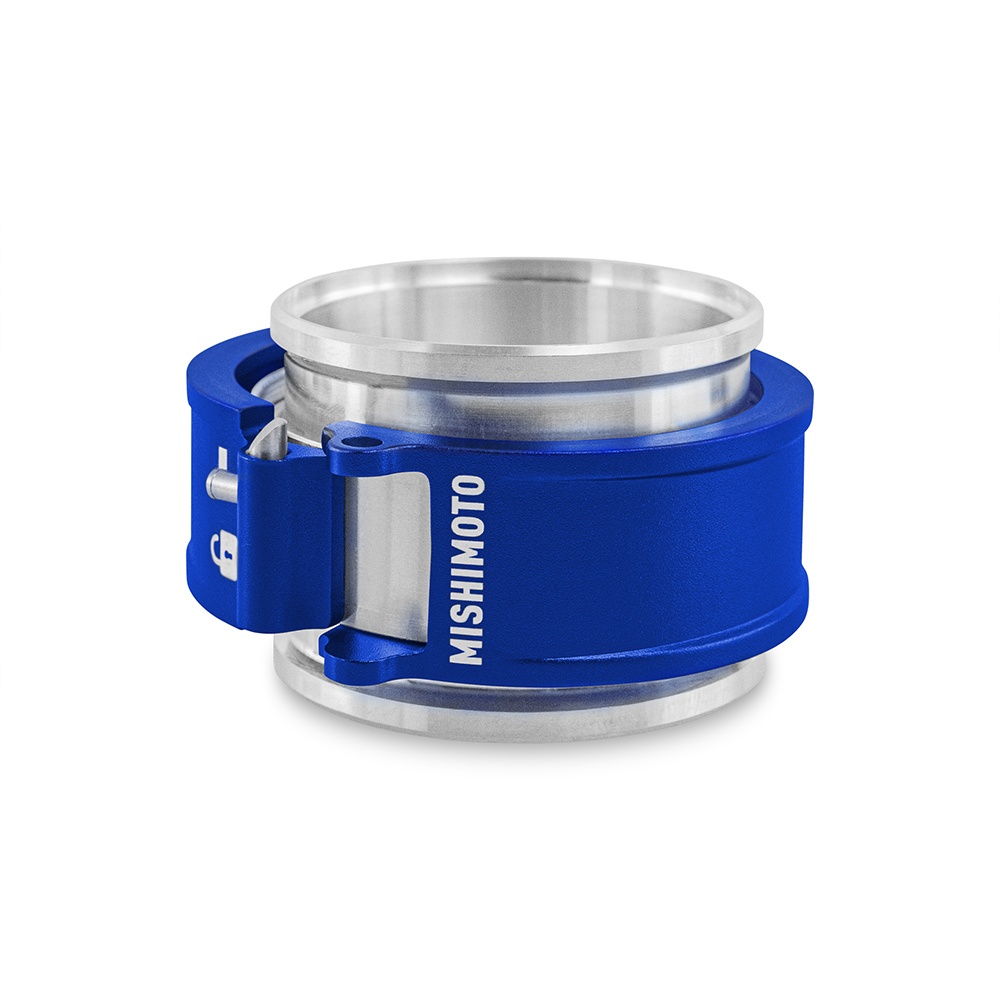

- Unique locking system for a trustworthy connection to your piping
- Withstands up to 400°F and 110 PSI operating pressure range
- Allows for angular, axial, and radial movement while remaining sealed with Viton O-rings
- CNC-machined 6061 aluminum weld ferrules arrive ready for fabrication
- All-aluminum construction ensures a sturdy and stylish addition to your project
- Conveniently removable, allowing for simple servicing or adjustments to your build
- Anodized finish available in various colors to suit any build
- Backed by the Mishimoto Lifetime Warranty
Specifications
- Part Number: MMCLAMP-QD-25BL
- Material: 6061-T6 Billet Aluminum
- Color: Blue
- Finish: Anodized
- Clamp Style: Quick-Disconnect
- Maximum Clamp Diameter: 2.5 in
- Minimum Clamp Diameter: 2.5 in
- Band Width: 1.17 in
- Burst Pressure: 110 PSI
- Maximum Temperature Rating: 400°F
- Includes: (1) Billet Aluminum Clamp Band w/ Locking Pin, (2) 6061 Aluminum Weld Ferrules, (2) Viton O-rings, (1) Union Sleeve, (1) Reusable Cloth Pouch, Mishimoto Lifetime Warranty
Frequently Asked Questions
What diameter piping does this Mishimoto clamp fit?
This clamp has a maximum and minimum clamp diameter of 2.5 inches.
What temperature and pressure ratings does this clamp have?
The Mishimoto Quick Release Clamp Assembly withstands up to 400°F and a 110 PSI operating pressure range.
What is included with the MMCLAMP-QD-25BL?
It includes one billet aluminum clamp band with locking pin, two 6061 aluminum weld ferrules, two Viton O-rings, one union sleeve, one reusable cloth pouch, and the Mishimoto Lifetime Warranty.
What material and finish is the clamp made from?
The clamp is made from 6061-T6 billet aluminum with an anodized finish, available in blue.
Is this clamp removable for servicing?
Yes, the clamp is conveniently removable, allowing for simple servicing or adjustments to your build.
Does this clamp come with a warranty?
Yes, it is backed by the Mishimoto Lifetime Warranty.
