Description

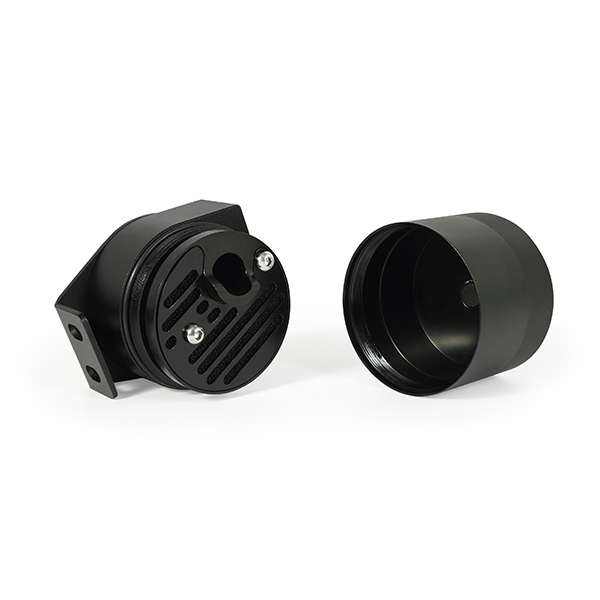

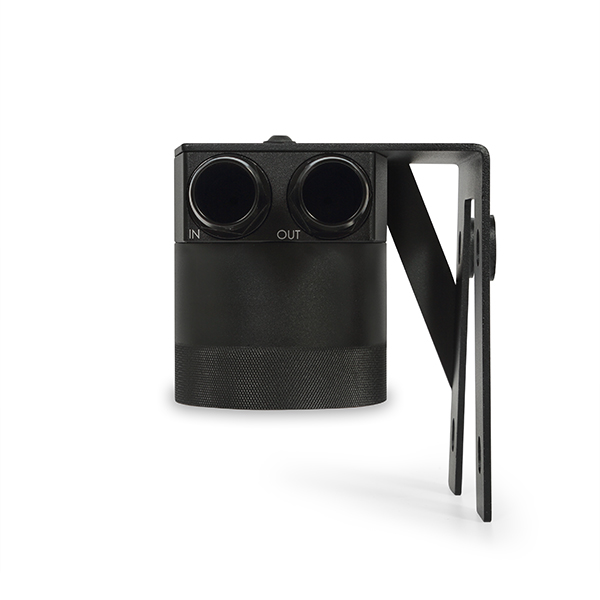

The Mishimoto MMBCC-F2D-03BE is a direct-fit, high-flow baffled oil catch can kit engineered specifically for the 2003-2007 Ford 6.0L Powerstroke. Unlike catch cans sized for stock-output engines, this kit pairs a 5.3 fl. oz. capacity 6061-T6 billet aluminum can with large M27 x 2.0 inlet and outlet ports so it can keep up with the extra blow-by volume that comes with a high-output diesel. Inside, a newly engineered CNC-machined baffle with an integrated filter strips fuel, oil, and water vapor out of crankcase gases before they can travel back through the intake system.
Blow-by is a natural byproduct of automobile combustion, and how well it is managed says a lot about the health of the surrounding car engine parts. As one of the more overlooked parts of a car engine, crankcase ventilation plays a direct role in intake cleanliness, and this catch can gives 6.0L Powerstroke owners a genuine, filtered way to manage it instead of letting gases recirculate unchecked. Mishimoto machines the can from anodized, twist-off billet aluminum for corrosion resistance, and because both the filter and the can itself are fully serviceable, this component of the engine can be drained and cleaned rather than replaced. A 3/8″ NPT plug in the bottom of the can allows draining without removing the can, and the kit is also compatible with Mishimoto’s separately available drain kit for quicker servicing of this and other engine parts on your truck.
Vehicle Applications
This kit is a direct-fit solution for the 2003-2007 Ford 6.0L Powerstroke platform. It covers the Ford Excursion Eddie Bauer, Limited, and XLT from 2003-2005, along with the Excursion XLS from 2004-2005. On the Super Duty side, it fits the Ford F-250 Super Duty XL, XLT, and Lariat from 2003-2007, as well as the F-250 Super Duty King Ranch and Harley-Davidson Edition from 2004-2007. Coverage extends to the Ford F-350 Super Duty XL, XLT, Lariat, and King Ranch from 2003-2007 and the F-350 Super Duty Harley-Davidson Edition from 2004-2007. The kit also fits larger chassis, including the Ford F-450 Super Duty XL, XLT, and Lariat from 2003-2007, the F-450 Super Duty Base from 2003-2004, and the full Ford F-550 Super Duty Base, XL, XLT, and Lariat lineup from 2003-2007.
Features
- Direct-fit for 2003-2007 Ford 6.0L Powerstroke
- High-flow catch can allows the crankcase to breathe while filtering out harmful oil, fuel, and water vapors

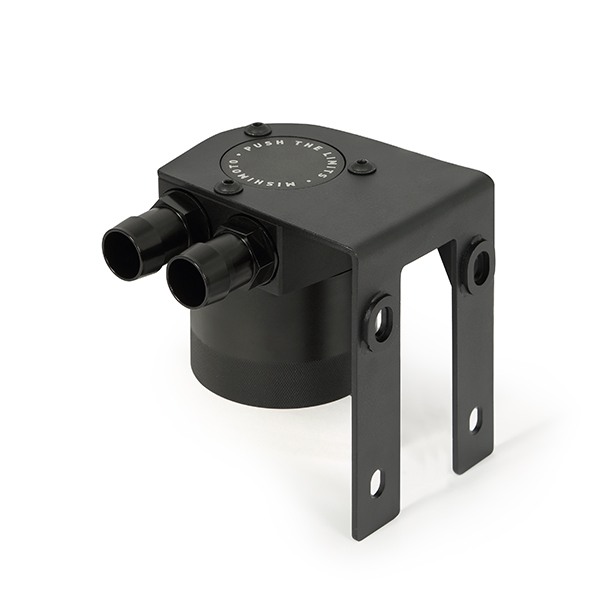

- 3mm thick steel mounting bracket, gusseted and powder-coated black, mounts the can in an easily accessible location on the driver’s side frame rail
- Includes durable, CNC-machined aluminum hose-barb fittings
- 5.3 fl. oz. capacity for improved flow and extended service intervals
- Filter and can are fully serviceable for easy draining and cleaning

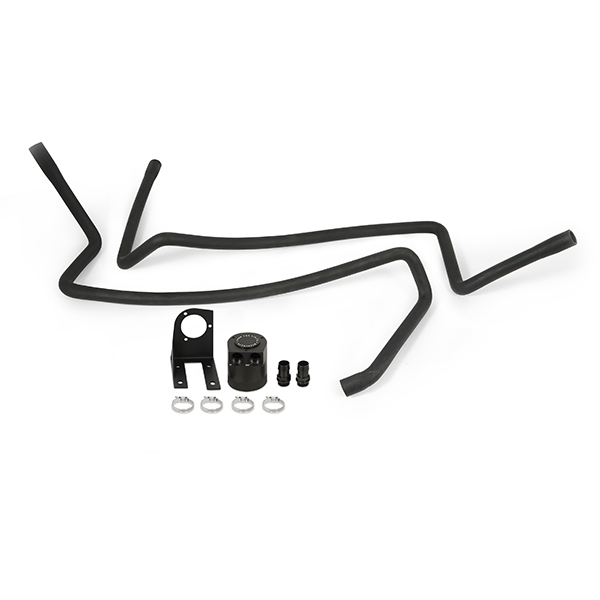

- Includes a set of direct-fit nitrile hoses and a 3/8″ NPT drain plug
- Backed by Mishimoto’s Lifetime Warranty with Accident Protection
Specifications
- Brand: Mishimoto
- Part Number: MMBCC-F2D-03BE
- Color: Black
- Can Material: 6061-T6 Billet Aluminum
- Can Type: Twist Off
- Can Finish: Anodized
- Can Outside Diameter: 3.5 in.
- Maximum Can Capacity: 5.3 fl. oz.
- Inlet Port Inside Diameter: 1.1 in.
- Outlet Port Inside Diameter: 1.1 in.
- Interior Baffle: Yes
- Drain Plug Included: Yes (3/8″ NPT)
- Hose Included: Yes
- Mounting Bracket Included: Yes (3mm thick steel, powder-coated black)
Frequently Asked Questions
What vehicles does the Mishimoto MMBCC-F2D-03BE catch can kit fit?
It is a direct-fit kit for the 2003-2007 Ford 6.0L Powerstroke, covering the Ford Excursion (Eddie Bauer, Limited, XLT 2003-2005; XLS 2004-2005), Ford F-250 Super Duty (XL, XLT, Lariat 2003-2007; King Ranch and Harley-Davidson Edition 2004-2007), Ford F-350 Super Duty (XL, XLT, Lariat, King Ranch 2003-2007; Harley-Davidson Edition 2004-2007), Ford F-450 Super Duty (XL, XLT, Lariat 2003-2007; Base 2003-2004), and Ford F-550 Super Duty (Base, XL, XLT, Lariat 2003-2007).
What is the capacity of this oil catch can?
The can has a maximum capacity of 5.3 fl. oz.
Is the Mishimoto catch can serviceable?
Yes, both the filter and the can are fully serviceable, and a 3/8″ NPT drain plug in the bottom of the can allows draining without removing the can.
What is the catch can made from?
The can is made from 6061-T6 billet aluminum with an anodized finish and a twist-off design.
Does this kit include a mounting bracket and hoses?
Yes, it includes a 3mm thick steel bracket that is gusseted and powder-coated black to bolt to the driver’s side frame rail, along with a set of direct-fit nitrile hoses.
What warranty covers this kit?
This kit is backed by Mishimoto’s Lifetime Warranty with Accident Protection.
