Description

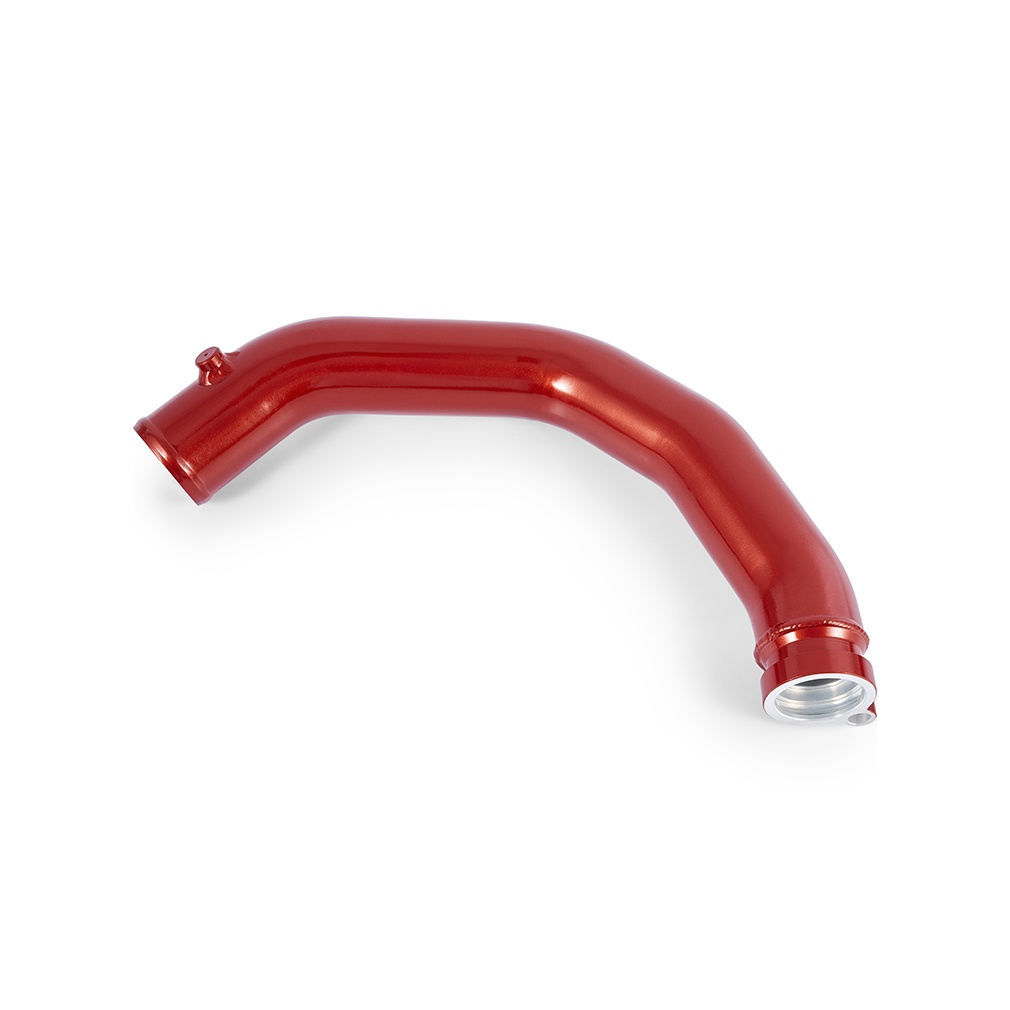

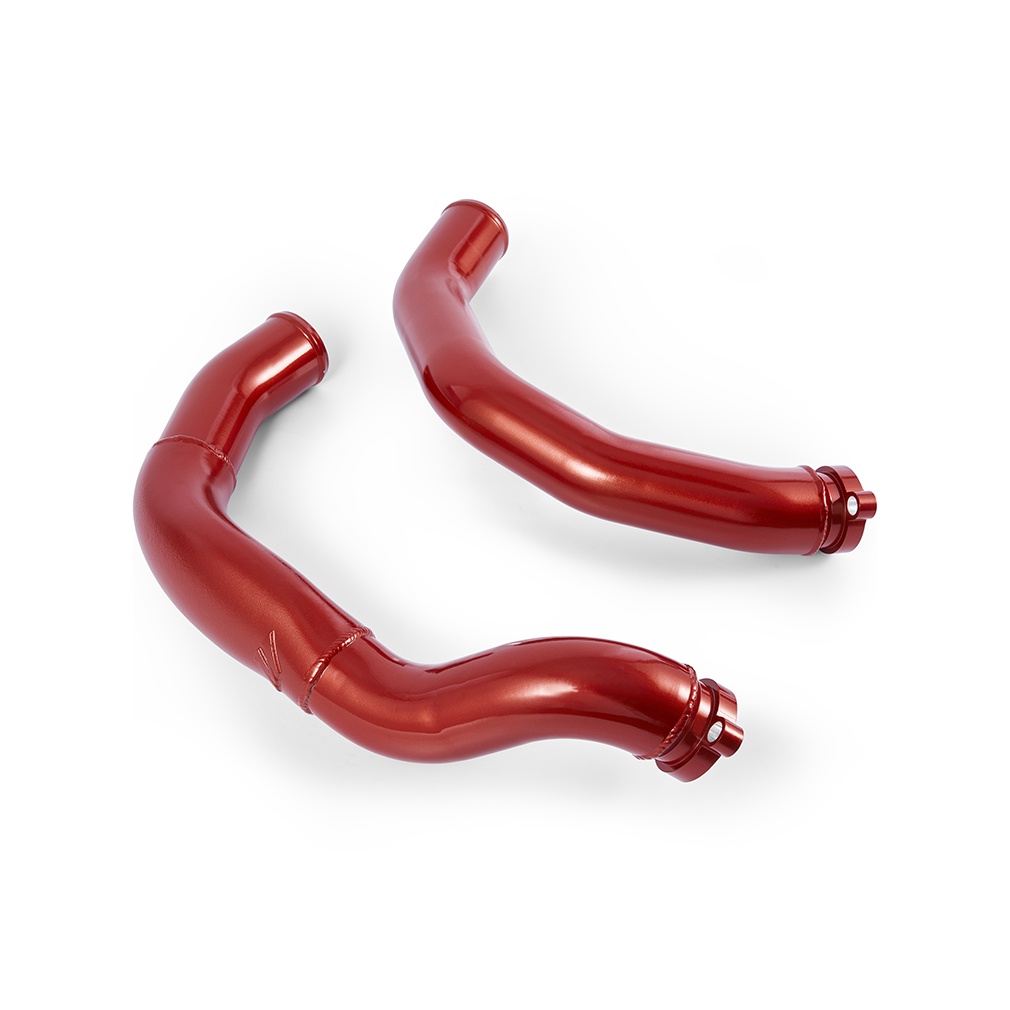

The Mishimoto 2015+ BMW F8X M3/M4 Charge Pipe Kit (MMICP-F80-15CSO) replaces the factory charge pipes that connect the S55’s turbos to the intercooler and intake, and it comes color matched in Sakhir Orange to blend right into your engine bay. This is Mishimoto’s answer to a well-known factory weak point: the OEM plastic pipes are prone to splitting at the welds near the turbo or bursting along the seam once real boost pressure builds.
As part of Mishimoto’s Forced Induction lineup, this charge pipe kit is built from full aluminum and expertly TIG-welded to give the S55’s boost a secure, leak-resistant path from turbo to intercooler. The pipes feature a unique cast midsection engineered to thread the needle between the engine and air intake without sacrificing fitment, and a mandrel-bend shape designed for optimal airflow through the induction system. A bung is included for straightforward integration of methanol injection, and the kit ships with matte black silicone couplers for a secure, stock-style connection at the intercooler. Beyond function, the automotive-grade color-matched paint is built to hold up under hood heat while giving your F80 or F82 an engine bay that matches the rest of the car.
Vehicle Applications
This charge pipe kit is a direct fit for the BMW F8X platform, covering chassis codes F80, F82, F83, and F87. That includes the 2015-2018 BMW M3, the 2015-2020 BMW M4, the 2016 BMW M4 GTS, the 2019-2020 BMW M4 CS, and the 2019-2020 BMW M2 Competition.
Features
- Full aluminum, TIG-welded construction for durable, leak-resistant boost delivery
- Unique cast midsection for precise fitment between the engine and air intake
- Mandrel-bent pipe design engineered for optimal airflow
- Includes a bung for simple methanol injection integration
- Color matched in your choice of 12 OEM colors, including this Sakhir Orange option
- Includes matte black silicone couplers for a secure, stock-style connection to the intercooler
- Worm gear clamps included for installation
- Backed by the Mishimoto Lifetime Warranty
Specifications
- Brand: Mishimoto
- Part Number: MMICP-F80-15CSO
- Pipe Material: Aluminum
- Pipe Bend Type: Mandrel
- Pipe Color: Orange (Sakhir Orange)
- Coupler Material: Silicone
- Coupler Color: Black
- Clamp Type: Worm Gear
- Clamps Included: Yes
- Chassis Codes: F80, F82, F83, F87
- CARB EO Number: D-759-13

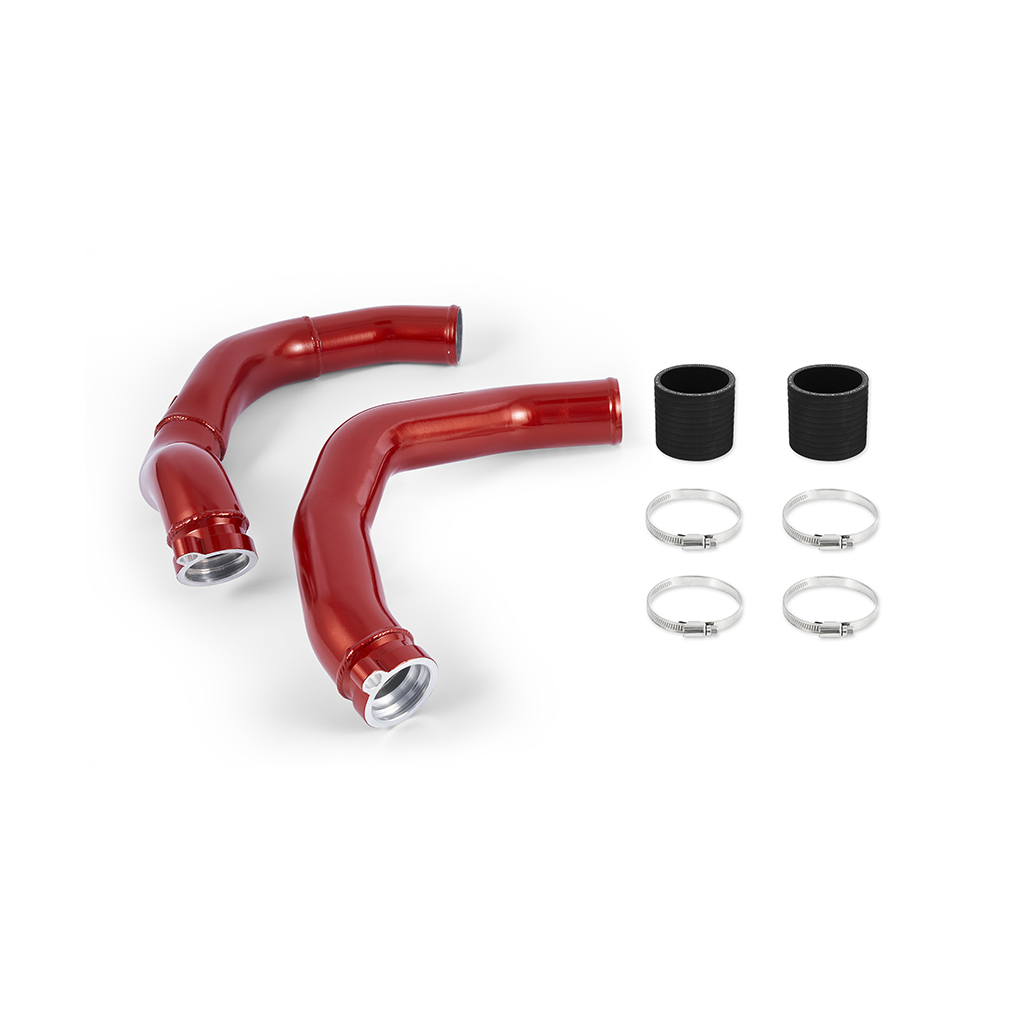

- Kit Includes: (2) Charge Pipes, (2) Silicone Couplers, (4) Worm Gear Clamps, (1) CARB EO Sticker, Mishimoto Lifetime Warranty
- Installation Torque: 22 in-lbs (2.5NM) recommended for worm gear clamps, operating range 18-27 in-lbs (2-3NM); do not exceed 27 in-lbs (3NM)
Frequently Asked Questions
What vehicles fit the Mishimoto MMICP-F80-15CSO charge pipe kit?
This kit is a direct fit for the 2015-2018 BMW M3, 2015-2020 BMW M4, 2016 BMW M4 GTS, 2019-2020 BMW M4 CS, and 2019-2020 BMW M2 Competition, covering chassis codes F80, F82, F83, and F87.
What is the Mishimoto charge pipe kit made of?
The charge pipes are constructed from full aluminum with TIG-welded joints, and the kit includes matte black silicone couplers.
Why replace the factory BMW F8X charge pipes?
The factory plastic charge pipes are known to split at the welds near the turbo or burst along the seam under boost pressure, leading to a boost leak. Mishimoto’s aluminum, TIG-welded pipes are designed to address this weak point.
What color options are available for this charge pipe kit?
This charge pipe kit is offered color matched in a choice of 12 OEM colors; this listing is finished in Sakhir Orange.
What is included in the Mishimoto F8X charge pipe kit?
The kit includes (2) charge pipes, (2) silicone couplers, (4) worm gear clamps, (1) CARB EO sticker, and the Mishimoto Lifetime Warranty.
Does the charge pipe kit support methanol injection?
Yes, the pipes include a bung for simple integration of methanol injection.
