Description

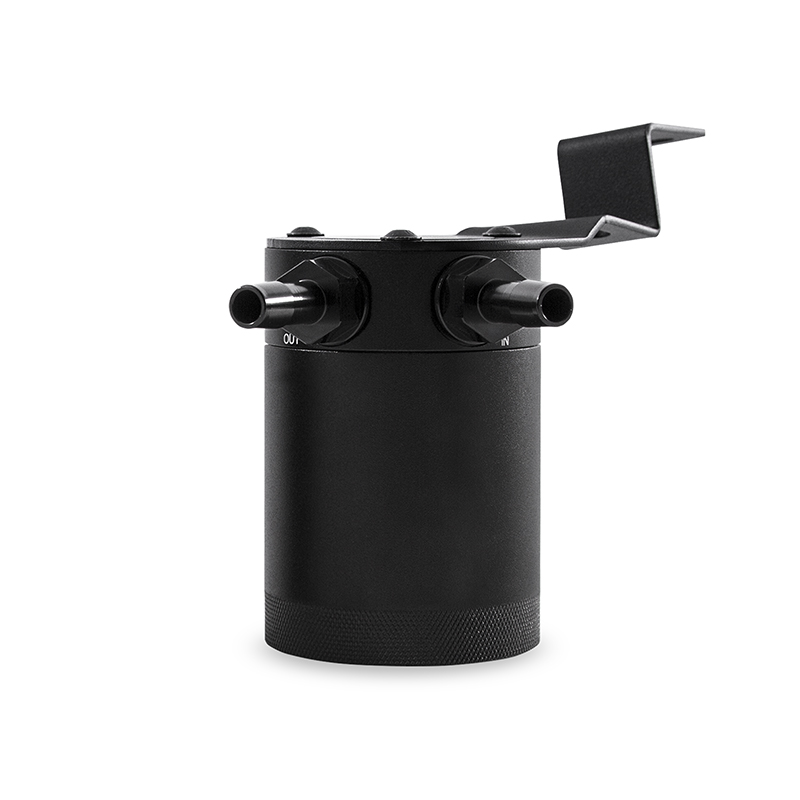

The Mishimoto 2015-2021 WRX PCV Side Baffled Oil Catch Can System (MMBCC-WRX-15PBE) is a purpose-built engine component engineered specifically to combat carbon buildup on the FA20-DIT direct-injection engine. At its core is one patent-pending Mishimoto Compact Baffled Oil Catch Can that intercepts PCV blow-by before it recirculates into the intake, trapping oil and contaminated vapor rather than draining it back into the oil pan like many air-oil separators do.

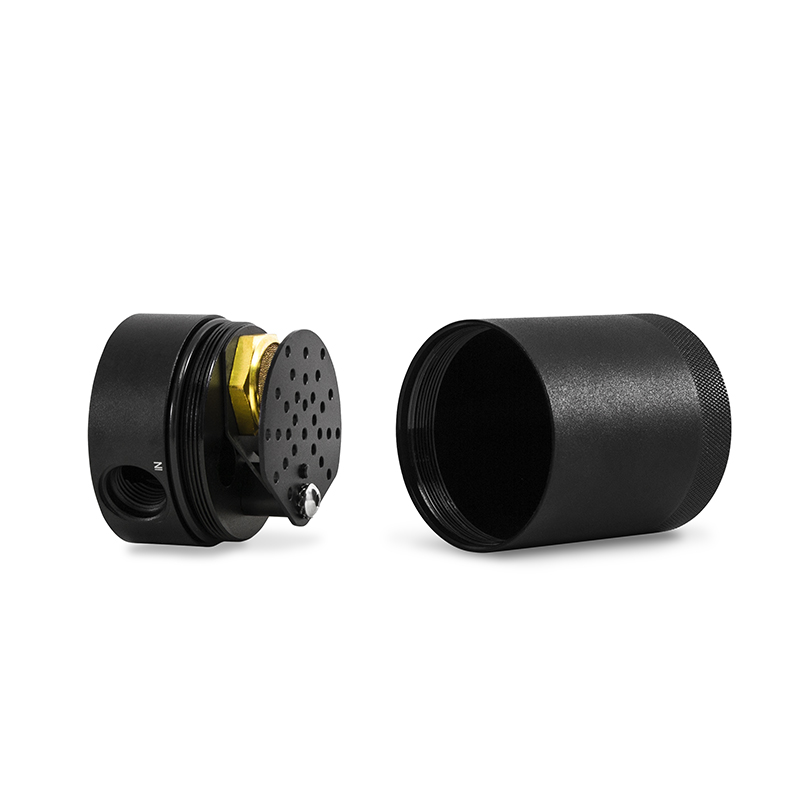

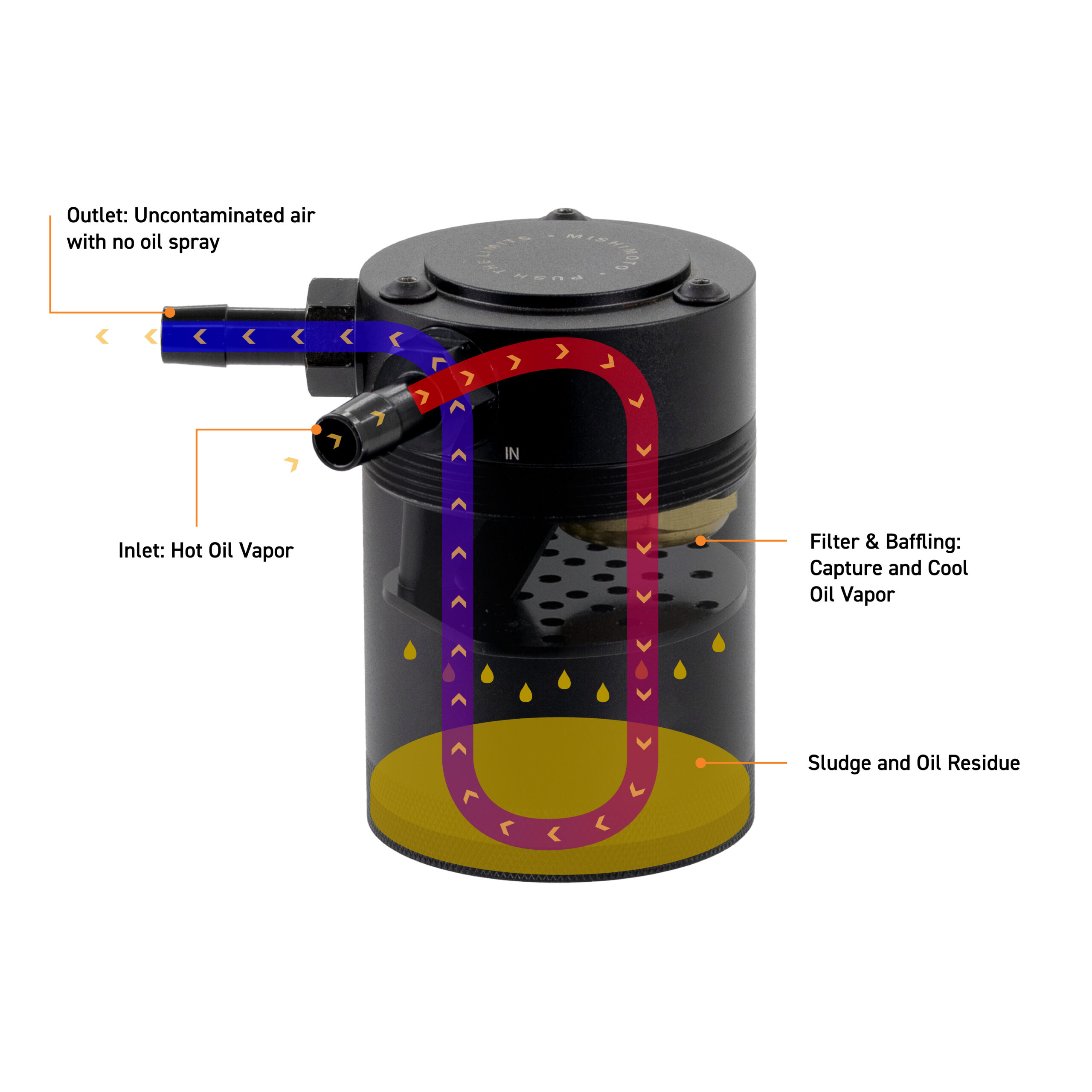

As a critical addition among car engine parts for direct-injection platforms, this catch can protects the intercooler, intake system, and other essential components of an automobile engine from oil-laden blow-by. An internal air diverter increases turbulence so oil separates and sinks to the bottom of the can, while a 50-micron bronze filter lets only clean air pass through toward the intake. An internal baffle keeps collected oil from sloshing under hard cornering or race conditions, helping maintain proper octane levels and reduce the potential for detonation inside the combustion process. Unlike disposable filtration setups, the 100-percent billet 6061 aluminum can and its bronze filter are fully washable and serviceable, making long-term upkeep of your WRX’s engine parts simple rather than a recurring expense.
Vehicle Applications
This Mishimoto oil catch can system is designed for the Subaru WRX. It fits the WRX Base, Limited, and Premium trims from 2015 through 2021, the Sport and Sport-tech trims from 2017 through 2021, and both 6-speed manual and CVT-equipped WRX models from 2018 through 2021. It also covers the Sport-tech RS trim for 2019-2020, the Raui Edition for 2019, and the EyeSight-equipped WRX for 2021.
Features

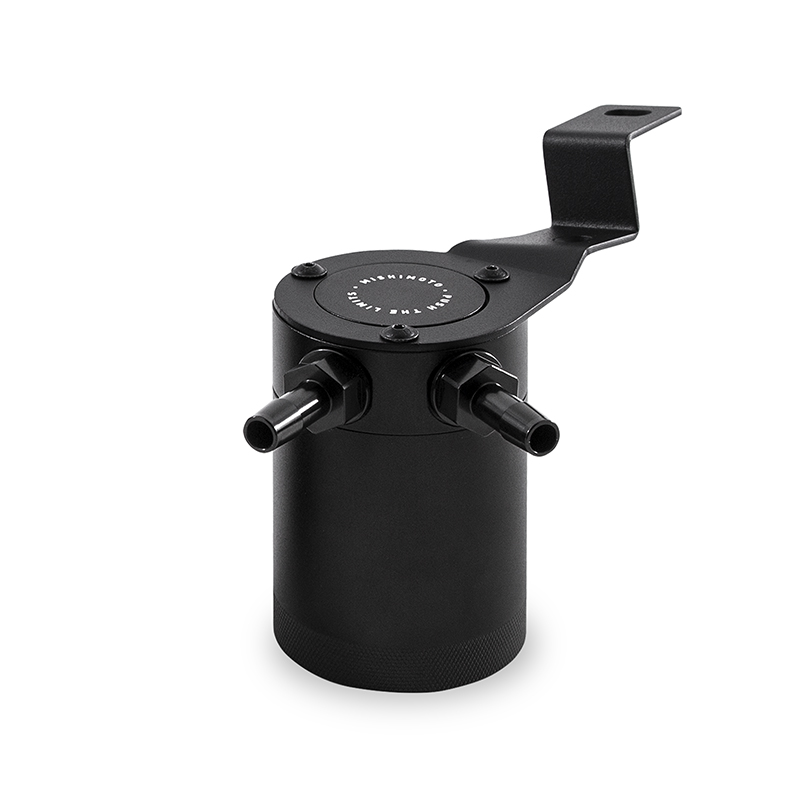

- Direct-fit steel powder-coated bracket mounts the can in a serviceable location
- Single can installs in line with the PCV system and separates oil particles using a 50-micron bronze filter
- Defends the intercooler, intake system, and essential engine components from oil blow-by
- Helps maintain proper octane levels to reduce potential detonation
- Filter and can are fully serviceable and washable

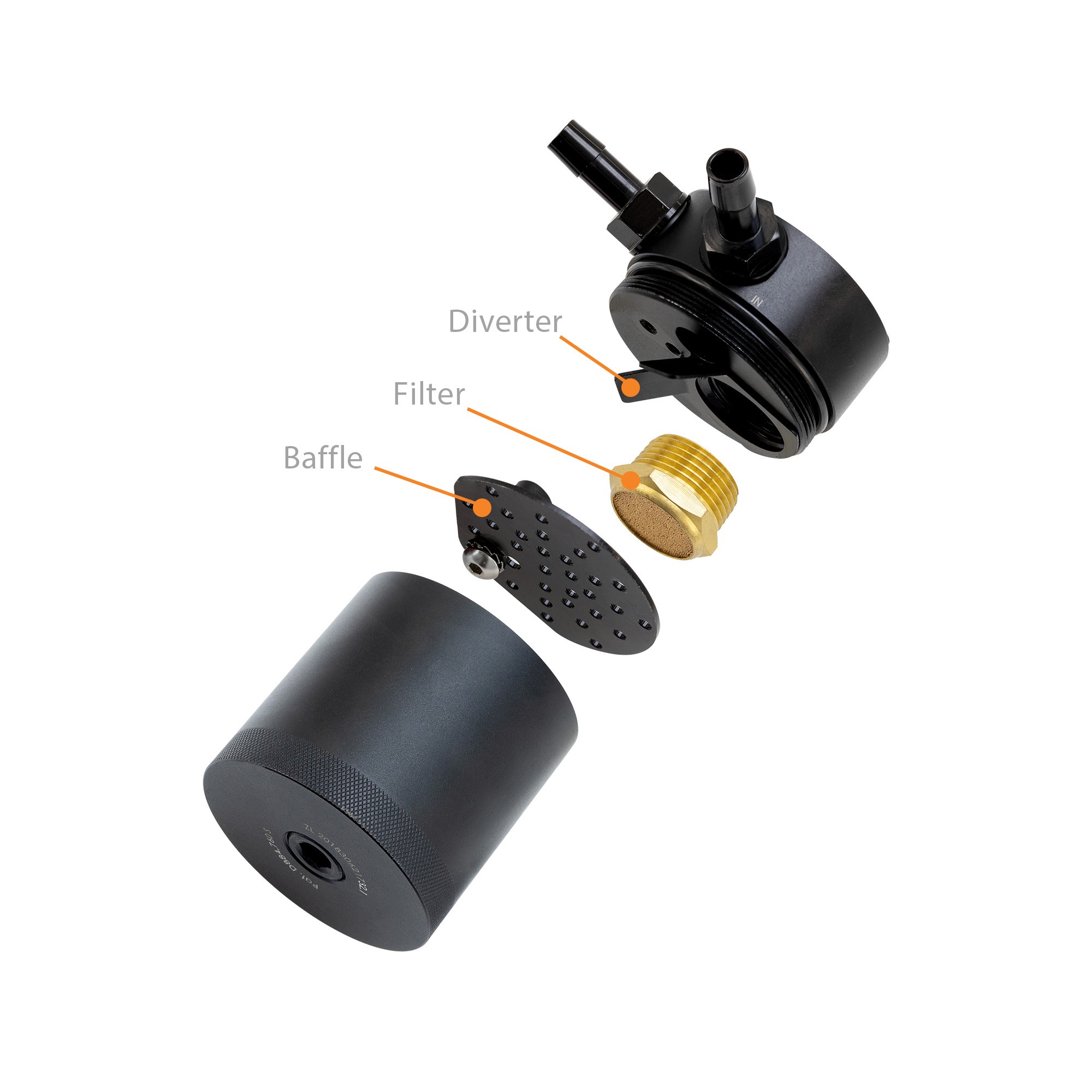

- Internal air diverter increases air turbulence to improve oil separation
- 100-percent billet 6061 aluminum sealed can with black CNC-machined aluminum fittings

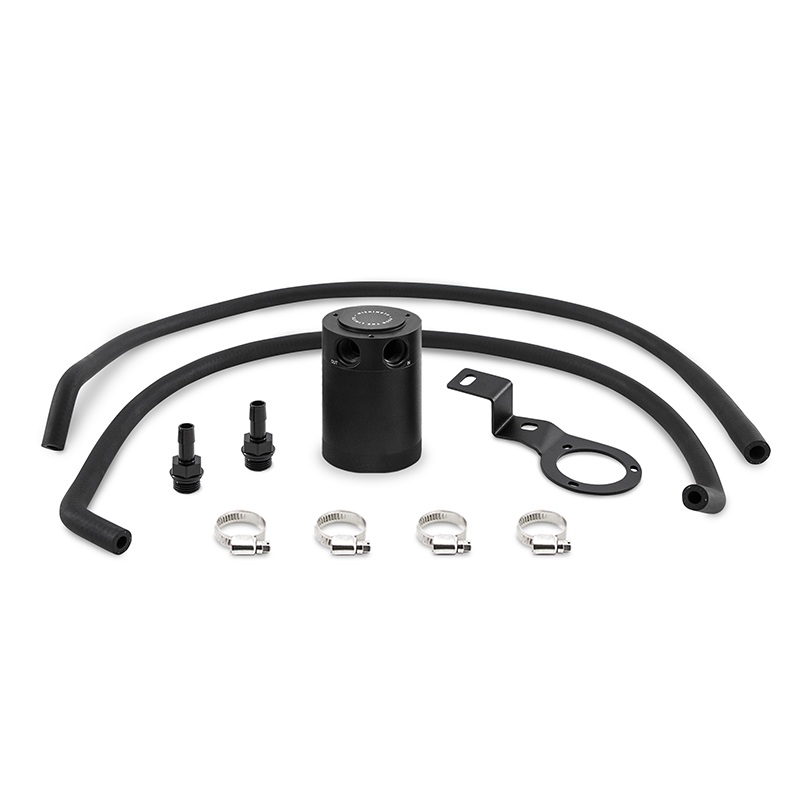

- Includes application-specific, pre-molded hoses for simplified installation
- Backed by the Mishimoto Lifetime Warranty
- Covered by Patent Nos. US ZL 202120175368.7, US ZL 201830621732.1, and US D884,760
Specifications
- Can Material: 6061-T6 Billet Aluminum
- Can Type: Twist Off
- Can Finish: Anodized
- Color: Black
- Overall Material: 6061 Aluminum
- Finish: Anodized
- Can Outside Diameter: 2.5 IN
- Height: 3.7 IN
- Inlet Port Inside Diameter: 0.6 IN
- Outlet Port Inside Diameter: 0.6 IN
- Hose Included: Yes
- Drain Plug Included: Yes
- Interior Baffle: Yes
- Mounting Bracket Included: Yes
Frequently Asked Questions
What does the Mishimoto PCV side baffled oil catch can do?
It separates oil particles from PCV air that would normally be routed back to the intake, using an internal air diverter and a 50-micron bronze filter, so only clean air passes through while oil sinks to the bottom of the can.
Which Subaru WRX model years does this catch can fit?
It fits the WRX Base, Limited, and Premium trims from 2015-2021, the Sport and Sport-tech trims from 2017-2021, 6-speed manual and CVT WRX models from 2018-2021, the Sport-tech RS from 2019-2020, the Raui Edition for 2019, and the EyeSight-equipped WRX for 2021.
Is the catch can serviceable or does the filter need replacing?
The filter and can are 100-percent washable and fully serviceable, so they do not require replacement like many other filtration systems.
What is the catch can made from?
The can is 100-percent billet 6061 (6061-T6) aluminum with an anodized finish, black CNC-machined aluminum fittings, and a direct-fit steel powder-coated mounting bracket.
Does this kit include the hoses and hardware needed for installation?
Yes, it includes application-specific, pre-molded hoses, a drain plug, and a direct-fit mounting bracket for installation.
What warranty comes with this Mishimoto oil catch can?
This kit includes the Mishimoto Lifetime Warranty.
