Description
The Mishimoto MMOC-WRX-22TSL is a direct-fit performance oil cooler kit engineered specifically for the 2022+ Subaru WRX and its FA24 turbocharged engine, addressing the limitations of the factory liquid-to-liquid heat exchanger that both heats and cools engine oil. Built around a 19-row oil cooler, this kit is designed for owners who have modified their WRX or spend time on track, where prolonged high oil temperatures can put the FA24 at risk.

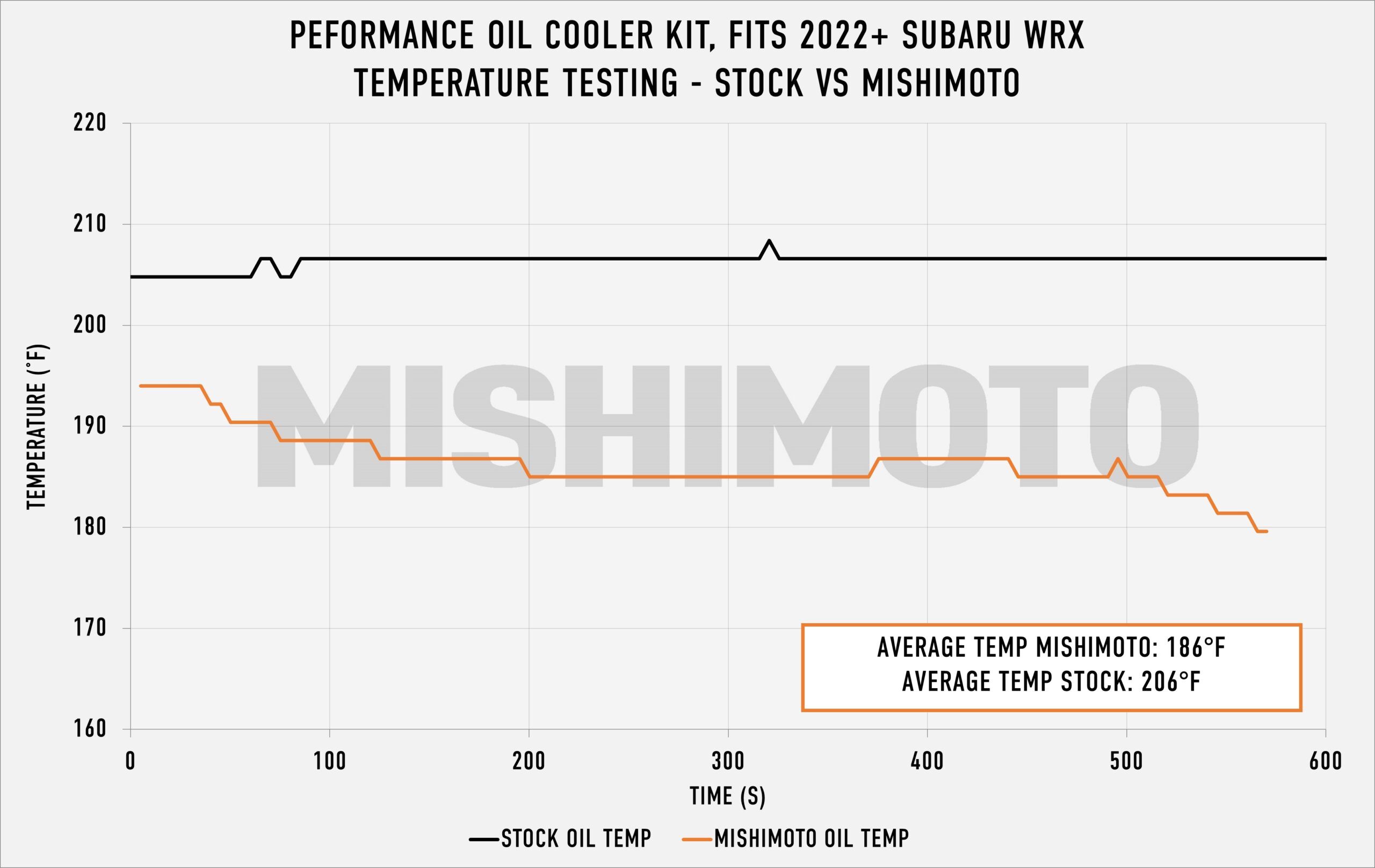

This Mishimoto oil cooler kit works alongside the factory liquid-to-liquid cooler rather than replacing it, helping maintain ideal oil temperature while reducing stress on the primary cooling system. By adding 0.75 quarts of oil to the system, the kit increases overall cooling capacity, and in dyno testing it delivered a 20-degree reduction in oil temperature. The 19-row cooler mounts using robust, application-specific brackets designed to position it for effective airflow and cooling. As a complete Mishimoto cooler kit, everything needed for installation is included, and every Mishimoto product is backed by the Mishimoto Lifetime Warranty.
Vehicle Applications
This oil cooler kit is a direct fit for the Subaru WRX equipped with the 2.4L H4 FA24F engine (chassis code VB). Coverage includes the WRX Base for 2022–2024, along with the WRX GT, Limited, Premium, Sport, and Sport-tech trims for 2022–2026. It also fits the 2026 WRX High, Series.Yellow, Sportwagon, TS, and tS Performance trims.
Features
- Direct fit for the 2022+ Subaru WRX

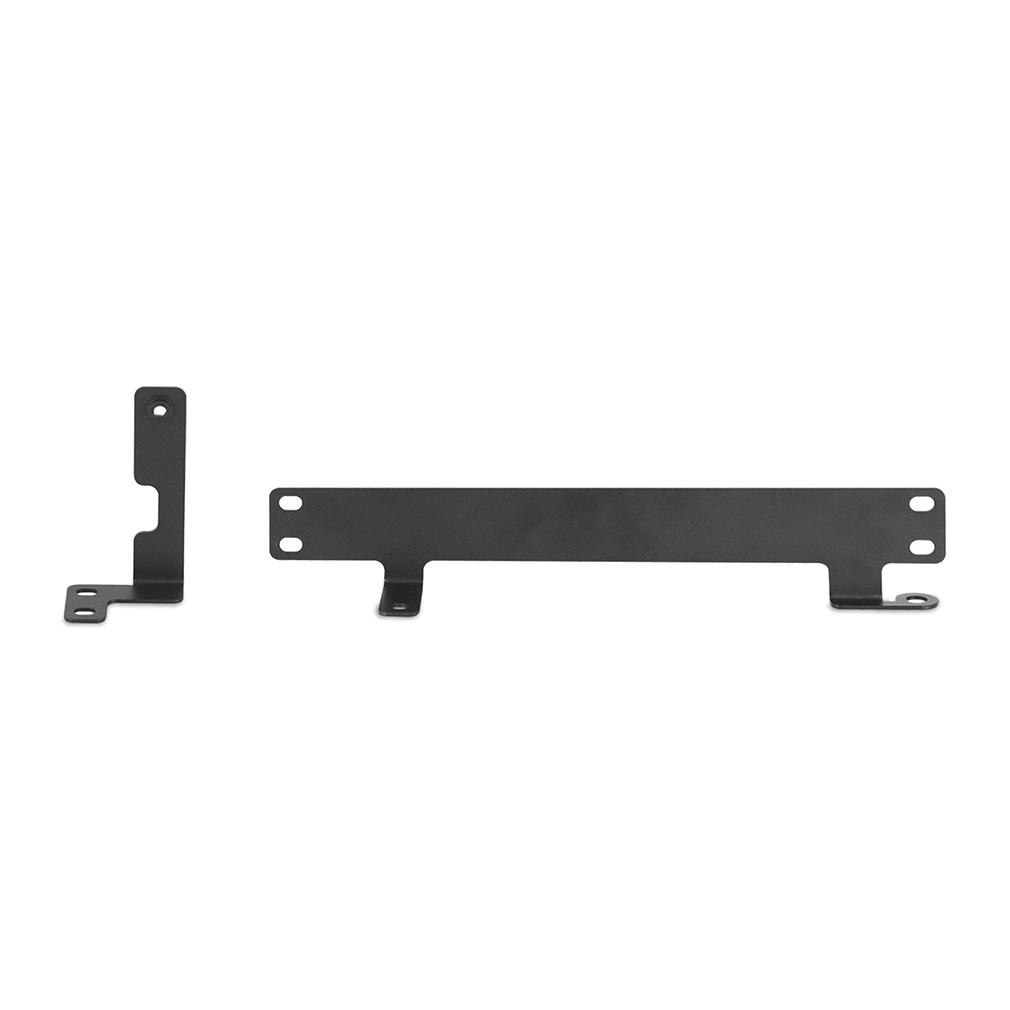

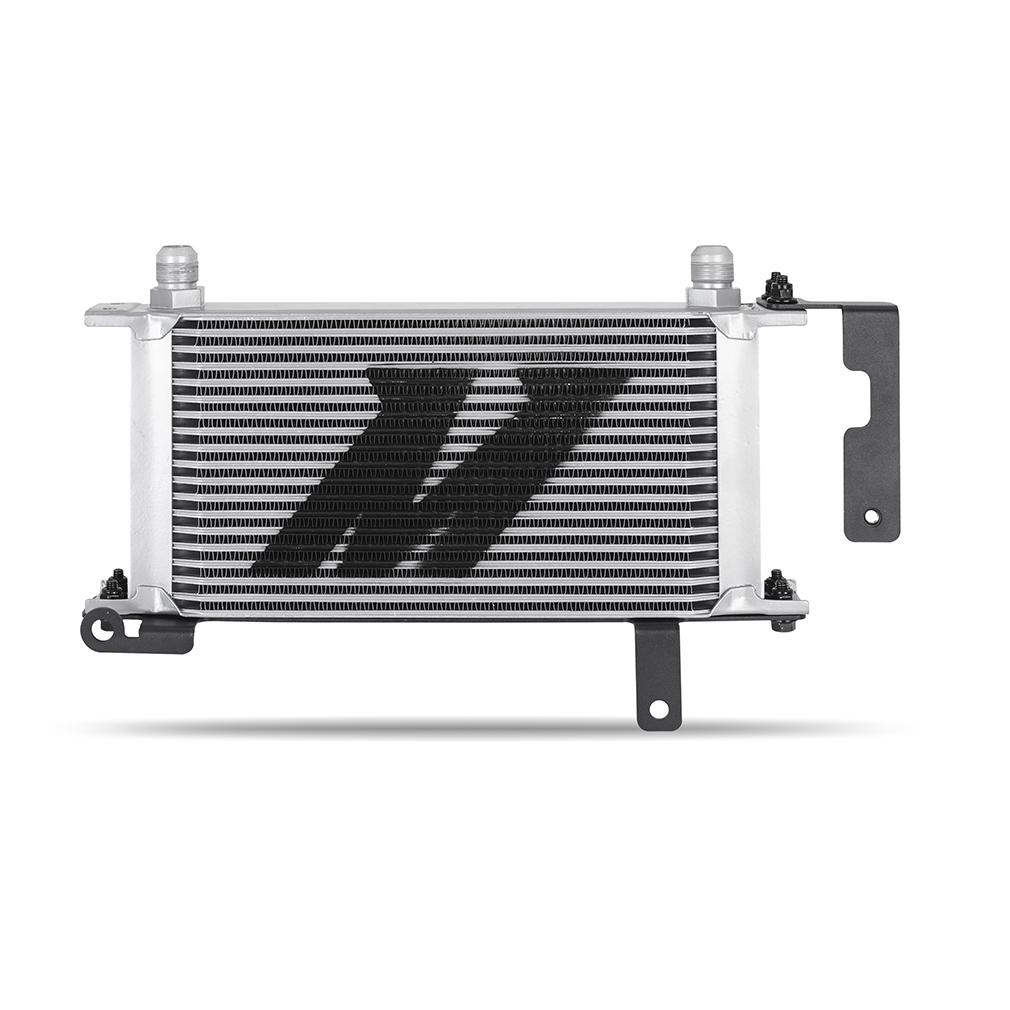

- 19-row oil cooler mounted using robust, application-specific brackets for airflow and cooling
- Complete kit includes brackets, lines, sandwich plate, and cooler for installation
- Dyno-proven 20-degree reduction in oil temperature
- Optional thermostatic sandwich plate suited for daily-driven vehicles or cold climates
- Retains the stock liquid-to-liquid cooler for fast warmup on daily-driven vehicles
- Adds 0.75 qts of oil for more cooling capacity
- Black nylon-covered stainless-steel lines with -10AN fittings for abrasion resistance and an OEM appearance

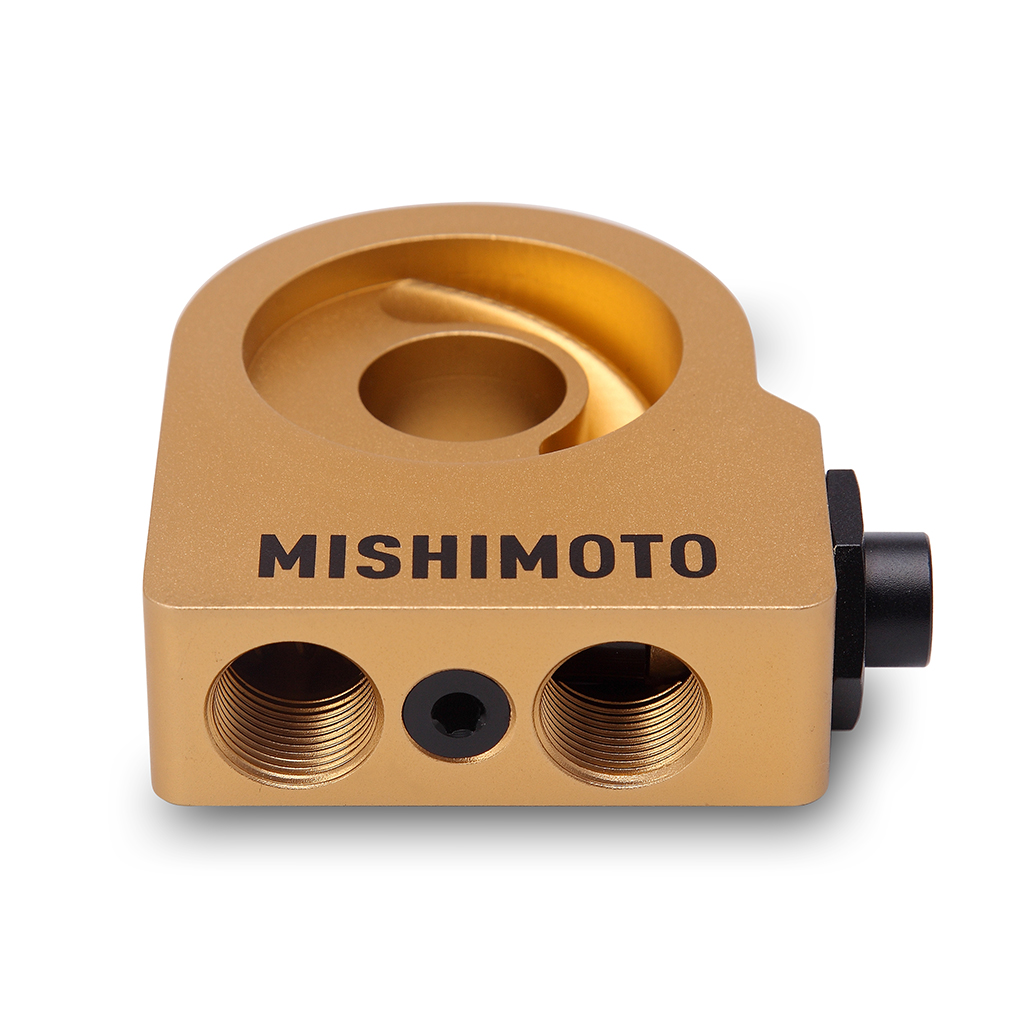

- Thermostatic sandwich plate includes NPT ports for pressure or temperature sensors
- Thermostatic sandwich plate accepts 160-degree, 185-degree, and 200-degree thermostats
- Available with a Sleek Silver or Stealth Black cooler finish
- Backed by the Mishimoto Lifetime Warranty
Specifications
- Brand: Mishimoto
- Part Number: MMOC-WRX-22TSL
- Product Type: Cooling
- Color/Finish: Silver, Anodized
- Core Construction: Stacked Plate, Bar-and-Plate design
- Core Row Quantity: 19 rows
- Core Height: 12.95 in.
- Core Width / Length: 11 in.
- Core Thickness: 1.97 in.
- Overall Width: 1.97 in.
- Overall Height / Base Height: 6.44 in.
- Overall Length: 12.95 in.
- Inlet/Outlet Fitting: -10AN, AN Flare, Male
- Inlet/Outlet Outside Diameter: 0.625 in.
- Cooler Fluid Capacity: 0.8 QT
- Grade Type: Performance
- Engine Application: Subaru WRX 2.4L H4 2022+, Engine Code FA24F, Chassis Code VB

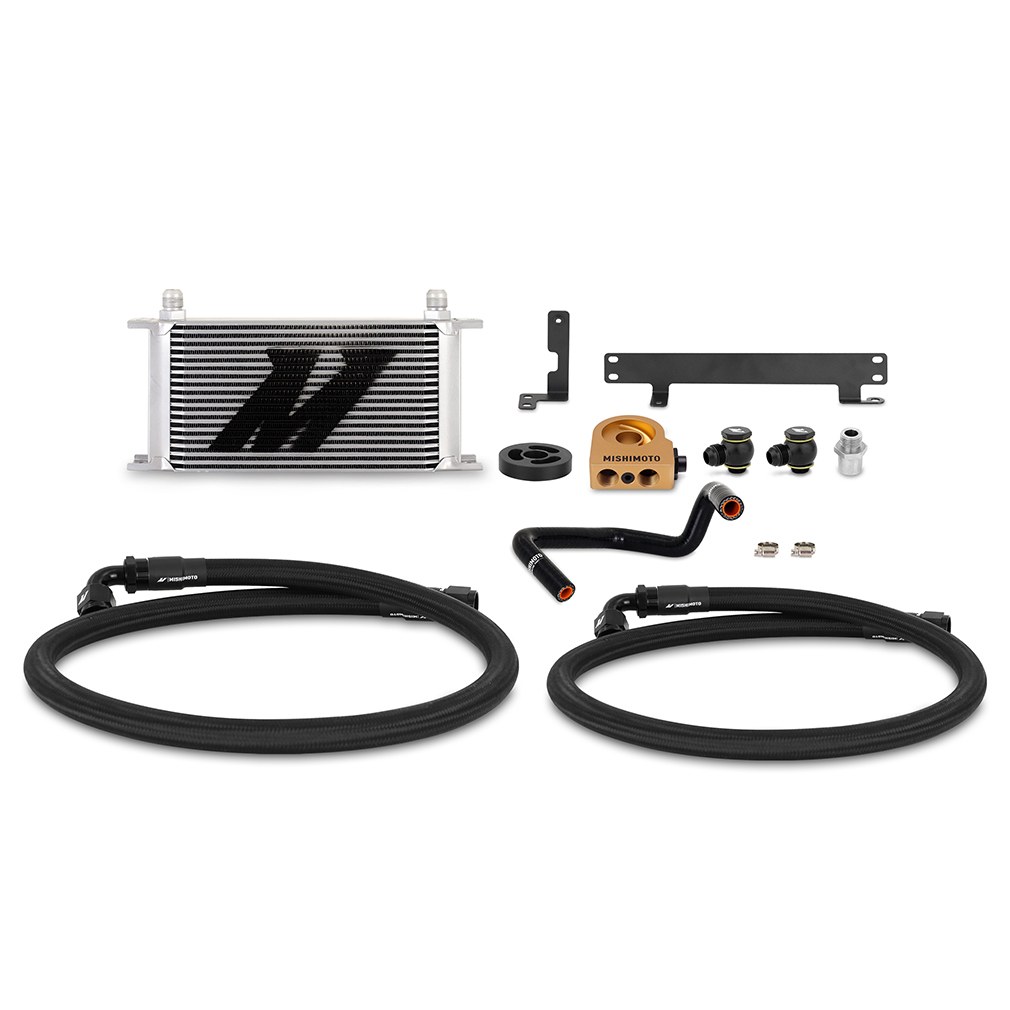

- Kit Includes: (2) application-specific mounting brackets, (1) 19-row oil cooler, (2) stainless-steel braided hoses w/ fittings, (1) application-specific oil sandwich plate, (2) banjo fittings w/ bolt, mounting hardware, Mishimoto Lifetime Warranty. Thermostatic option adds: (1) thermostatic oil sandwich plate, (1) stainless-steel sandwich plate adapter, (1) silicone hose, (2) worm gear clamps
Frequently Asked Questions
What vehicles does this Mishimoto oil cooler kit fit?
This kit is a direct fit for the Subaru WRX with the 2.4L H4 FA24F engine (chassis code VB), covering the WRX Base for 2022–2024, the GT, Limited, Premium, Sport, and Sport-tech trims for 2022–2026, and the 2026 WRX High, Series.Yellow, Sportwagon, TS, and tS Performance trims.
Does this kit replace the factory oil cooler?
No, this Mishimoto oil cooler kit works in tandem with the stock liquid-to-liquid cooler to maintain ideal oil temperature and alleviate stress on the primary cooling system.
How much does this kit reduce oil temperature?
In dyno testing, the kit showed a 20-degree reduction in oil temperature.
Does the kit add oil capacity to the system?
Yes, the kit adds 0.75 quarts of oil to the system for more cooling capacity.
What fittings and lines are included?
The kit includes pre-assembled black nylon-covered stainless-steel lines with -10AN fittings, along with your choice of a thermostatic or non-thermostatic sandwich plate.
What thermostat options does the thermostatic sandwich plate support?
The thermostatic sandwich plate accepts 160-degree, 185-degree, and 200-degree thermostats and includes NPT ports for pressure or temperature sensors.
