Description

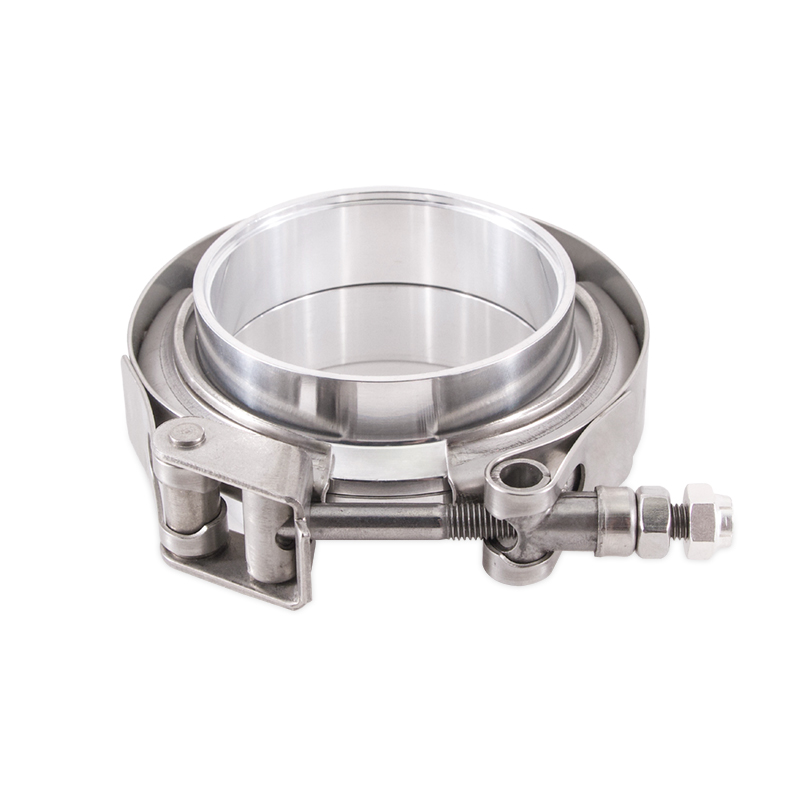

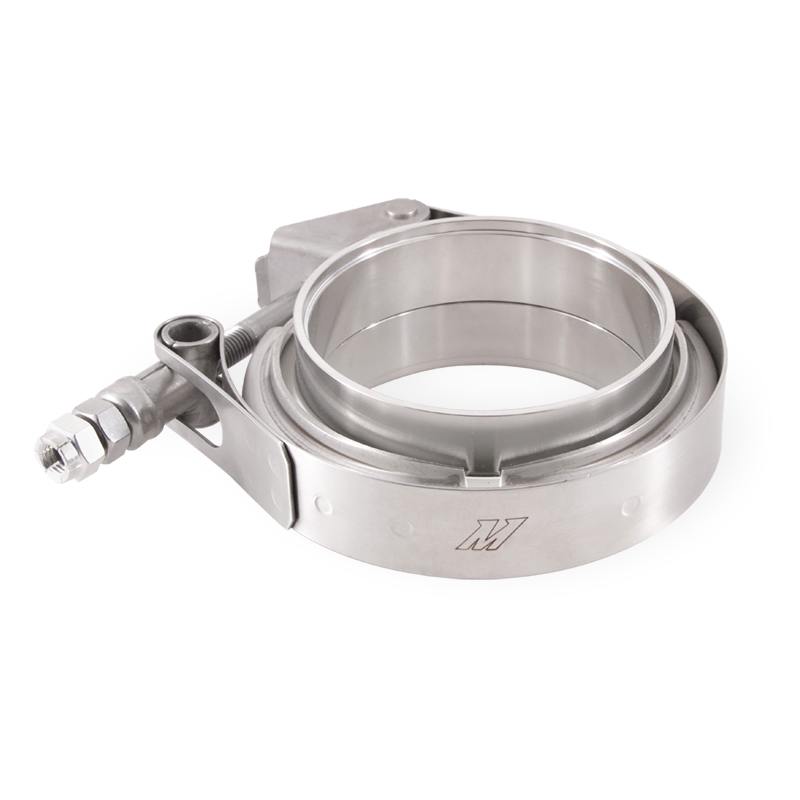

The Mishimoto MMCLAMP-VA-4 is a 4in (101.6mm) aluminum V-band clamp purpose-built for the fabricator who demands a rigid, repeatable connection between intake and intercooler pipes. Backed by the Mishimoto Lifetime Warranty, this polished silver aluminum V-band clamp pairs a self-locking nut with a reusable fabrication nut so you can mock up, tack weld, and finalize your pipe runs without ever second-guessing the joint.
Designed for Mishimoto Fabrication projects, this V-band clamp delivers a stronger, more secure hold than many other coupling methods while keeping assembly and disassembly quick. The counterbored flanges keep pipes properly aligned for clean welding, and the interlocking flange design creates a leak-free seal without needing a separate gasket. An included O-ring is engineered to prevent leaks even under extreme pressure, making this clamp well suited to intercooler and charge pipes, intakes, and turbochargers. Because it carries a universal fit, it’s ideal for custom fabrication work rather than a single vehicle application, giving builders flexibility across a wide range of piping projects.
Vehicle Applications
As a universal-fit fabrication component, the Mishimoto MMCLAMP-VA-4 is not tied to a specific make, model, or year. Instead, it’s engineered to join any 4-in (101.6mm) intake, intercooler, charge pipe, or turbocharger piping in a custom fabrication build, making it a versatile choice for shops and enthusiasts working on bespoke pipe routing rather than a factory-specific fitment.
Features
- Includes V-band clamp and male/female flanges
- Provides a rigid and secure connection between 4-in (101.6mm) pipes
- Ideal for intercooler and charge pipes, intakes, and turbochargers
- Counterbored flanges ensure proper pipe alignment for easy welding
- Included O-ring prevents leaks under even the most extreme pressure
- Interlocking flanges provide a leak-free seal without a gasket
- Reusable fabrication nut makes fabrication easy
- Provides stronger retention than other coupling methods
- Quick-release design is ideal for parts requiring frequent disassembly
- Backed by the Mishimoto Lifetime Warranty
Specifications
- Brand: Mishimoto
- Part Number: MMCLAMP-VA-4
- Product Type: Fabrication
- Material: Aluminum
- Finish: Polished
- Color: Silver
- Clamping Type: V Band
- Clamp Style: Aluminum V-Band Flange with Clamp
- Nut Type: Self-locking
- Flange Included: Yes
- Performance Rated: Yes
- Grade Type: Performance
- Universal or Specific Fit: Universal
- Band Width: 0.91 in
- Includes: (1) Mishimoto Stainless Steel V-Band w/ Clamp, (1) O-Ring, (1) Reusable Fabrication Nut, (1) Self-Locking Nut, Mishimoto Lifetime Warranty
Frequently Asked Questions
What size pipe does the Mishimoto MMCLAMP-VA-4 V-band clamp fit?
The MMCLAMP-VA-4 is a 4in (101.6mm) aluminum V-band clamp designed to provide a rigid and secure connection between 4-in (101.6mm) pipes.
What is included with this V-band clamp?
It includes (1) Mishimoto Stainless Steel V-Band w/ Clamp, (1) O-Ring, (1) Reusable Fabrication Nut, and (1) Self-Locking Nut, plus the Mishimoto Lifetime Warranty.
Is this V-band clamp vehicle-specific or universal?
This clamp has a universal fit and is not tied to a specific make or model, making it suitable for custom fabrication projects.
What is the reusable fabrication nut for?
The included reusable fabrication nut makes mock-up easy—assemble the clamp, tack weld your pipes in place, then disassemble for final welding before installing the provided self-locking nut.
What applications is this clamp ideal for?
It is ideal for intercooler and charge pipes, intakes, and turbochargers, providing a leak-free seal even under extreme pressure thanks to the included O-ring.
What material and finish does the MMCLAMP-VA-4 have?
It is made from aluminum with a polished silver finish.
