Description

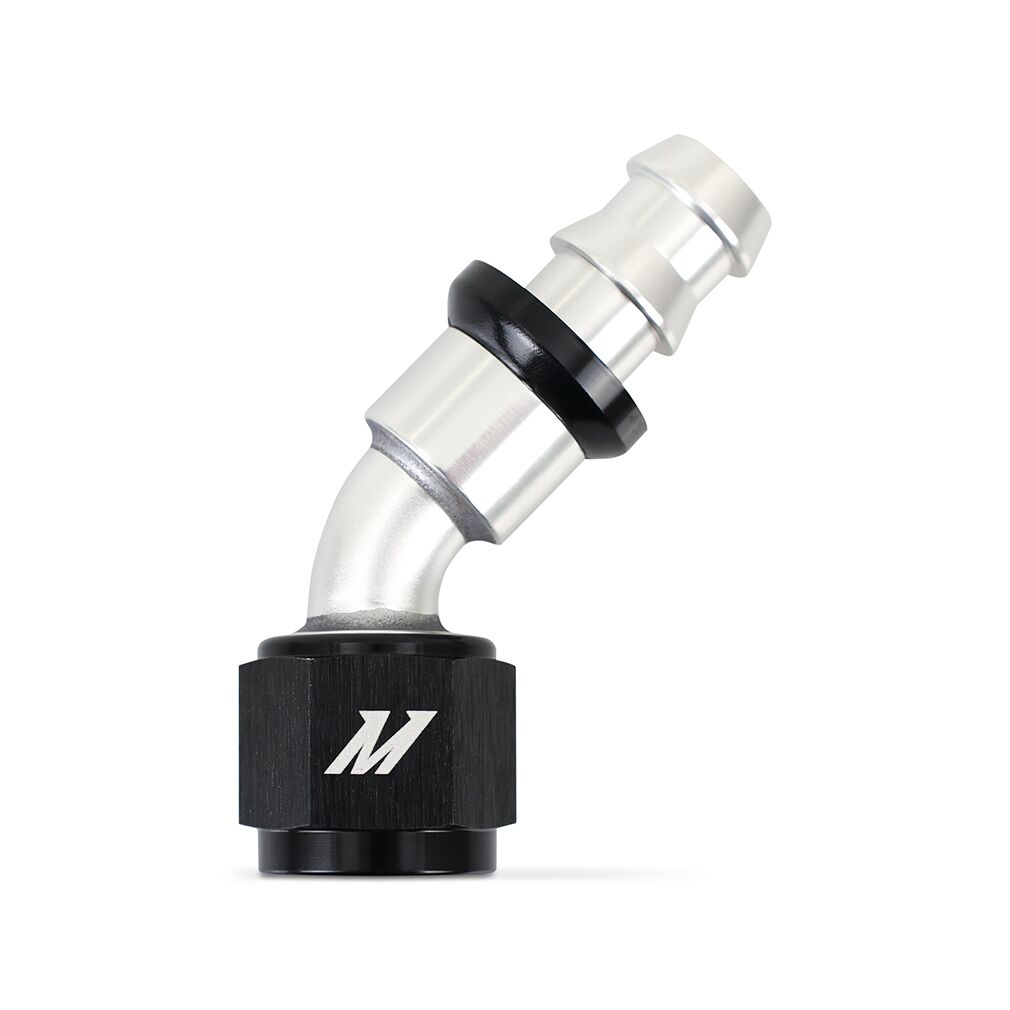

The Mishimoto -8AN Push Lock Fitting (MMFT-PL-845) is a 45-degree, silver and black anodized aluminum fitting built for fabricators who want a quick-connect solution without sacrificing a durable, finished look under the hood. With a -8AN push-lock end on one side and a 3/4 in – 16 UNF thread on the other, this Performance-grade fitting is designed to make -8AN line hookups fast, clean, and leak-free.
As part of the Mishimoto Fabrication lineup, this push lock fitting is precision machined for a tight, leak-free connection and finished with a corrosion-resistant anodized coating that keeps its sleek appearance over time. It’s engineered to withstand high temperatures and substantial pressures, making it a practical choice for engine oil, coolant, fuel, and similar fluid lines in custom setups. Whether you’re plumbing a custom oil cooler, transmission cooler, catch can, or another fabricated system, this fitting assembles in minutes, letting you move through your build without wrestling with complicated hardware.
Vehicle Applications
The Mishimoto -8AN Push Lock Fitting is a universal fabrication component rather than a vehicle-specific part, so it isn’t tied to a particular make, model, or year. Instead, it’s intended for custom fluid-line builds such as oil coolers, transmission coolers, and catch cans, giving builders a consistent -8AN push-lock connection point across whatever platform or project they’re working on.
Features
- -8AN push lock port for simple installation
- Offered in straight, 45-degree, 90-degree, and 180-degree angles to allow for easy routing of lines
- Precision machining provides a leak-free connection with -8AN line
- Perfect for use with engine oil, coolant, fuel, etc.
- Corrosion-resistant anodized coating provides a sleek, durable finish
- Engineered to withstand high temperatures and substantial pressures
- Assembles in minutes
- Mishimoto Lifetime Warranty

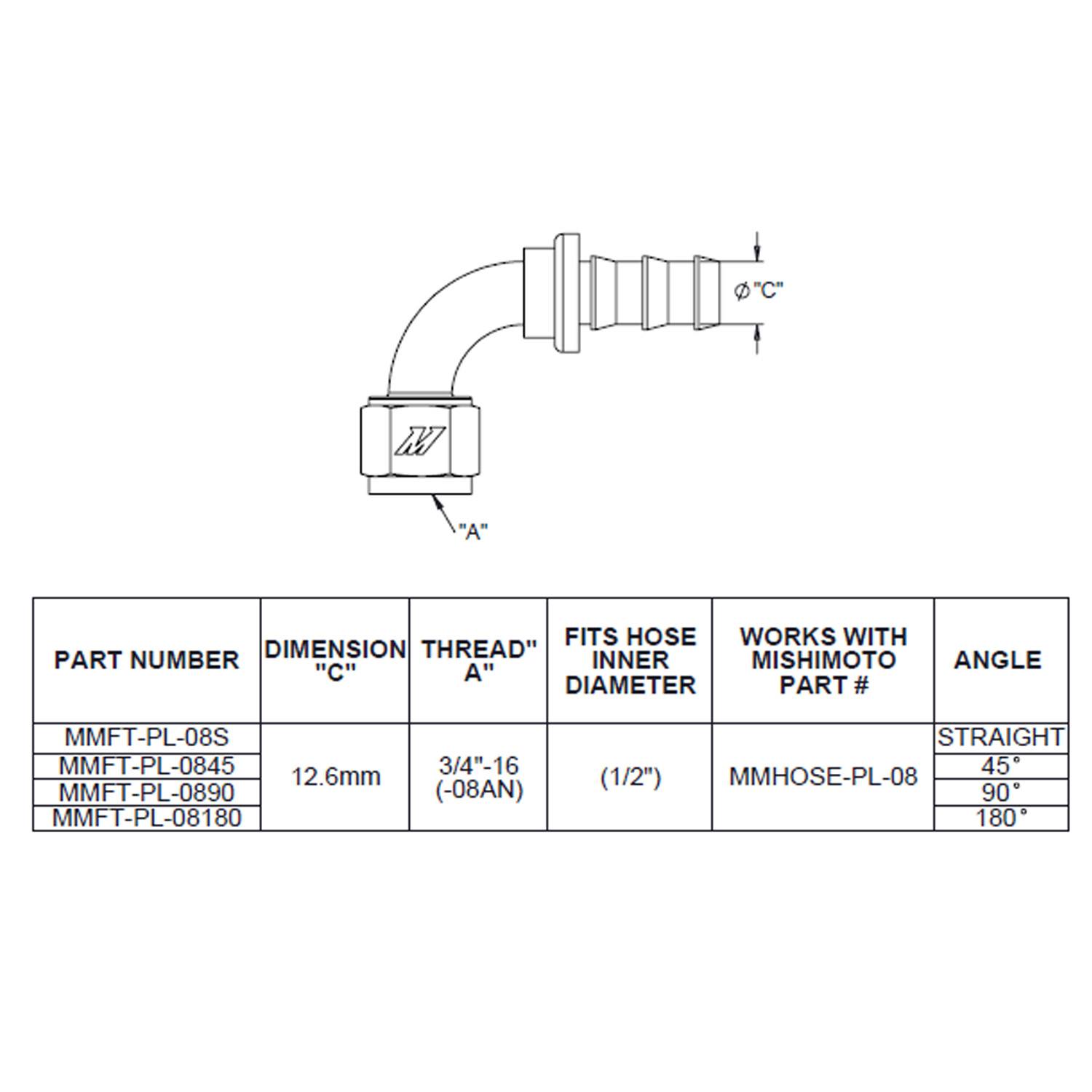

Specifications
- Brand: Mishimoto
- Part Number: MMFT-PL-845
- Product Type: Fabrication
- Color: Silver and Black
- Angle: 45-Degree
- End 1 Type: 3/4 in – 16 UNF
- End 2 Type: -8AN Push-Lock
- Grade Type: Performance
- Max Fluid Temperature: 248°F
- Max Fluid Pressure: 5000 PSI
- Includes: Mishimoto -8AN Push Lock Fitting, Mishimoto Lifetime Warranty
Frequently Asked Questions
What angle is the Mishimoto MMFT-PL-845 fitting?
This particular Mishimoto -8AN Push Lock Fitting is the 45-degree version.
What are the maximum temperature and pressure ratings for this fitting?
It is rated to a maximum fluid temperature of 248°F and a maximum fluid pressure of 5000 PSI.
What thread and AN sizes does this fitting use?
One end features a 3/4 in – 16 UNF thread, while the other end is a -8AN push-lock connection.
What fluids can this fitting be used with?
According to Mishimoto, it is perfect for use with engine oil, coolant, fuel, and similar fluids.
What comes included with this fitting?
The package includes the Mishimoto -8AN Push Lock Fitting along with the Mishimoto Lifetime Warranty.
What angle options are available for this Mishimoto push lock fitting?
Mishimoto offers this push lock fitting in straight, 45-degree, 90-degree, and 180-degree angles to allow for easy routing of lines.
