Description

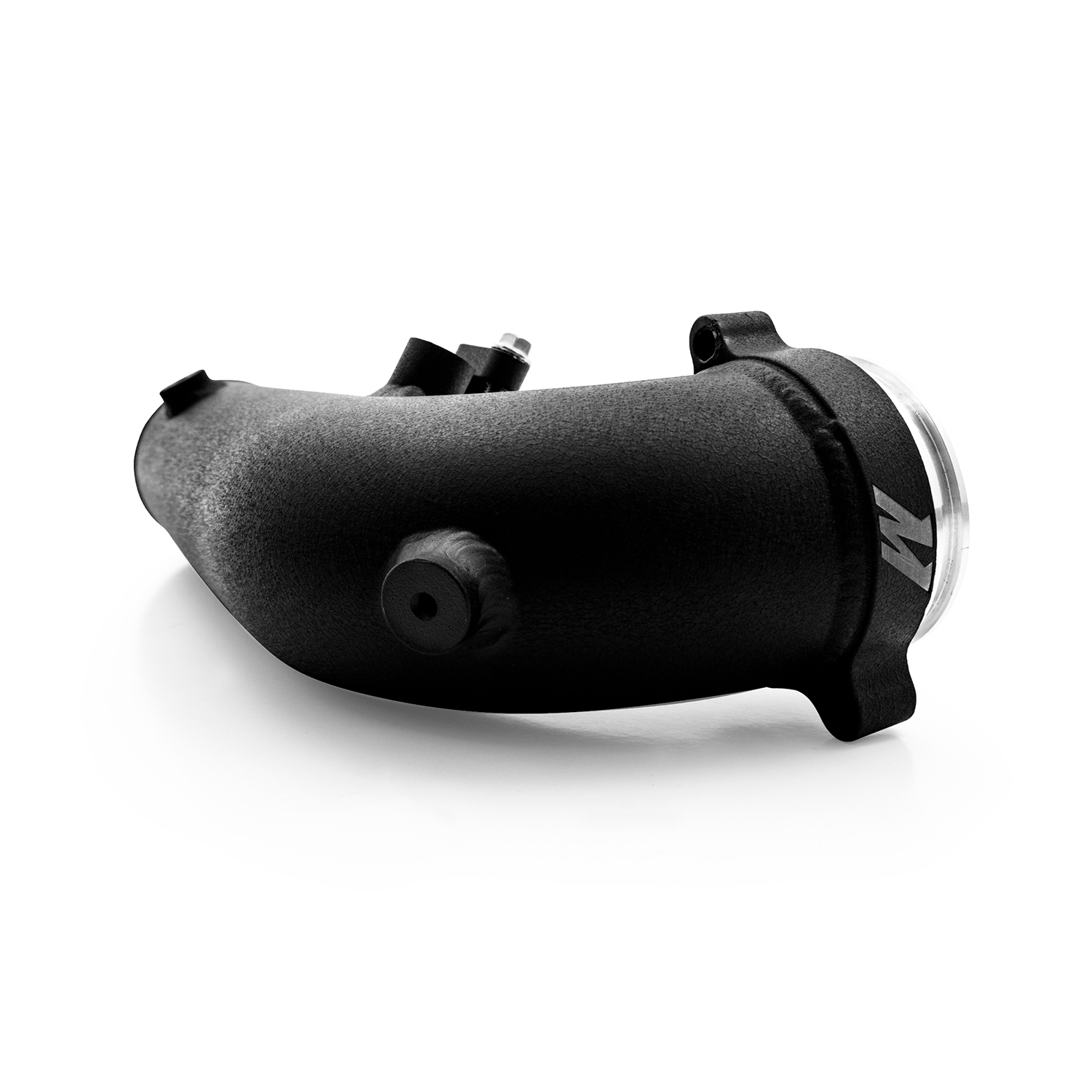

Mishimoto’s MMICP-SUP-20BK is a purpose-built aluminum charge pipe engineered to replace the fragile factory plastic charge pipe fitted between the turbocharger and intake manifold on B58-equipped vehicles. Built from two mandrel-bent aluminum sections with CNC-machined flanges, this Forced Induction upgrade eliminates the kinks and pinched sections that restrict airflow in the stock design, delivering up to 42-percent more flow than the factory plastic pipe it replaces.
Whether you’re refining your induction system for daily driving or building toward a more aggressive forced induction setup, this Mishimoto charge pipe kit is designed to handle real boost. The smooth-flowing 3-inch piping and seamlessly transitioning couplers and flanges reduce turbulence for a more efficient path from turbo to intake manifold, supporting stronger forced induction performance. Two pre-installed bungs let you drill and tap for boost pressure sensors, nitrous, or methanol injection, adding flexibility for performance induction builds. The included silicone coupler is made from five layers of material with embedded heat-resistant fibers and steel wire reinforcement so it resists ballooning as boost pressure climbs, and constant-tension worm gear clamps are included for a secure, lasting installation. The two-piece design keeps the swap straightforward, and the pipe is backed by Mishimoto’s lifetime warranty.
Vehicle Applications
This charge pipe is engineered around the B58 engine (chassis codes A90 and GR) and is a direct fit for 2020+ Toyota Supra 3.0L models. Within the GR Supra range, that covers the Base and Premium trims from 2020 through 2023, the 2020 Launch Edition, the 2021–2022 A91 Edition, the 2023 A91-MT Edition, the 2024 45th Anniversary Edition and Premium 45th Anniversary Edition, and the 2024–2025 Special Edition, along with the 2021 Supra Azul and Supra GR trims. Because BMW also builds the B58 engine, this same charge pipe fits a broad range of BMW models: the 2020 540i Base and M Sport plus the 2020–2025 540i xDrive Base; the 2020–2022 740i Base, 740i xDrive Base, and 745e xDrive Base along with the 2020 740i Excellence; the 2020–2025 840i Base, 840i Gran Coupe Base, 840i xDrive Base, and 840i xDrive Gran Coupe Base; the 2020–2021 M340i Base, the 2020 M340i xDrive First Edition, and the 2020–2025 M340i xDrive Base; the X3 lineup, including the 2020–2024 M, M Competition, M40i, sDrive30i, xDrive30e, and xDrive30i, the 2025 30 xDrive, M50i, and xDrive30, the 2021 sDrive20i, the 2020 sDrive20i Executive, the 2020–2021 xDrive30i Protection, and the 2020 xDrive30i X Line; the X4 lineup spanning 2020–2025 for the M, M Competition, M40i, and xDrive30i, plus the 2020 xDrive30i Executive and X Line; the X6 lineup covering the 2020–2023 M, M Competition, and M50i, the 2020–2025 xDrive40i, the 2020–2021 sDrive40i, and the 2020 xDrive40i M Sport; and the Z4 lineup with the 2019–2022 M40i, the 2020–2021 M40i First Edition and sDrive M40i, the 2021–2023 sDrive20i, the 2019–2020 sDrive20i M Sport and Sport Line, and the 2019–2023 sDrive30i.
Features
- Direct fit for 2020+ Toyota GR Supra w/B58 engine
- Reduces restriction by up to 42-percent over the stock plastic charge pipe
- 3-inch mandrel-bent piping with internal transitions for reduced turbulence and improved flow
- Precision CNC-machined adapters for smooth flow and secure fit
- Included coupler features steel wire reinforcement to prevent ballooning under high boost pressures
- Two pre-installed bungs can be drilled and tapped for boost sensors, nitrous, or methanol injection
- Two-piece design for a perfect fit and easy installation
- Includes constant-tension worm gear clamps for reliable performance
- Available in micro-wrinkle black or wrinkle red powder coated finish
- Backed by the Mishimoto Lifetime Warranty
Specifications
- Brand: Mishimoto
- Part Number: MMICP-SUP-20BK
- Product Type: Forced Induction
- Pipe Material: Aluminum
- Pipe Color: Black
- Finish: Powder Coated (Micro-Wrinkle Black)
- Pipe Bend Type: Mandrel
- Coupler Material: Silicone
- Coupler Color: Black
- Clamp Type: Worm Gear
- Clamps Included: Yes
- Core Height: 9.25 in
- Core Length: 22 in
- Engine Code: B58
- Chassis Codes: A90, GR
- Applications: 2020+ Toyota Supra 3.0L

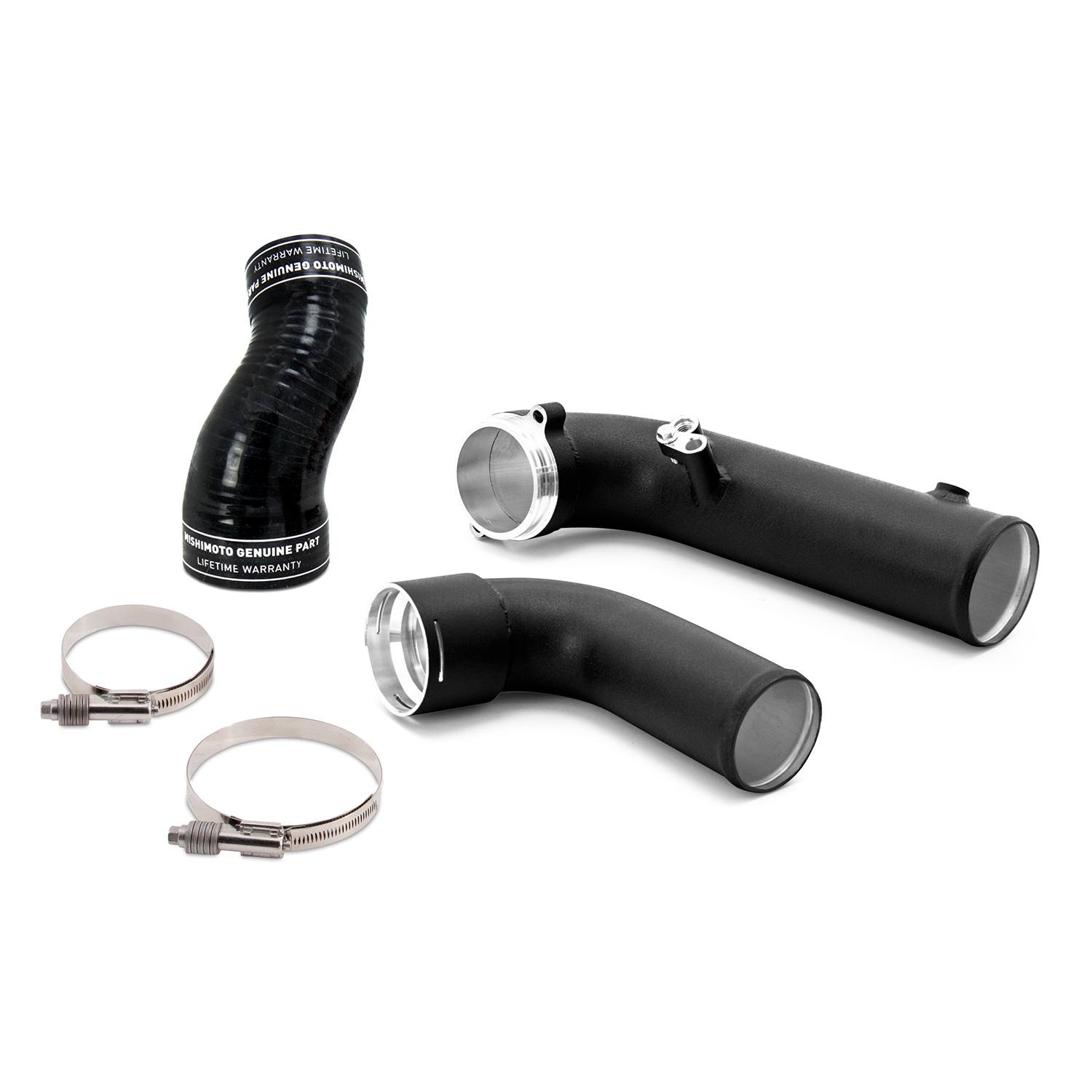

- Kit Includes: (2) Mandrel-Bent Aluminum Charge Pipes, (1) Silicone Coupler w/ Steel Wire Reinforcement, (2) Constant-Tension Worm Gear Clamps, Mishimoto Lifetime Warranty
- Installation Torque: 22 in-lbs (2.5NM) recommended for worm gear clamps; operating range 18-27 in-lbs (2-3NM); do not exceed 27 in-lbs (3NM)
- Installation Note: Stock O-rings and spring clip must be transferred from the stock pipe; replacements can be sourced from Toyota using part numbers 17376WAA05, 17376WAA04, and 90118WA186
Frequently Asked Questions
What vehicles does the Mishimoto MMICP-SUP-20BK charge pipe fit?
It is engineered for the B58 engine (chassis codes A90 and GR) and lists as a direct fit for 2020+ Toyota Supra 3.0L models, covering GR Supra Base, Premium, Launch Edition, A91 Edition, A91-MT Edition, 45th Anniversary Edition, Premium 45th Anniversary Edition, and Special Edition trims, plus Supra Azul and Supra GR, as well as numerous BMW B58-equipped models including the 540i, 740i, 840i, M340i, X3, X4, X6, and Z4 across the 2019–2025 model years depending on trim.
What material is the charge pipe made from?
It is constructed from two mandrel-bent aluminum pipes with CNC-machined flanges for durability and precise fitment.
Does it include installation hardware?

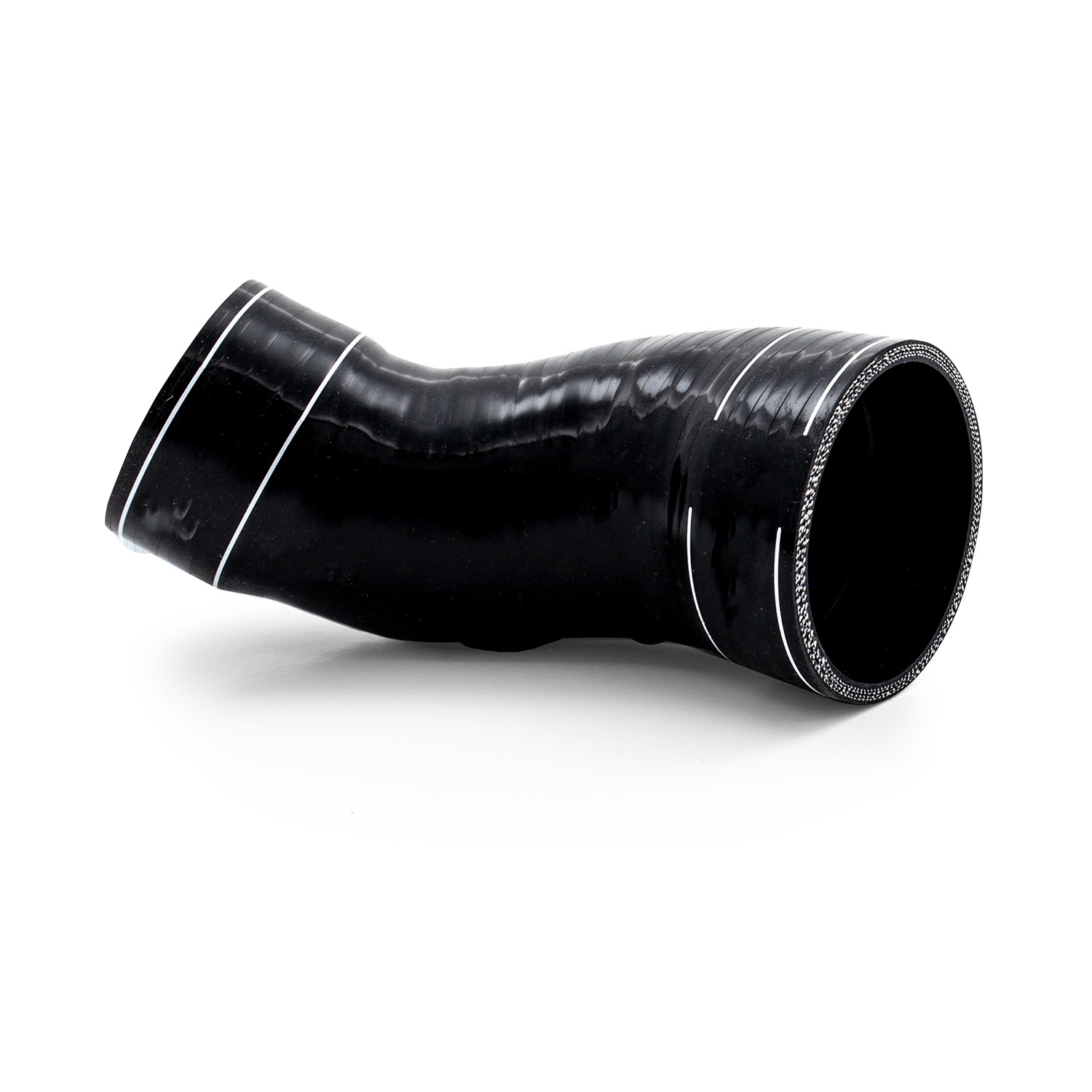

Yes, it includes a five-layer silicone coupler with embedded heat-resistant fibers and steel wire reinforcement, along with constant-tension worm gear clamps.
Do I need to reuse any stock parts during installation?
Yes, the stock O-rings and spring clip must be transferred from the factory pipe. If needed, replacements can be sourced from Toyota using part numbers 17376WAA05, 17376WAA04, and 90118WA186.
How much does this charge pipe improve airflow over stock?
It outflows the stock plastic charge pipe by up to 42-percent.
What clamp torque should I use during installation?
A torque of 22 in-lbs (2.5NM) is recommended for the worm gear clamps, with an operating range of 18-27 in-lbs (2-3NM); do not exceed 27 in-lbs (3NM).
