Description
The Mishimoto Performance Aluminum Fan Shroud Kit, part number MMFS-E46-01, is purpose-built to retire the factory clutch fan on the 2001-2006 BMW E46 M3’s S54 engine. In its place, this brushed aluminum shroud carries a 16-inch high-flow electric fan rated at over 1850 cfm of airflow, and Mishimoto’s own in-house Dynojet testing recorded a 5 whp gain from 6500-7500 rpm along with 1-2 whp gains across most of the power band once the stock mechanical fan was removed.
As part of Mishimoto’s Cooling lineup, this fan shroud kit exists to eliminate a well-known weak point in the E46 M3’s cooling system: the failure-prone factory clutch fan. Swapping to an electrically driven fan frees up parasitic drag while the aluminum shroud channels airflow more efficiently through the radiator. The kit mounts directly to both the factory radiator and Mishimoto’s own E46 M3 radiator, and for owners who want more precise thermal management, an optional adjustable fan controller and wiring kit can be added to give total control over coolant temperatures, including at idle. The fan itself is a plug-in unit with 10 straight plastic blades finished in black, and the shroud’s offset fan mounting is designed to clear popular supercharger installations.
Vehicle Applications
This Mishimoto fan shroud kit is a direct fit for the 2001-2006 BMW M3, built on the E46 chassis and powered by the S54 engine. It is engineered to bolt up using either the stock radiator or a Mishimoto performance radiator for this same generation of M3.
Features
- Direct fit for the 2001-2006 BMW E46 M3
- Dyno-proven gains of up to 5 whp at 6500-7500 rpm, plus 1-2 whp gains over a majority of the power band

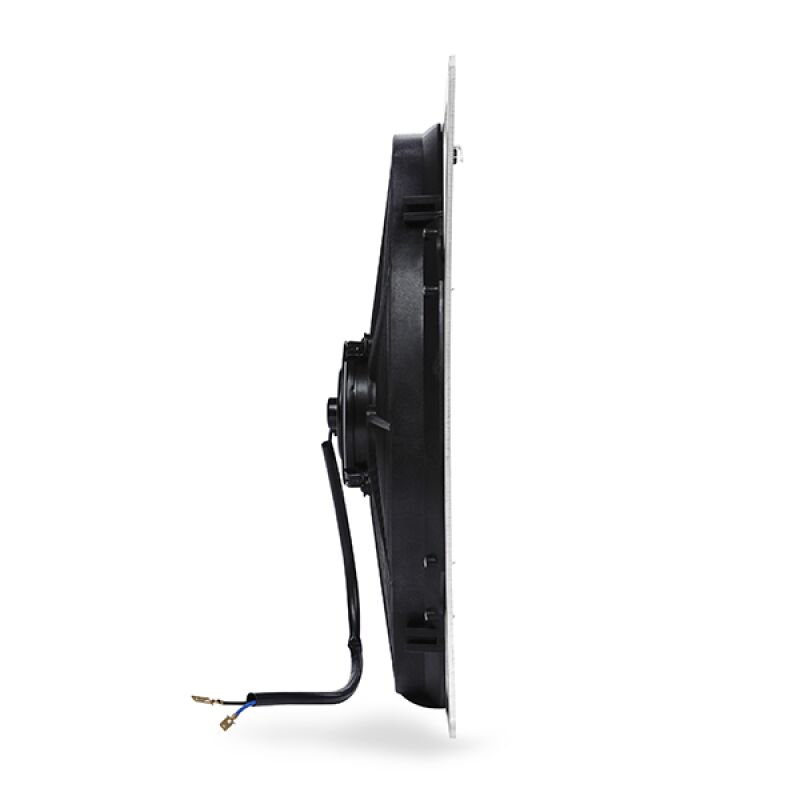

- Includes a high-flow 16-inch electric fan producing over 1850 cfm of airflow

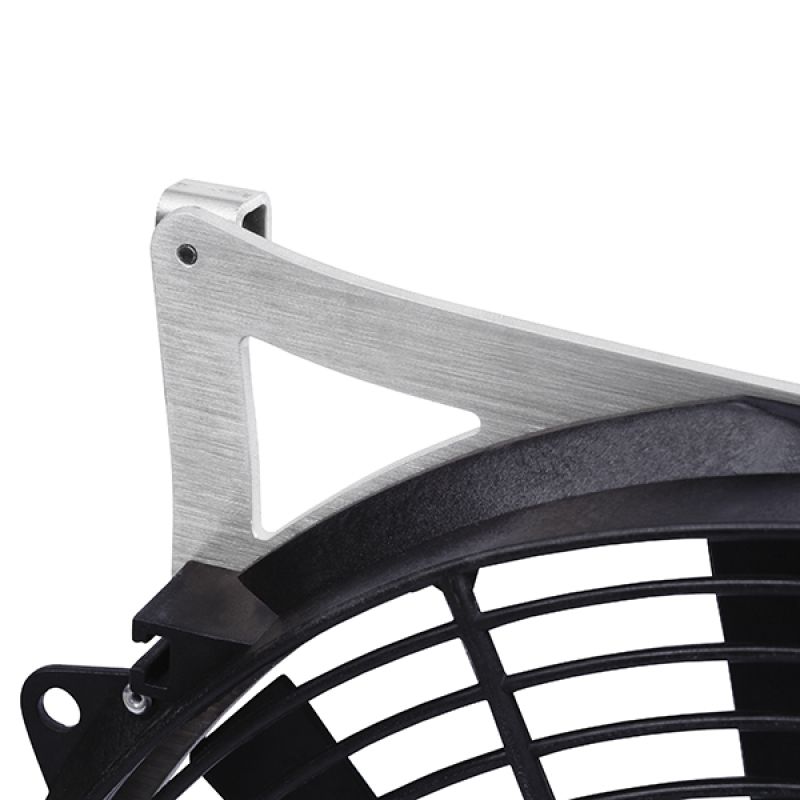

- Offset fan mounting provides clearance for popular supercharger kits
- Optional fan controller provides complete control of coolant temperatures at idle

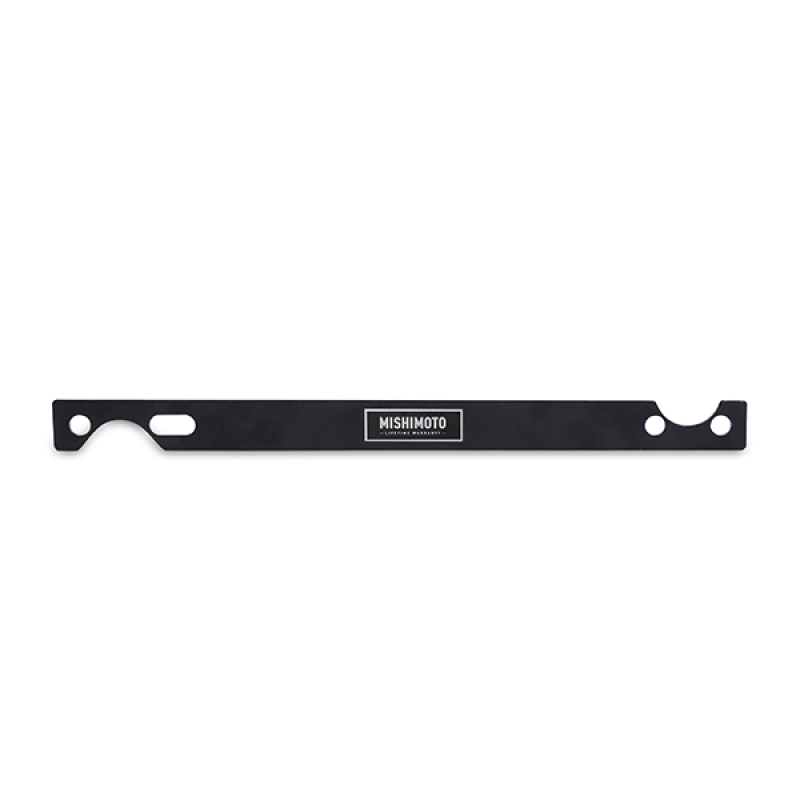

- Includes a fan removal tool for taking off the stock mechanical fan
- Fits with both stock and Mishimoto radiators
- Replaces the failure-prone stock mechanical fan
- Brushed aluminum finish
- Includes all mounting hardware needed for installation
- Backed by the Mishimoto Lifetime Warranty
Specifications
- Brand: Mishimoto
- Part Number: MMFS-E46-01
- Product Type: Cooling
- Material: Aluminum
- Finish: Brushed Aluminum
- Color: Silver
- Shroud Material: Aluminum
- Shroud Color: Silver
- Shroud Included: Yes
- Fan Diameter: 16 in
- Blade Quantity: 10
- Blade Material: Plastic
- Blade Type: Straight
- Blade Color: Black
- Blade Included: Yes
- Motor Included: Yes
- Hardwired or Plug-In: Plug-In
- Electrical or Mechanical: Electrical
- Fan Clutch Mounted: No
- Maximum Airflow: 1850 CFM
- Grade Type: Performance
- Control Module Included: No (optional add-on)
- Mounting Hardware Included: Yes
- Height: 16.7 in
- TechSpec Width: 12 in
- TechSpec Length: 25 in
- Chassis Code: E46
- Engine Code: S54

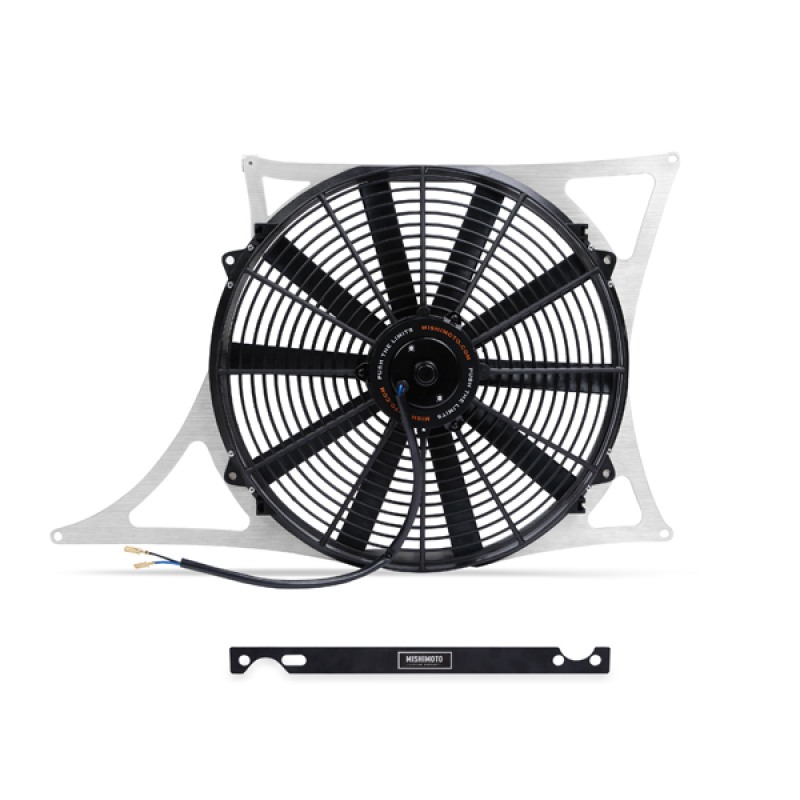

- Kit Includes: (1) Aluminum Fan Shroud, (1) 16-inch Mishimoto Slim Electric Fan, Fan Removal Tool, Optional Mishimoto Fan Controller (1/8-inch NPT or Probe), Mishimoto Lifetime Warranty
Frequently Asked Questions
Does this shroud fit the stock BMW E46 M3 radiator?
Yes, this fan shroud is compatible with the stock radiator, and it also fits Mishimoto radiators for the E46 M3.
What vehicles does this kit fit?
This kit is designed for the 2001-2006 BMW E46 M3 equipped with the S54 engine.
What kind of power gains has this kit shown?
Mishimoto’s in-house Dynojet testing showed a 5 whp gain from 6500-7500 rpm and 1-2 whp gains over a majority of the power band after removing the factory clutch fan.
Is wiring or a controller included?
The electric fan is a plug-in unit; an adjustable fan controller and wiring kit are available as an optional add-on for total control over coolant temperatures, and fans may require additional wiring.
What is included in the box?
The kit includes one aluminum fan shroud, one 16-inch Mishimoto Slim electric fan, a fan removal tool, all mounting hardware, and optionally a Mishimoto fan controller.
What finish does the shroud have?
The shroud has a brushed aluminum finish for a subtle accent in the engine bay.
