Description
The Mishimoto MMBCC-MS3-07PBE2 Baffled Oil Catch Can Kit is a PCV-side catch can built specifically for the 2007-2013 Mazda Mazdaspeed 3 and its 2.3L MZR turbo engine. Machined from 6061-T6 billet aluminum with a black anodized finish, this taller 7.5 oz. can was designed to intercept crankcase gases before they ever reach the Mazdaspeed 3’s top-mounted intercooler, a component prone to heat soak that bakes oil and fuel droplets directly into the heat exchanger.
Like many direct-injected, turbocharged car engines of its era, the Mazdaspeed 3 is known for carbon buildup caused by engine blow-by, and cold weather only increases the volume of oil vapor moving through the PCV system. Mishimoto sized this catch can larger than standard to handle those higher blow-by levels, helping protect downstream engine parts and intake components while supporting proper octane levels to reduce potential detonation. As a piece of the larger puzzle of parts of a car engine working together, this catch can plays a targeted role in keeping oil and fuel vapor out of places they don’t belong, extending the practical life of surrounding car parts and preserving the performance of key components of the automobile engine.
Vehicle Applications
This baffled oil catch can kit is a direct fit for the 2007-2013 Mazda Mazdaspeed 3, engineered around the factory PCV routing so it installs into the Mazdaspeed 3’s engine bay without modification to surrounding engine parts.
Features
- Single can mounts in line with the PCV system to separate oil from air using a 50-micron bronze filter
- Installs in under 30 minutes

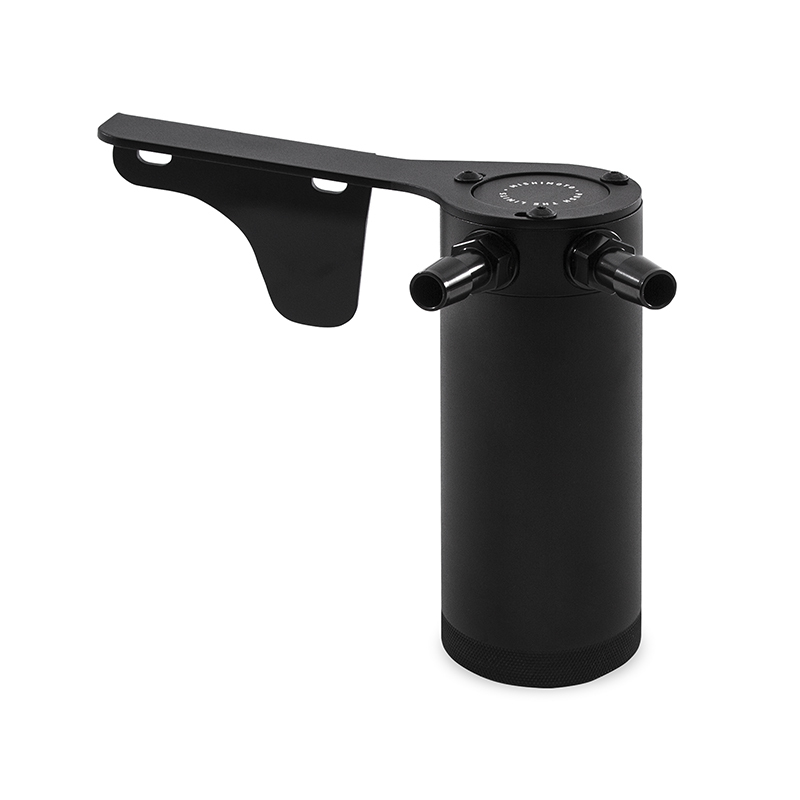

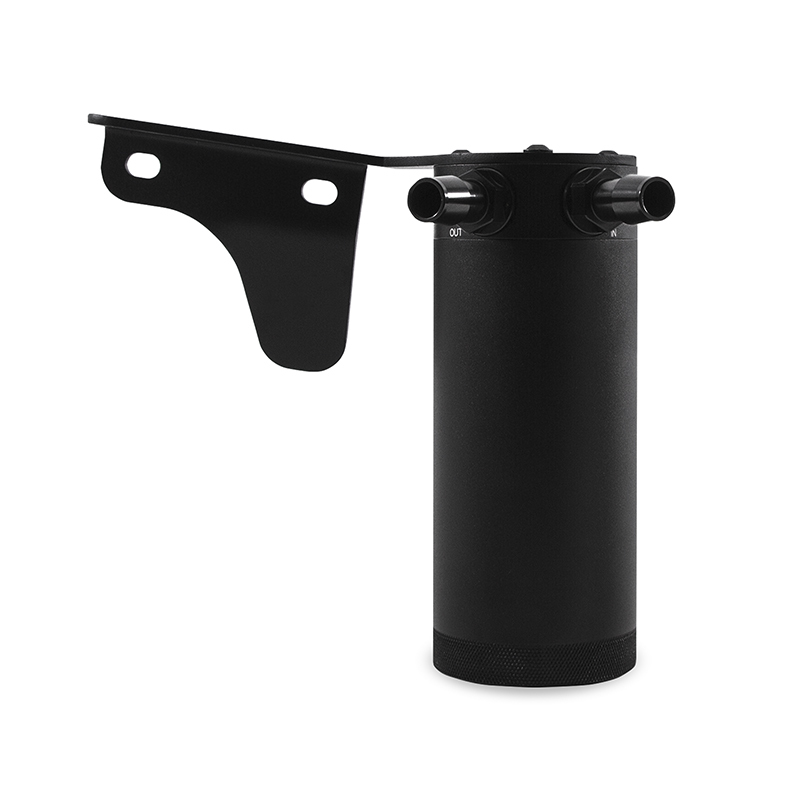

- Robust, application-specific bracket mounts the can in a serviceable location
- Extra large 7.5 oz. capacity for longer servicing intervals
- Molded hoses include a pre-installed check valve for a true plug-and-play install
- Defends the intake system and essential engine components from oil blow-by
- Helps maintain proper octane levels to reduce potential detonation

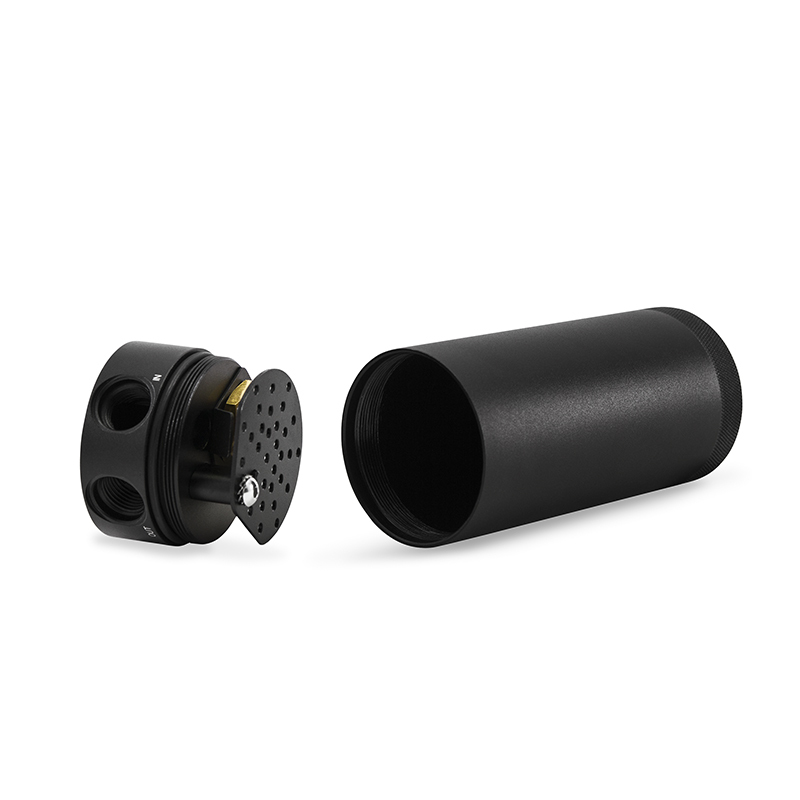

- Billet 6061 aluminum sealed can is fully serviceable with a twist-off design and included drain plug
- Internal air diverter increases air turbulence to improve oil separation
- Covered under the Mishimoto Lifetime Warranty
Specifications
- Brand: Mishimoto
- Part Number: MMBCC-MS3-07PBE2
- Color: Black
- Finish / Can Finish: Anodized
- Can Material: 6061-T6 Billet Aluminum
- Can Type: Twist Off
- Height: 6.2 IN
- Can Outside Diameter: 2.5 IN
- Maximum Can Capacity: 7.5 FO
- Inlet Port Inside Diameter: 0.5 IN
- Outlet Port Inside Diameter: 0.5 IN
- Interior Baffle: Yes
- Mounting Bracket Included: Yes
- Hose Included: Yes
- Drain Plug Included: Yes
Frequently Asked Questions
What vehicles does the Mishimoto MMBCC-MS3-07PBE2 catch can kit fit?
It is designed for the 2007-2013 Mazda Mazdaspeed 3.
What is the maximum capacity of the catch can?
The catch can has a 7.5 oz. maximum capacity.
What material is the catch can made from?
It is machined from 6061-T6 billet aluminum with an anodized finish.
Does the kit include mounting hardware and hoses?

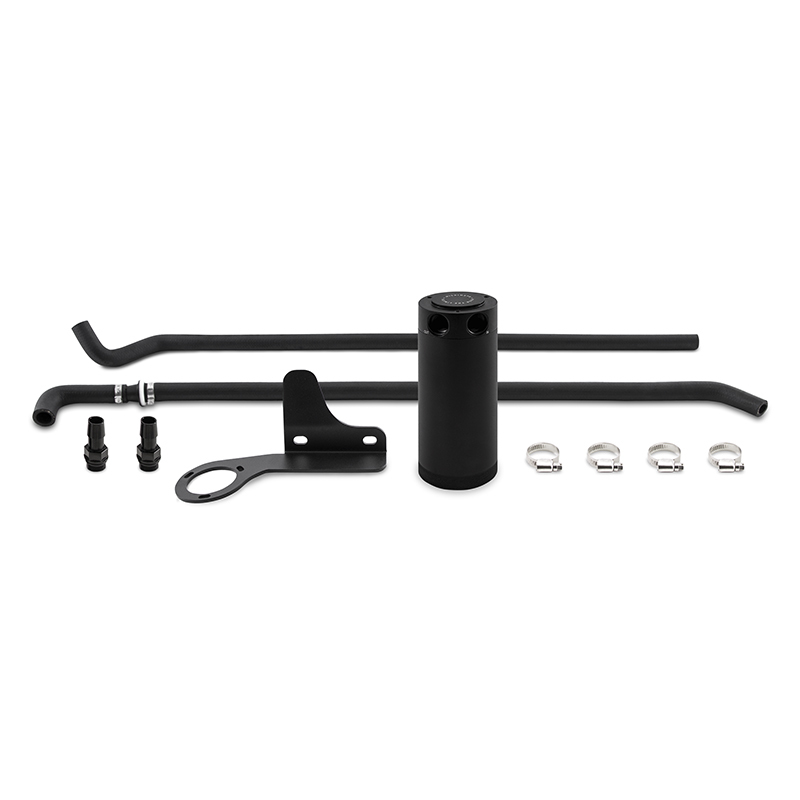

Yes, the kit includes a mounting bracket, pre-formed hoses, and the necessary mounting hardware.
Is the catch can serviceable?
Yes, the sealed can features a twist-off design and an included drain plug for servicing.
What warranty covers this catch can kit?
It is covered under the Mishimoto Lifetime Warranty.
