Description

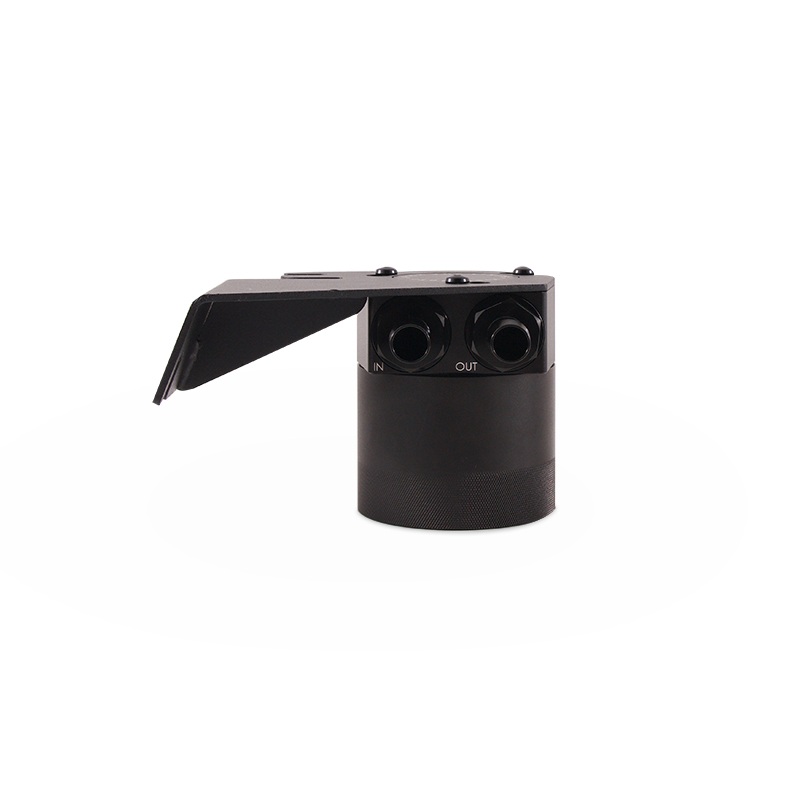

The Mishimoto MMBCC-F2D-11BE is a direct-fit, high-flow baffled oil catch can engineered specifically for the 2011-2016 Ford 6.7L Powerstroke. Machined from 6061-T6 billet aluminum with a twist-off, anodized-finish body, this catch can pairs a 5.3 fl. oz. capacity bottom with a CNC-machined lid featuring large M27 x 2.0 inlets and outlets so your crankcase can breathe under load.

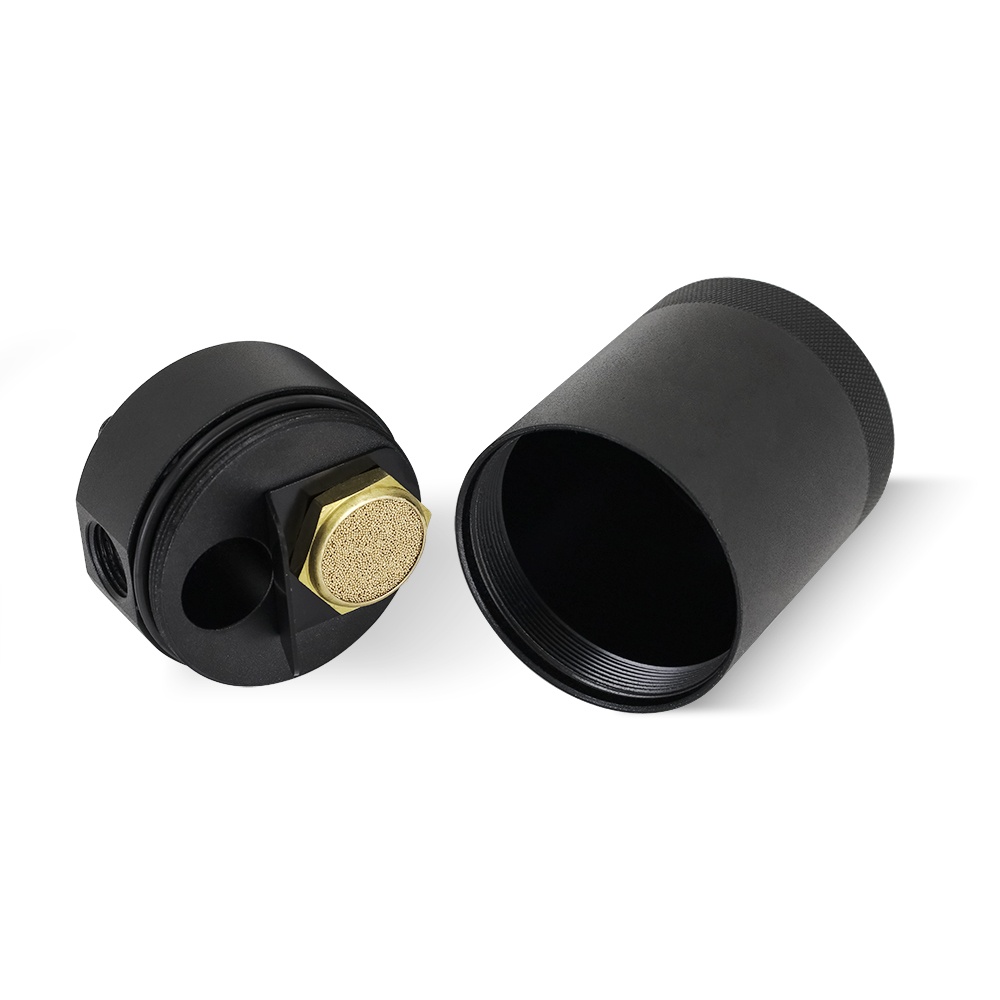

High-output diesel engines produce a lot of blow-by, and left unmanaged, that mix of harmful oil, fuel, and water vapor from automobile combustion can find its way back into the intake. As one of the more overlooked engine components in the crankcase ventilation system, a properly designed catch can protects the more sensitive car engine parts downstream. Inside this can, a CNC-machined baffle with an integrated filter captures those vapors while letting clean crankcase gases pass through, and because both the filter and the can are fully serviceable, draining and cleaning are quick jobs rather than a full teardown of parts of a car engine.
Vehicle Applications
This kit is a direct fit for the 2011-2016 Ford 6.7L Powerstroke lineup. That coverage includes the Ford F-250 Super Duty XL, XLT, King Ranch, and Lariat (2011-2016), Platinum (2013-2016), FX4 (2011-2014), and Base (2015-2016); the Ford F-350 Super Duty XL, XLT, King Ranch, and Lariat (2011-2016) along with Platinum (2013-2016); the Ford F-450 Super Duty Base, XL, XLT, King Ranch, and Lariat (2011-2016) along with Platinum (2013-2016); and the Ford F-550 Super Duty Base, XL, XLT, and Lariat (2011-2016).
Features
- Direct-fit for 2011-2016 Ford 6.7L Powerstroke
- High-flow catch can allows your crankcase to breathe while filtering out harmful oil, fuel, and water vapors

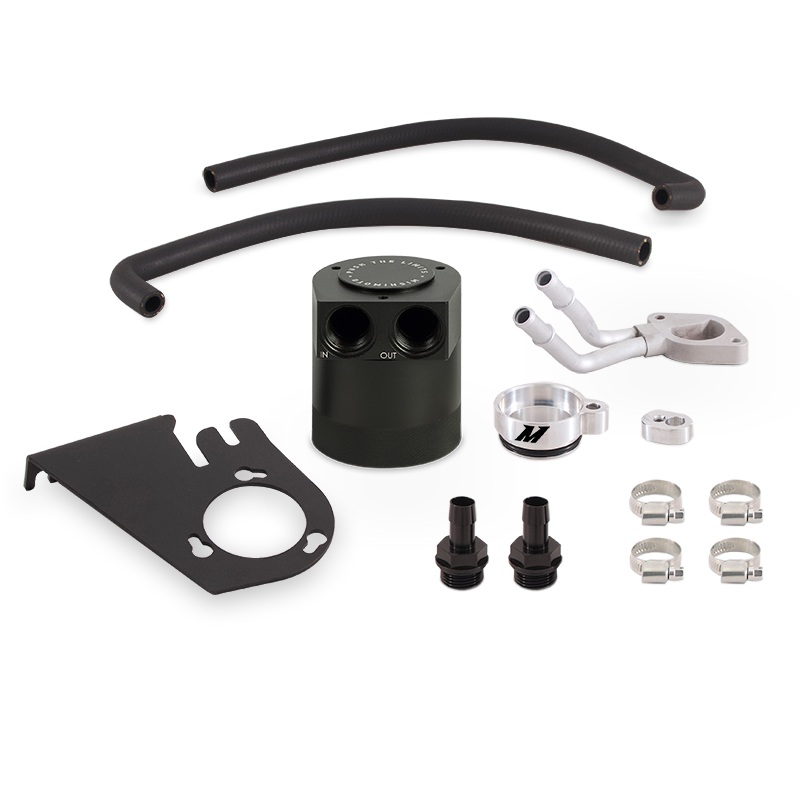

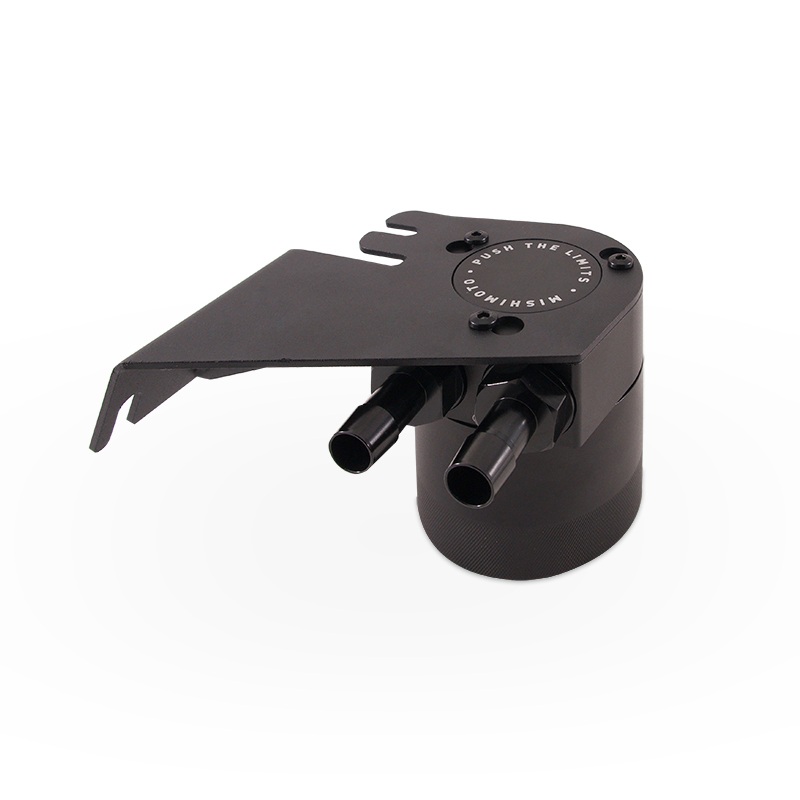

- Sturdy, 3mm-thick steel bracket with quick-release design allows for easy servicing of the catch can and other under-hood components of an automobile engine

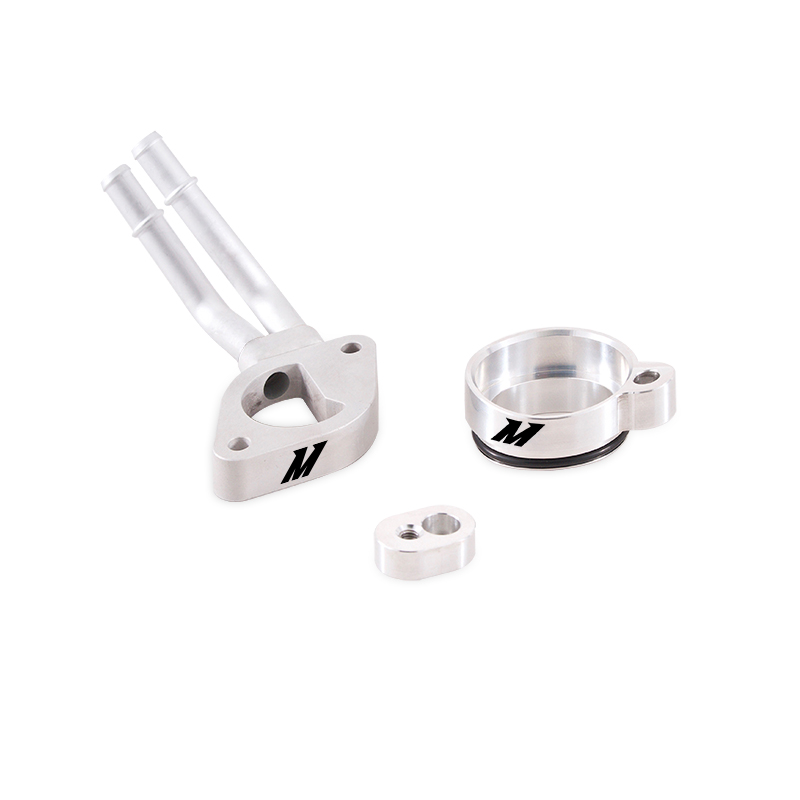

- CNC-machined adapters retain the stock CCV filter box for a sleek install while intercepting and re-routing blow-by away from the intake
- Includes durable, CNC-machined aluminum hose-barb fittings
- 5.3 fl. oz. capacity for improved flow and extended service intervals
- Powder-coated bracket for maximum durability in all conditions
- Filter and can are fully serviceable
- Patent No. US D884,761
- Backed by the Mishimoto Lifetime Warranty
Specifications
- Brand: Mishimoto
- Part Number: MMBCC-F2D-11BE
- Product Type: Engine Components
- Color: Black
- Finish: Anodized
- Bracket Finish: Powder-Coat
- Can Material: 6061-T6 Billet Aluminum
- Can Type: Twist Off
- Can Outside Diameter: 3.5 IN
- Maximum Can Capacity: 5.3 fl. oz.
- Inlet Port Inside Diameter: 1.1 IN
- Outlet Port Inside Diameter: 1.1 IN
- Interior Baffle: Yes
- Hose Included: Yes
- Drain Plug Included: Yes
- Mounting Bracket Included: Yes
Frequently Asked Questions
What is the maximum capacity of this Mishimoto catch can?
The catch can has a maximum capacity of 5.3 fl. oz.
Which vehicles does this catch can kit fit?
This kit is a direct fit for the 2011-2016 Ford 6.7L Powerstroke, covering the F-250, F-350, F-450, and F-550 Super Duty in various trims and years, including XL, XLT, King Ranch, Lariat, Platinum, FX4, and Base.
What material is the catch can made from?
The can is made from 6061-T6 billet aluminum with an anodized finish.
Does the kit include a mounting bracket and hoses?
Yes, the kit includes a 3mm-thick, powder-coated steel mounting bracket along with direct-fit hoses and adapters that tap into the stock CCV breather box.
Is the catch can serviceable?
Yes, the can and interior filter are fully serviceable for easy draining and cleaning, and a drain plug is included.
What warranty comes with this catch can?
This catch can is backed by the Mishimoto Lifetime Warranty.
