Mishimoto Baffled Oil Catch Can Kit – 2018+ Audi S4/S5

Description

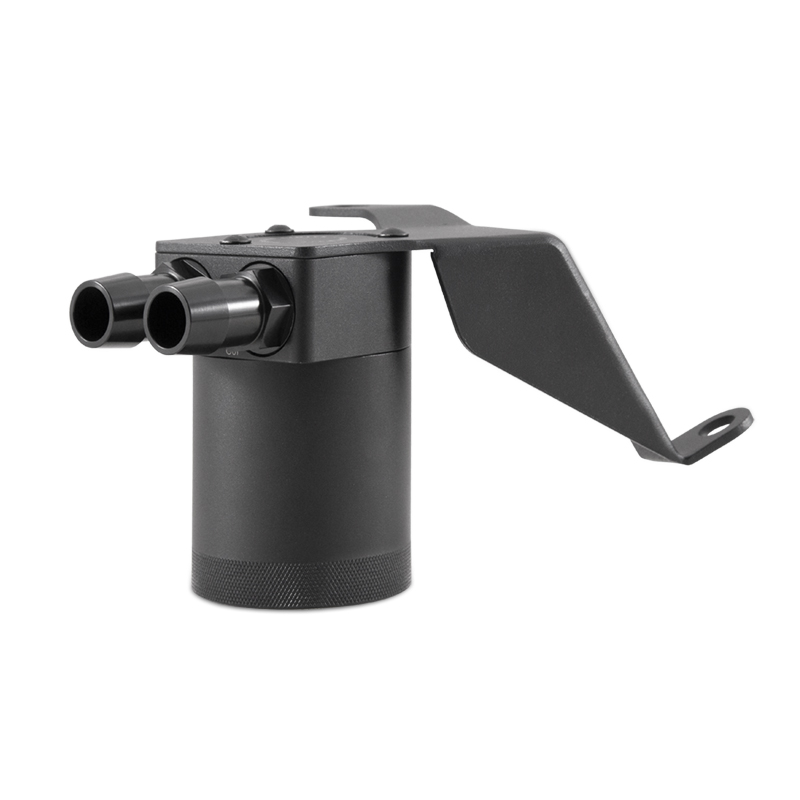

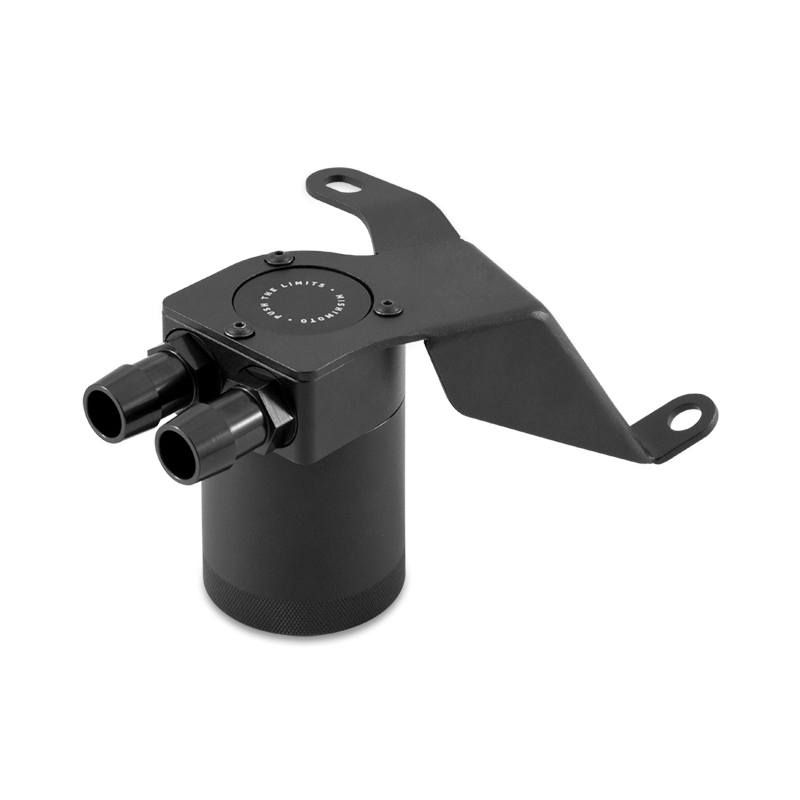

The Mishimoto Direct-Fit Baffled Oil Catch Can Kit, MPN MMBCC-S4-18PBE, is engineered specifically for the 3.0T TFSI engine found in the 2018+ Audi S4 and S5. Rather than a generic add-on, this is a purpose-built catch can that mounts in line with the PCV system immediately after the factory separator, giving the intake valves an extra layer of defense right where blow-by first escapes the crankcase.

Anyone researching car engine parts, engine parts, or the components of an automobile engine knows that direct injection engines are especially vulnerable to oil and fuel vapor contamination on the intake valves, since automobile combustion in these engines bypasses the fuel-washing effect port injection provides. This Mishimoto catch can addresses that gap in the parts of a car’s engine bay by trapping blow-by permanently instead of draining it back into the oil pan like many factory AOS systems do. Inside the patent-pending 2-port Compact Baffled Oil Catch Can, a 50-micron bronze filter and internal baffle work together to separate oil from crankcase vapor, while an internal air diverter turbulates the air longer to improve that separation. Because the can itself is not heated, condensation of low-octane oil vapor and contaminated fuel vapor is more complete, helping maintain proper octane levels and reduce the potential for detonation—an important consideration for anyone focused on protecting car engines and the parts inside them.

Vehicle Applications

This Mishimoto catch can kit is a direct fit for the Audi S4 and S5 lineup built on the B9 platform. Coverage includes the Audi S4 Base for model years 2018 and 2021, the Audi S4 Premium from 2019–2021, and the Audi S4 Premium Plus, Prestige, Progressiv, and Technik trims across 2018–2021. On the S5 side, it fits the Audi S5 Base for 2018–2019 and 2021, the Audi S5 Premium from 2019–2021, and the Audi S5 Premium Plus, Prestige, Progressiv, and Technik trims for 2018–2021.

Features

• Direct fit for the 2018+ Audi B9 S4/S5
• Single can mounts in line with the PCV system to separate oil from air using a 50-micron bronze filter
• Patented billet 6061 aluminum can sealed with Viton O-rings
• Installs in under 30 minutes

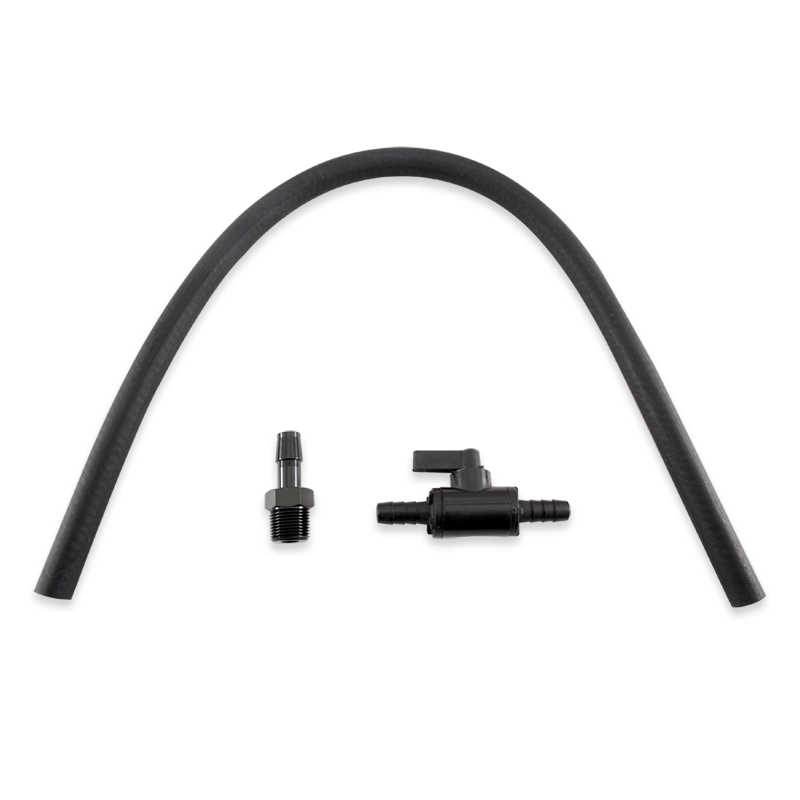

• Mishimoto petcock drain kit included for easy servicing

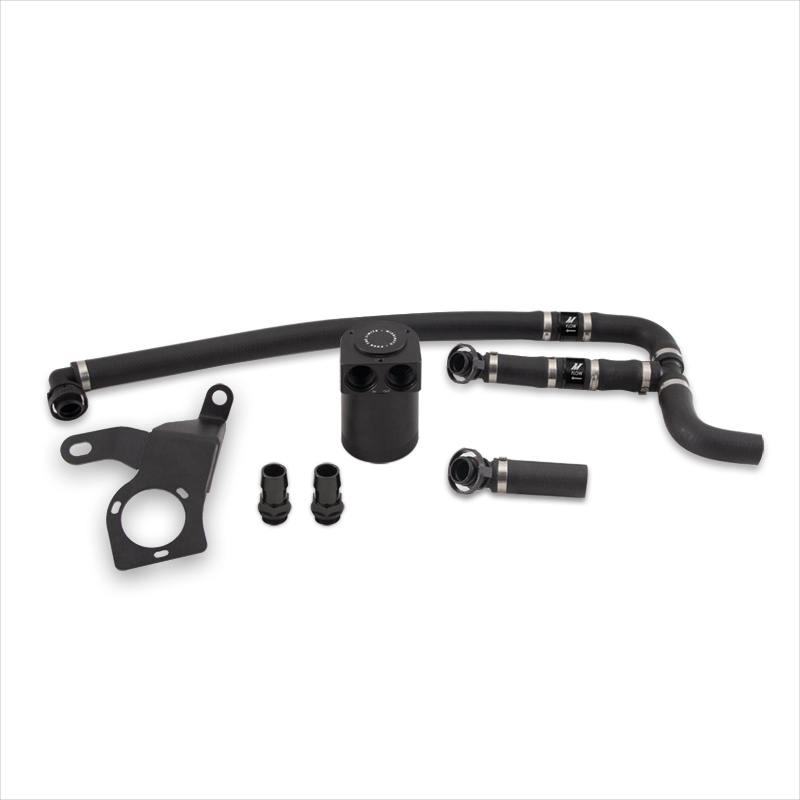

• Pre-molded hoses include Mishimoto Performance One-Way Check Valves to prevent pressurizing the catch can
• Factory quick-disconnects installed on hoses for simple installation
• Defends intake system and essential components from oil blow-by
• CNC-machined aluminum barbed fittings ensure a sturdy connection between lines and can
• Catch can has a 3 oz. capacity for longer servicing intervals
• Internal air diverter turbulates air longer to improve oil separation
• Helps maintain proper octane levels to reduce potential detonation
• Filter and can are fully serviceable
• Patent No. US D966,372 S
• Mishimoto Lifetime Warranty

Specifications

• Color: Black
• Finish: Powder Coat / Anodized
• Material: 6061 Aluminum
• Can Material: 6061-T6 Billet Aluminum
• Can Type: Twist Off
• Can Outside Diameter: 2.5 IN
• Can Finish: Anodized
• Inlet Port Inside Diameter: 0.6 IN
• Outlet Port Inside Diameter: 0.6 IN
• Hose Included: Yes
• Drain Plug Included: Yes
• Interior Baffle: Yes
• Mounting Bracket Included: Yes
