Description
The Mishimoto Baffled Oil Catch Can Kit (MMBCC-BRZ-13PBE) is a purpose-built oil catch can system engineered specifically for the FA20 boxer engine found in the Subaru BRZ, Toyota 86, and Scion FR-S. Unlike a generic catch can, this kit was developed after Mishimoto engineers logged thousands of test miles on a Subaru BRZ to pinpoint the single best placement for oil separation, routing the can into the vacuum-assisted PCV system rather than the crankcase vent line at the front of the engine. The result is a single-can setup that captures far more oil than a can mounted on the crankcase vent side, keeping harmful blow-by vapors from re-entering the intake.
Every car engine produces blow-by gases as a byproduct of automobile combustion, and the FA20’s direct-injection design, which also uses port fuel injectors, already helps limit carbon buildup on the intake valves. Still, enough oil vapor works its way through the PCV system that owners focused on the long-term health of their car engine parts will benefit from filtering it out before it recirculates. By separating oil from crankcase vapors with an internal baffle and bronze filter before the vapors reach the intake manifold, this catch can helps maintain proper octane levels and reduce the risk of detonation, protecting the components of an automobile engine that matter most for performance and reliability.
Vehicle Applications
This Mishimoto catch can kit is a direct fit for the Subaru BRZ across Base, Limited, and Sport-tech trims from 2013 to 2020, the Premium trim from 2013 to 2019, the Sport-tech RS from 2018 to 2020, and the TS trim for 2018 and 2020. It also covers the limited-run Aozora Edition (2015), Series.Blue (2015), Series.HyperBlue (2016), Series.Yellow (2017), and Series.Gray (2019) appearance packages. On the Toyota side, it fits the Toyota 86 Base from 2017 to 2020, the GT from 2018 to 2020, the 2017 Special Edition, the 2019 TRD Special Edition, and the 2020 Hakone Edition. Scion FR-S Base models from 2013 to 2016 are also covered, and the included mounting bracket is designed to work with both left-hand-drive and right-hand-drive cars.
Features

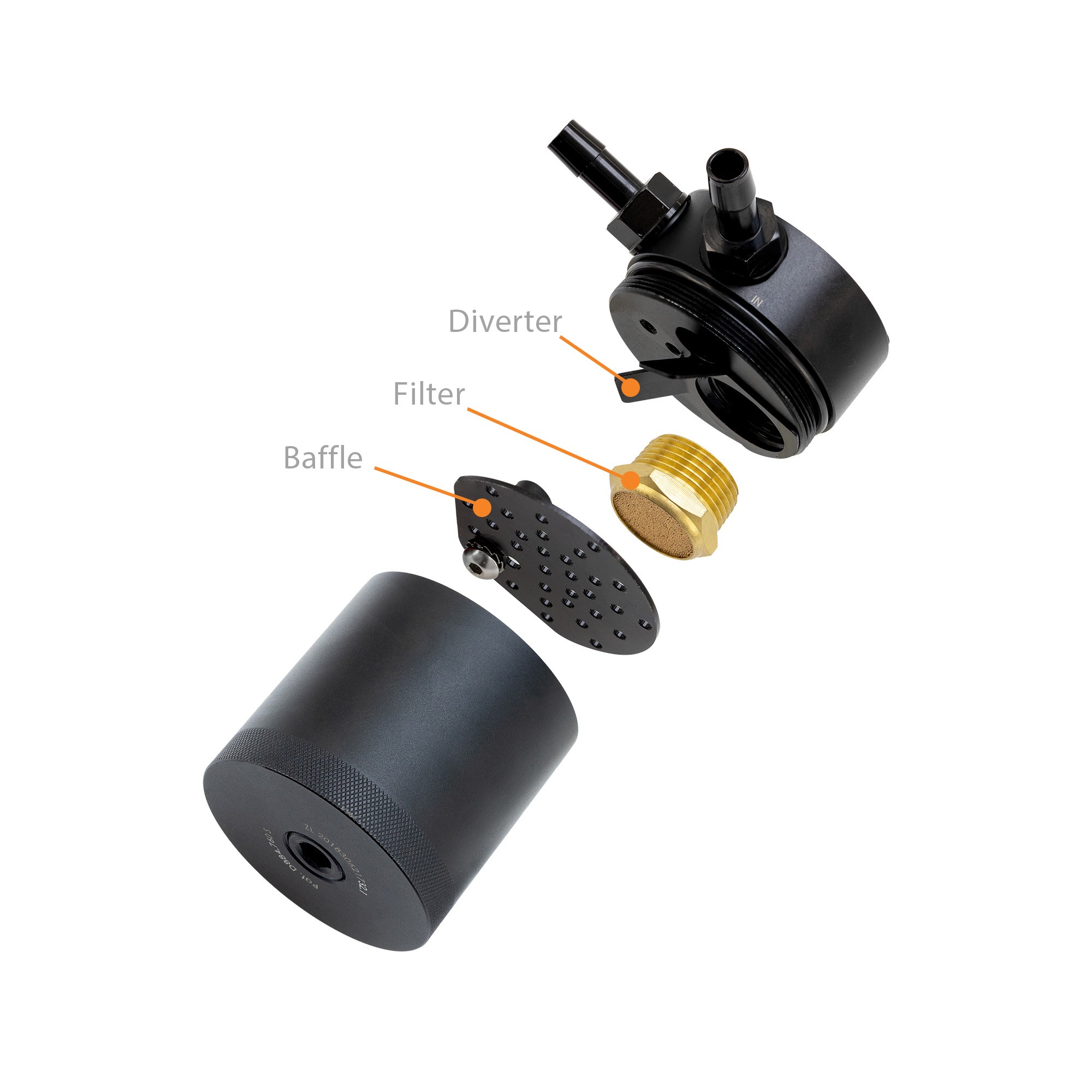

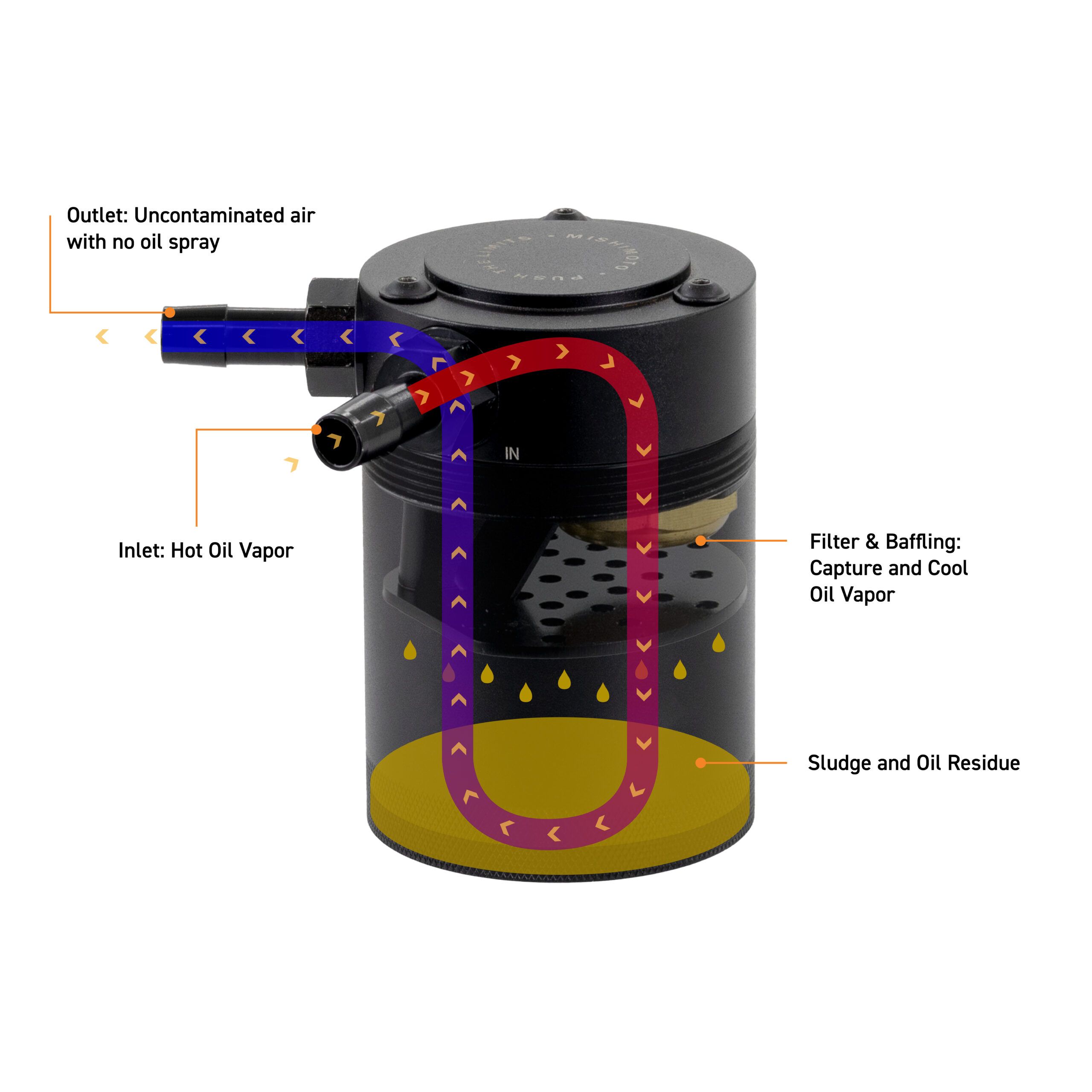

- Single 2-Port Compact Baffled Oil Catch Can mounts in line with the PCV system, using an internal baffle and bronze filter to separate oil particles from crankcase vapors
- Internal air diverter turbulates air longer to improve oil separation

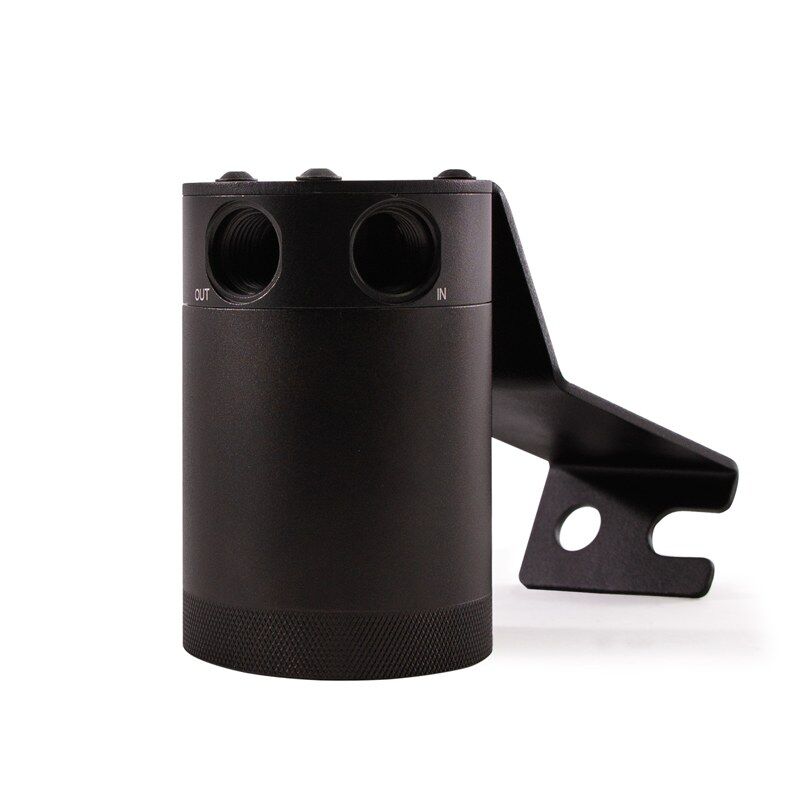

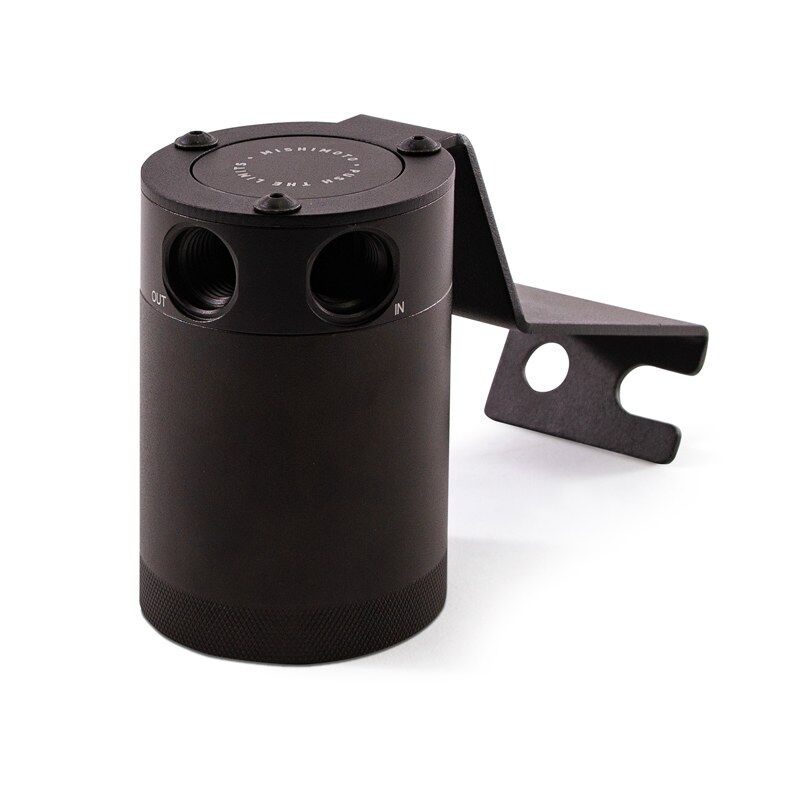

- Application-specific direct-fit mounting bracket installs in a serviceable location with no cutting or modification required
- Bracket fits both left-hand-drive and right-hand-drive cars, plus aftermarket strut tower bars and diagonal braces
- Billet 6061-T6 aluminum sealed can with a twist-off design and included drain plug for easy servicing
- Two direct-fit hoses connect to the 10mm PCV valve and 12mm intake manifold port, joined by CNC-machined aluminum inlet and outlet barb fittings
- Helps maintain proper octane levels to reduce detonation
- Protects the high-revving Subaru boxer engine from oil blow-by
- Patent No. US D884,760
- Covered by the Mishimoto Lifetime Warranty
Specifications
- Color: Black
- Finish: Anodized
- Height: 3.7 in
- Can Outside Diameter: 2.5 in
- Can Material: 6061-T6 Billet Aluminum
- Can Type: Twist Off
- Inlet Port Inside Diameter: 0.6 in
- Outlet Port Inside Diameter: 0.6 in
- Mounting Bracket Included: Yes
- Hose Included: Yes
- Drain Plug Included: Yes
- Interior Baffle: Yes
Frequently Asked Questions
What vehicles does the Mishimoto MMBCC-BRZ-13PBE catch can kit fit?
It fits the Subaru BRZ (Base, Limited, and Sport-tech 2013-2020; Premium 2013-2019; Sport-tech RS 2018-2020; TS 2018 and 2020; plus the Aozora Edition, Series.Blue, Series.HyperBlue, Series.Yellow, and Series.Gray special editions), the Toyota 86 (Base 2017-2020, GT 2018-2020, Special Edition 2017, TRD Special Edition 2019, Hakone Edition 2020), and the Scion FR-S Base (2013-2016).
Where does this catch can mount on the engine?
Mishimoto engineers found that mounting a single catch can in the vacuum-assisted PCV system on the back of the engine captures far more oil than a can placed on the crankcase vent line at the front, so this kit ties into the PCV system for the best results on most BRZ/86 vehicles.
What is the catch can made from?

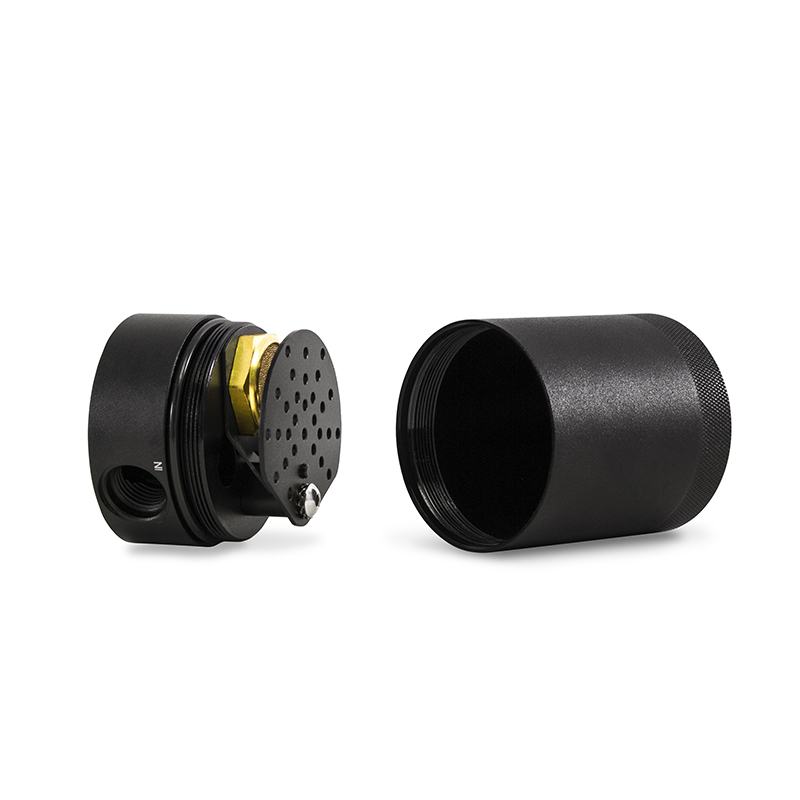

The can is a Mishimoto 2-Port Compact Baffled Oil Catch Can made from 6061-T6 billet aluminum with an anodized finish and a twist-off design for easy servicing.
Does the kit include mounting hardware and hoses?

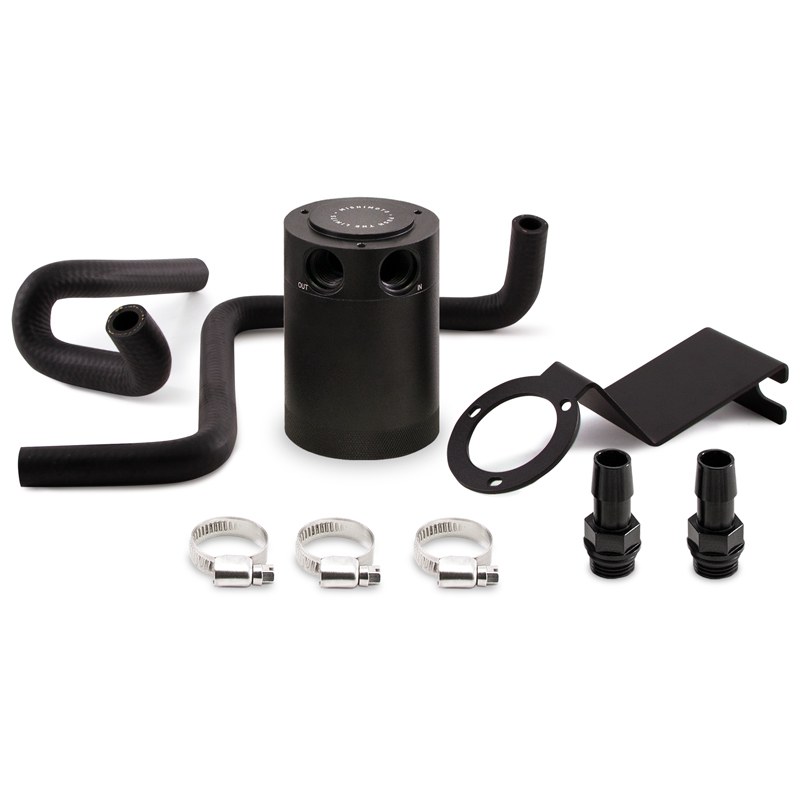

Yes, the kit includes a direct-fit mounting bracket that works with left-hand-drive and right-hand-drive cars, plus two direct-fit hoses sized for the 10mm PCV valve and 12mm intake manifold port, along with CNC-machined aluminum inlet and outlet barb fittings.
Is the catch can serviceable?
Yes, the can features a twist-off design with an included drain plug, and both the filter and can are fully serviceable.
Does this kit come with a warranty?
Yes, it is backed by the Mishimoto Lifetime Warranty.
