Description

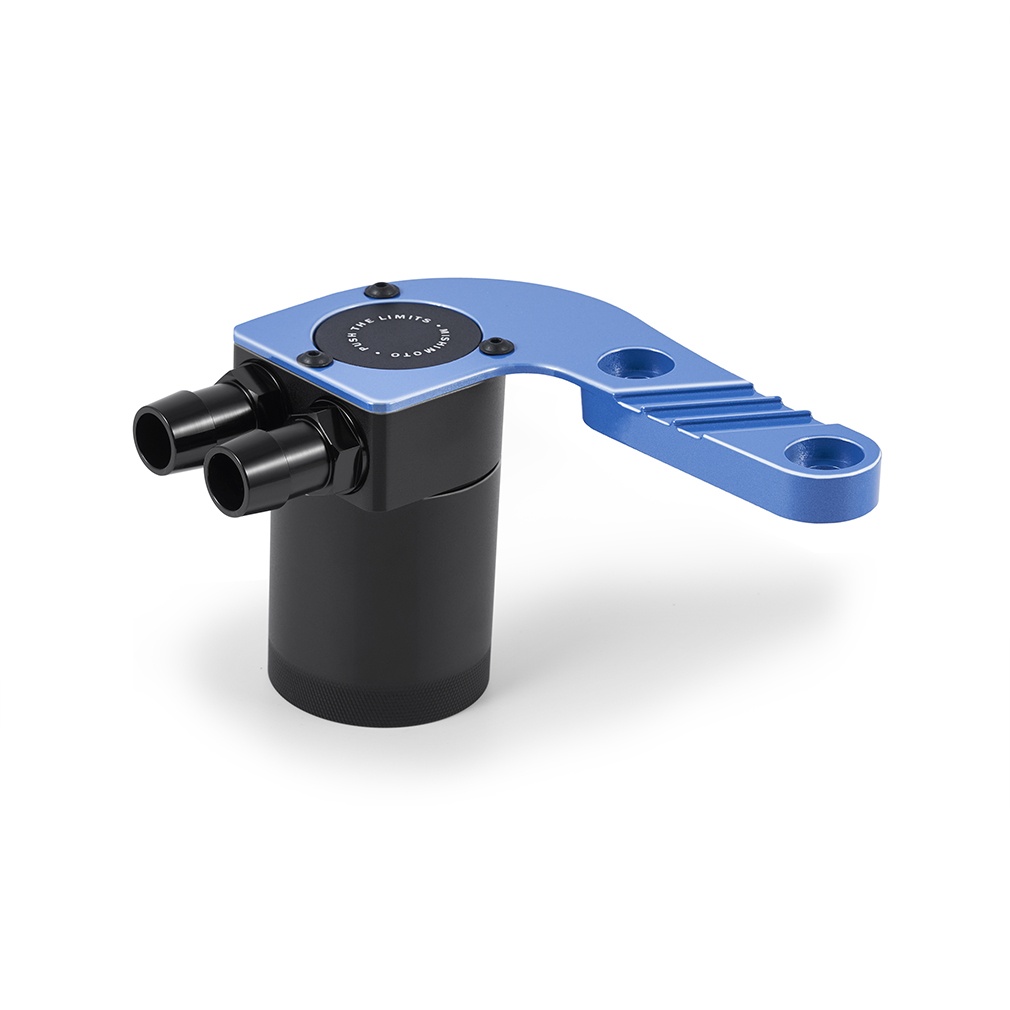

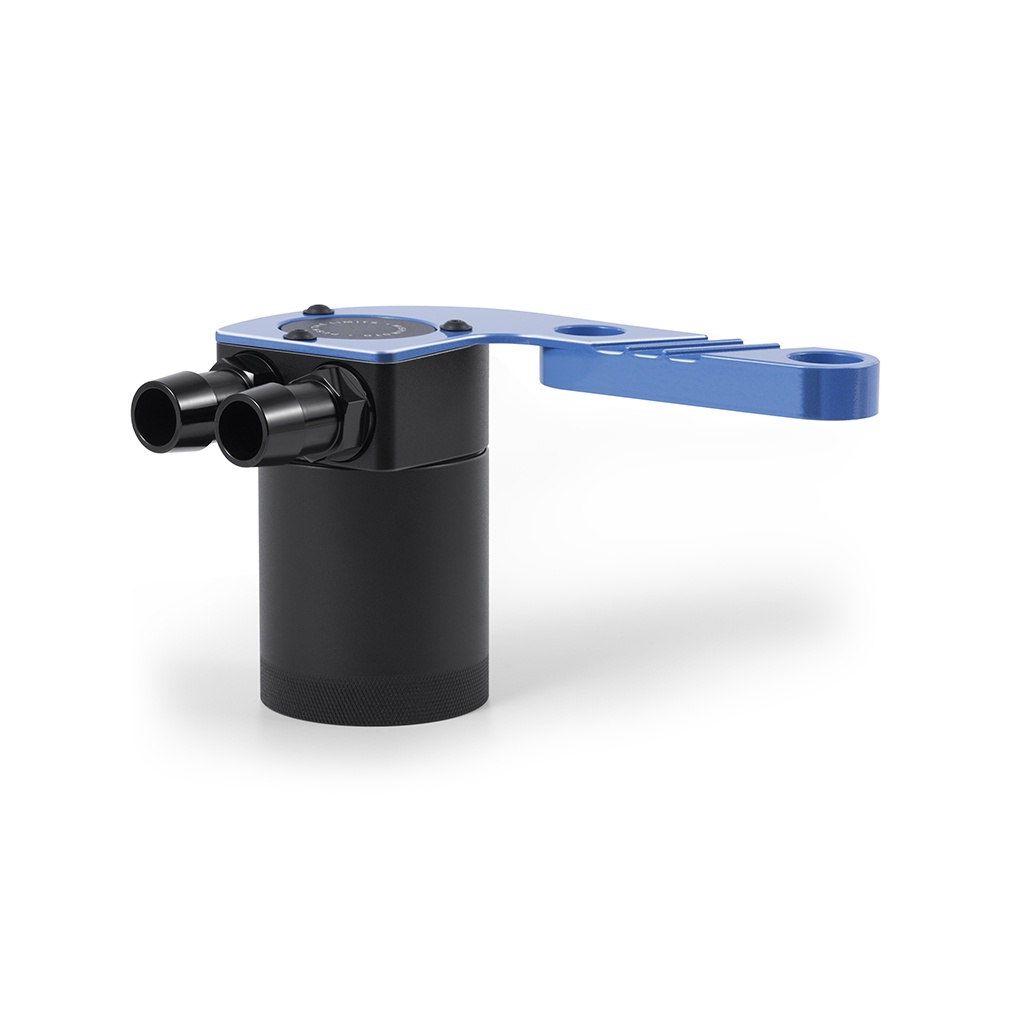

The Mishimoto Baffled Oil Catch Can Kit, part number MMBCC-F80-15CYMB, was engineered specifically for the S55-powered F8X chassis BMW M3 and M4, the first compact M cars to come from the factory with turbocharged engines. Built around Mishimoto’s patent-pending 2-Port Compact Baffled Oil Catch Can design, this kit pairs a 50-micron bronze filter and internal baffle with an application-specific, CNC-machined lid so the fitting size matches your CCV line exactly.
As a dedicated engine component for the S55, this catch can addresses the long-standing reality of crankcase blow-by in turbocharged car engines. Unlike heated OEM air-oil-separator systems that drain contaminated vapor back into the oil pan, this Mishimoto catch can traps oil particles and contaminated fuel vapor and keeps them out of the engine permanently, helping defend the intercooler, intake system, and VANOS system while helping maintain proper octane levels to reduce potential detonation. For anyone digging into the components of an automobile engine and how oil separation protects downstream parts of a car, this kit is a direct, practical upgrade for the engine bay.
Vehicle Applications
This catch can kit is a direct fit for the 2015-2018 BMW M3, the 2015-2020 BMW M4 Coupe/Convertible, the 2016 BMW M4 GTS, the 2018-2020 BMW M4 CS, and the 2019-2020 BMW M2 Competition-all built on the F80/F82/F83/F87 chassis around the S55 engine. The included direct-fit hoses and application-specific billet aluminum mounting bracket require no modification to the engine cover, so installation stays straightforward across every one of these S55-equipped models.
Features
- Direct fit for the 2015-2020 F8X BMW M3, M4, and M2 Competition
- Single 2-Port Compact Baffled Oil Catch Can separates oil particles using a 50-micron bronze filter
- Application-specific bracket mounts the can in a serviceable location
- Direct-fit hoses allow installation with no modification to the engine cover
- Application-specific lid designed so fitting size matches CCV line size
- Billet 6061 aluminum sealed can
- Aluminum bracket available in 12 BMW specific color-matching options or classic black
- Defends the intercooler, intake system, and VANOS system from oil blow-by
- Helps maintain proper octane levels to reduce potential detonation
- Internal air diverter increases air turbulence to improve oil separation
- Filters and can are fully serviceable
- Backed by the Mishimoto Lifetime Warranty
Specifications
- Can Material: 6061-T6 Billet Aluminum
- Can Type: Twist Off
- Can Finish: Anodized
- Can Outside Diameter: 2.5 in
- Inlet Port Inside Diameter: 0.6 in
- Outlet Port Inside Diameter: 0.6 in
- Interior Baffle: Yes
- Hose Included: Yes
- Drain Plug Included: Yes
- Mounting Bracket Included: Yes
- Fittings: Two aluminum 3/4-in barb fittings
- Available Colors: 12 BMW specific color-matched options or black

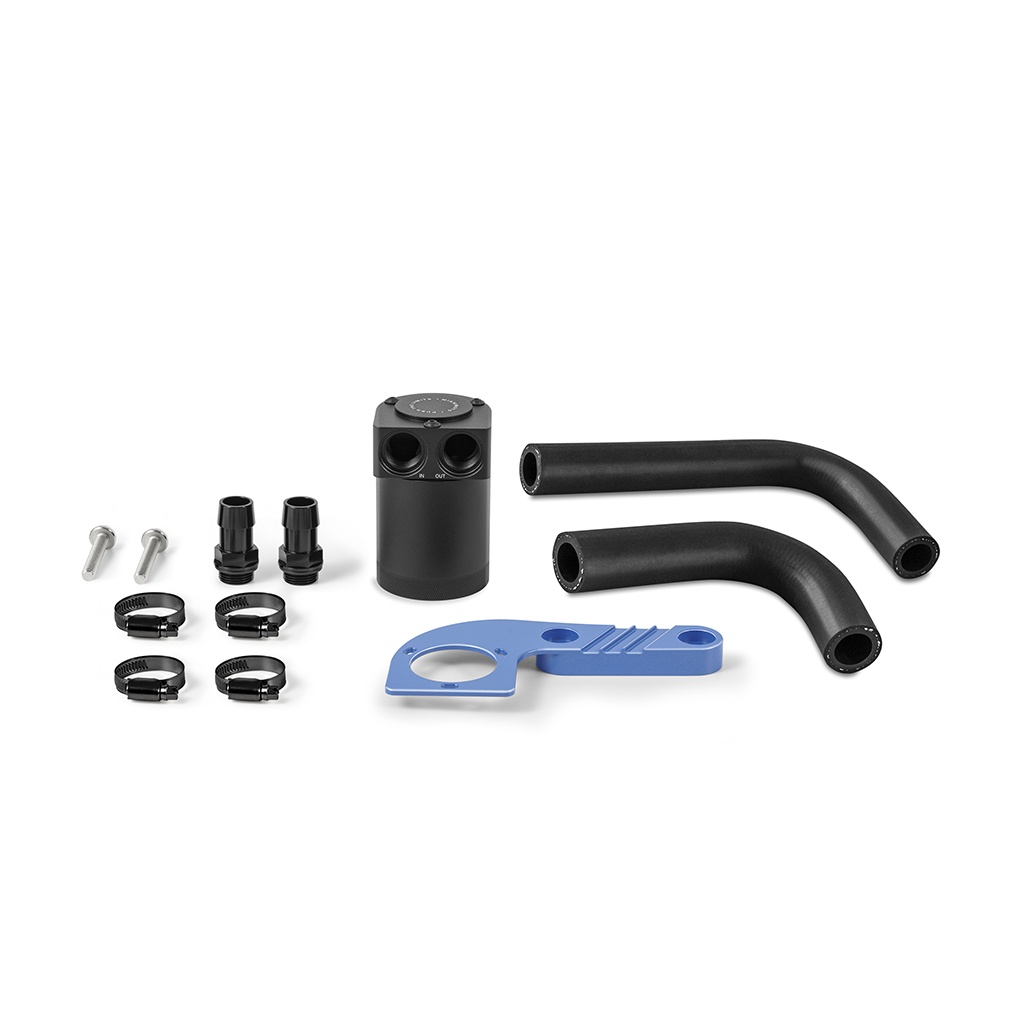

- Kit Includes: (1) Compact Baffled Oil Catch Can, (1) Application-Specific Mounting Bracket, (2) Direct-Fit Hoses, (2) 3/4-in Aluminum Barbed Fittings, (4) Worm Gear Clamps, Mounting Hardware, Mishimoto Lifetime Warranty
Frequently Asked Questions
What vehicles does the Mishimoto MMBCC-F80-15CYMB catch can kit fit?
It is a direct fit for the 2015-2018 BMW M3, 2015-2020 BMW M4 Coupe/Convertible, 2016 BMW M4 GTS, 2018-2020 BMW M4 CS, and 2019-2020 BMW M2 Competition, all on the F80/F82/F83/F87 chassis with the S55 engine.
What does the catch can do for these S55 engines?
It uses a 50-micron bronze filter and an internal baffle to separate oil particles from crankcase vapors, helping defend the intercooler, intake system, and VANOS system from oil blow-by and helping maintain proper octane levels to reduce potential detonation.
Does installation require modifying the engine cover?
No. The kit includes direct-fit hoses and an application-specific billet aluminum mounting bracket that allow installation with no modification to the engine cover.
What is the catch can made from and what finish does it have?
The can is machined from 6061-T6 billet aluminum with an anodized finish, and it uses a twist-off design for servicing.
What color options are available for the mounting bracket?
The aluminum mounting bracket is available in 12 BMW specific color-matching options or classic black.
What is included in the kit?
The kit includes one Compact Baffled Oil Catch Can, one application-specific mounting bracket, two direct-fit hoses, two 3/4-inch aluminum barbed fittings, four worm gear clamps, mounting hardware, and the Mishimoto Lifetime Warranty.
