Description

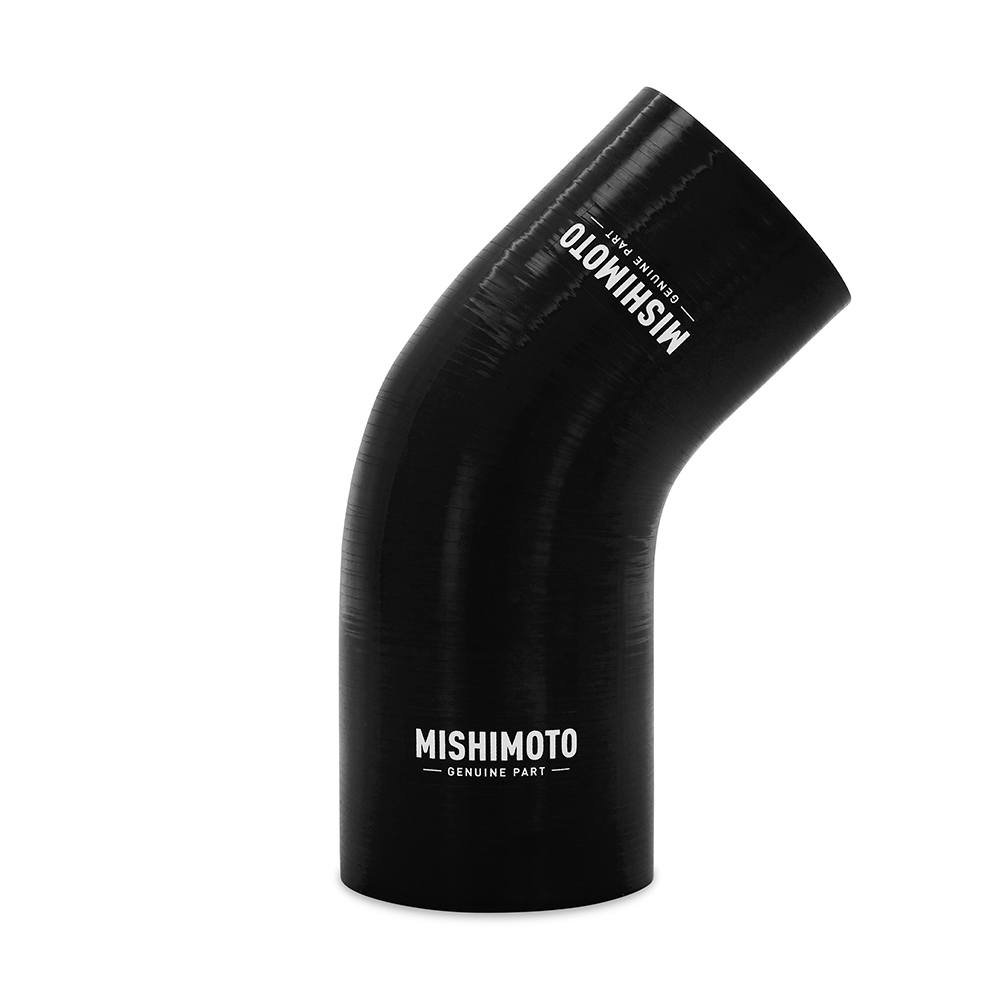

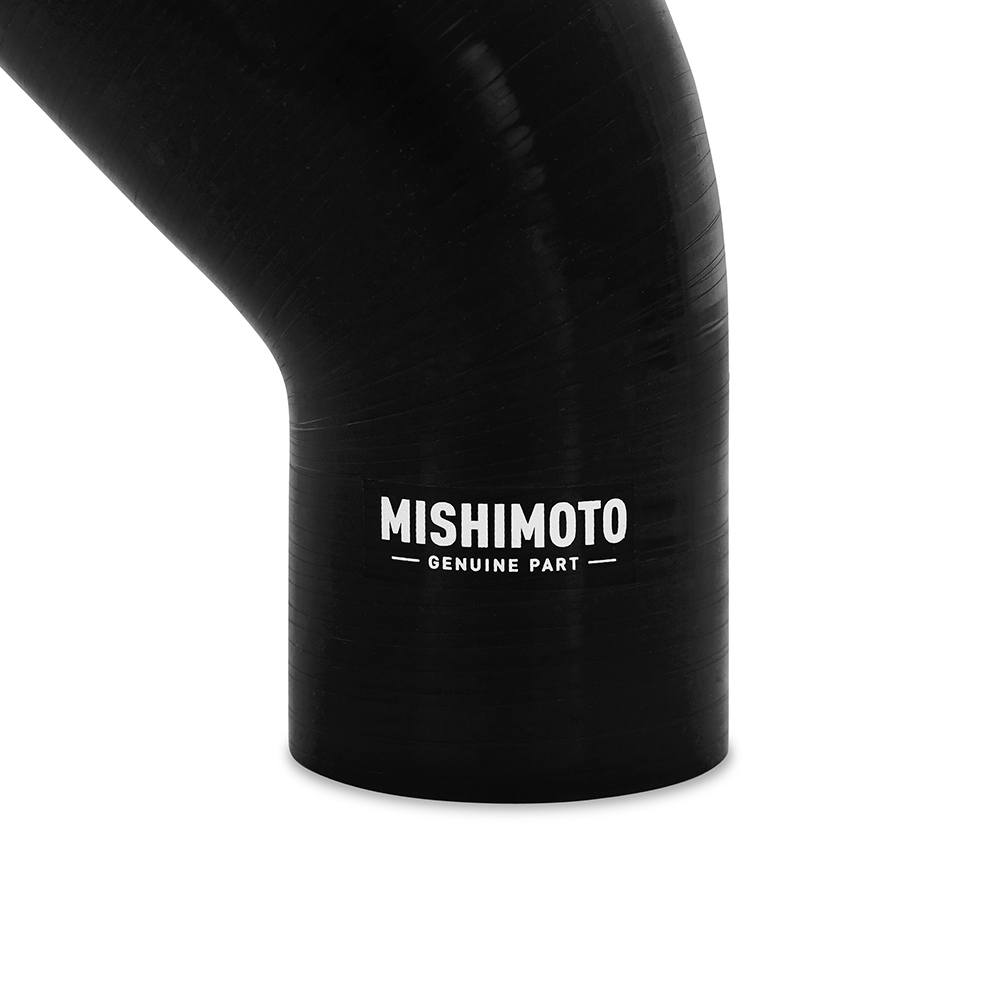

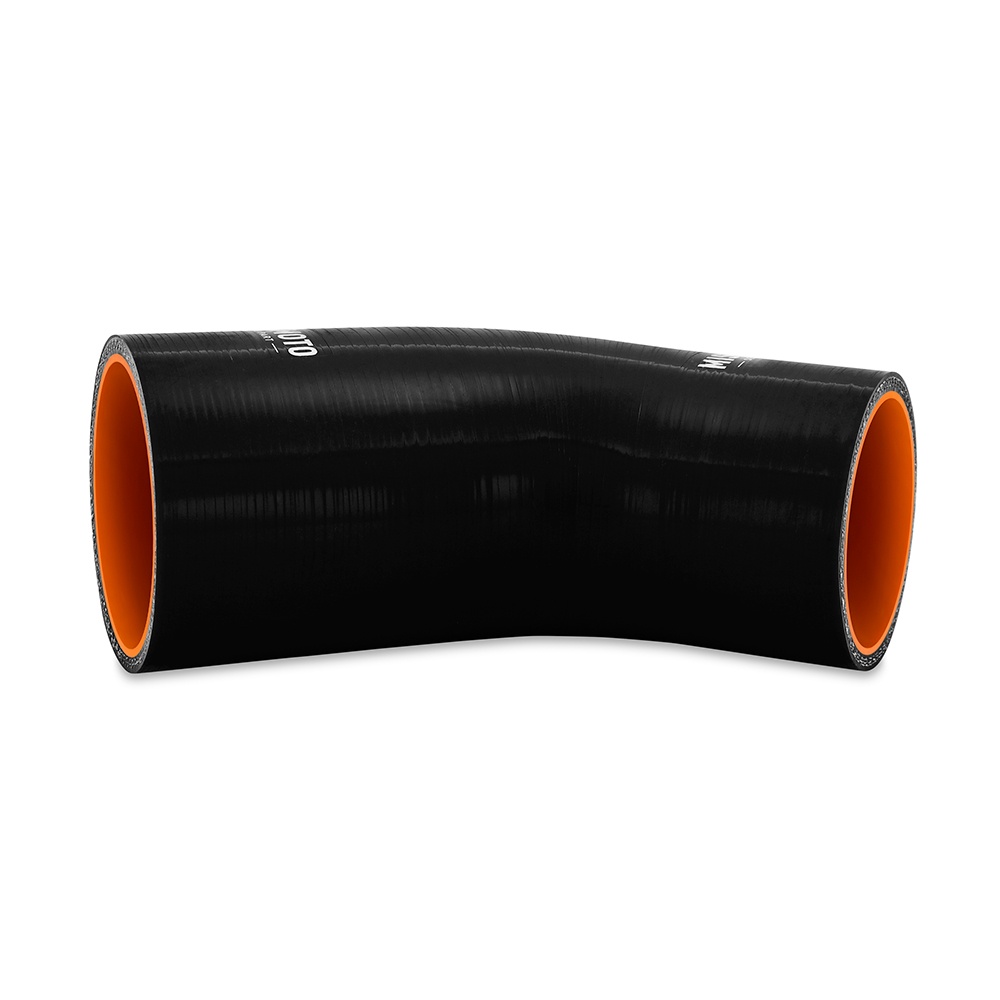

The Mishimoto MMCP-R45-27530BK is a black 45-degree silicone transition coupler built to bridge the gap between mismatched pipe diameters in an air intake system or coolant circuit. Constructed from four layers of silicone divided by heat-resistant embedded fibers, this coupler is engineered to handle demanding engine bay environments where flexibility and durability both matter. As part of Mishimoto’s expanding coupler lineup, it gives builders a dedicated 45-degree bend option for routing pipework that a straight coupler simply can’t accommodate.
Silicone couplers like this one make it possible to reroute complex intercooler, boost, or coolant piping without relying on rigid factory hose shapes. This 45-degree transition coupler is rated for temperatures up to 330F and is built to tolerate substantial pressure, making it a practical choice for connections within an air intake system that see real heat and boost. Because it’s coolant compatible as well as suited to air passages, it offers flexibility for builders working on custom coolant routing or intercooler pipe connections, all backed by the Mishimoto Lifetime Warranty.
Vehicle Applications
This 45-degree transition coupler is a universal-fit component rather than a vehicle-specific part, designed to give builders the flexibility to route custom air intake or coolant piping in nearly any engine bay layout. Because Mishimoto offers this coupler in black, blue, and red across its broader coupler line, it’s intended to let installers match their existing engine bay color scheme regardless of the vehicle platform they’re working on.
Features
- Allows for easy routing of complex coolant or intercooler pipes
- 100-percent silicone construction
- Constructed from four layers of silicone with embedded heat-resistant fibers
- Rated for temperatures up to 330F
- High pressure tolerance ideal for use on intercooler pipe connections
- Applicable for both coolant and air systems
- Available in black, blue, or red to match any engine bay
- Backed by the Mishimoto Lifetime Warranty
Specifications
- Brand: Mishimoto
- Part Number: MMCP-R45-27530BK
- Material: Silicone
- Color: Black
- Shape: 45-Degree Transition (Transition Elbow)
- End 1 Inside Diameter: 2.75 in
- End 1 Outside Diameter: 2.95 in
- End 2 Outside Diameter: 3.2 in
- Maximum Temperature Rating: 330F
- Coolant Compatible: Yes
- Hose Clamps Included: No
- Purchase Includes: (1) Mishimoto 45-Degree Transition Coupler with Mishimoto Lifetime Warranty
Frequently Asked Questions
What is the maximum temperature rating of the Mishimoto MMCP-R45-27530BK coupler?
This coupler is rated for temperatures up to 330F.
Does this 45-degree transition coupler include hose clamps?
No, hose clamps are not included with this coupler.
Is this Mishimoto coupler compatible with coolant systems?
Yes, this coupler is coolant compatible in addition to being usable in air passage systems.
What material is the coupler made from?
It is constructed from 100-percent silicone, built from four layers with embedded heat-resistant fibers.
What comes in the box with part number MMCP-R45-27530BK?
The purchase includes one Mishimoto 45-Degree Transition Coupler, backed by the Mishimoto Lifetime Warranty.
What color is the MMCP-R45-27530BK coupler?
This specific coupler is black; Mishimoto also offers this 45-degree transition coupler in blue and red.
