Description

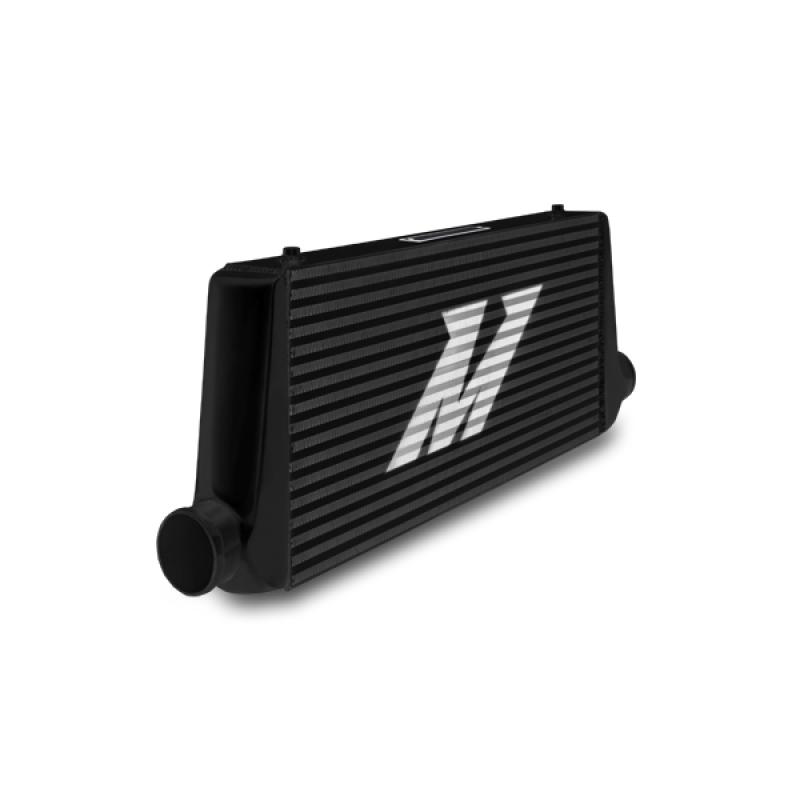

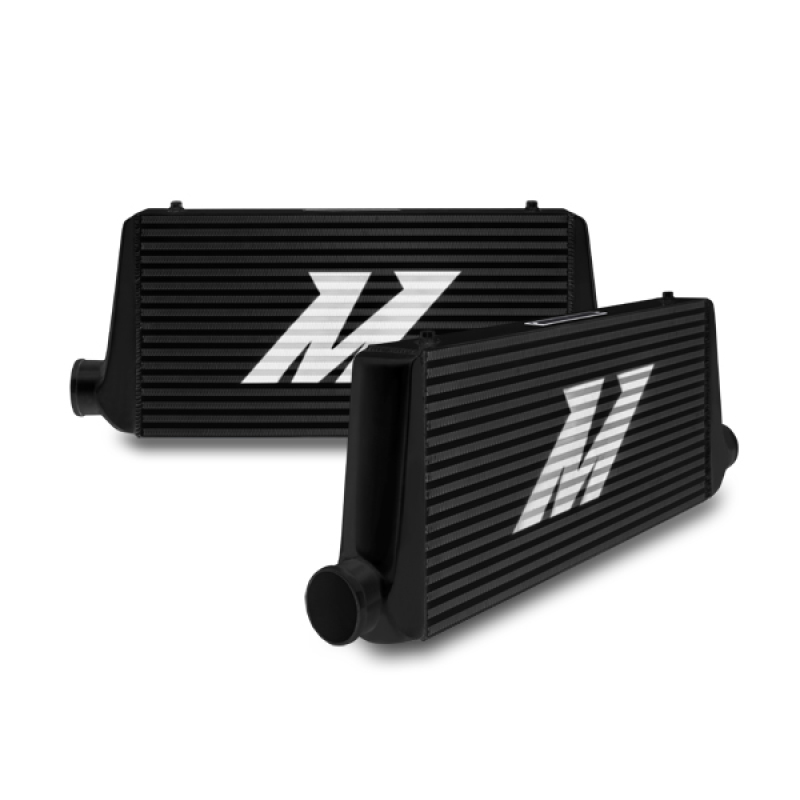

The Mishimoto Black R-Line Intercooler (MMINT-URB) is a purpose-built forced induction upgrade engineered around a bar-and-plate aluminum core, finished in black with the Mishimoto logo stamped on just one side. Constructed from precision TIG-welded 6061 aircraft-quality aluminum, this intercooler is rated to support up to 1000 hp and 32 PSI of boost pressure, making it a serious cooling solution for supercharged and turbocharged setups.
As induction air temperatures climb under boost, engine output and reliability suffer — the Mishimoto Black R-Line Intercooler addresses that directly. Its bar-and-plate core design delivers superior heat transfer, pulling heat out of compressed air before it reaches the engine, while one-piece cast aluminum end tanks are built to withstand the pressures generated by high-output forced induction systems. Whether you’re running a factory turbo or a built forced induction system pushing serious boost, this performance induction core is engineered to keep charge air temperatures in check so your engine can make the most of every pound of boost.
Vehicle Applications
The Mishimoto Black R-Line Intercooler is designated by Mishimoto as a specific-fit unit rather than a universal core, sized to support forced induction applications capable of producing up to 1000 hp at 32 PSI of boost. Because exact make, model, and engine application details are not included in this listing, confirm fitment with Mishimoto before purchase to ensure this core matches your specific turbocharged or supercharged vehicle.
Features
- Precision TIG-welded 6061 aircraft-quality aluminum construction for extreme durability
- Bar-and-plate core provides superior heat transfer while effectively reducing induction air temperatures
- Robust, one-piece cast aluminum end tanks withstand high boost pressures
- Massive 4-in thick core with 3-in inlet and outlet openings for optimal flow and volume on high-horsepower vehicles
- Aluminum inlet tank construction

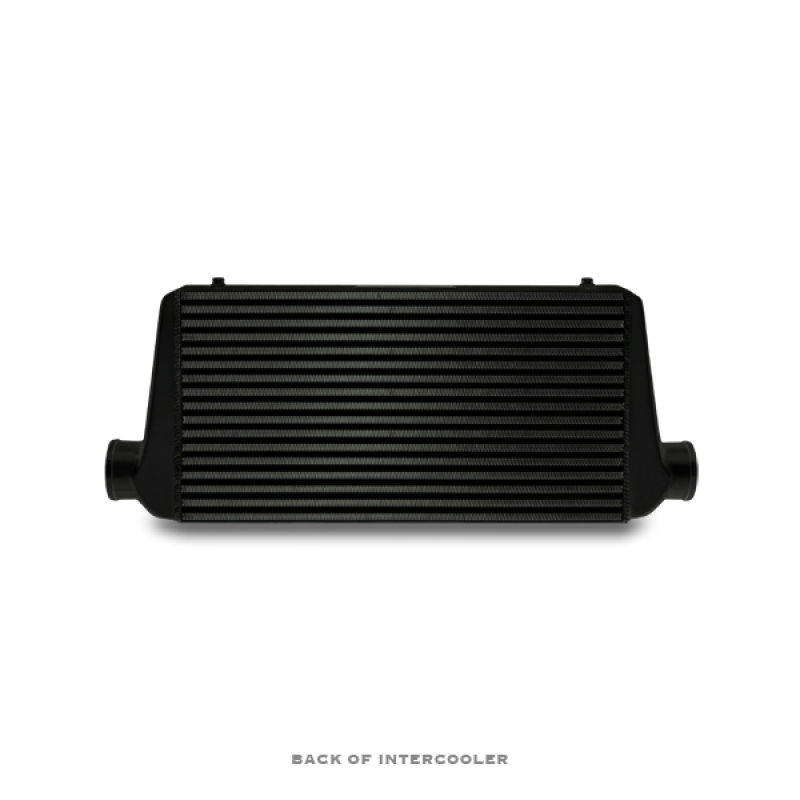

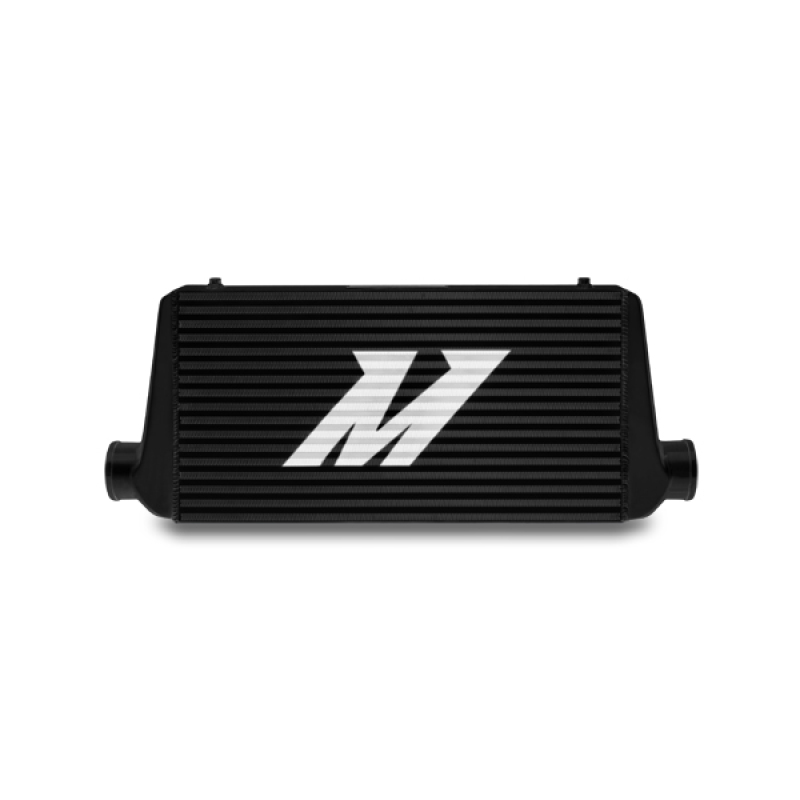

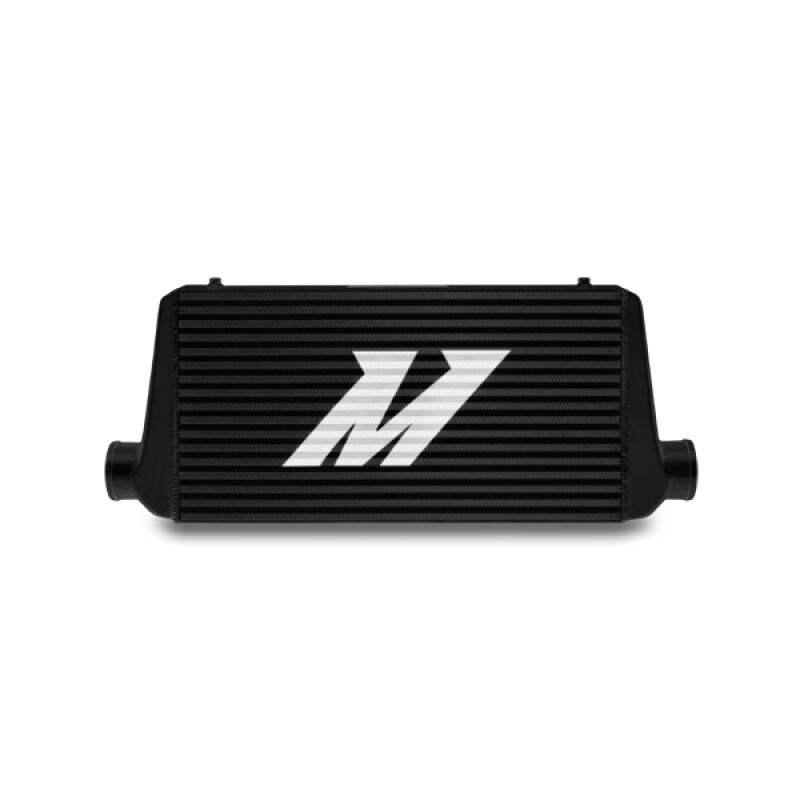

- Black core finish with the Mishimoto logo on one side only
- Rated to support up to 1000 hp and 32 PSI of boost pressure

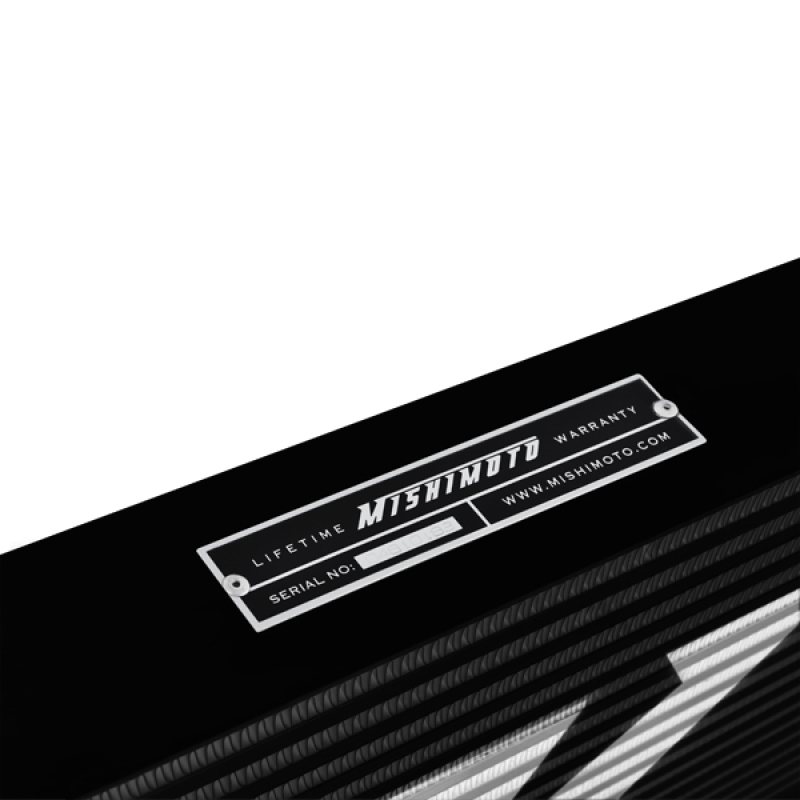

- Backed by the Mishimoto Lifetime Warranty
Specifications
- Brand: Mishimoto
- Part Number: MMINT-URB
- Product Type: Forced Induction Intercooler
- Core Type: Bar-and-Plate
- Core Material: Aluminum
- Core Color: Black
- Core Height: 12 in
- Core Length: 24 in
- Overall Height: 12 in
- Overall Length: 31 in
- Inlet Tank Material: Aluminum
- Inlet Fitting Gender: Male
- Outlet Fitting Gender: Male
- Grade Type: Performance
- Fit Type: Specific
- Maximum Recommended Horsepower: 1000 hp
- Maximum Recommended Boost Pressure: 32 PSI
- Includes: (1) Mishimoto Intercooler with Mishimoto Lifetime Warranty
Frequently Asked Questions
What core design does the Mishimoto Black R-Line Intercooler use?
It uses a bar-and-plate core built from precision TIG-welded 6061 aircraft-quality aluminum.
How much horsepower and boost can this intercooler handle?
Mishimoto rates the MMINT-URB intercooler to support up to 1000 hp and 32 PSI of boost pressure.
Does the Mishimoto logo appear on both sides of the core?
No, only one side of the intercooler features the Mishimoto logo.
What warranty is included with this intercooler?
This intercooler is backed by the Mishimoto Lifetime Warranty.
Is this a universal-fit or specific-fit intercooler?
Mishimoto designates the MMINT-URB as a specific-fit intercooler.
What is included with the MMINT-URB intercooler?
It includes (1) Mishimoto Intercooler backed by the Mishimoto Lifetime Warranty.
