Mishimoto Black S-Line Intercooler for Forced Induction (MMINT-USB)

Description

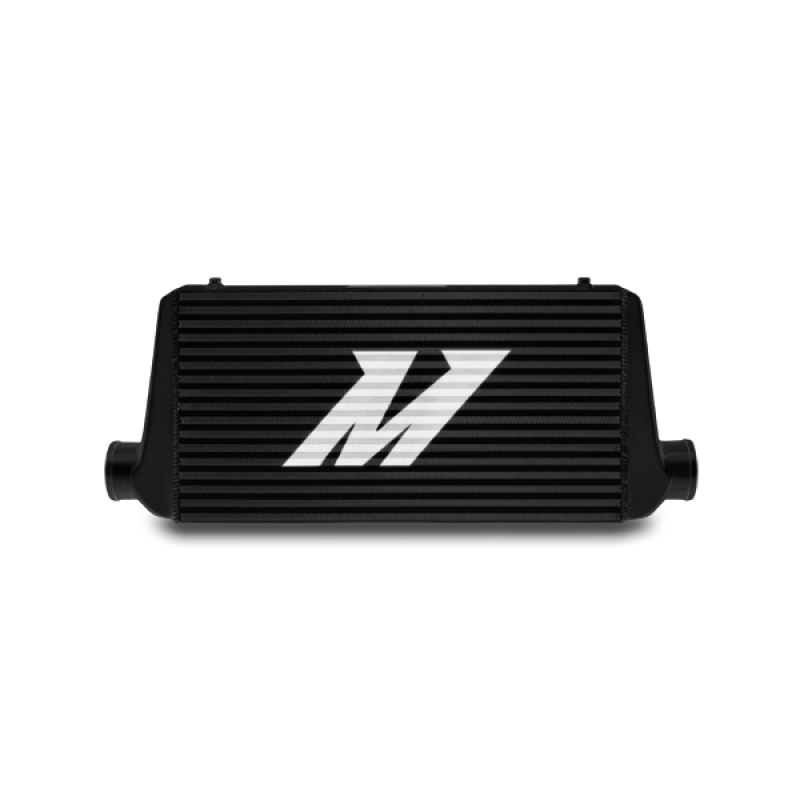

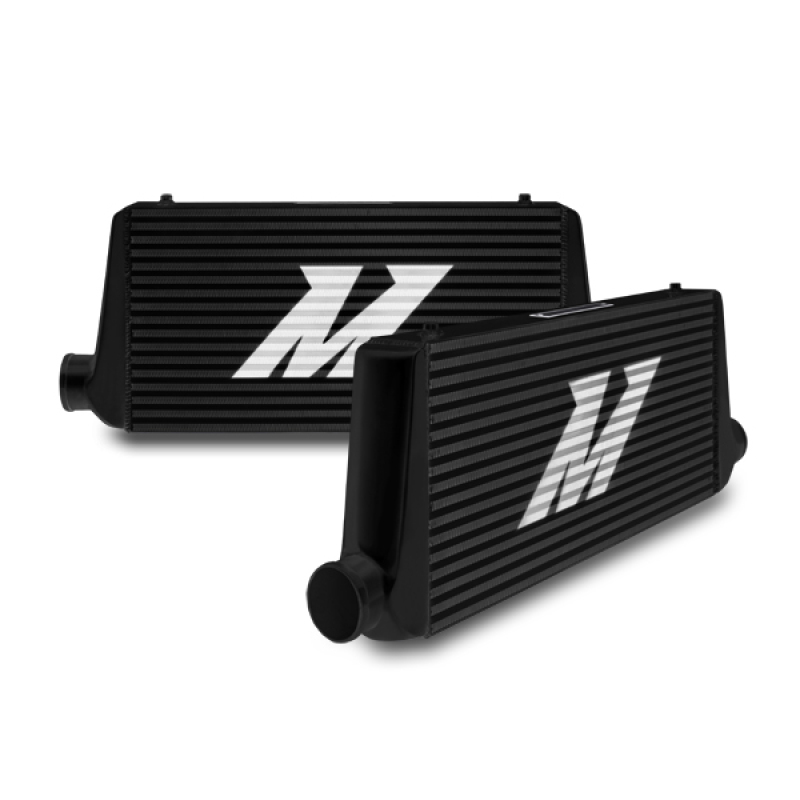

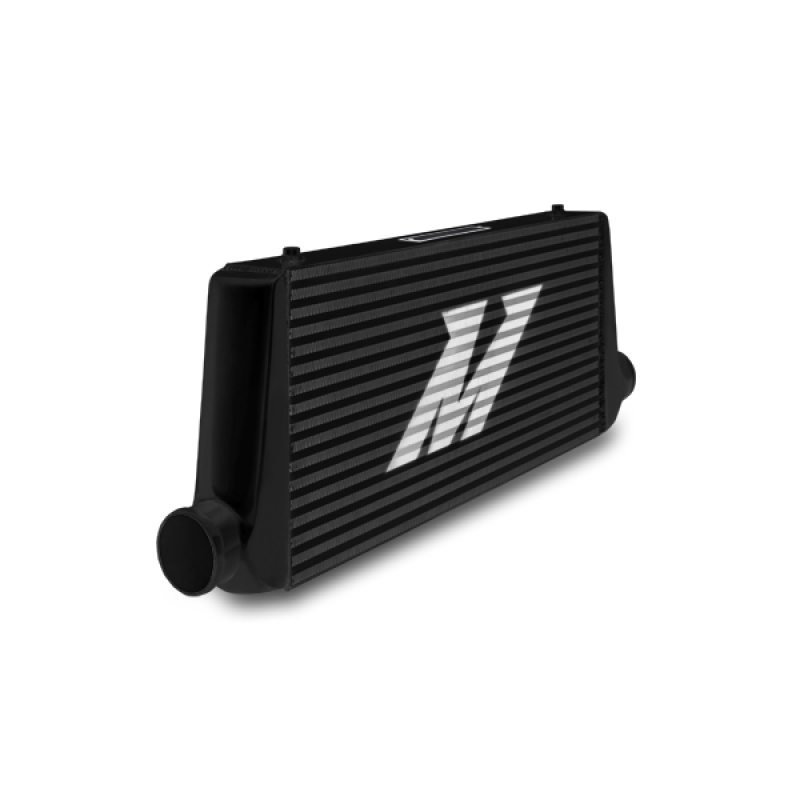

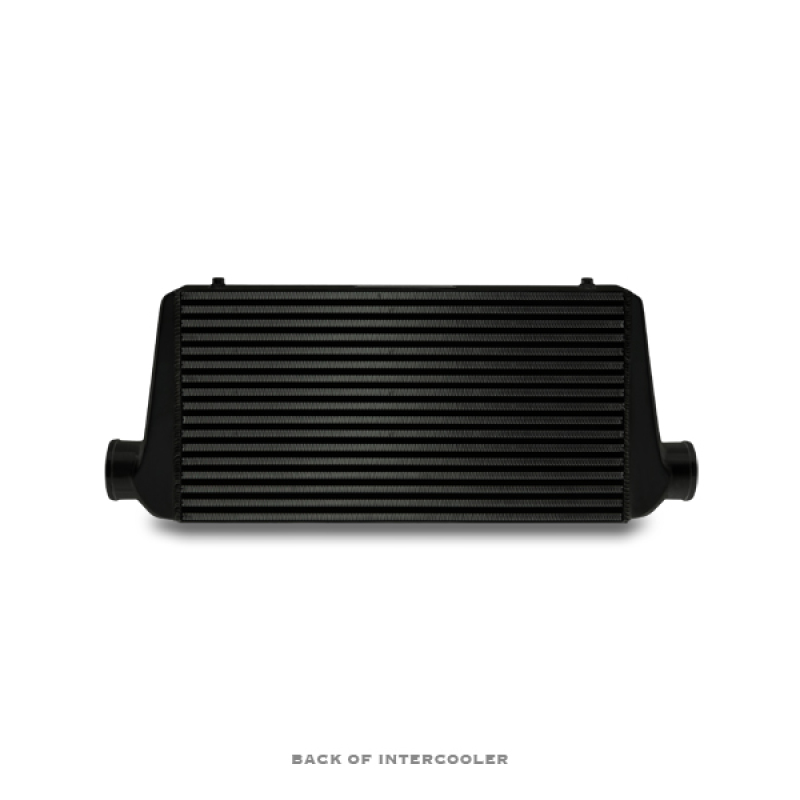

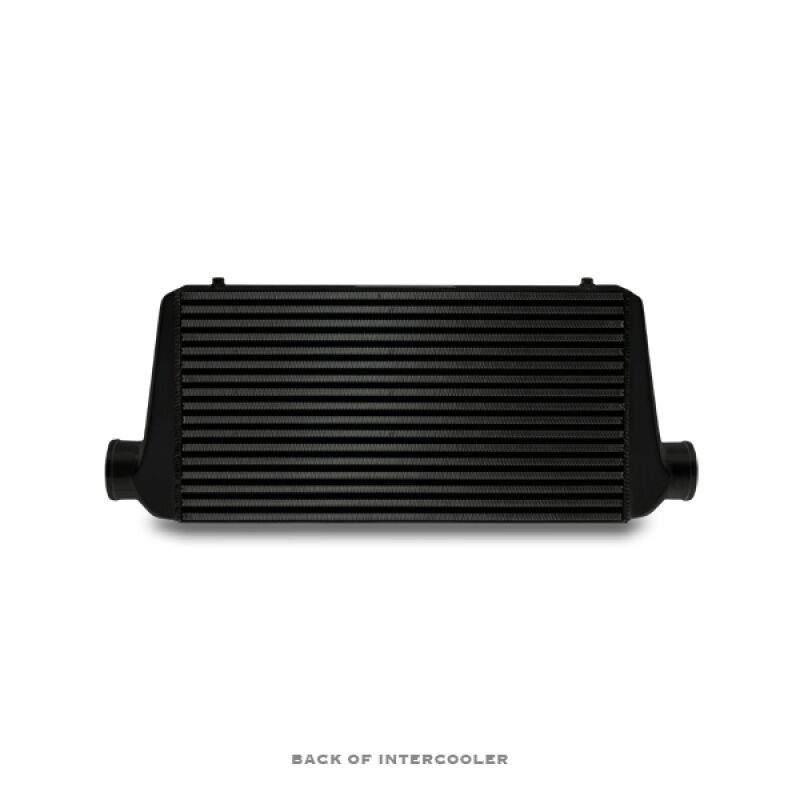

The Mishimoto Black S-Line Intercooler, part number MMINT-USB, is a bar-and-plate intercooler built from precision TIG-welded 6061 aircraft-quality aluminum and finished in black. It’s engineered for supercharged and turbocharged applications, with a Maximum Recommended Horsepower rating of 800 and a Maximum Recommended Boost Pressure of 32 PSI. Note that, by design, only one side of the intercooler carries the Mishimoto logo.

As a core piece of any forced induction system, this Mishimoto intercooler works to pull heat out of compressed intake air, lowering induction air temperatures so the engine draws in denser, cooler charge air. The bar-and-plate core is built for superior heat transfer, while robust, one-piece cast aluminum end tanks are designed to withstand the pressures generated by a hard-charging force induction setup. Whether you’re upgrading an existing induction system or building out a custom performance induction package, this unit is constructed to handle real boost without flexing or cracking at the seams, thanks to Mishimoto’s precision TIG-welded joints.

Vehicle Applications

The Mishimoto Black S-Line Intercooler (MMINT-USB) is a universal-fit unit rather than a vehicle-specific bolt-in kit. It mounts using four M8 x 1.25 threaded universal mounting points, which allows it to be integrated into custom turbo or supercharger installs, engine swaps, and other forced induction turbo projects where a builder needs a bar-and-plate core rated for up to 800 horsepower and 32 PSI of boost.

Features

• Durable bar-and-plate core provides superior heat transfer while effectively reducing AITs
• Robust, one-piece cast aluminum end tanks withstand high boost pressures
• Large 3-in thick core and 3-in inlets provide optimal flow and volume for high horsepower vehicles
• Four M8 x 1.25 threaded universal mounting points for a universal fit
• Constructed from durable 6061-aluminum
• Precision TIG-welded joints won’t crack under pressure

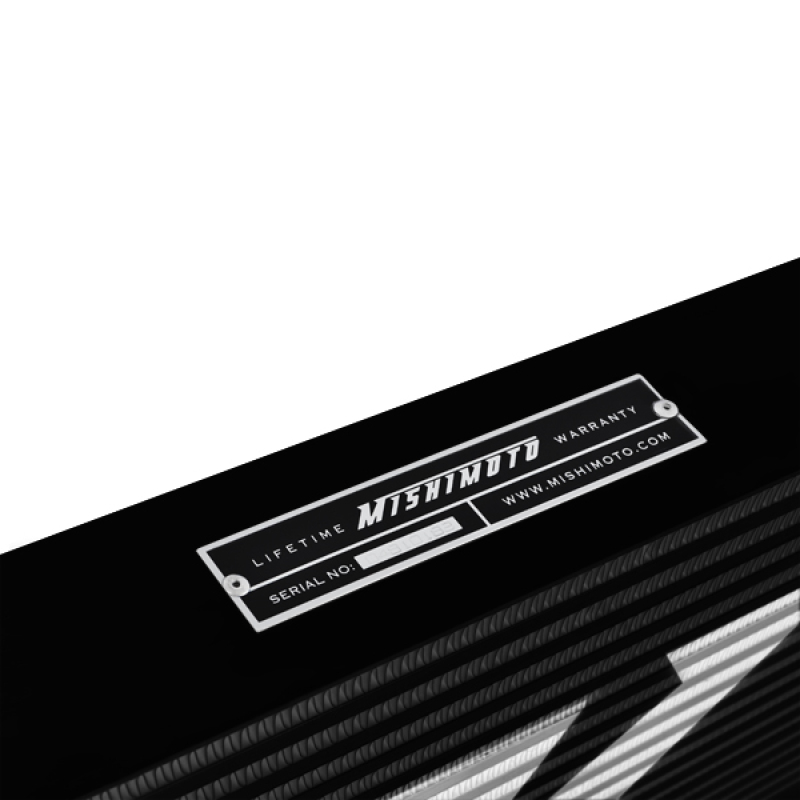

• Mishimoto Lifetime Warranty

Specifications

• Core Type: Bar-and-Plate
• Core Material: Aluminum
• Inlet Tank Material: Aluminum
• Core Color: Black
• Grade Type: Performance
• Inlet Fitting Gender: Male
• Outlet Fitting Gender: Male
• Overall Length: 31 in
• Overall Height: 12 in
• Core Height: 12 in
• Core Length: 23 in
• Maximum Recommended Horsepower: 800
• Maximum Recommended Boost Pressure: 32 PSI
• Includes: (1) Mishimoto Intercooler
• Warranty: Mishimoto Lifetime Warranty
