Description

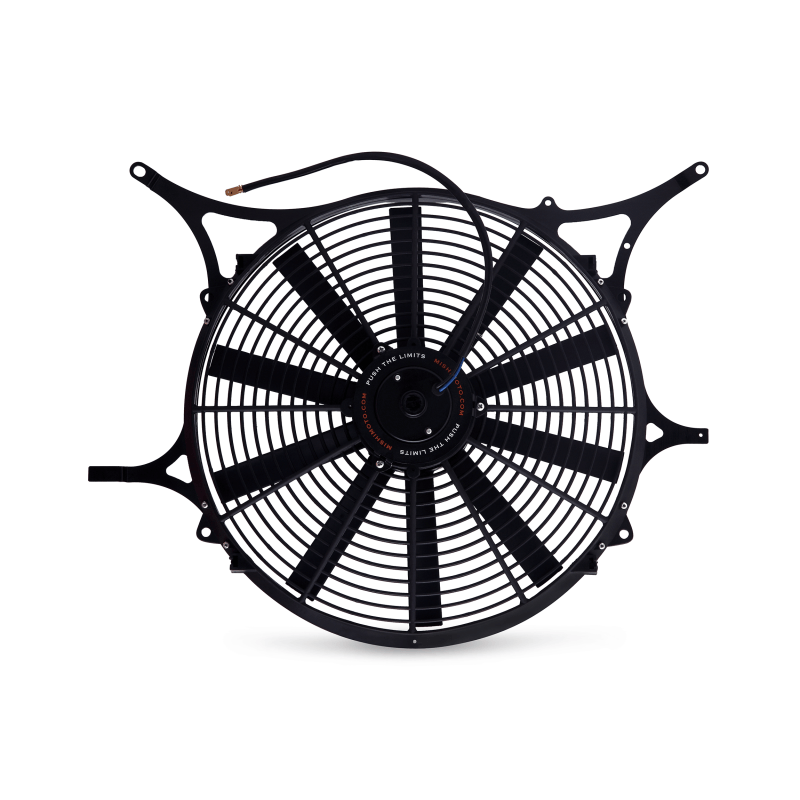

The Mishimoto Performance Fan Shroud Kit (MMFS-E46-99) is a direct-fit electric fan and shroud assembly built to replace the failure-prone stock mechanical fan on BMW E46 chassis vehicles. At the heart of this Cooling upgrade is a 16-inch high-flow electric fan rated to move over 1850 cfm of airflow, giving E46 owners a fan setup that outperforms the factory electric fan found on manual transmission models.
Beyond raw airflow, this Mishimoto fan shroud kit is engineered to bolt directly to the stock or Mishimoto E46 Performance Aluminum Radiator on both manual and automatic transmission cars, and it works with either the stock coolant expansion tank or a Mishimoto aluminum expansion tank. Its slim profile keeps maximum depth to just 3in, freeing up valuable engine bay space compared to the factory mechanical fan setup, while the Black Powder-Coat finish on the steel shroud blends in cleanly under the hood. For drivers who want more command over their cooling system, the kit can optionally be paired with a Mishimoto Adjustable Fan Controller Kit to dial in total control over coolant temperatures.
Vehicle Applications
This fan shroud kit is built for the BMW E46 platform and related chassis, covering the 1999–2001 323i, 1999 323is, 2000 323Ci, 1999–2000 328i, 1999 328is, and 2000 328Ci, along with the 2001–2005 320i, 325i, 325xi, 330i, and 330xi. It also fits the 2001–2006 325Ci and 330Ci, plus the 2005 330Ci M and 330i M. Coverage extends to the BMW Z4 lineup as well, including the 2003–2006 Z4 2.5i and 3.0i, 2007–2009 Z4 2.5si and 3.0si, 2006–2008 Z4 Coupe 3.0si, Z4 Roadster 3.0i, and Z4 Roadster 3.0si, the 2006–2009 Z4 M Coupe and Z4 M Roadster, and the 2009 Z4 sDrive30i and sDrive35i. Engine codes M52, M54, and M56 are associated with this fan shroud kit.
Features
- Direct fit for 1999-2006 BMW E46 non-M vehicles
- Up to 22F (12.2C) reduction in outlet temperatures at idle compared to the stock electric fan, when tested on an E46 manual transmission vehicle
- Includes a 16-inch fan that provides over 1850 cfm of airflow
- Optional Mishimoto Adjustable Fan Controller Kit provides complete control of coolant temperatures at idle
- Fits with both stock and Mishimoto radiators
- Replaces the failure-prone stock mechanical fan on automatic vehicles
- Black Powder-Coat finish on the steel shroud

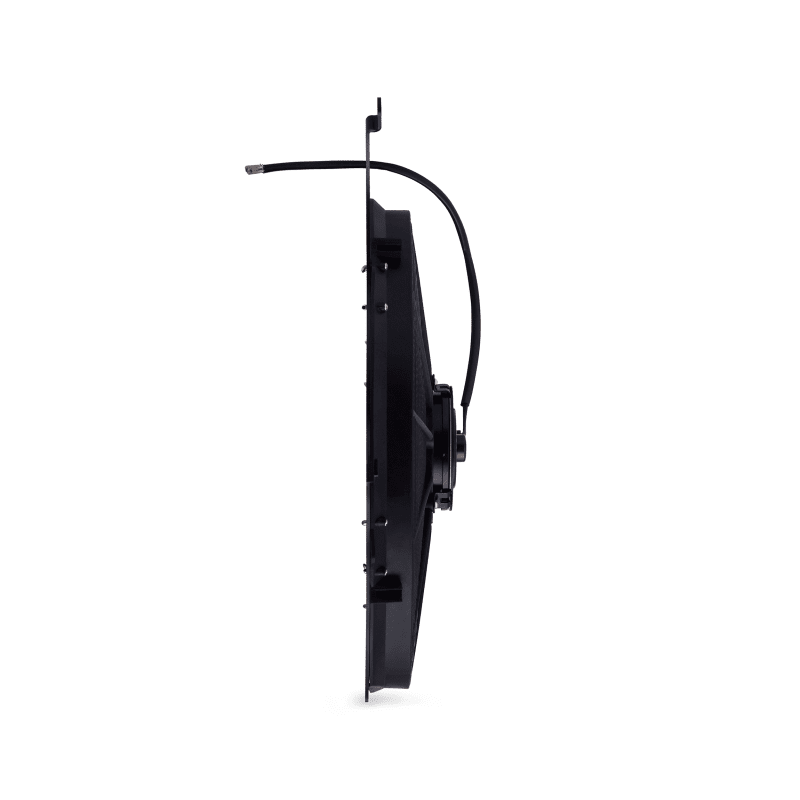

- Slim design with a maximum depth of just 3in
- Includes all hardware needed for installation
- Backed by the Mishimoto Lifetime Warranty
Specifications
- Brand: Mishimoto
- Part Number: MMFS-E46-99
- Fan Diameter: 16 in
- Maximum Airflow: 1850 CFM
- Blade Quantity: 10
- Blade Material: Plastic
- Blade Type: Straight
- Blade Color: Black
- Shroud Material: Steel
- Shroud Finish: Black Powder-Coat

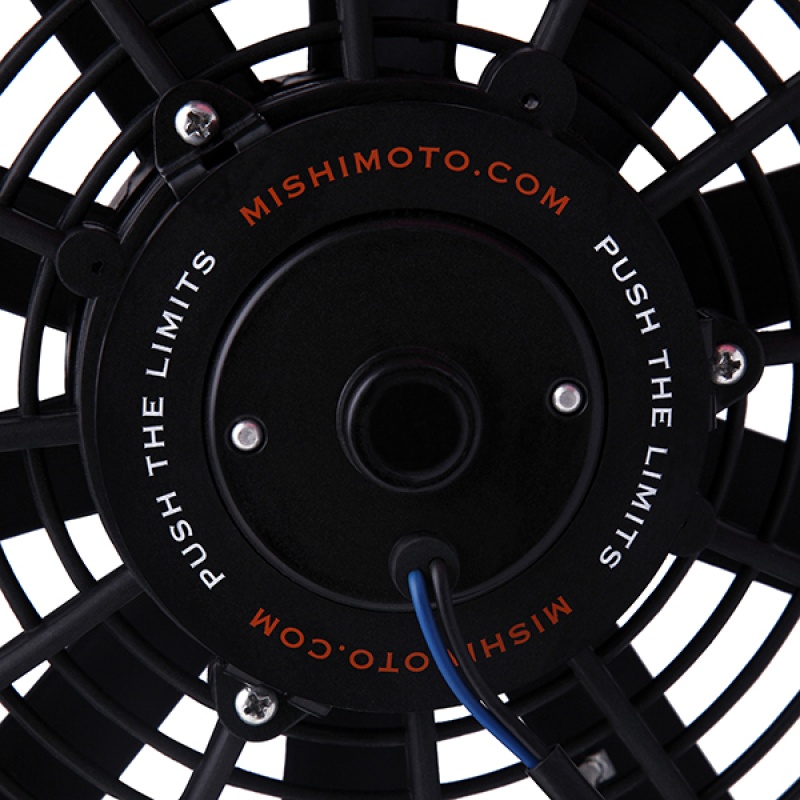

- Fan Type: Electrical, Plug-In
- Motor Included: Yes
- Height: 14.2 in
- Length: 29.7 in
- Maximum Depth: 3 in
- Engine Codes: M52, M54, M56
- Chassis Code: E46
Frequently Asked Questions
What does the Mishimoto E46 Performance Fan Shroud Kit replace?
It replaces the stock, failure-prone mechanical fan and can also replace the stock electric fan on manual transmission models, which it outperforms.
Will this fan shroud work with my stock radiator?
Yes, it bolts directly to the stock or Mishimoto E46 Performance Aluminum Radiator on both manual and automatic transmission cars, and it also works with the stock or Mishimoto coolant expansion tank.
How much airflow does the included fan produce?
The kit includes a 16-inch high-flow electric fan that produces over 1850 cfm of airflow.
Can I add a fan controller?
Yes, the kit can optionally include a Mishimoto Adjustable Fan Controller Kit for total control over coolant temperatures.
What vehicles does the MMFS-E46-99 fit?
It fits BMW E46 chassis vehicles including the 1999–2001 323i, 1999 323is, 2000 323Ci, 1999–2000 328i, 1999 328is, 2000 328Ci, 2001–2005 320i, 325i, 325xi, 330i, and 330xi, 2001–2006 325Ci and 330Ci, and 2005 330Ci M and 330i M, as well as BMW Z4 models from 2003–2009 including the 2.5i, 3.0i, 2.5si, 3.0si, Coupe 3.0si, Roadster 3.0i, Roadster 3.0si, M Coupe, M Roadster, sDrive30i, and sDrive35i.
Does this kit include installation hardware and a warranty?
Yes, it includes all hardware needed for installation and is backed by the Mishimoto Lifetime Warranty.
