Description
The Mishimoto BMW N55 Baffled Oil Catch Can (MPN: MMBCC-N55-11CBE2) is purpose-built for BMW’s N55 direct-injection engine, where carbon build-up is a well-known headache. Rather than a generic universal catch can, this kit borrows proven engineering from the Mishimoto 2-Port Compact Baffled Oil Catch Can — including a bronze filter and internal baffle — and pairs it with a CNC-machined lid featuring large inlet and outlet ports sized to match the N55’s CCV hose exactly.
As one of the key car engine parts that protects the rest of your intake tract, this baffled oil catch can intercepts oil-laden crankcase vapors before they reach sensitive components. Unlike most air-oil-separator systems, Mishimoto’s catch cans are unheated, so oil vapor, low-octane vapor, and contaminated fuel vapor all condense inside the can instead of draining back into the oil pan. By trapping blow-by permanently rather than recirculating it, this component helps defend the intercooler, intake system, and VANOS system, while helping maintain proper octane levels to reduce potential detonation — a smart addition to any discussion of the components of an automobile engine and how automobile combustion byproducts are managed.
Vehicle Applications
This Mishimoto catch can is a direct fit for the 2011–2013 BMW 335i, 2011–2013 BMW 335i xDrive, and 2011–2013 BMW 135i, as well as the 2013 BMW 135is. The kit’s application-specific bracket and hoses are engineered around these N55-equipped chassis, so installation requires no modification to the engine cover.
Features
- Direct fit for 2011-2013 BMW 335i/335xi/135i and 2013 BMW 135is
- Single 2-Port Compact Baffled Oil Catch Can design separates oil particles using a bronze filter

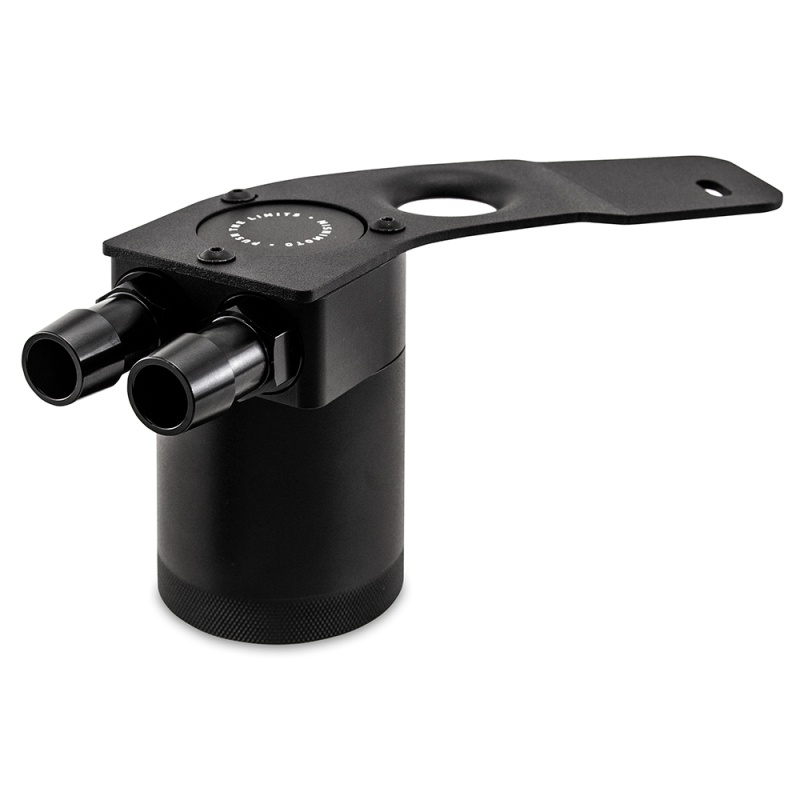

- Application-specific bracket mounts the can in a serviceable location
- Direct-fit hoses allow installation with no modification to the engine cover
- Application-specific lid sized so the fitting matches the CCV line size
- Billet 6061 aluminum sealed can construction
- Defends the intercooler, intake system, and VANOS system from oil blow-by
- Helps maintain proper octane levels to reduce potential detonation

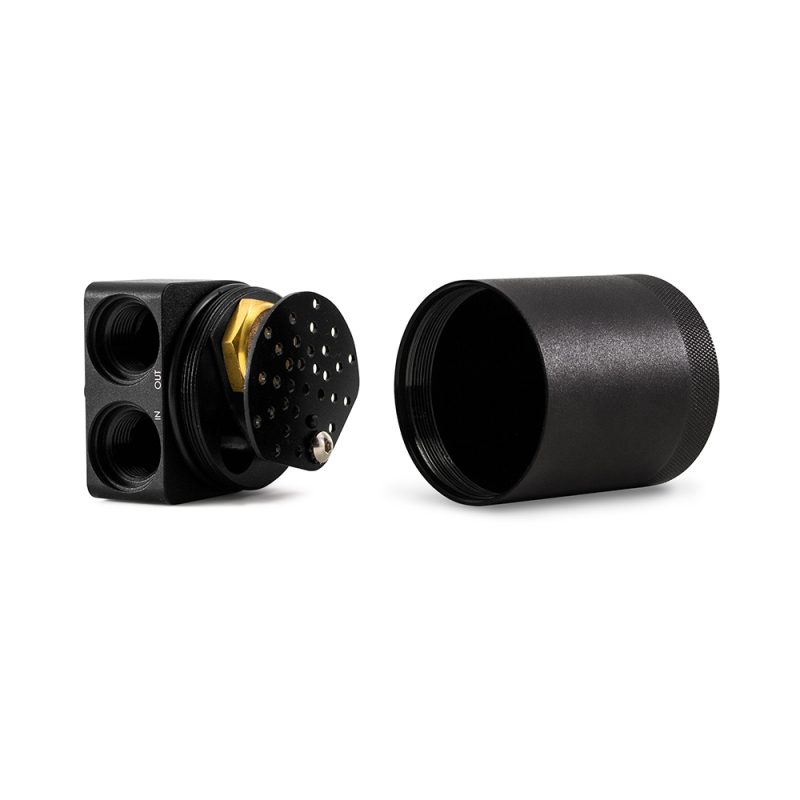

- Internal air diverter increases air turbulence to improve oil separation
- Filters and can are fully serviceable
- Backed by the Mishimoto Lifetime Warranty
Specifications
- Brand: Mishimoto
- Part Number: MMBCC-N55-11CBE2
- Color: Black
- Finish: Anodized
- Finish: Powder Coat
- Can Material: 6061-T6 Billet Aluminum
- Material: 6061 Aluminum
- Can Type: Twist Off
- Can Outside Diameter: 2.5 in
- Can Finish: Anodized
- Inlet Port Inside Diameter: 0.6 in
- Outlet Port Inside Diameter: 0.6 in
- Interior Baffle: Yes
- Mounting Bracket Included: Yes
- Hose Included: Yes
- Drain Plug Included: Yes
Frequently Asked Questions
Does this catch can require modifying the engine cover?
No, the included direct-fit hoses install with no modification to the engine cover.
What vehicles does this catch can fit?
It is a direct fit for the 2011–2013 BMW 335i, 2011–2013 BMW 335i xDrive, 2011–2013 BMW 135i, and 2013 BMW 135is.
Is the can serviceable?
Yes, both the filter and the can are fully serviceable, and a drain plug is included.
What material is the catch can made from?
The can is constructed from billet 6061-T6 aluminum with an anodized finish.
What warranty comes with this Mishimoto catch can?
It is backed by the Mishimoto Lifetime Warranty.
