Description
The Mishimoto MMAI-G80-21CFG is a purpose-built carbon fiber cold air intake engineered specifically for the S58B30-powered BMW G8X chassis. Built with dual carbon fiber airboxes and intake tubes, this system was developed using 3D printing, CAD modeling, and flow bench testing to cut intake restriction by 13 percent on the driver-side tract and by up to 22.8 percent on the passenger-side tract compared to the factory setup.
As a complete air intake system, this Mishimoto cold air intake replaces the restrictive factory panel filters with dual high-flow oiled air filters made from multi-layered cotton, boosting filter surface area and airflow while additional wheel-well ducting feeds cooler ambient air into each airbox. The solid 3K twill-woven carbon fiber construction, available in matte or gloss finish, resists heat soak far better than plastic factory components while amplifying turbocharger spool and bypass valve venting for a more aggressive intake tone under acceleration. It’s designed to run safely on a stock ECU tune, so drivers researching cold air intakes, intake filters, or air intake filter upgrades for their BMW M-car get real flow gains without requiring a tune.
Vehicle Applications
This intake is a direct-fit application for BMW G8X chassis vehicles (G80, G82, G83, and G87) equipped with the S58B30 3.0L twin-turbo inline-six. Coverage includes the BMW M3 Base (2021–2024, 2026), M3 Competition (2021–2026), M3 Competition xDrive (2022–2026), and M3 CS (2024); the BMW M4 Base (2021–2026), M4 Competition (2021–2023, 2025–2026), M4 Competition Heritage (2023), M4 Competition xDrive (2022–2026), M4 CS (2025–2026), and M4 CSL (2023); and the BMW M2 Base (2023–2026), M2 Coupe (2023–2024, 2026), and M2 CS (2026).
Features
- Constructed from solid 3K twill-woven carbon fiber, available in matte or gloss finish

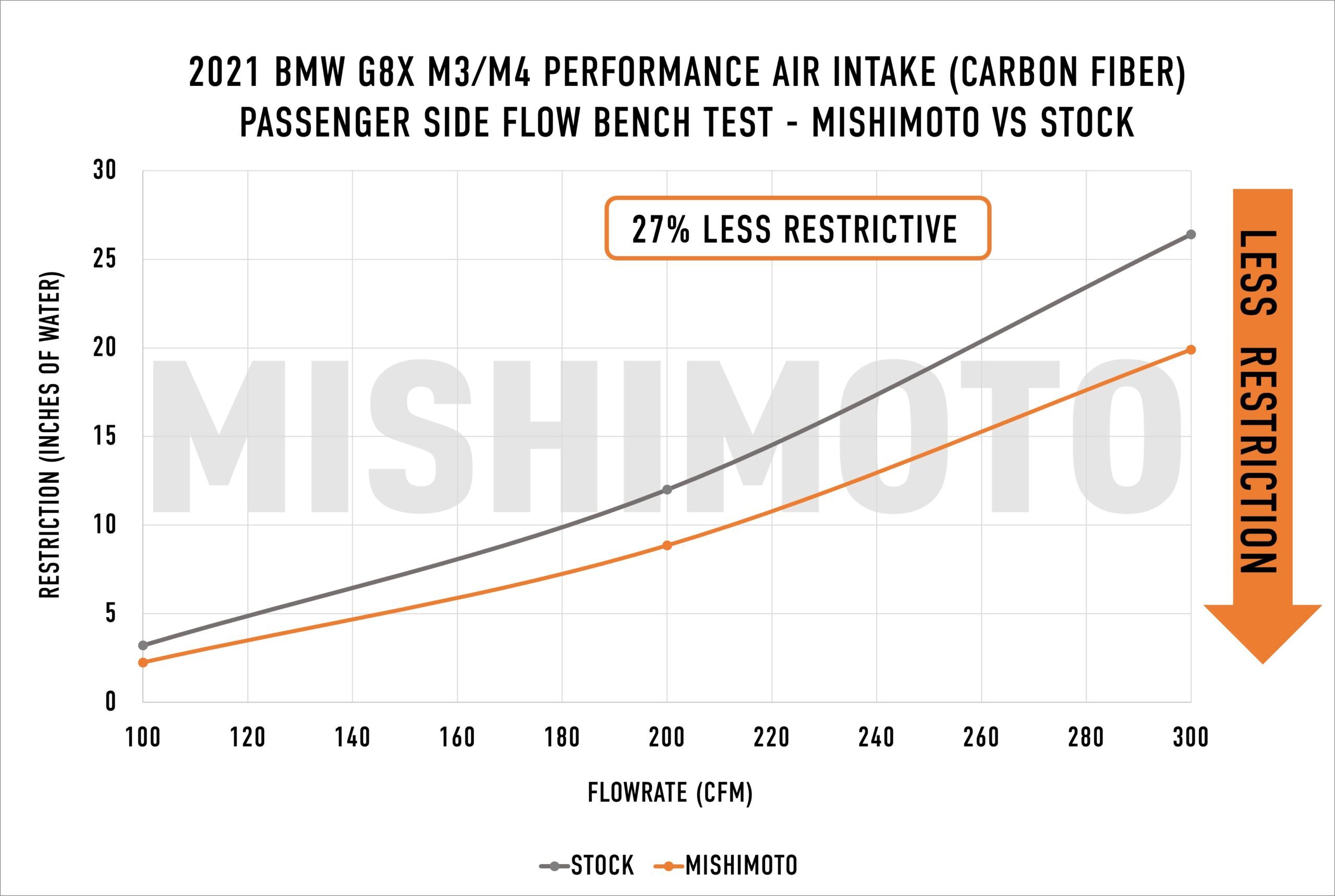

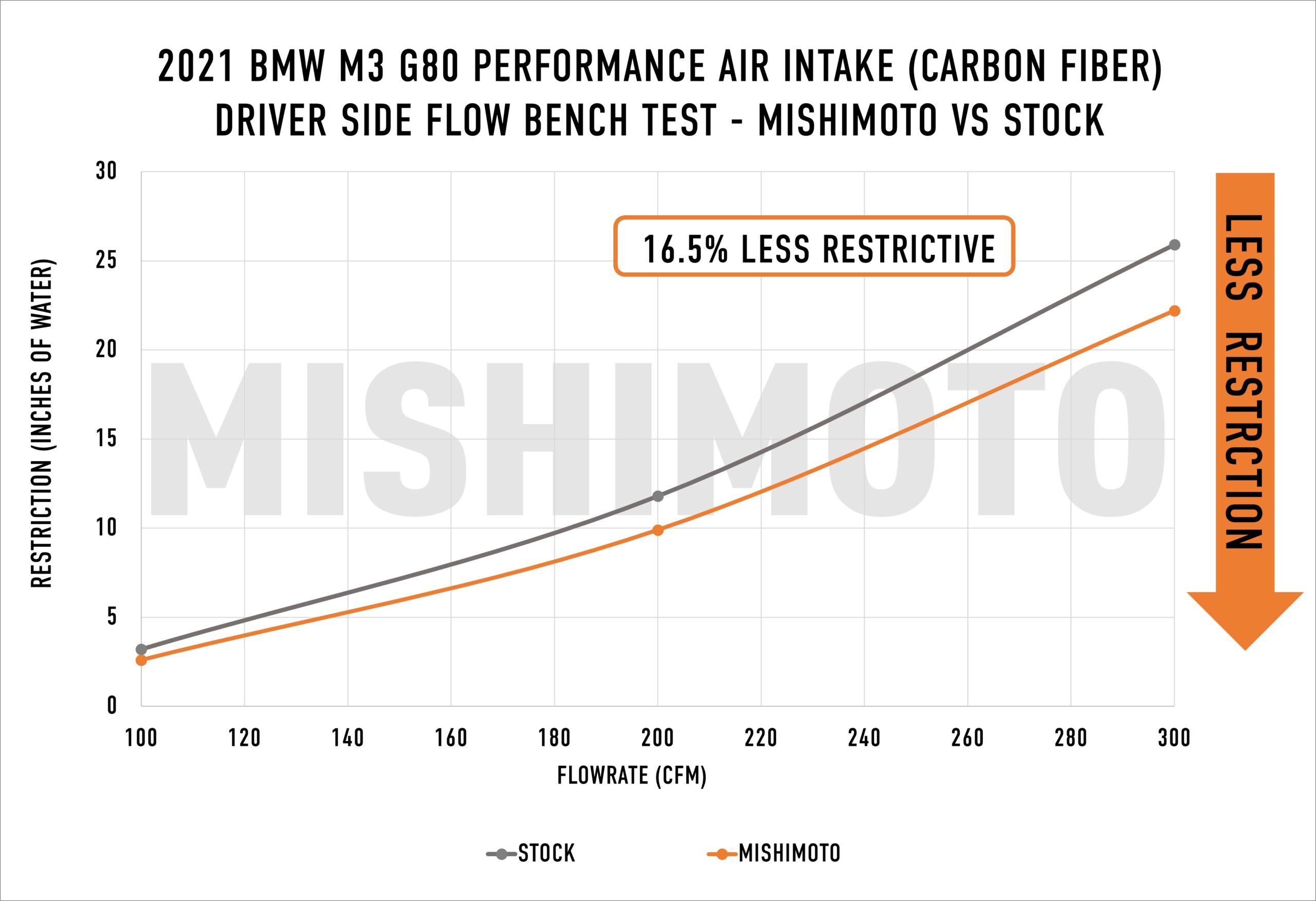

- Reduces intake restriction by 13% on the driver side and up to 22.8% on the passenger side
- Provides safe operation on a stock ECU tune
- Delivers an aggressive intake tone under acceleration
- Additional fresh air ducts draw cool air from the wheel wells
- Amplifies turbocharger spool and bypass valve venting
- CNC-machined aluminum connectors for a durable, leak-free install
- CNC-machined passenger-side turbocharger inlet improves flow and durability
- Precision-engineered using 3D printing, CAD modeling, and flow bench technology
- Installs in less than 1 hour with no need to remove the front bumper or undertray
- Washable oiled filters can be cleaned and refreshed with the Mishimoto Filter Re-Oil Kit
- Includes Mishimoto Lifetime Warranty
Specifications
- Filter Material: Multi-layered cotton
- Hose/Airbox Material: Carbon Fiber
- Hose Color: Black
- Filter Color: Red
- Grade Type: Performance
- Finish Options: Matte or Gloss
- Engine Code: S58B30
- Chassis Codes: G80, G82, G83, G87

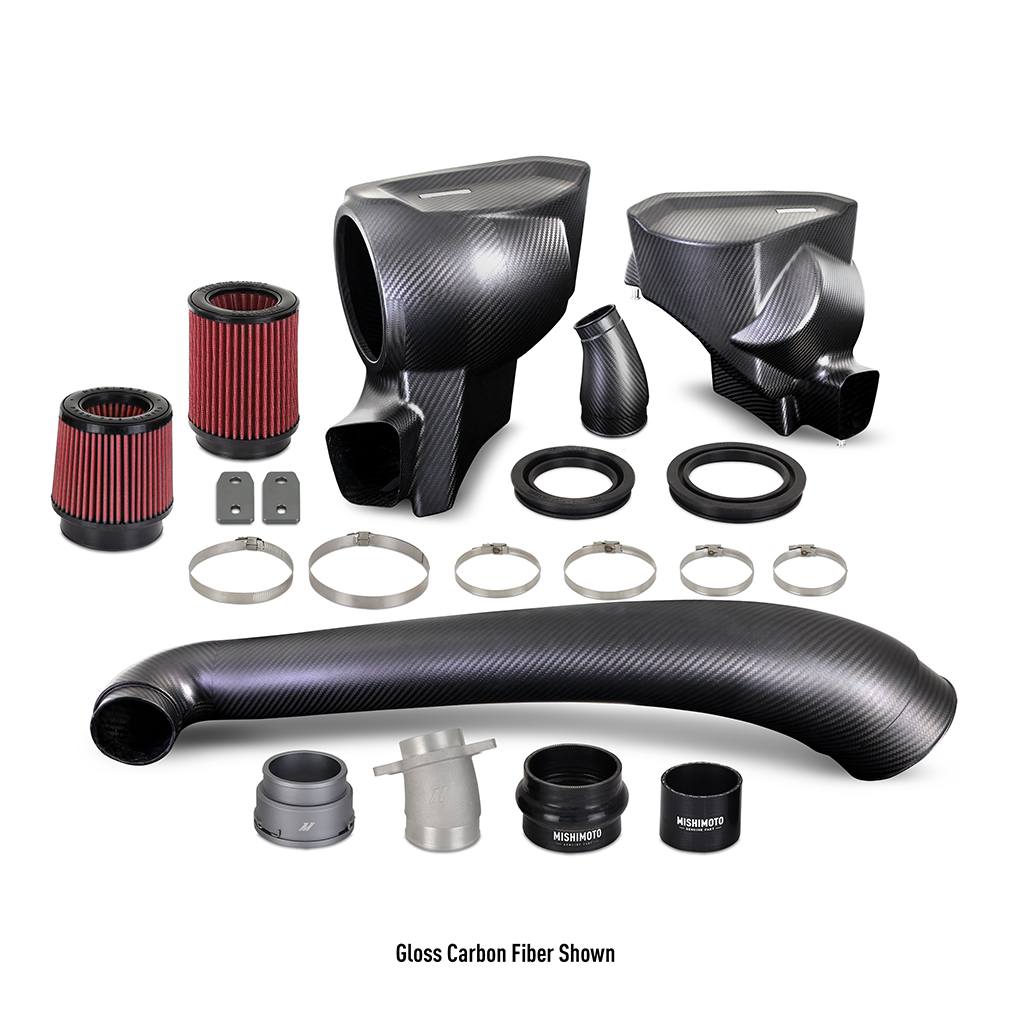

- Kit Includes: Driver-side intake airbox assembly with oiled air filter, grommet, coupler, and CNC quick-disconnect fitting; passenger-side intake airbox assembly with oiled air filter, grommet, coupler, and aluminum turbocharger outlet; 5 CNC-machined airbox peg kits; 4 stainless steel worm gear clamps; hardware kit; Mishimoto Lifetime Warranty
- Maintenance: Clean and re-oil filters every 10,000–15,000 miles under normal driving; filter re-oiling is not covered under the Lifetime Warranty
Frequently Asked Questions
What vehicles does the Mishimoto MMAI-G80-21CFG intake fit?
It is a direct-fit for BMW G8X chassis vehicles (G80, G82, G83, G87) with the S58B30 engine, covering the BMW M3 (2021–2026 depending on trim), BMW M4 (2021–2026 depending on trim), and BMW M2 (2023–2026 depending on trim).
Does this cold air intake require an ECU tune?
No, the intake is designed to provide safe operation on a stock ECU tune.
How much does this air intake reduce intake restriction?
It reduces intake restriction by 13 percent on the driver-side intake tract and by up to 22.8 percent on the passenger-side intake tract.
How long does installation take?
Installation takes less than 1 hour and does not require removing the front bumper or undertray.
What filters come with this intake system?
The kit includes dual high-flow oiled air filters made from multi-layered cotton in red, one for the driver side and one for the passenger side.
How do I maintain the oiled air filters?
Clean and re-oil the filters every 10,000–15,000 miles during normal driving, and inspect more often in dusty or off-road conditions. Filter re-oiling is not included in the Lifetime Warranty.
âš WARNING (California Proposition 65): This product can expose you to chemicals known to the State of California to cause cancer and/or birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Not CARB approved. This item is not legal for sale or use on pollution-controlled motor vehicles in California or states that adopt California emissions standards. Intended for off-road / competition use where permitted by law.
