Description

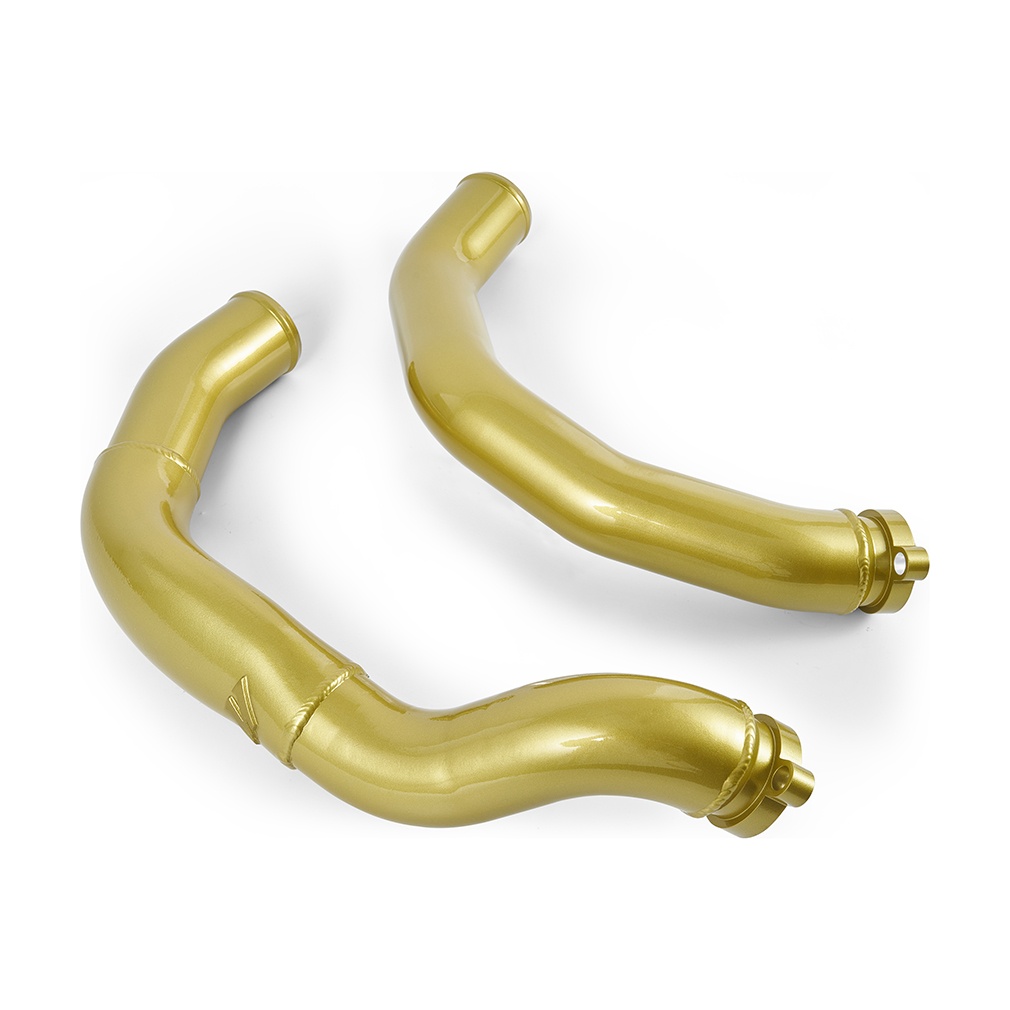

The Mishimoto MMICP-F80-15CAY is a color-matched charge pipe kit built specifically for the BMW F8X chassis, finished here in a factory-matched Austin Yellow so it disappears into an Austin Yellow engine bay instead of standing out as an aftermarket part. Constructed from full aluminum and expertly TIG-welded, this kit is designed to replace the factory charge pipes that are known to split at the plastic welds near the turbo or burst along the seam once boost pressure climbs, leaving drivers with a frustrating boost leak.

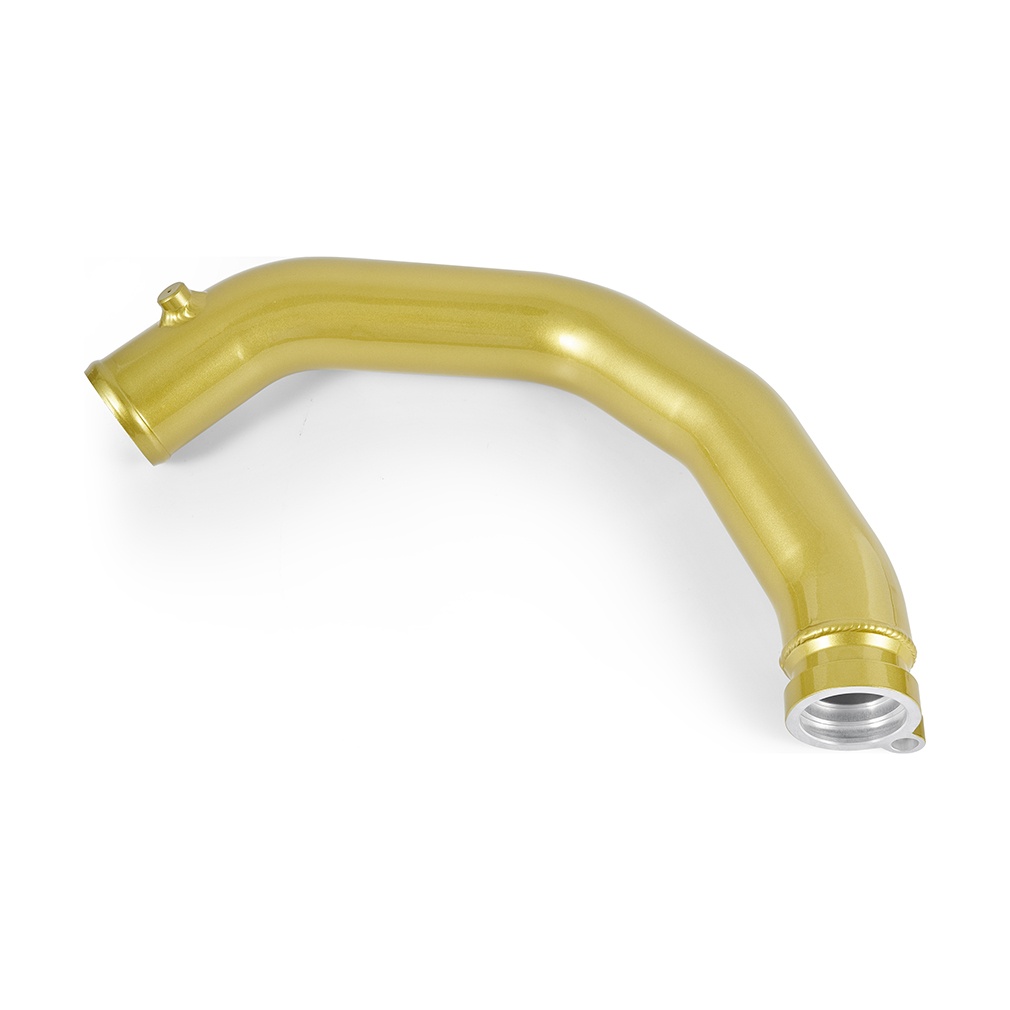

As a key link in your S55-equipped BMW’s forced induction system, the charge pipe carries pressurized air from the turbo to the intercooler, and any weakness in that path undermines the whole induction system. Mishimoto’s Forced Induction line addresses that weak point with a durable, mandrel-bent pipe design and a unique cast midsection engineered for a more uniform shape and optimal airflow from turbo to intercooler without sacrificing factory-style fitment. A bung is included for simple integration of methanol injection, and the kit is finished with matte black silicone couplers for a secure, stock-style connection to the intercooler. The automotive-grade, color-matched paint is durable enough for life under the hood, giving this forced induction turbo pipe kit both function and finish that matches the rest of your F80.
Vehicle Applications
This charge pipe kit is a direct fit for the F80, F82, F83, and F87 chassis codes, covering the 2015-2018 BMW M3 Sedan, the 2015-2020 BMW M4 Coupe and Convertible, the 2016 BMW M4 GTS Coupe, the 2019-2020 BMW M4 CS Coupe, and the 2019-2020 BMW M2 Competition.
Features
- Direct fit for the 2015-2020 BMW M3, M4, and M2 Competition
- Color matched to your choice of 12 OEM colors or classic black; this kit is finished in Austin Yellow
- Full aluminum, TIG-welded construction for maximum durability
- Unique cast midsection for perfect fitment between engine and air intake
- Mandrel-bent pipe design for optimal airflow
- Includes a bung for simple integration of methanol injection
- Matte black silicone couplers for a secure, stock-style connection to the intercooler
- Includes (4) worm gear clamps for a secure installation
- Includes a CARB EO sticker (EO Number D-759-13)
- Backed by the Mishimoto Lifetime Warranty
Specifications
- Brand: Mishimoto
- Part Number: MMICP-F80-15CAY
- Product Type: Forced Induction
- Finish: Powder Coated
- Pipe Material: Aluminum
- Pipe Bend Type: Mandrel
- Pipe Color: Yellow (Austin Yellow)
- Coupler Material: Silicone
- Coupler Color: Black
- Clamp Type: Worm Gear
- Clamps Included: Yes
- Chassis Codes: F80, F82, F83, F87
- CARB EO Number: D-759-13

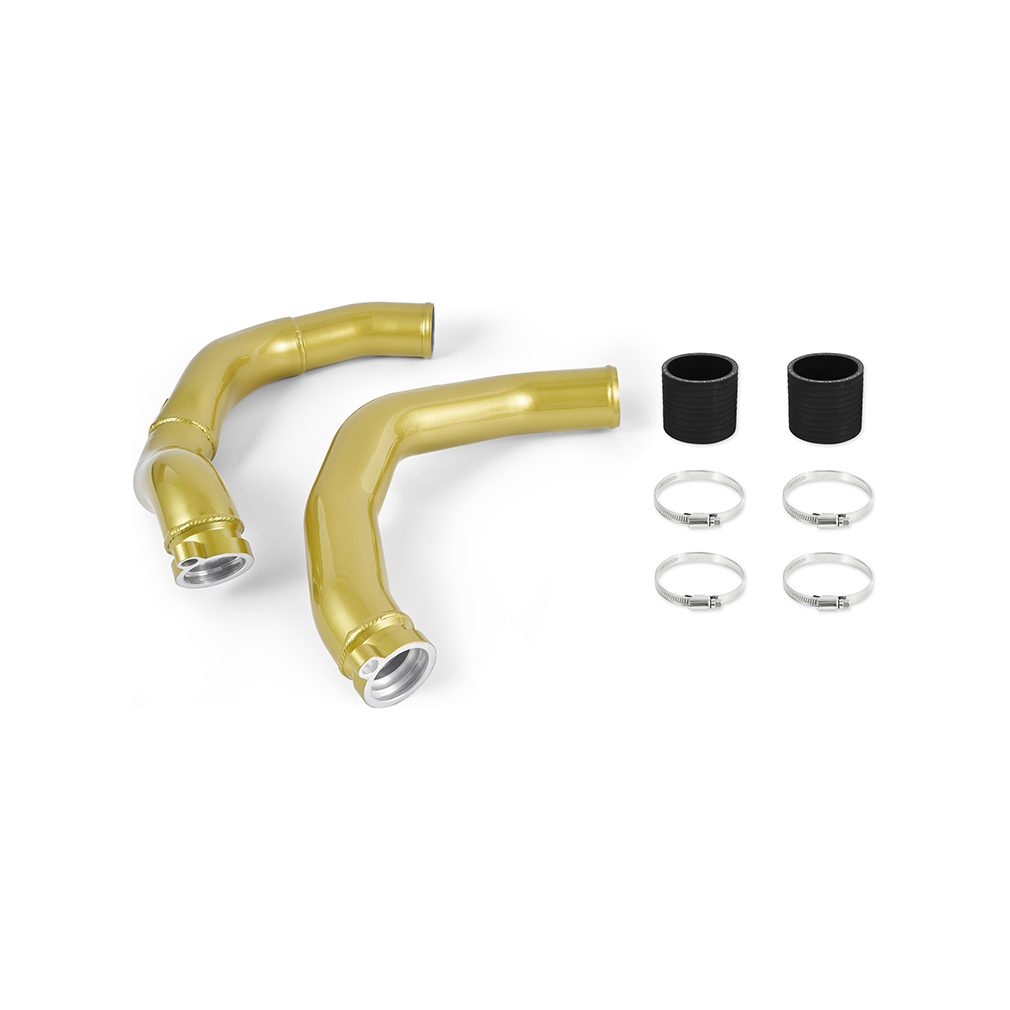

- Includes: (2) Charge Pipes, (2) Silicone Couplers, (4) Worm Gear Clamps, (1) CARB EO Sticker, Mishimoto Lifetime Warranty
- Installation Notes: 22 in-lbs (2.5NM) recommended for all worm gear clamps; operating range is 18-27 in-lbs (2-3NM); do not exceed the maximum torque rating of 27 in-lbs (3NM)
Frequently Asked Questions
What vehicles fit the Mishimoto MMICP-F80-15CAY charge pipe kit?
This kit is a direct fit for the F80, F82, F83, and F87 chassis codes, covering the 2015-2018 BMW M3 Sedan, 2015-2020 BMW M4 Coupe and Convertible, 2016 BMW M4 GTS Coupe, 2019-2020 BMW M4 CS Coupe, and 2019-2020 BMW M2 Competition.
What color is this charge pipe kit finished in?
This kit is color matched to Austin Yellow. Mishimoto offers these charge pipes in a choice of 12 OEM colors or classic black.
What material are the charge pipes made from?
The charge pipes are constructed from full aluminum and are TIG-welded, with a mandrel-bent design and a unique cast midsection for optimal airflow.
What is included with the Mishimoto charge pipe kit?
The kit includes (2) charge pipes, (2) silicone couplers, (4) worm gear clamps, (1) CARB EO sticker, and the Mishimoto Lifetime Warranty.
What torque should be used on the included clamps?
Mishimoto recommends 22 in-lbs (2.5NM) for all worm gear clamps, with an operating range of 18-27 in-lbs (2-3NM). Do not exceed the maximum torque rating of 27 in-lbs (3NM).
Is this charge pipe kit CARB legal?
Yes, this kit includes a CARB EO sticker referencing CARB EO Number D-759-13.
