Description
The Mishimoto 2015+ BMW F8X M3/M4 Charge Pipe Kit (MMICP-F80-15CMG) is built to replace the factory plastic-welded charge pipes that are known to split at the turbo-side welds or burst along their seams once boost pressure climbs. In their place, Mishimoto delivers a full aluminum, TIG-welded charge pipe engineered to give the S55 engine a secure, uniform channel for boost, and it’s finished in your choice of a color-matched OEM shade so the upgrade looks factory-correct under the hood.
Because the stock charge pipe is a common weak point in the F8X induction system, this Forced Induction upgrade is designed with a more uniform shape from turbo to intercooler to support optimal airflow without compromising factory-style fitment. A unique cast midsection helps the pipe seat precisely between the engine and air intake, and a built-in bung allows for simple integration of methanol injection for owners looking to expand their forced induction setup down the road. The included matte black silicone couplers and worm gear clamps provide a secure, stock-style connection to the intercooler, while the durable, automotive-grade color-matched paint is built to hold up to life under the hood.
Vehicle Applications
This charge pipe kit is a direct fit for the BMW F8X chassis (F80, F82, F83, F87), covering the 2015-2018 BMW M3, the 2015-2020 BMW M4 (Coupe and Convertible), the 2016 BMW M4 GTS, the 2019-2020 BMW M4 CS, and the 2019-2020 BMW M2 Competition.
Features
- Direct fit for the 2015-2020 BMW M3, M4, and M2 Competition
- Color matched to your choice of 12 OEM colors or classic black
- Full aluminum TIG-welded construction for maximum durability
- Unique cast midsection for perfect fitment between engine and air intake
- Includes a bung for simple integration of methanol injection
- Designed for optimal airflow
- Includes matte black silicone couplers for a secure, stock-style connection to the intercooler
- Backed by the Mishimoto Lifetime Warranty
Specifications
- Pipe material: Aluminum
- Pipe bend type: Mandrel
- Finish: Powder coated
- Coupler material: Silicone
- Coupler color: Black
- Clamp type: Worm gear
- Clamps included: Yes
- Chassis codes: F80, F82, F83, F87
- CARB EO Number: D-759-13

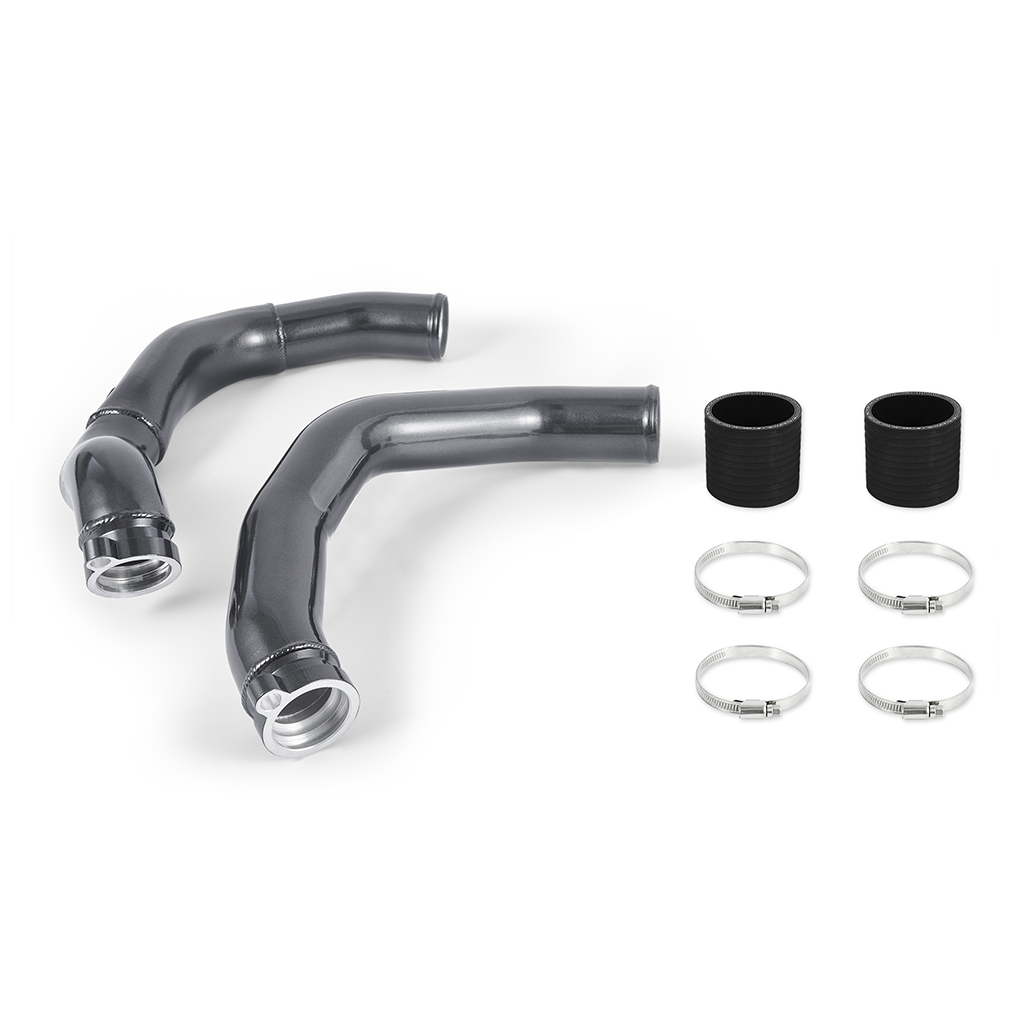

- Includes: (2) charge pipes, (2) silicone couplers, (4) worm gear clamps, (1) CARB EO sticker, Mishimoto Lifetime Warranty
- Installation note: Check the condition of OEM O-rings before installation and replace with OEM spec O-rings as needed (BMW part number 11617848448); recommended worm gear clamp torque is 22 in-lbs (2.5NM), with an operating range of 18-27 in-lbs (2-3NM) and a maximum of 27 in-lbs (3NM)
Frequently Asked Questions
Which BMW vehicles fit the Mishimoto MMICP-F80-15CMG charge pipe kit?
This kit fits the BMW F8X chassis (F80, F82, F83, F87), including the 2015-2018 BMW M3, 2015-2020 BMW M4 Coupe and Convertible, 2016 BMW M4 GTS Coupe, 2019-2020 BMW M4 CS Coupe, and 2019-2020 BMW M2 Competition.
What is included with the Mishimoto charge pipe kit?
The kit includes (2) charge pipes, (2) silicone couplers, (4) worm gear clamps, (1) CARB EO sticker, and the Mishimoto Lifetime Warranty.
What are the charge pipes made from?
The charge pipes are full aluminum, mandrel-bent, TIG-welded construction with a powder coated finish.
What color options are available for this charge pipe kit?
The charge pipes can be color matched to your choice of 12 OEM colors or classic black; this listing is finished in Mineral Gray.
Is there anything I should check before installing these charge pipes?
Yes, check the condition of your OEM O-rings before installation and replace with OEM spec O-rings as needed (BMW part number 11617848448). Worm gear clamps should be torqued to a recommended 22 in-lbs (2.5NM), within an operating range of 18-27 in-lbs (2-3NM), not exceeding 27 in-lbs (3NM).
Does this charge pipe kit come with a warranty?
Yes, it is backed by the Mishimoto Lifetime Warranty.
