Description

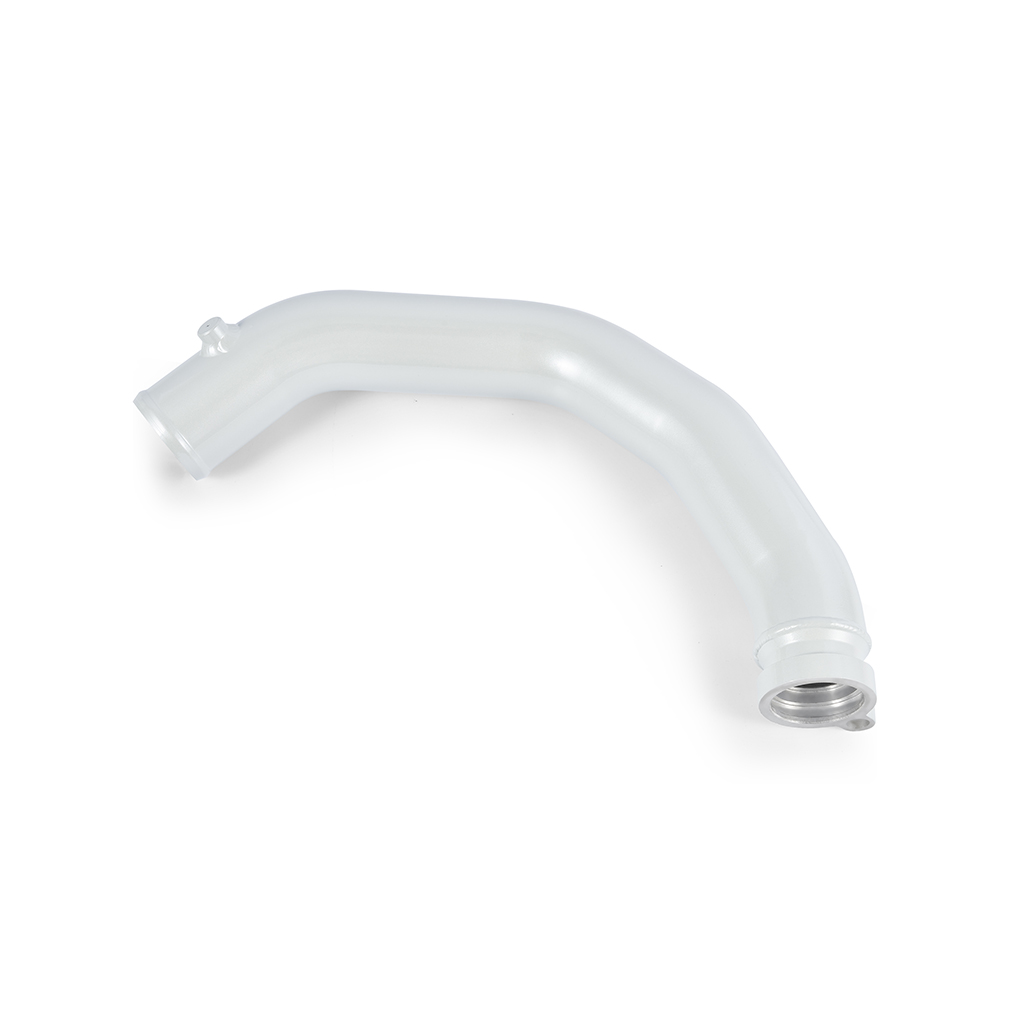

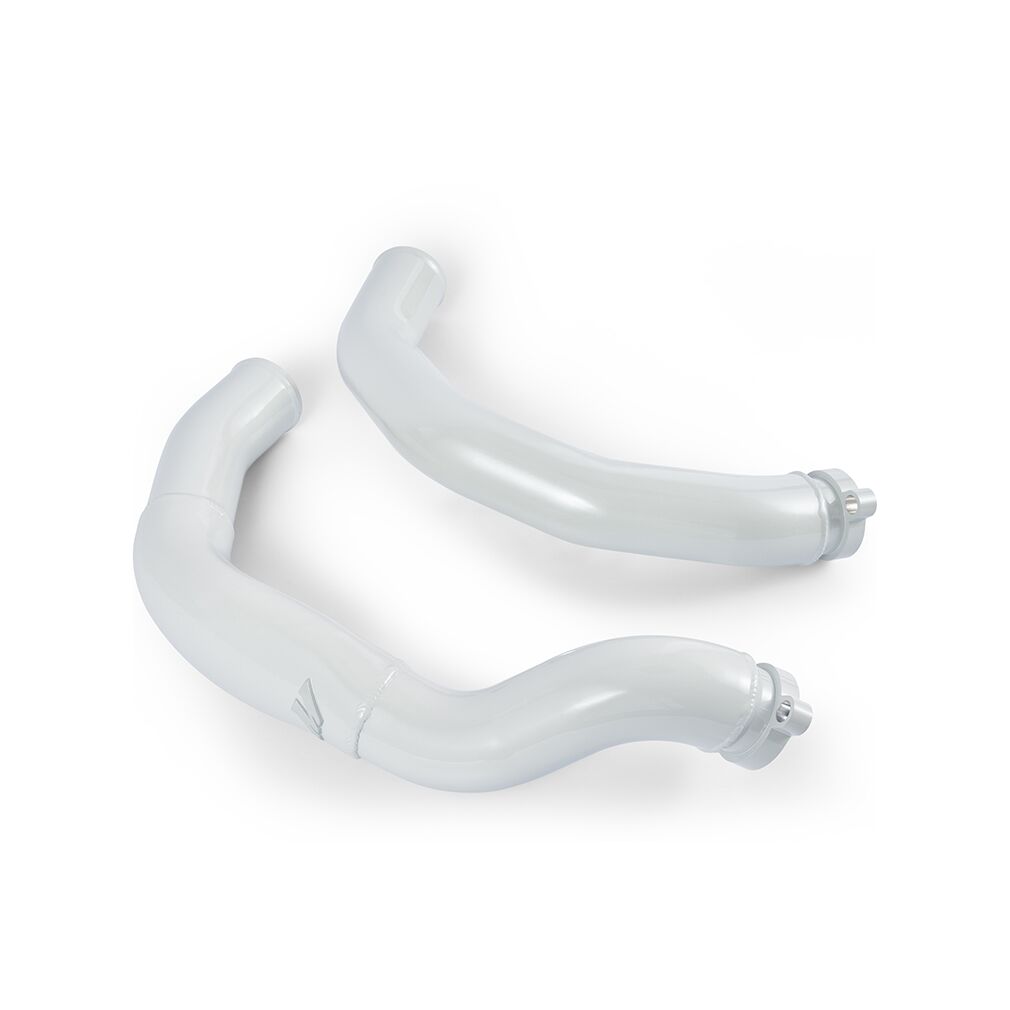

The Mishimoto MMICP-F80-15CMW is a color matched charge pipe kit built specifically for the 2015+ BMW F8X M3/M4 platform, replacing the factory plastic-welded pipes that are prone to splitting or bursting under boost. Machined into a full aluminum, TIG-welded assembly, this kit is designed to keep the S55’s boost sealed tight from turbo to intercooler while adding a painted, OEM-matched finish to the engine bay.
Forced induction systems live or die by the integrity of their charge pipes, and the stock units on the F8X are a documented weak link once real boost pressure enters the picture. Mishimoto engineered this charge pipe kit with a unique cast midsection for precise fitment between the engine and air intake, a more uniform internal shape for optimal airflow, and a bung for straightforward methanol injection integration. Whether you’re chasing more consistent induction performance or simply want factory-style reliability with upgraded materials, this kit is built to handle the demands of a forced induction system without sacrificing the factory fit and finish.
Vehicle Applications
This charge pipe kit is a direct fit for the 2015-2018 BMW M3 Sedan, 2015-2020 BMW M4 Coupe and Convertible, the 2016 BMW M4 GTS Coupe, the 2019-2020 BMW M4 CS Coupe, and the 2019-2020 BMW M2 Competition. It covers the F80, F82, F83, and F87 chassis codes, making it a targeted solution for owners of these S55-equipped BMW models looking to upgrade their induction system with a durable, color-matched alternative to the factory pipes.
Features
- Direct fit for the 2015-2020 BMW M3, M4, and M2 Competition
- Color matched to your choice of 12 OEM colors or classic black
- Full aluminum TIG-welded construction for maximum durability
- Unique cast midsection for perfect fitment between engine and air intake
- Includes bung for simple integration of methanol injection
- Designed for optimal airflow
- Includes matte black silicone couplers for a secure and stock-style connection to the intercooler
- Patent No. US D971,261 S
- Mishimoto Lifetime Warranty
Specifications
- Brand: Mishimoto
- Part Number: MMICP-F80-15CMW
- Product Type: Forced Induction
- Pipe Material: Aluminum
- Pipe Color: Natural (or color matched, per selection)
- Pipe Bend Type: Mandrel
- Coupler Material: Silicone
- Coupler Color: Black
- Finish: Powder Coated
- Clamp Type: Worm Gear
- Clamps Included: Yes
- Chassis Codes: F80, F82, F83, F87
- CARB EO Number: D-759-13

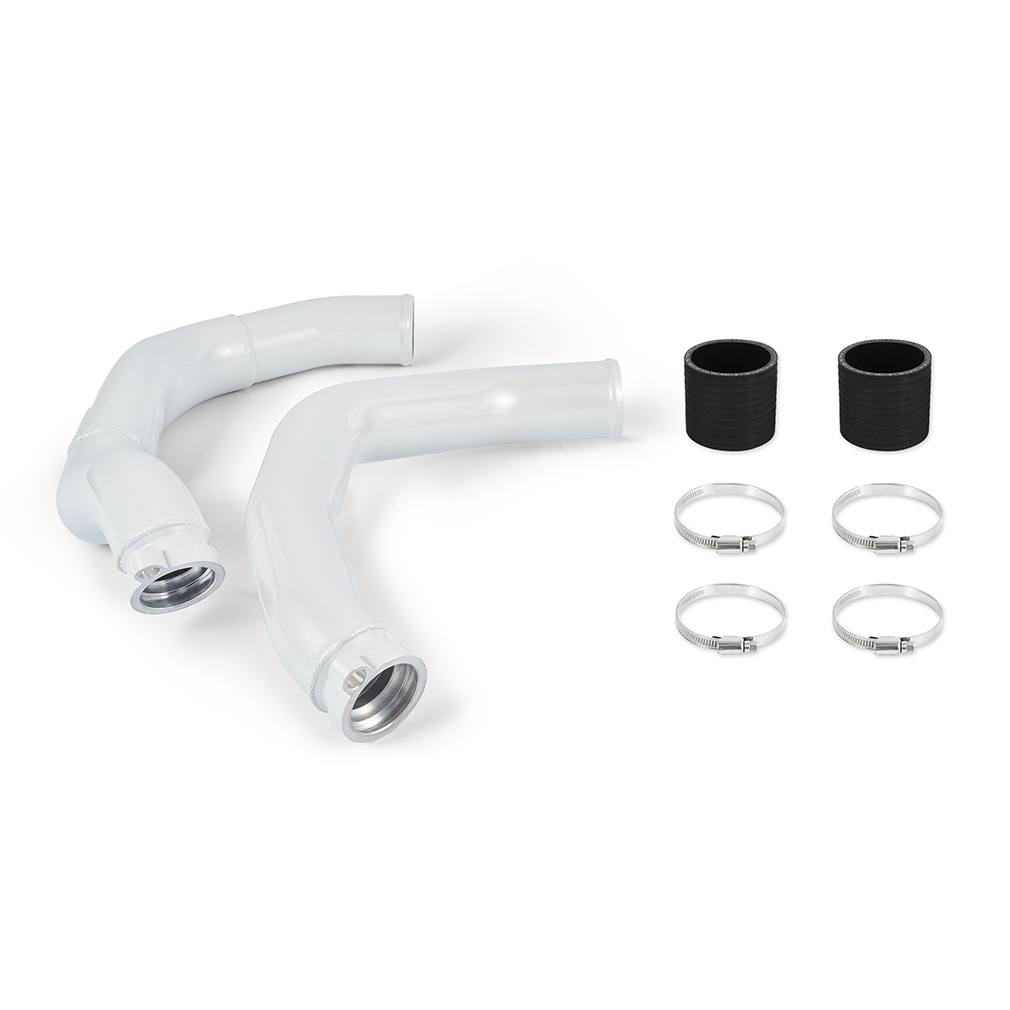

- Includes: (2) Charge Pipes, (2) Silicone Couplers, (4) Worm Gear Clamps, (1) CARB EO Sticker, Mishimoto Lifetime Warranty
- Installation Note: 22 in-lbs (2.5NM) recommended for all worm gear clamps; operating range is 18-27 in-lbs (2-3NM); do not exceed 27 in-lbs (3NM)
- Prop 65 Warning: Cancer and Reproductive Harm – www.p65warnings.ca.gov
Frequently Asked Questions
What vehicles fit the Mishimoto MMICP-F80-15CMW charge pipe kit?
This kit is a direct fit for the 2015-2018 BMW M3 Sedan, 2015-2020 BMW M4 Coupe and Convertible, 2016 BMW M4 GTS Coupe, 2019-2020 BMW M4 CS Coupe, and 2019-2020 BMW M2 Competition, covering the F80, F82, F83, and F87 chassis codes.
What material are the Mishimoto charge pipes made from?
The charge pipes are constructed from full aluminum and are TIG-welded for durability.
Can I get these charge pipes color matched to my BMW?
Yes, the pipes can be color matched to your choice of 12 OEM colors or ordered in classic black.
What is included in the Mishimoto charge pipe kit?
The kit includes (2) charge pipes, (2) silicone couplers, (4) worm gear clamps, (1) CARB EO sticker, and the Mishimoto Lifetime Warranty.
Is there a torque specification for installing the clamps?
Mishimoto recommends 22 in-lbs (2.5NM) for all worm gear clamps, with an operating range of 18-27 in-lbs (2-3NM), and advises not exceeding 27 in-lbs (3NM).
Do I need to replace any O-rings during installation?
Mishimoto advises checking the condition of the OEM O-rings before installation and replacing them with OEM spec O-rings as needed (BMW part number 11617848448).
