Description

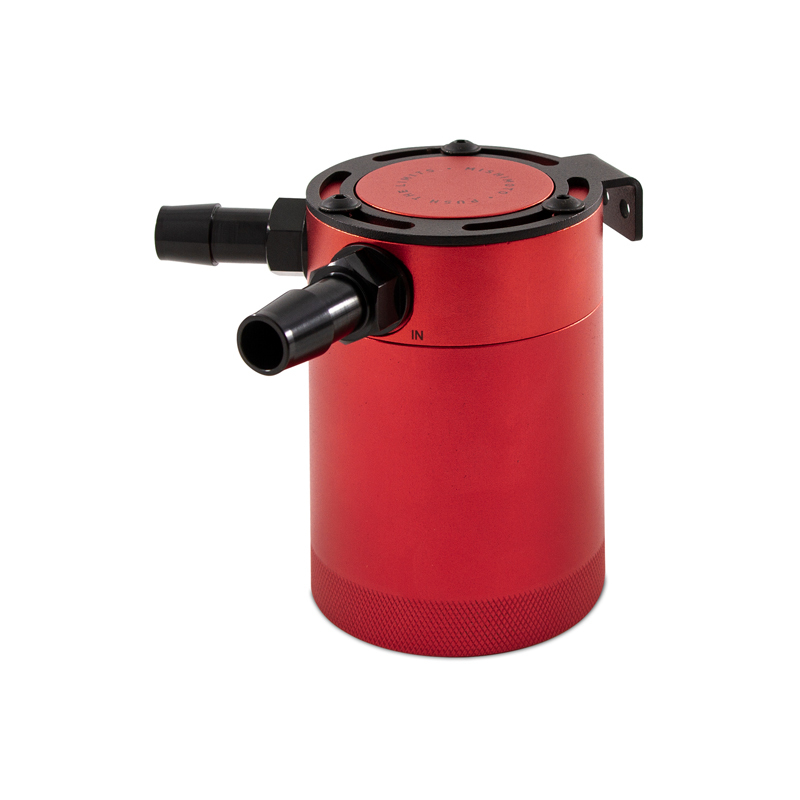

The Mishimoto Compact Baffled Oil Catch Can, 2-Port (MMBCC-CBTWO-RD) is a red anodized, 100-percent billet 6061 aluminum catch can built with one inlet and one outlet for straightforward installation on PCV and CCV systems. Backed by years of oil catch can research and development, Mishimoto engineered this compact unit with an internal air diverter that keeps PCV/CCV air turbulent longer, allowing oil particles from your car engine to fully separate before the air ever reaches the intake.
Inside every car engine, blow-by gases carry oil particles and contaminated vapor that, left unchecked, can foul intake components over time. This Mishimoto oil catch can addresses that reality by routing PCV/CCV air through a 50 micron bronze filter, leaving clean air to continue on while oil sinks to the bottom of the can. An internal baffle prevents collected oil from splashing under hard driving, and because the can is unheated, blow-by is trapped and held rather than drained back into the oil pan like many air-oil-separator designs. For anyone researching engine components, parts of a car engine, or how to keep automobile combustion byproducts out of the intake tract, this catch can offers a serviceable, washable solution rather than a disposable filtration cartridge.
Vehicle Applications
The Mishimoto Compact Baffled Oil Catch Can, 2-Port is built as a universal component rather than being tied to a specific make, model, chassis, or engine code. Its top-mounted port setup can be oriented from multiple angles, and the included universal mounting bracket with self-tapping screws is designed to accommodate different engine bay configurations, making it adaptable across a wide range of car engine layouts.
Features
- Separates oil particles from PCV/CCV air using a 50 micron bronze filter
- 100-percent billet 6061 aluminum sealed can
- Helps defend the intercooler, intake system, and other engine parts from oil blow-by
- Helps maintain proper octane levels to reduce potential detonation
- Features one inlet and one outlet for simple PCV/CCV installation
- Filter and can are both fully serviceable and washable
- Safe for pressurized applications
- Internal air diverter increases air turbulence to improve oil separation
- Includes two aluminum barbed 1/2-in hose fittings
- Universal mounting bracket fits different configurations
- Drain plug can be removed for a return line to the oil pan
- Backed by the Mishimoto Lifetime Warranty
Specifications
- Brand: Mishimoto
- Part Number: MMBCC-CBTWO-RD
- Port Quantity: 2 (one inlet, one outlet)
- Grade Type: Performance
- Color: Red
- Finish: Anodized
- Material: 6061 aluminum
- Inlet Thread: M16x1.5
- Outlet Thread: M16x1.5
- Drain Plug Thread Size: 3/8 NPT
- Catch Can Diameter: 2.5 in
- Height: 3.8 in

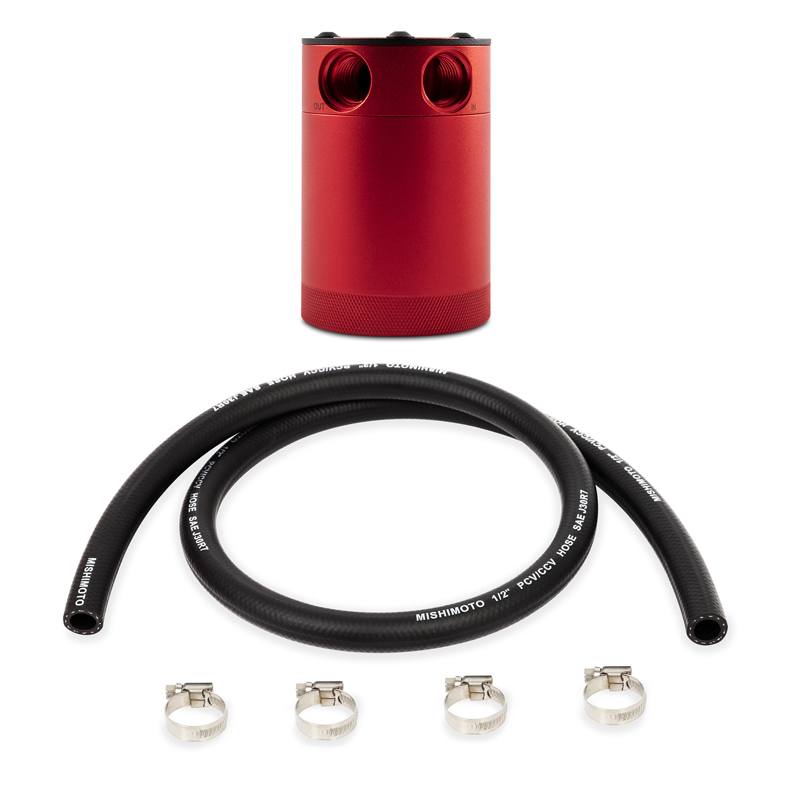

- Includes: (1) Compact 2-Port Baffled Oil Catch Can, (2) aluminum 1/2-in barbed fittings, (1) universal mounting bracket, (2) self-tapping screws, Mishimoto Lifetime Warranty
Frequently Asked Questions
How many ports does the Mishimoto Compact Baffled Oil Catch Can, 2-Port have?
This catch can features two ports: one inlet and one outlet, designed for easy installation on CCV and PCV systems.
What material is the MMBCC-CBTWO-RD catch can made from?
It is a 100-percent billet 6061 aluminum sealed can with a red anodized finish.
How does the Mishimoto catch can separate oil from PCV/CCV air?
An internal air diverter turbulates the air so oil sinks to the bottom of the can, while a 50 micron bronze filter allows only clean air to pass through to the intake. An internal baffle also keeps collected oil from splashing under race conditions.
Is the catch can and filter serviceable?
Yes, both the filter and the can are fully serviceable and 100-percent washable, unlike catch cans that require replacing the filtration system.
What is included with the Mishimoto Compact Baffled Oil Catch Can, 2-Port?
It includes the compact 2-port baffled oil catch can, two aluminum 1/2-in barbed fittings, one universal mounting bracket, two self-tapping screws, and the Mishimoto Lifetime Warranty.
What are the drain plug and thread specifications on this catch can?
The drain plug thread size is 3/8 NPT, and the inlet and outlet threads are M16x1.5. The drain plug can be removed to allow a return line to the oil pan.
