Description

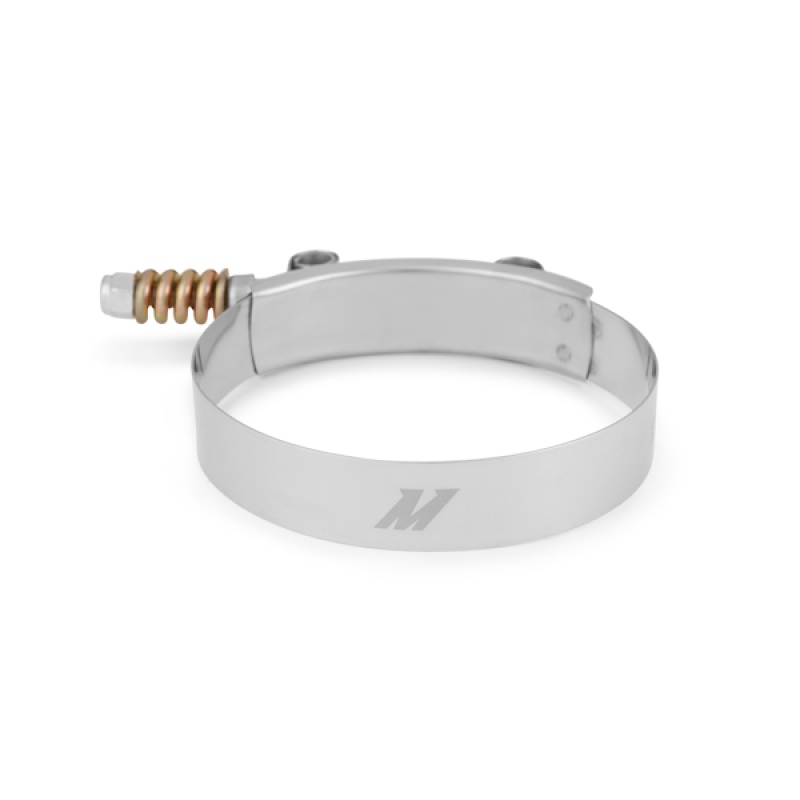

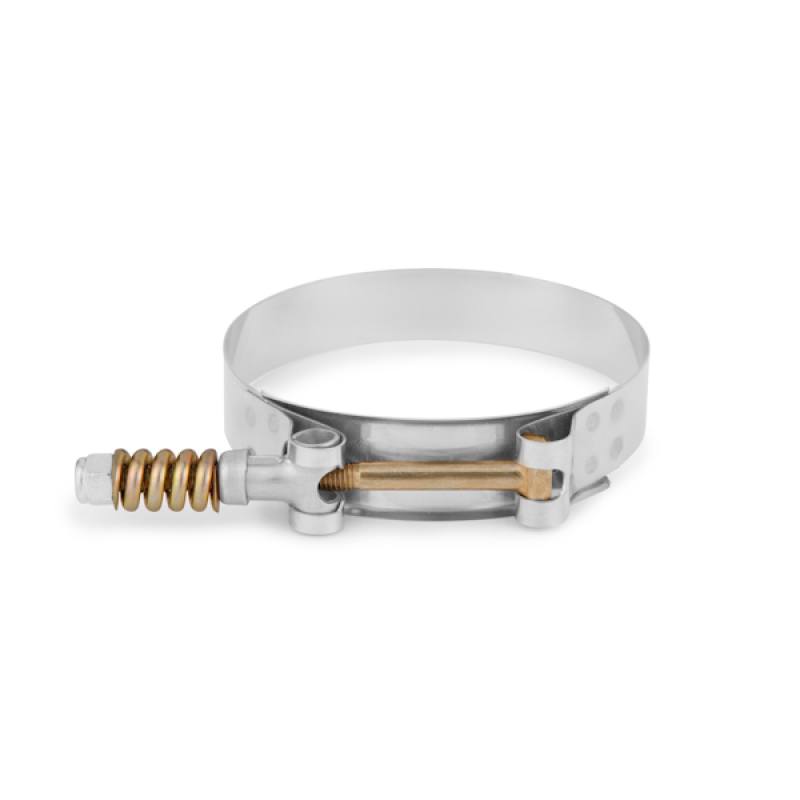

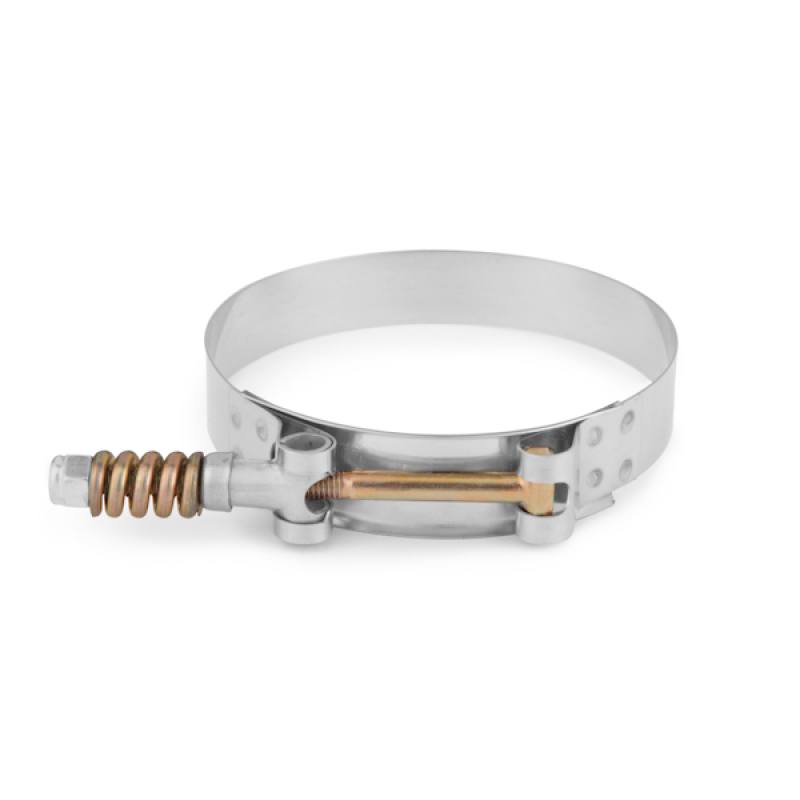

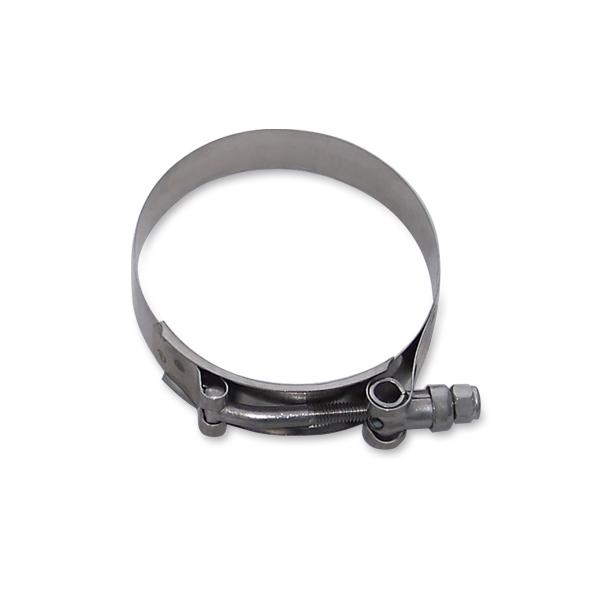

The Mishimoto MMCLAMP-35T is a Stainless Steel Constant Tension T-Bolt Clamp engineered to secure pipes, couplers, and hoses with an outer diameter of 3.39in to 3.7in (86mm to 94mm). What sets this clamp apart from a standard T-bolt design is its spring-loaded adjustment bolt, which lets the band expand and contract with temperature swings while continuously maintaining clamping pressure on the parts it holds together.
As part of Mishimoto’s Fabrication lineup, this constant tension T-bolt clamp is built for installations where reliability under heat cycling and vibration really matters. The stainless steel band and steel spring work together to resist corrosion longer than a typical zinc-plated clamp, while the included self-locking nut keeps the assembly from loosening as it’s exposed to engine bay movement over time. Because the clamp is reusable, it can be removed and reinstalled as needed during service or upgrades, and Mishimoto backs it with a Lifetime Warranty.
Vehicle Applications
This Mishimoto constant tension T-bolt clamp is a universal-fit fabrication component rather than a vehicle-specific part. It is intended for any hose, coupler, or pipe connection with an outer diameter falling within the 3.39in-3.7in (86mm-94mm) range, making it suitable for a wide variety of intercooler piping, intake, and hose setups where that size range applies.
Features
- Securely clamps pipes, couplers, and hoses with an outer diameter from 3.39in-3.7in (86mm-94mm)
- Constant tension spring maintains clamping pressure through a wide range of temperatures
- Included self-locking nut prevents loosening with movement and vibration
- Stainless steel construction resists corrosion longer than zinc-plated clamps
- Reusable design allows removal and reinstallation
- Clamps sold individually
- Backed by the Mishimoto Lifetime Warranty
Specifications
- Brand: Mishimoto
- Part Number: MMCLAMP-35T
- Product Type: Fabrication
- Clamp Style: Constant Tension T-Bolt Clamp
- Type: T-Bolt
- Material: Stainless Steel
- Spring Material: Steel
- Color: Silver
- Finish: Plain
- Grade Type: Premium
- Minimum Diameter: 3.39in (86mm)
- Maximum Diameter: 3.7in (94mm)
- Band Width: 0.75in
- Recommended Tightening Torque: 27 in-lbs (3 Nm)
- SAE Size: 60
- Reusable: Yes
- Includes: (1) Mishimoto Stainless Steel Constant Tension T-Bolt Clamp
Frequently Asked Questions
What diameter range does this Mishimoto T-bolt clamp fit?
This constant tension T-bolt clamp is designed for outer diameters ranging from 3.39in to 3.7in, or 86mm to 94mm.
What is this clamp made of?
The clamp band is made of stainless steel, and it uses a steel spring for the constant-tension mechanism.
Does the clamp include a locking nut?
Yes, it includes a self-locking nut designed to prevent loosening from movement and vibration.
Is this T-bolt clamp reusable?
Yes, according to Mishimoto’s specifications this clamp is reusable.
What is the recommended tightening torque?
The recommended tightening torque for this clamp is 27 in-lbs (3 Nm).
Does this clamp come with a warranty?
Yes, this Mishimoto constant tension T-bolt clamp is backed by the Mishimoto Lifetime Warranty.
