Description

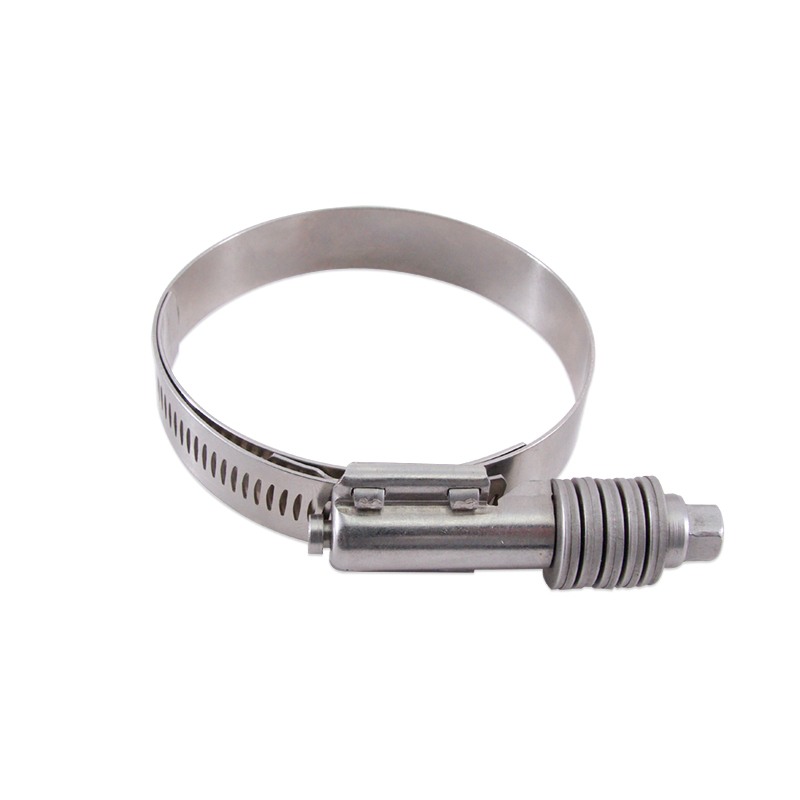

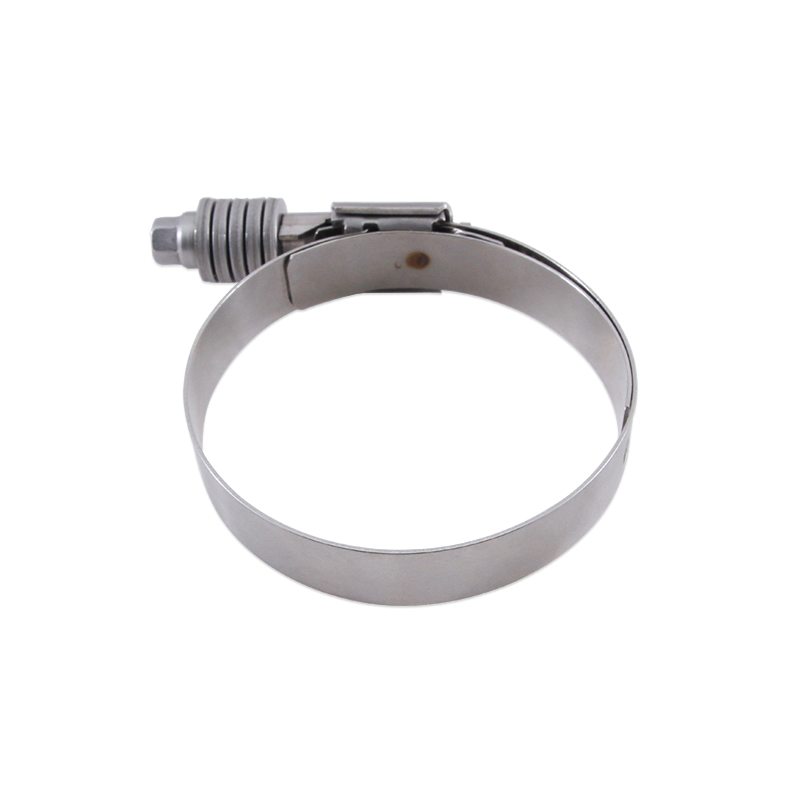

The Mishimoto MMCLAMP-CTWG-117 is a 3.74in – 4.61in (95mm – 117mm) constant tension worm gear clamp built from stainless steel and engineered with a spring-loaded adjustment bolt that keeps exerting pressure even as temperatures swing. Part of the Mishimoto Fabrication lineup, this clamp is designed for the moments when a standard worm gear clamp can’t keep up with heat cycling, ensuring your pipes, couplers, and hoses stay sealed as tightly as the day you installed them.
Where many clamping solutions rely purely on band tension, this constant tension worm gear clamp uses a steel spring on the adjustment bolt to maintain continuous clamping force through a wide range of temperatures — a key advantage in high-heat environments where metal expands and contracts. Its worm gear design allows for quick, easy tightening, while the stainless steel construction is built to resist corrosion longer than typical zinc-plated clamps. As part of Mishimoto’s broader family of constant tension worm gear clamps available in multiple sizes, this 3.74in – 4.61in (95mm – 117mm) option is suited for a variety of clamping needs, from coolant lines to intake pipes, and is backed by the Mishimoto Lifetime Warranty.
Vehicle Applications
This is a universal-fit Fabrication component rather than a vehicle-specific part, sized to secure pipes, couplers, and hoses with an outer diameter between 3.74in and 4.61in (95mm-117mm). It’s intended for builders and technicians working on coolant lines, intake pipes, and similar plumbing where a durable, heat-tolerant, reusable clamp is needed, regardless of make or model.
Features
- Securely clamps pipes, couplers, and hoses with an outer diameter from 3.74in – 4.61in (95mm – 117mm)
- Constant tension spring maintains clamping pressure through a wide range of temperatures
- Worm gear design for quick and easy tightening
- Stainless steel construction resists corrosion longer than zinc-plated clamps
- Reusable design
- Clamps sold individually
- Backed by the Mishimoto Lifetime Warranty
Specifications
- Brand: Mishimoto
- Part Number: MMCLAMP-CTWG-117
- Product Type: Fabrication
- Clamp Style: Constant Tension Worm Gear Clamp
- Material: Stainless Steel
- Spring Material: Steel
- Color: Silver
- Finish: Plain
- Grade Type: Premium
- Minimum Diameter: 3.74in (95mm)
- Maximum Diameter: 4.61in (117mm)
- Band Width: 0.62in
- Recommended Torque: 168 PPI
- Recommended Tightening Torque: 14 lb-ft (20 NM)
- SAE Number: 462
- SAE Size: 74
- Reusable: Yes
- Includes: (1) Mishimoto Constant Tension Worm Gear Clamp, Mishimoto Lifetime Warranty
Frequently Asked Questions
What size hoses or pipes does the Mishimoto MMCLAMP-CTWG-117 fit?
This constant tension worm gear clamp secures pipes, couplers, and hoses with an outer diameter from 3.74in to 4.61in (95mm to 117mm).
What makes a constant tension worm gear clamp different from a standard clamp?
A spring on the adjustment bolt allows this clamp to exert continuous pressure through a wide range of temperatures, so it maintains clamping force even in high-temperature applications.
What material is this clamp made from?
The clamp is made from stainless steel, with a steel spring, giving it corrosion resistance for long-term use.
Is the Mishimoto MMCLAMP-CTWG-117 reusable?
Yes, this clamp is listed as reusable.
What is the recommended tightening torque for this clamp?
The recommended tightening torque is 14 lb-ft (20 NM).
Does this clamp come with a warranty?
Yes, it is backed by the Mishimoto Lifetime Warranty.
