Description

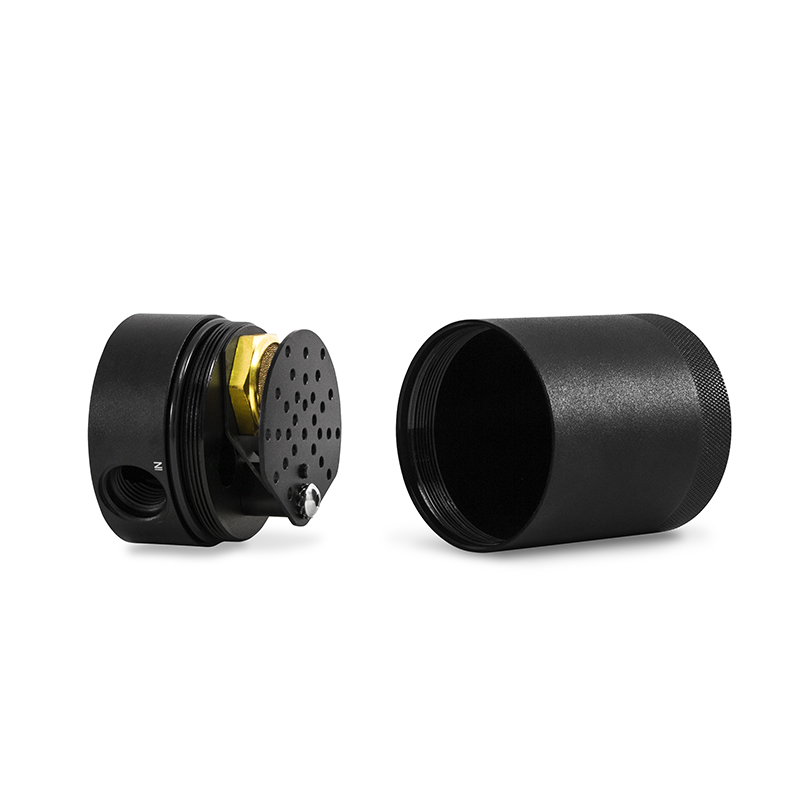

The Mishimoto MMBCC-ACRD15-18PBEBK is a direct-fit baffled oil catch can kit engineered specifically for the Honda Accord’s 1.5L L15B7 turbocharged engine. Unlike a universal setup, this kit ships with pre-molded hoses shaped to match the Accord’s engine bay and a dedicated mounting bracket, so it installs without cutting or splicing factory lines. At the heart of the kit is a patented (US D884,760 S), 3 oz. billet 6061 aluminum can with a twist-off lid and Viton O-ring seal, built to intercept blow-by before it reaches the intake tract.

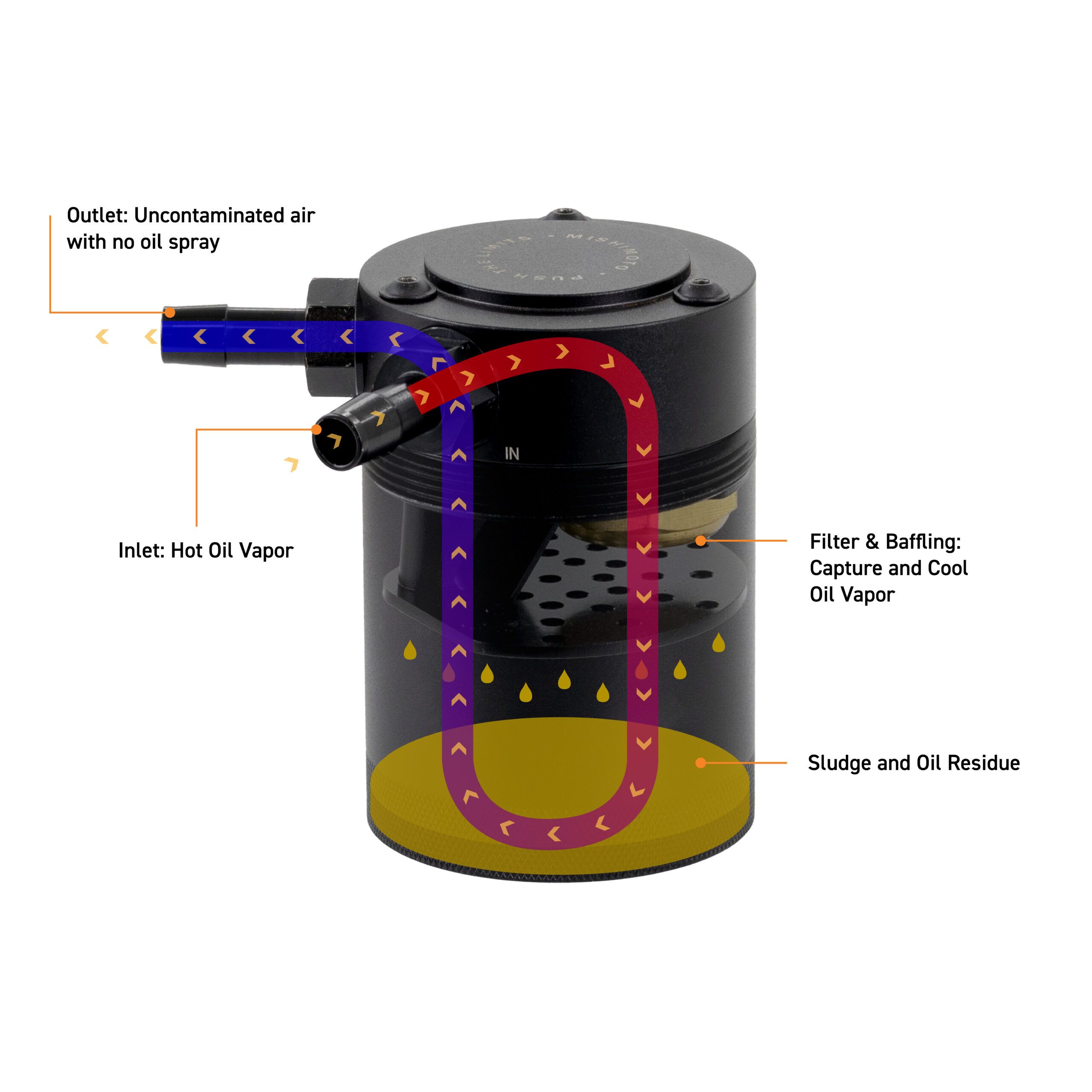

Blow-by is a natural byproduct of automobile combustion that affects nearly every car engine, and the L15B7 powering this Accord is no exception. As crankcase pressure escapes, oil and fuel vapor travel back through the intake system, coating valves and other car engine parts with carbon deposits over time. Mishimoto’s catch can mounts in line with the PCV system and routes that vapor through a 50-micron bronze filter and internal baffle, separating oil from air before it can foul essential components of an automobile engine. An integrated check valve keeps boost pressure from reaching the can or crankcase, while CNC-machined aluminum barbed fittings keep the connection between hoses and can secure. For anyone comparing engine parts and car parts built to protect long-term performance, this catch can addresses one of the most overlooked systems among the parts of a car engine: the PCV circuit.
Vehicle Applications
This kit is a direct fit for the 2018-2020 Honda Accord EX, EX-L, LX, Sport, and Touring trims, as well as the 2018-2020 Honda Accord Hybrid, Hybrid EX, Hybrid EX-L, and Hybrid Touring, all equipped with the 1.5L L15B7 engine. No other years, makes, or models are covered by this application.
Features
- Direct fit for the covered Honda Accord 1.5T models
- Single can mounts in line with the PCV system and uses a 50-micron bronze filter to separate oil from air
- Helps reduce carbon build-up on intake valves
- Patented (US D884,760 S) billet 6061 aluminum sealed can sealed with Viton O-rings
- Installs in under 30 minutes

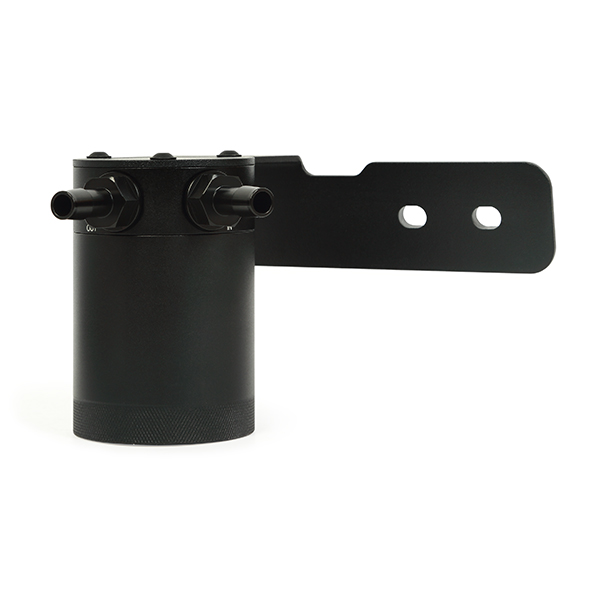

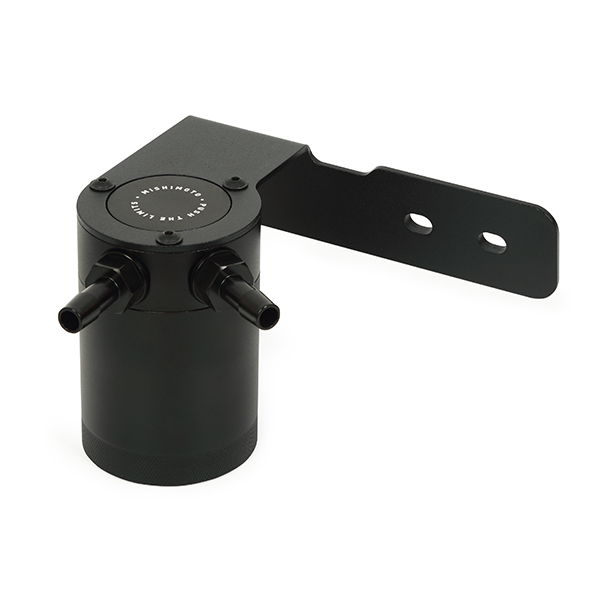

- Application-specific bracket mounts the can in a serviceable location, available in wrinkle black or wrinkle red
- Includes pre-molded hoses for simplified installation
- Integrated check valve prevents leaks by keeping boost pressure from reaching the catch can and crankcase
- Defends the intake system and essential engine components from oil blow-by
- CNC-machined aluminum barbed fittings ensure a sturdy connection between lines and can
- 3 oz. can capacity for longer service intervals

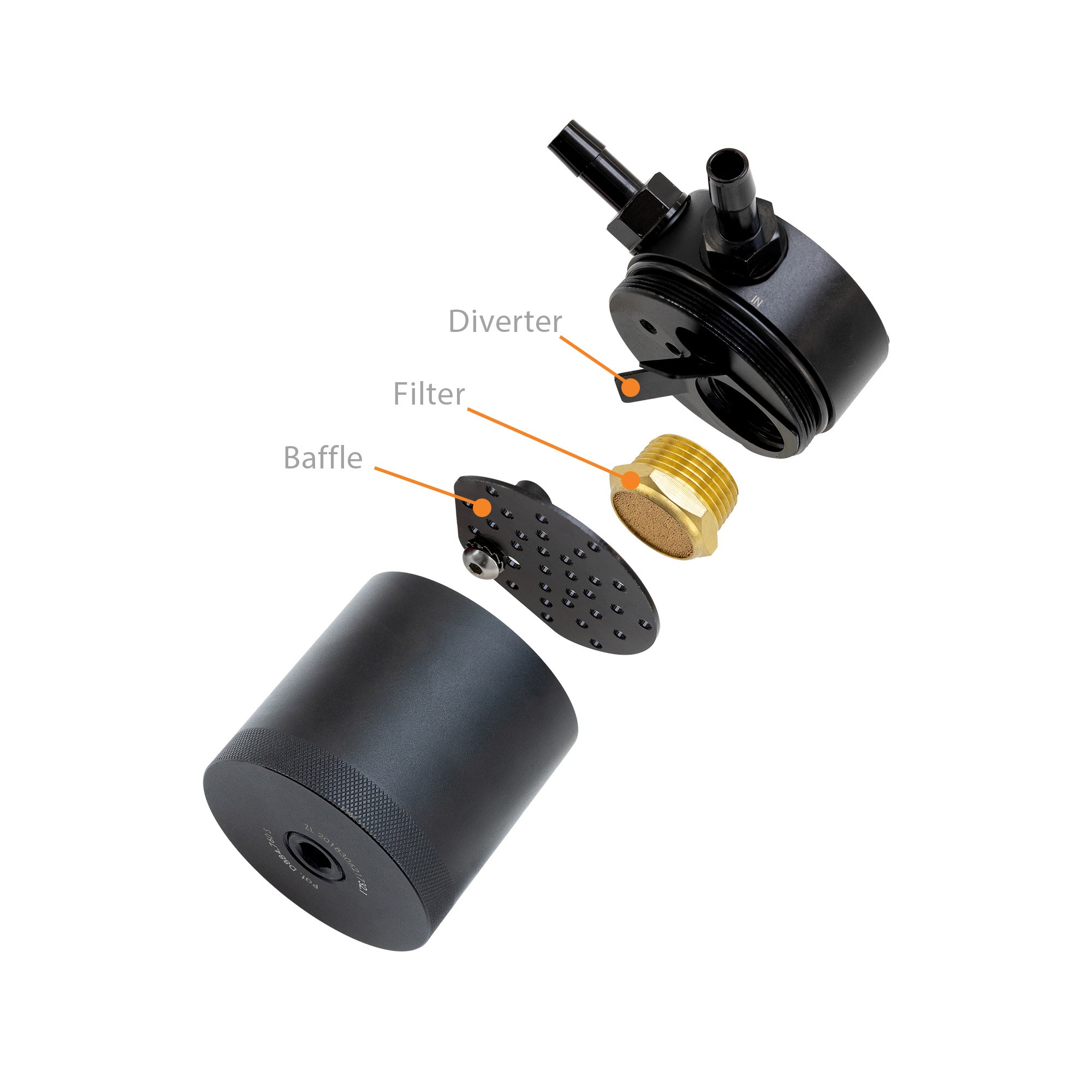

- Internal air diverter increases air turbulence to improve oil separation
- Helps maintain proper octane levels to reduce potential detonation
- Filter and can are fully serviceable
- Backed by the Mishimoto Lifetime Warranty
Specifications
- Brand: Mishimoto
- Part Number: MMBCC-ACRD15-18PBEBK
- Engine Code: L15B7
- Can Material: 6061-T6 Billet Aluminum
- Can Type: Twist Off
- Can Finish: Anodized
- Can Outside Diameter: 2.5 in
- Maximum Can Capacity: 3 oz.
- Height: 3.7 in
- Color: Black
- Bracket Finish: Powdercoated
- Bracket Material: Aluminum
- Inlet Port Inside Diameter: 0.6 in
- Outlet Port Inside Diameter: 0.6 in
- Hose Included: Yes
- Drain Plug Included: Yes
- Interior Baffle: Yes
- Mounting Bracket Included: Yes

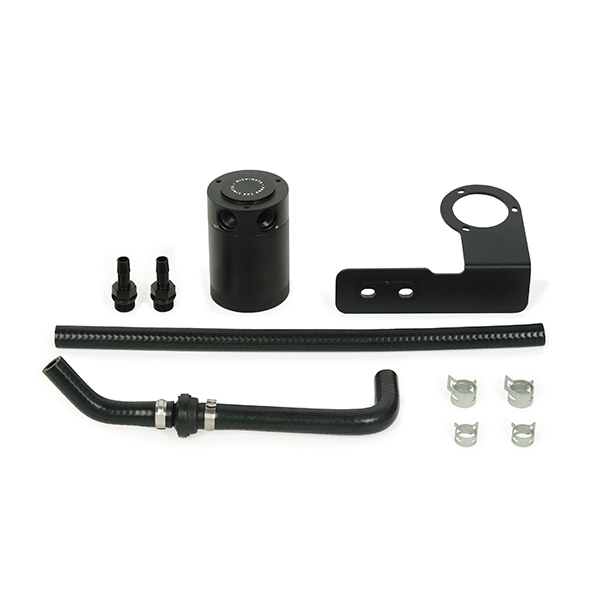

- Kit Includes: (1) Compact Baffled Oil Catch Can, (1) Application-Specific Mounting Bracket, (2) Direct-Fit Hoses with Integrated Check Valve, (4) Spring Clamps, (2) 3/8-in Aluminum Barbed Fittings, Mounting Hardware, Mishimoto Lifetime Warranty
Frequently Asked Questions
Which Honda Accord models does this Mishimoto catch can kit fit?
It is a direct fit for the 2018-2020 Honda Accord EX, EX-L, LX, Sport, and Touring, as well as the 2018-2020 Honda Accord Hybrid, Hybrid EX, Hybrid EX-L, and Hybrid Touring, all equipped with the 1.5L L15B7 engine.
What is the catch can made from?
The can is machined from 6061-T6 billet aluminum with an anodized finish and a twist-off lid sealed with Viton O-rings.
What does the kit include?
(1) Compact Baffled Oil Catch Can, (1) Application-Specific Mounting Bracket, (2) Direct-Fit Hoses with Integrated Check Valve, (4) Spring Clamps, (2) 3/8-in Aluminum Barbed Fittings, Mounting Hardware, and the Mishimoto Lifetime Warranty.
How long does installation take?
According to Mishimoto, the kit installs in under 30 minutes.
What is the maximum capacity of the catch can?
The catch can has a 3 oz. capacity.
What warranty does this kit carry?
It is backed by the Mishimoto Lifetime Warranty.
