Description
The Mishimoto MMOC-CSS-10TSL is a purpose-built, direct-fit liquid-to-air oil cooler kit engineered specifically for the LS3 and L99 engines found in the 2010-2015 Chevrolet Camaro SS. Finished in Sleek Silver with an anodized surface, this kit pairs a 25-row stacked-plate bar-and-plate core with a thermostatic oil sandwich plate to take the factory liquid-to-liquid setup a step further. Mishimoto’s engineers designed the entire kit, down to the mounting bracket, around the 5th Gen Camaro chassis for a true bolt-in fit.
This Mishimoto oil cooler kit mounts behind the front bumper to capture the airflow moving through the front end of the car, helping maintain optimal oil temperature during hard driving and extended full-throttle sessions. In testing, the cooler delivered a 35°F drop in oil temperature while maintaining minimal pressure drop, and the kit also increases oil capacity by 0.75 qt. Every Mishimoto cooler kit ships with pre-assembled stainless steel braided oil lines fitted with durable AN fittings, plus all the hardware needed for installation, so drivers get a complete oil cooler kit rather than a collection of loose parts.
Vehicle Applications
This Mishimoto direct-fit oil cooler kit is designed exclusively for the 2010–2015 Chevrolet Camaro SS equipped with the LS3 or L99 engine. The application-specific mounting bracket, hose lengths, and sandwich plate are all matched to this platform for a clean, factory-style installation behind the front bumper.
Features
- Direct fit for the 2010-2015 Chevrolet Camaro SS (LS3/L99 engines)

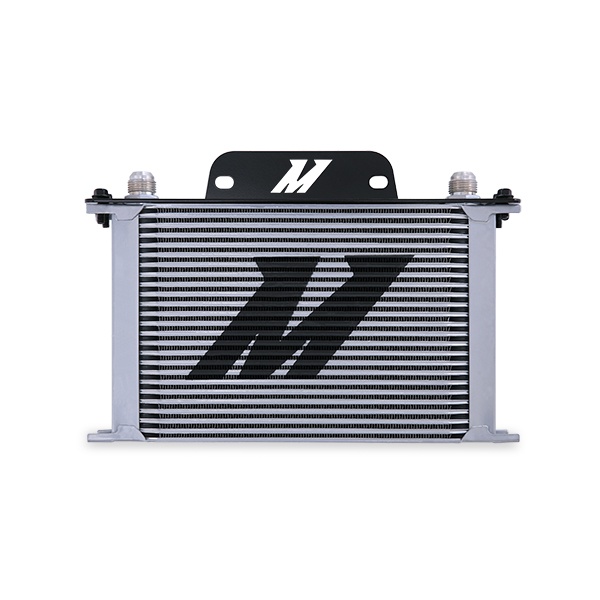

- 25-row stacked-plate bar-and-plate oil cooler core for oil temperature reduction
- Test-proven 35°F oil temperature drop with minimal pressure drop
- Application-specific mounting bracket for a clean, direct-fit installation

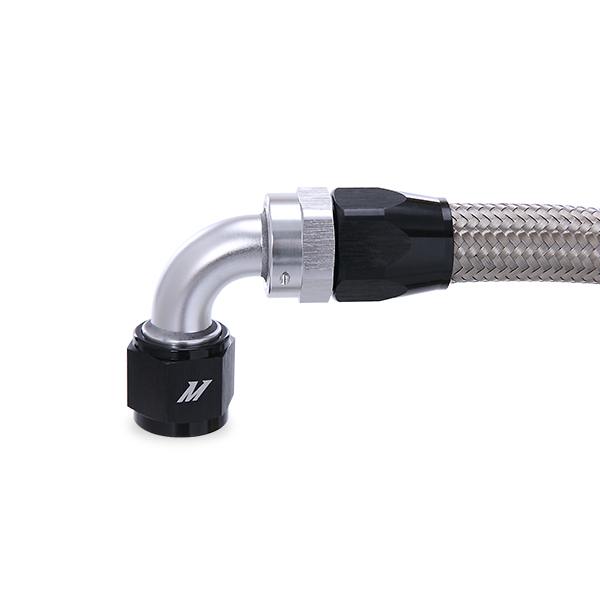

- Pre-assembled stainless steel braided oil lines with -10AN fittings (65-in and 54-in lengths)
- Thermostatic M22 oil sandwich plate with CNC sandwich plate spacer and stainless steel adapter
- Banjo fittings with bolt and Dowty seals included
- Increases oil capacity by 0.75 qt
- Available in Sleek Silver (as shown) or Stealth Black
- Backed by the Mishimoto Lifetime Warranty
Specifications
- Brand: Mishimoto
- Part Number: MMOC-CSS-10TSL
- Color/Core Color: Silver
- Finish: Anodized
- Core Type: Bar-and-Plate
- Grade Type: Performance
- Core Row Quantity: 25
- Option: Silver, Thermostatic
- Inlet/Outlet Fitting Type: AN Flare
- Inlet/Outlet Fitting Gender: Male
- Overall Width: 1.97 in
- Overall Height: 12.95 in
- Overall Length: 8.35 in
- Engine Codes: LS3, L99
- Recommended torque for straight fittings and banjo bolts: 15-25 lb-ft (do not exceed 35 ft-lb)
Frequently Asked Questions
What vehicles fit this Mishimoto oil cooler kit?
This kit is a direct fit for the 2010-2015 Chevrolet Camaro SS equipped with the LS3 or L99 engine.
How many rows does the oil cooler core have?
The cooler uses a 25-row stacked-plate, bar-and-plate core for oil temperature reduction.
How much does this kit reduce oil temperature?
Mishimoto’s testing showed a 35°F drop in oil temperature with this kit installed.
What color is this specific kit?
This kit option is Silver with an anodized finish and includes a thermostatic oil sandwich plate; Mishimoto also offers the cooler in Stealth Black.
What is included with the Mishimoto oil cooler kit?

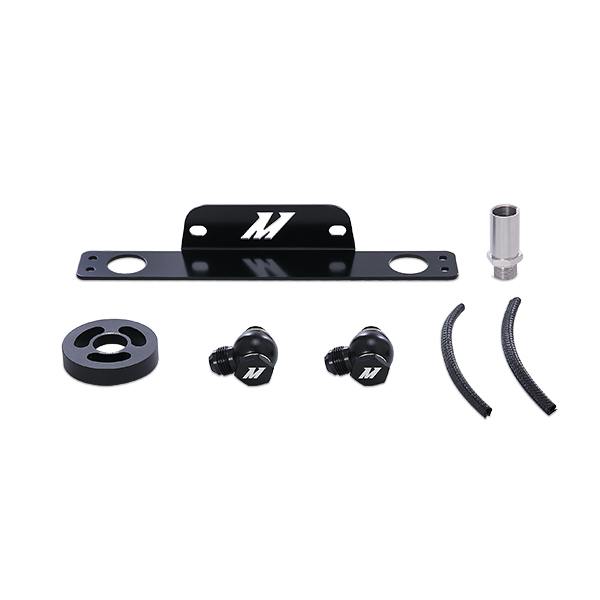

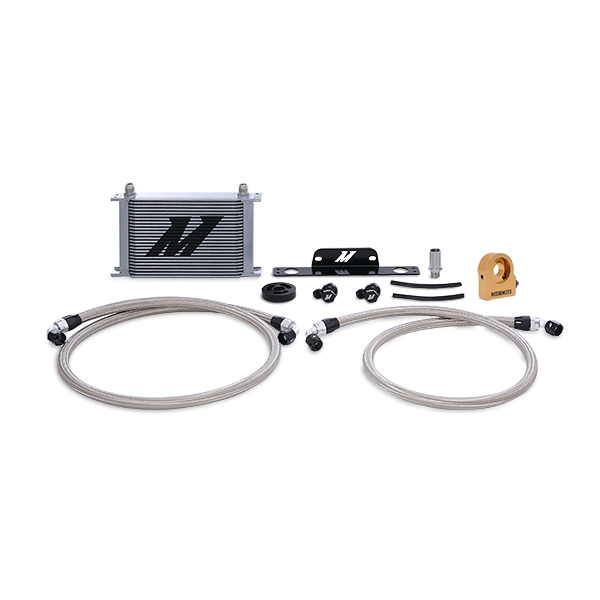

The kit includes an application-specific mounting bracket, the 25-row oil cooler, pre-assembled stainless steel braided hoses with -10AN fittings, banjo fittings with bolt and Dowty seals, an M22 oil sandwich plate, a CNC sandwich plate spacer, and a stainless steel sandwich plate adapter, backed by the Mishimoto Lifetime Warranty.
Does the kit affect oil capacity?
Yes, installing this kit increases oil capacity by 0.75 qt.
