Mishimoto Direct-Fit Oil Cooler Kit | 2017-2021 Honda Civic Type R

Description

The Mishimoto Direct-Fit Oil Cooler Kit (MMOC-CTR-17TBK) was engineered specifically for the FK8-chassis Honda Civic Type R and its K20C1 engine, adding a 19-row air-to-air oil cooler to a factory cooling system that Mishimoto’s engineers identified as a weak point once the car sees track use or an aggressive tune. Finished in black with an anodized surface, this kit is built to take the heat off the stock liquid-to-liquid unit rather than replace it entirely.

This Mishimoto oil cooler kit is designed to lower oil temperatures by 15°F by routing oil through a dedicated bar-and-plate cooler mounted behind the FK8’s aero-centric front bumper, where it can take advantage of natural airflow. Application-specific brackets hold the cooler in place while preserving airflow to the front wheel well, and the oil is carried to and from the core through stainless steel braided lines fitted with -AN hardware for a secure, direct-fit installation. Because the kit retains the factory liquid-to-liquid cooler and adds a thermostatic sandwich plate, it’s built to guard against overcooling while still giving the K20C1 the extra thermal headroom it needs when temperatures climb. As a Mishimoto Cooling product, it’s backed by the Mishimoto Lifetime Warranty.

Vehicle Applications

This Mishimoto oil cooler kit is a direct fit for the 2017-2021 Honda Civic Type R (chassis code FK8, engine code K20C1), and it also fits the 2021 Honda Civic Type R Limited Edition. No other years, makes, or models are covered by this kit.

Features

• Direct fit for the 2017-2021 Honda Civic Type R
• Reduces oil temperatures by 15°F (8°C)
• Minimal pressure drop
• Application-specific brackets designed to retain proper airflow to the wheel well
• Direct-fit stainless steel braided oil lines with durable -AN fittings
• 19-row stacked plate oil cooler for optimal fluid temperature reduction
• Billet aluminum thermostatic oil sandwich plate
• Increases oil capacity by .65 qt
• Retains the use of the stock liquid-to-liquid oil cooler unit
• Available in silver or black
• Backed by the Mishimoto Lifetime Warranty

Specifications

• Core Type: Bar-and-Plate
• Core Row Quantity: 19
• Core Height: 5.43 in
• Core Width: 11 in
• Core Thickness: 1.97 in
• Overall Width: 12 in
• Overall Height: 10 in
• Overall Length: 11 in
• Finish: Anodized
• Core Color: Black
• Inlet/Outlet Fitting Type: AN Flare, Male
• Grade Type: Performance
• Engine Code: K20C1
• Chassis Code: FK8
• Recommended torque for straight fittings and banjo bolts: 15-25 ft-lb (do not exceed 35 ft-lb)

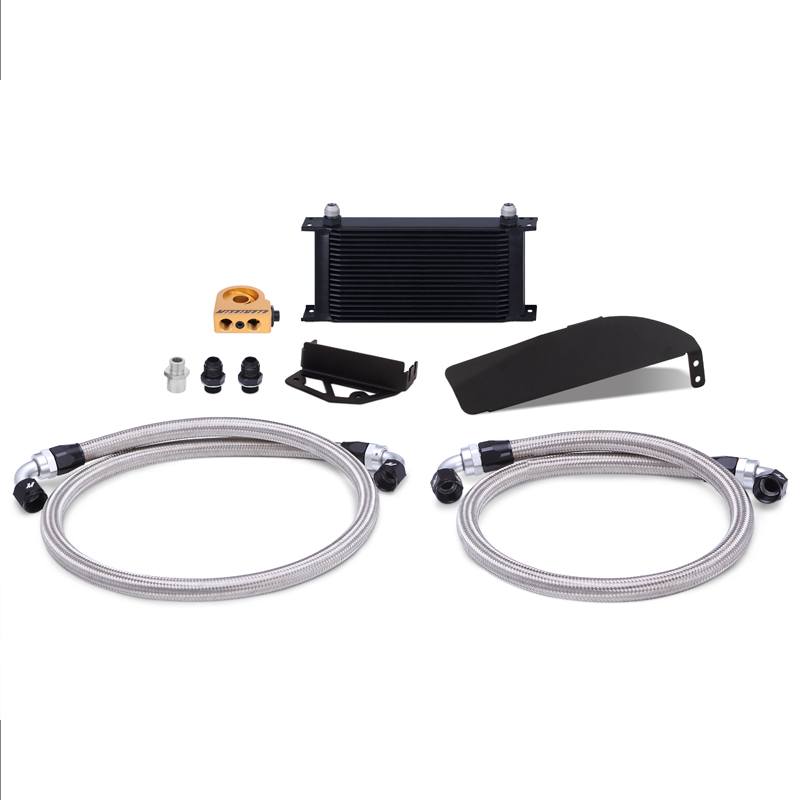

• Kit Includes: application-specific mounting brackets, 19-row oil cooler, 4-ft stainless steel braided hose with 90° and 120° -10AN fittings, 3-ft 8-in stainless steel braided hose with 90° and 120° -10AN fittings, thermostatic sandwich plate with adapter, M20 x -10AN straight fittings, mounting hardware, and the Mishimoto Lifetime Warranty
