Description

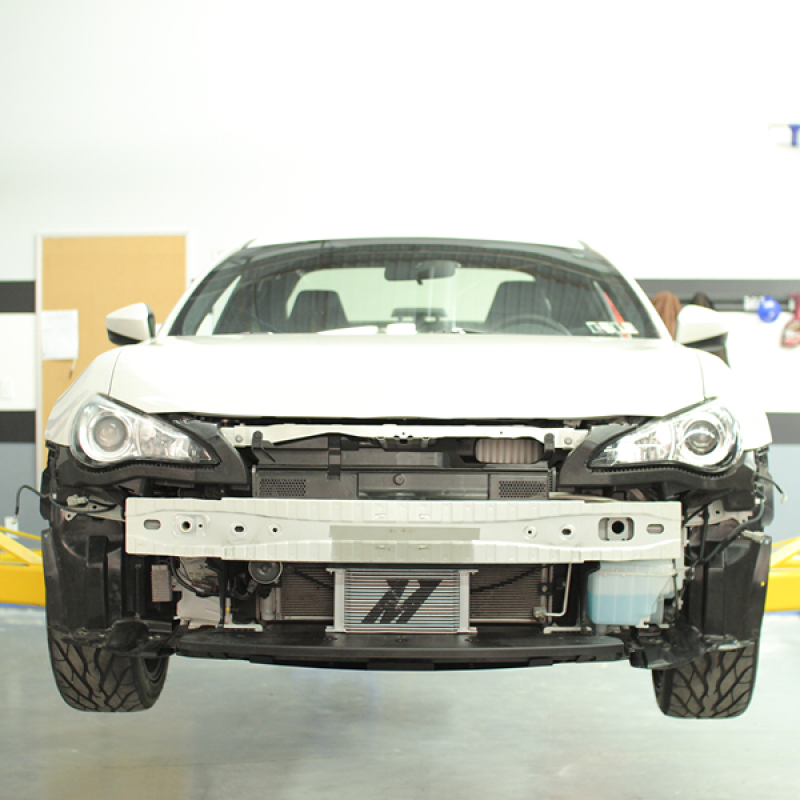

The Mishimoto Direct-Fit Oil Cooler Kit (MMOC-BRZ-13T) mounts a 19-row stacked-plate oil cooler directly in the front bumper of your Subaru BRZ or Scion FR-S, positioning it for the airflow needed to keep oil temperatures in check on track days and mountain runs alike. Built around a bar-and-plate core with a silver, anodized finish, this Mishimoto oil cooler pairs stainless steel braided oil lines with a Mishimoto billet aluminum oil sandwich plate — available in standard or thermostatic form — to give your BRZ, FR-S, or 86 the cooling capacity it needs when the driving gets serious.
Properly regulated oil temperatures translate directly into improved durability and longevity, whether your car is bone stock or built for the track. This Mishimoto oil cooler kit ships complete with application-specific mounting brackets and CNC-machined aluminum spacers for the oil sandwich plate, plus all the fittings and hardware required for bolt-on installation. Because the sandwich-plate design increases oil capacity by .65 qt, the system adds meaningful thermal mass on top of the added cooling surface from the 19-row core. Choose the thermostatic oil sandwich plate for quicker fluid warm-up and finer control over oil temperature, or pair this cooling upgrade with the Mishimoto BRZ/FR-S performance aluminum radiator and silicone radiator hose kit for a more complete cooling solution. The cooler itself is offered in black or silver so it’s easy to match your engine bay, and every kit is backed by the Mishimoto Lifetime Warranty.
Vehicle Applications
This Mishimoto oil cooler kit is built to bolt directly into the 2013-2016 Scion FR-S Base and the 2013-2020 Subaru BRZ lineup, including Base, Limited, and Sport-tech trims, the Premium trim (2013-2019), the Sport-tech RS (2018-2020), the TS (2018 and 2020), and limited-run BRZ editions such as the Aozora Edition (2015), Series.Blue (2015), Series.HyperBlue (2016), Series.Yellow (2017), and Series.Gray (2019). It also fits the 2017-2020 Toyota 86, covering the Base trim, the GT (2018-2020), the Special Edition (2017), the TRD Special Edition (2019), and the Hakone Edition (2020), on chassis codes ZN6 and ZC6 with engine code FA20.
Features

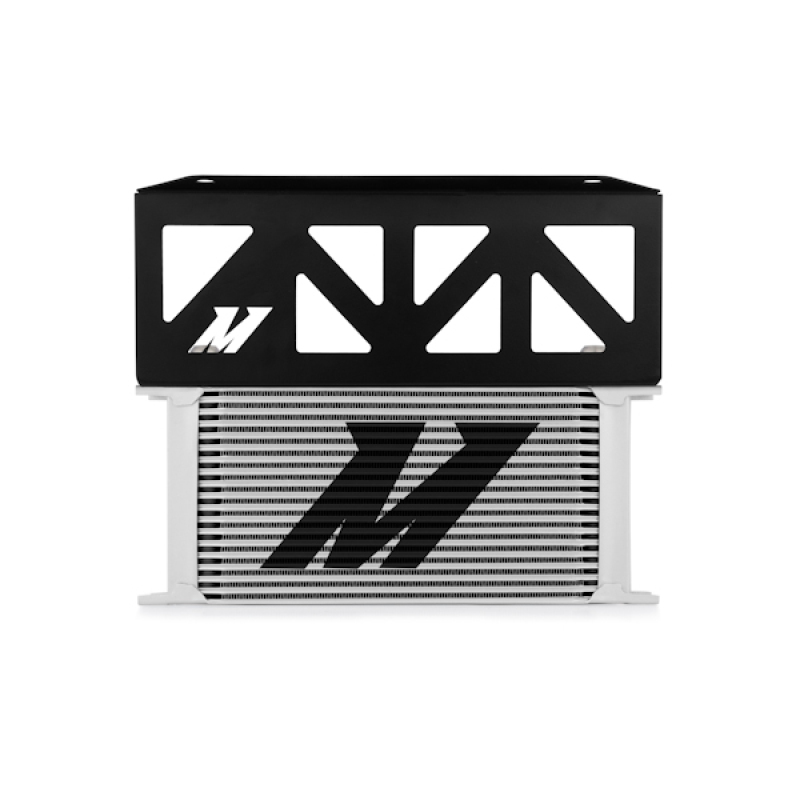

- Application-specific mounting brackets for a bolt-on fit

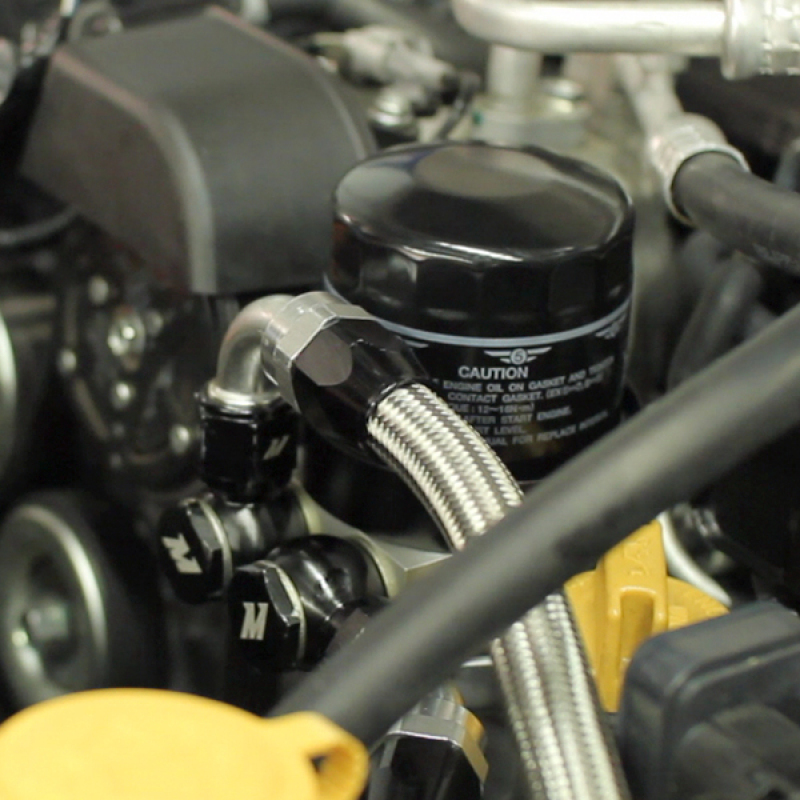

- Premade braided stainless steel oil lines with durable -AN fittings

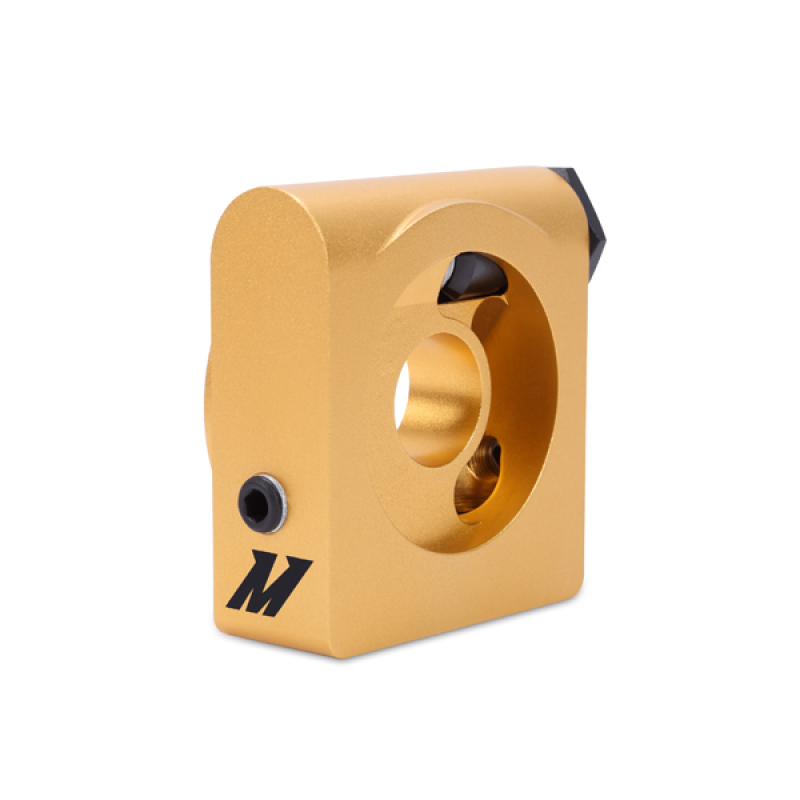

- Billet aluminum oil sandwich plate available in standard or thermostatic form
- 19-row stacked-plate oil cooler for optimal fluid temperature reduction
- CNC-machined aluminum spacers for the oil sandwich plate
- Increases oil capacity by .65 qt
- Available with black or silver cooler finish
- Backed by the Mishimoto Lifetime Warranty
Specifications
- Core Type: Bar-and-Plate
- Core Row Quantity: 19
- Core Height: 5.43 in
- Core Thickness: 1.97 in
- Core Width: 11 in
- Core Color: Silver
- Finish: Anodized
- Grade Type: Performance
- Inlet Fitting Type: AN Flare, Male
- Outlet Fitting Type: AN Flare, Male
- Overall Width: 12 in
- Overall Height: 10 in
- Overall Length: 11 in

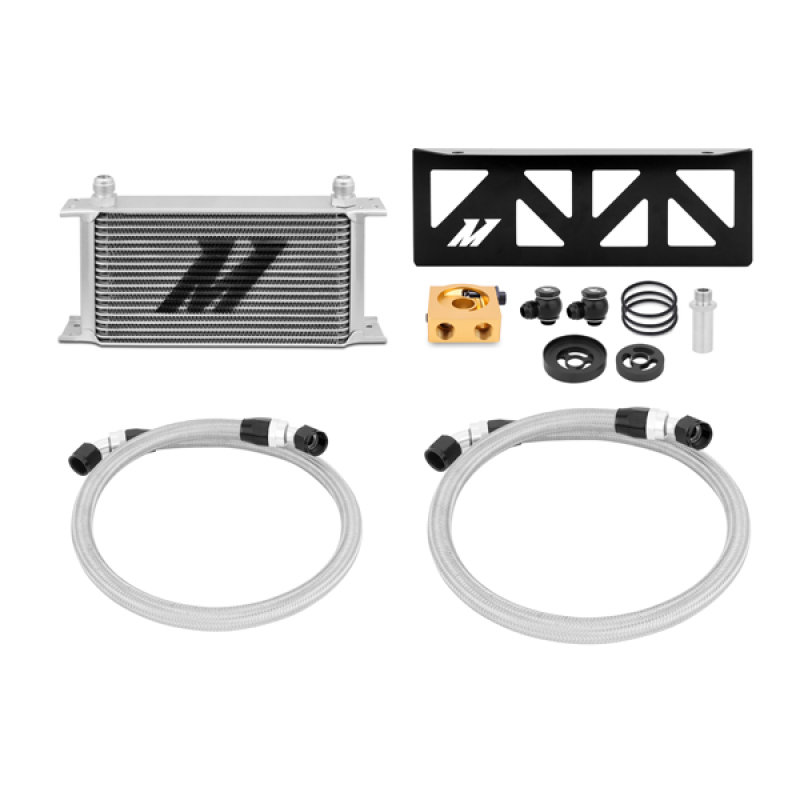

- Includes: application-specific mounting bracket, 19-row oil cooler, 3-ft stainless steel braided hose w/ -10AN fittings, 4-ft 2-in stainless steel braided hose w/ -10AN fittings, oil sandwich plate, 6061 aluminum CNC sandwich plate spacers (black), stainless steel sandwich plate adapter (M20), banjo fitting w/ bolt M20 x -10AN (black), 1/8-in NPT plugs, O-rings, mounting hardware set, and the Mishimoto Lifetime Warranty
Frequently Asked Questions
What does the Mishimoto MMOC-BRZ-13T oil cooler kit include?
It includes an application-specific mounting bracket, a 19-row oil cooler, a 3-ft and a 4-ft 2-in stainless steel braided hose with -10AN fittings, an oil sandwich plate, 6061 aluminum CNC sandwich plate spacers (black), a stainless steel sandwich plate adapter (M20), a banjo fitting with bolt (M20 x -10AN, black), 1/8-in NPT plugs, O-rings, mounting hardware, and the Mishimoto Lifetime Warranty.
Which vehicles does this Mishimoto oil cooler kit fit?
It fits the 2013-2016 Scion FR-S Base, the 2013-2020 Subaru BRZ lineup (Base, Limited, Sport-tech, Premium through 2019, Sport-tech RS 2018-2020, TS 2018 and 2020, and special editions like Aozora Edition, Series.Blue, Series.HyperBlue, Series.Yellow, and Series.Gray), and the 2017-2020 Toyota 86 (Base, GT, Special Edition, TRD Special Edition, and Hakone Edition), on chassis codes ZN6 and ZC6 with engine code FA20.
Is a thermostatic oil sandwich plate available?
Yes, the kit is available with a thermostatic oil sandwich plate for quicker fluid warm-up and additional oil temperature control, in addition to the standard billet aluminum oil sandwich plate.
How much does this kit increase oil capacity?
The kit increases oil capacity by .65 qt.
What colors is the cooler available in?
The Mishimoto Direct-Fit Oil Cooler Kit is offered with both black and silver coolers.
Does this oil cooler kit come with a warranty?
Yes, it includes the Mishimoto Lifetime Warranty.
